The 10in (254mm) Jaw Crushers have a maximum feed size of 8in (203mm) and the final output size can be regulated from 1/4–3in (6–76mm) through clearance adjustment of the jaw plates. Throughput is approximately 1 to 2 tons (900 to 1,800kg) per hour.
Jaw sizes are 10x6in (254x152mm) WxD and jaw plates are made from 0.75in (19mm) hard-faced abrasion-resistant steel. The facing material has a Brinell hardness of 450. The main shaft is 2.4in (61mm) at the camshaft and 2in (51mm) at the drive shaft.

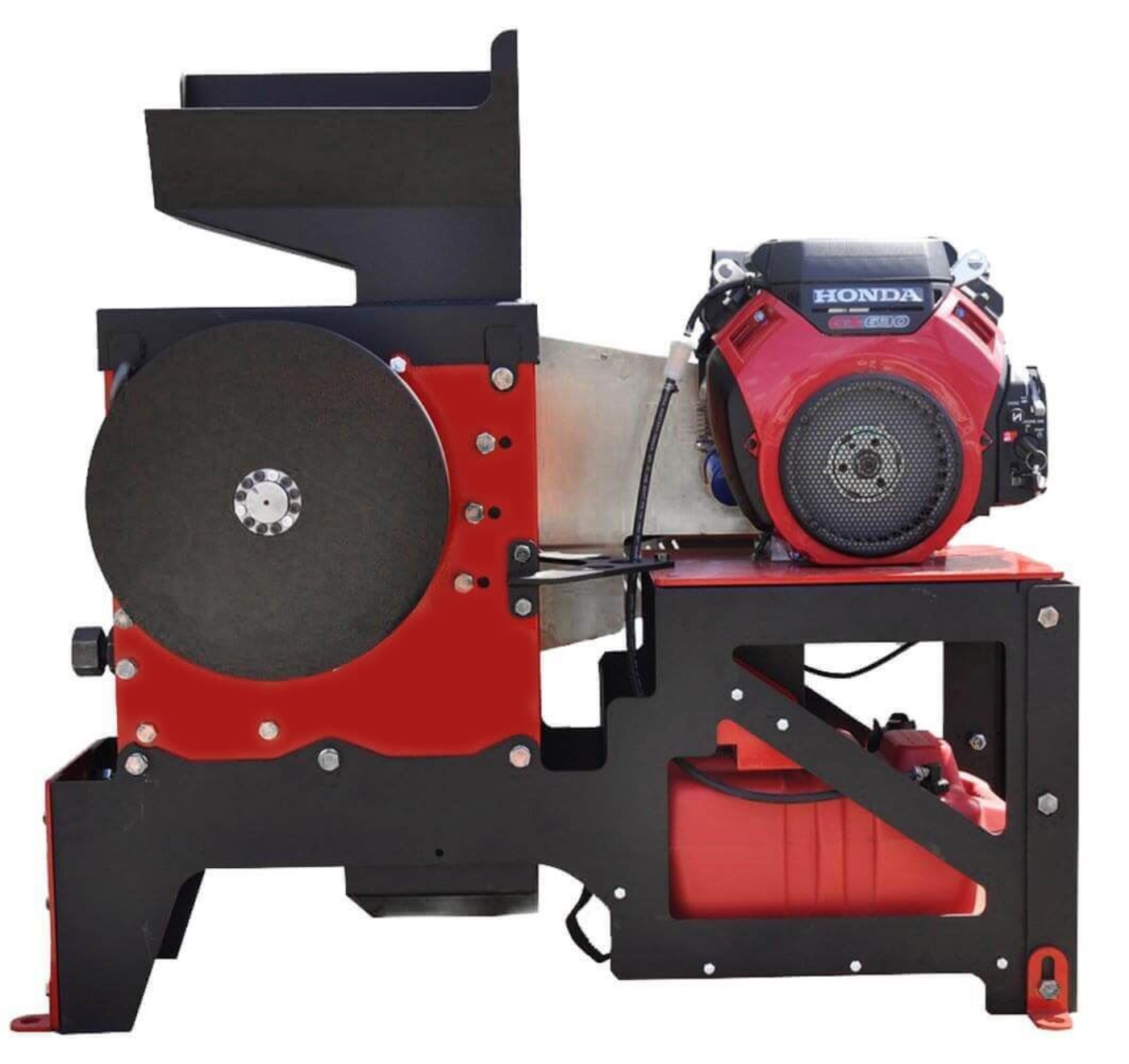

LC-44G operates with a 20hp Gasoline Engine.

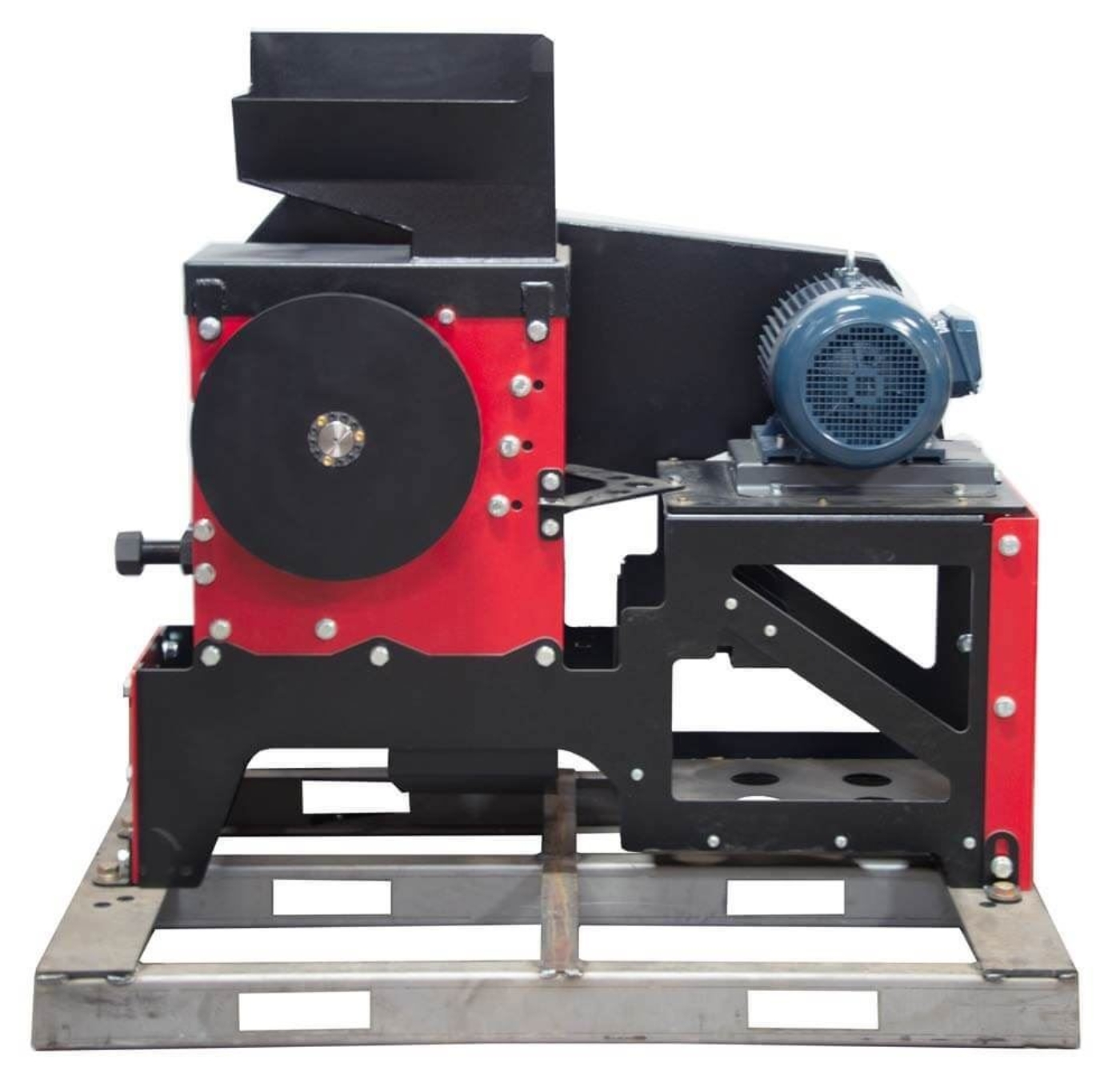

LC-44E operates with a 10hp Electric Motor and the motor is shipped ready for wiring to a number of common three-phase voltage configurations from 208-460V.
Features:
- 10x6in (254x152mm) jaw size accommodates larger sample sizes
- Approximate throughput of 1–2t/hr (907–1,814kg/hr)
- Available with gas or electric power options
Included Items:
- 10in Jaw Crusher (with 20hp gasoline or 10hp electric motor)
Accessories:

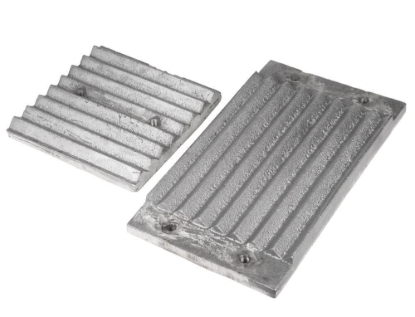

- LCA-415 Cast Manganese/Chrome Steel Jaw Plates are special abrasion-resistant, longer life of jaw crusher, and process hard and tough materials
