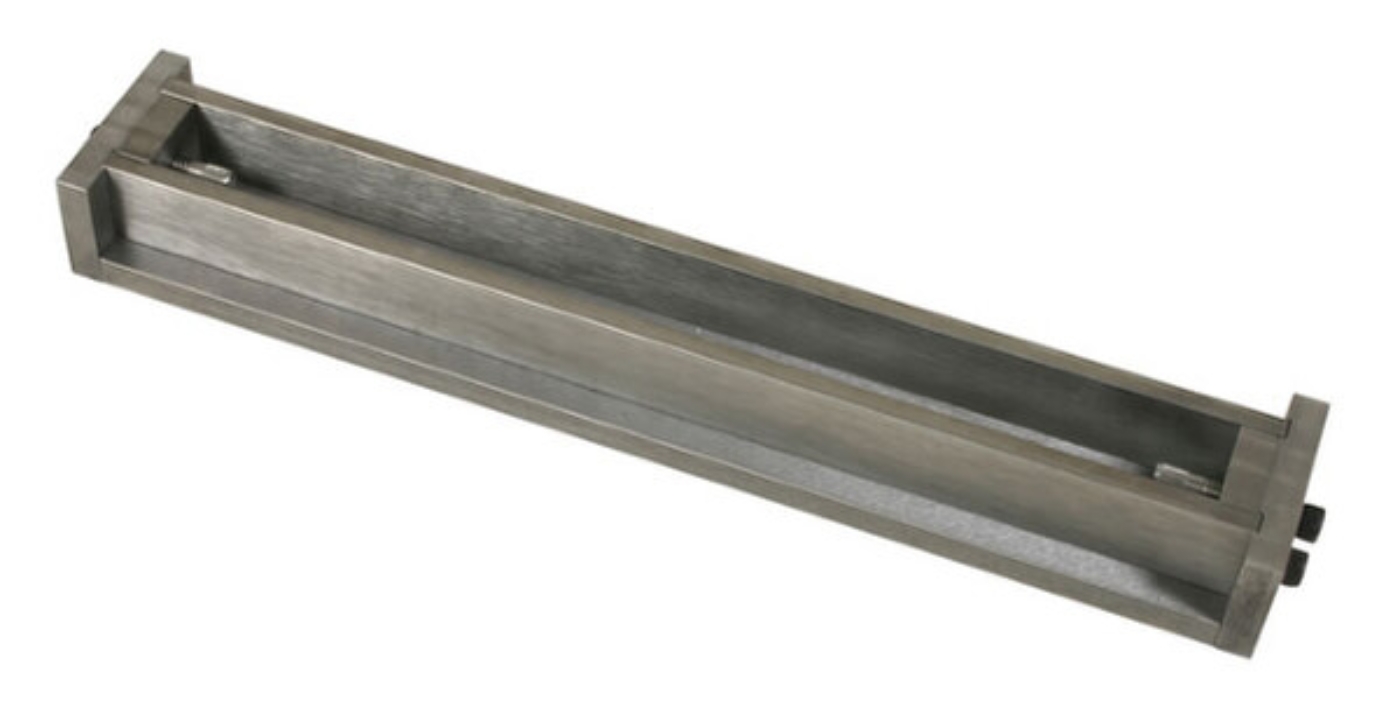

Single Prism Mold, 1x1x10in (25x25x254mm) forms 10in effective gauge length prism test bars. Testing applications include potential alkali reactivity, expansion, volume, length, and linear change. It is also used with a Length Comparator to measure Portland cement paste, mortar, and concrete prism samples.
The mold has a base plate, removable partitions, and end plates constructed of corrosion-resistant steel to provide the required length of 10in (254mm) between ends of HM-268 Gauge Studs cast on ends of bars. Length between the outside ends of gauge studs is 11.625in (296mm) with specimen cross-sections of 1x1in (25x25mm).
Features:
- Made of corrosion-resistant steel
- Suited for testing different types of concrete material
Included Items:
- Single Prism Mold, 1x1x10in
Accessories:
- HM-268 Prism Length Change Gauge Studs used for casting in ends of bars
- HM-298 Rubber Tamper for Cube Molds to consolidate specimens
