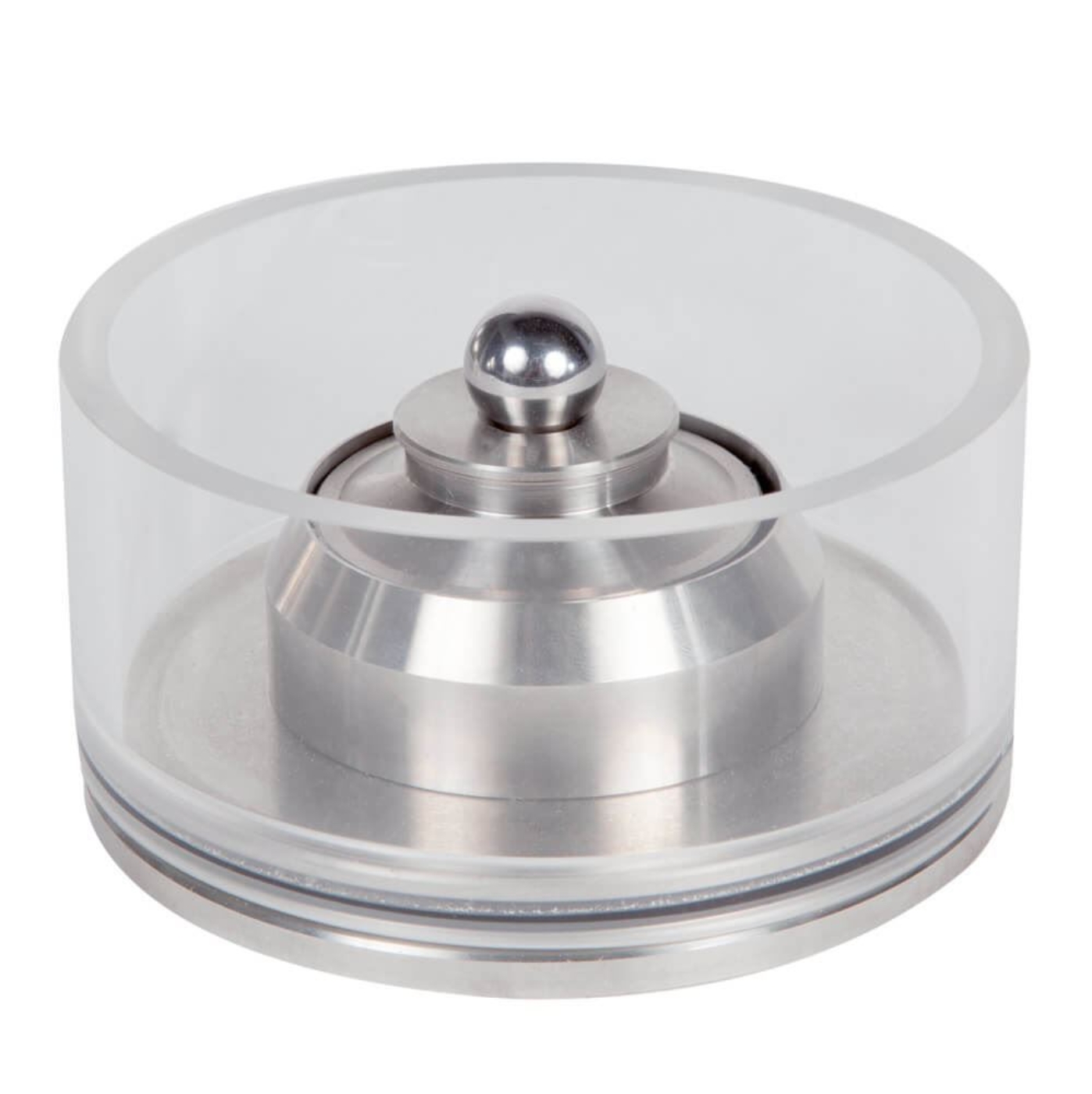

2.42in (61.47mm) Floating-Ring Consolidometer by Karol-Warner is compatible with the Consolidation Load Frames from Karol-Warner and other manufacturers. The sample ring is detached from the base and supported by the friction of the specimen, so loads are transferred to both the top and bottom of the soil sample. The Consolidometer has a stainless steel base with an attached acrylic see-through inundation ring. It also comes with a stainless steel sample ring with cutting edge, load pad, load-bearing ball, and top and bottom porous stones. Components are also available separately for replacement. The unit is designed to fit most manufacturer’s testing units.
Features:
- Works with Karol Warner and other consolidation load frames
- Stainless steel construction

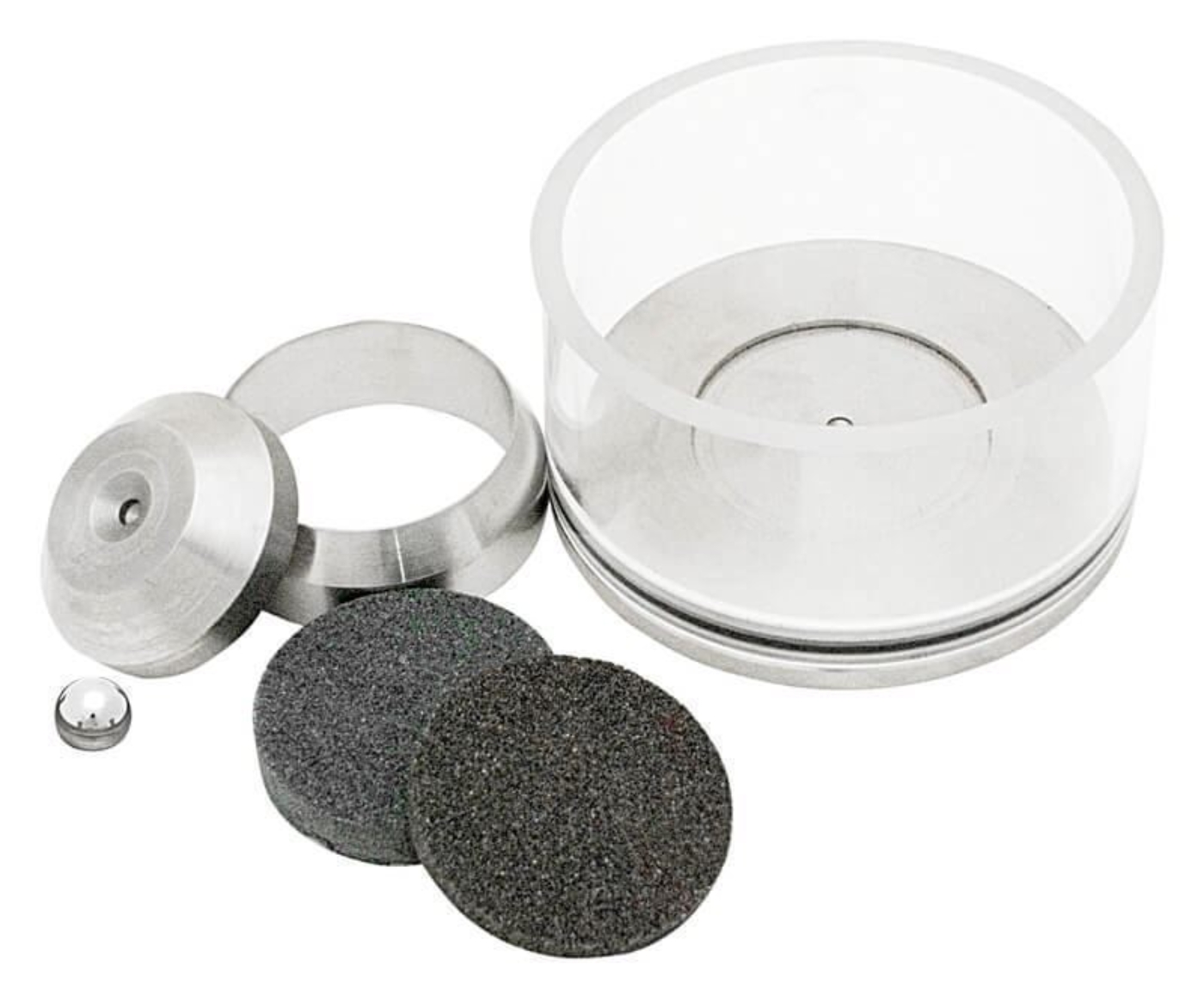

Included Items:
- 2.42in Floating-Ring Consolidometer
- Cutting Sample Ring
- Two Porous Stones
- Loading Ball
Accessories:
- HMA-90D 2.42in Cutting Sample Ring trims soil sample for testing
- HMA-88D 2.42in Calibration Disc verifies the performance and accuracy of the Consolidation system
- GSA-216 Porous Stone support soil specimen and allow free flow of water
- HMA-81 Loading Ball is included with Consolidometer
