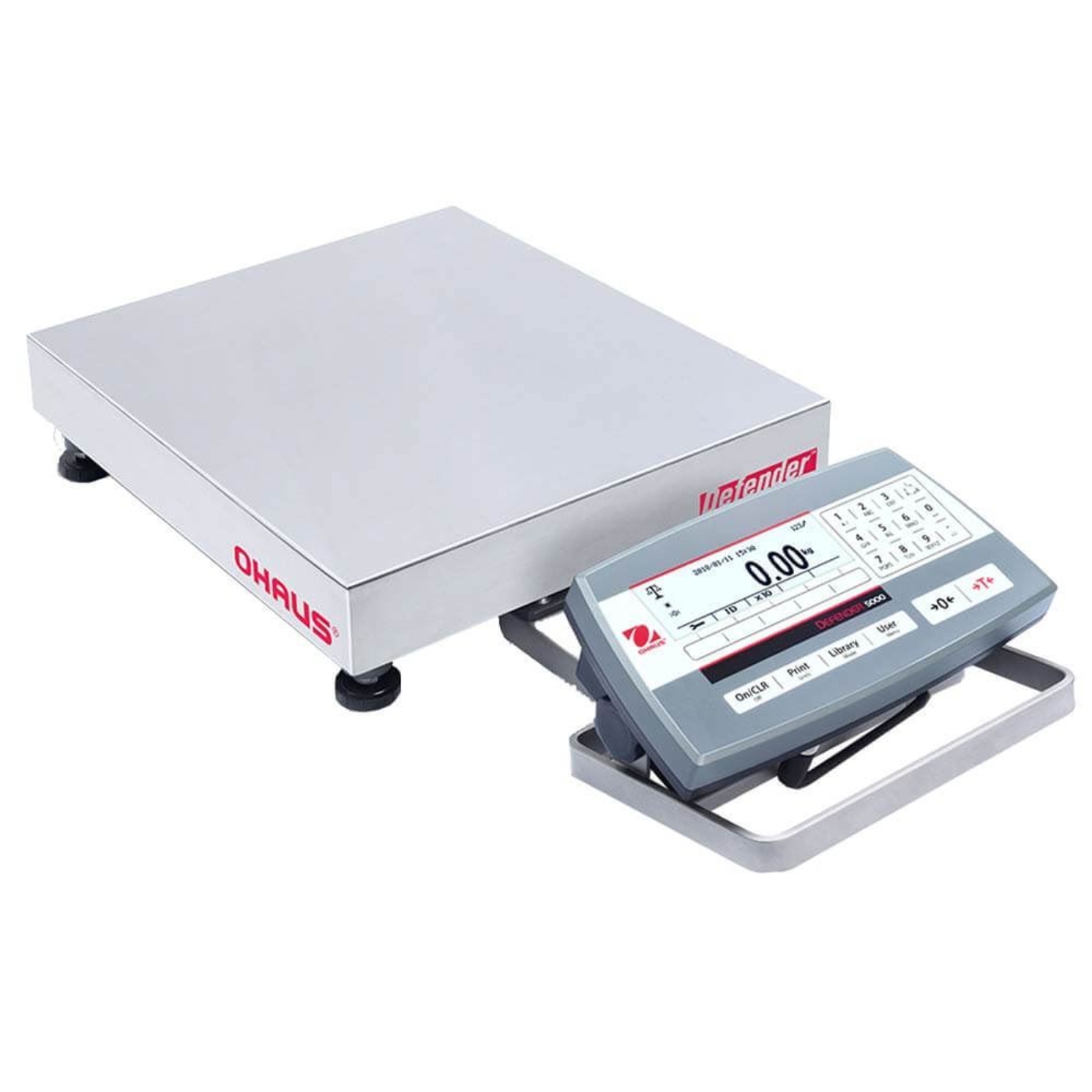

25,000g Capacity Ohaus Defender 5000 Bench Scale, 12x12in Platform

Model: OB-752
$1,871.80
Please select the address you want to ship to
Ship to
*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Expert
Questions? Talk to a Product Expert

Get help from our in-house testing equipment specialists.

Open M–F: 8:00am–5:00pm

25,000g Capacity Ohaus Defender 5000 Bench Scales with or without column is highly versatile with user-selectable units including kg, g, lb, oz, lb:oz, and custom units. This 25kg (55lb) scale has a 1.0g (0.002lb) readability and a 12x12in (305x305mm) or 14x12in (356x305mm) stainless steel weighing platform, depending on the chosen model.

Five soft keys simplify use for operators and the large transflective display can be read in direct sunlight. Constructed from durable powder-coated steel with ABS indicator and aluminum load cell for heavy use. Removable stainless steel weighing platform for easy cleaning. Weighting results can be exported through the RS-232 port. Additional connectivity options include a second RS-232, RS-485, or USB device; Ethernet; and Wi-Fi/Bluetooth interfaces.

Other standard features include 150% overload capacity protection, check weighing symbols with the selectable operation and audible signal settings, menu lock switch, multiple user-selectable operating languages, selectable environmental and Auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim display, auto-off, auto tare, and nonslip adjustable rubber feet. One-year warranty included.

Features:

  • Selectable weighing units in lb, oz, lb:oz, kg, g,
  • Included SD card storage of up to 50,000 items and 1,000 user profiles
  • RS-232 interface with multiple optional connectivity options
  • Removable stainless steel platform

Included Items:

  • 25,000g Capacity Ohaus Defender 5000 Bench Scale
  • One-year warranty

Accessories:

  • OBA-44 Impact Printer ensures accurate documentation of weighing results
  • OBA-51 Rechargeable Battery Kit is a lithium battery that allows cordless operation
  • Stainless Steel Flat Bottom Weighing Pans are seamless, durable, and make it easy to handle and weigh materials. The standard pan is compatible with scales 300g capacity and above, and the large pan is compatible with scales 400g capacity and above.

Related blogs:

Specifications

Attribute name Attribute value
Capacity 25,000g (55lb)
Readability 1.0g
Repeatability 2g
Selectable Weighing Units kg, g, lb, oz, and lb:oz
Weigh-Below Option No
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Power Requirements 100–240 VAC, 50/60 Hz Universal Power Supply, Rechargeable Lithium Battery (Optional)
Communication Port(s) RS-232 Port, optional second RS-232, RS-485 or USB device; Ethernet; and Wi-Fi/Bluetooth interfaces
Platform Size

OB-752 & OB-752C: 12 x 12in (305 x 305mm) WxD

OB-762 & OB-762C: 14 x 12in (355 x 305mm) WxD

Product Dimensions

OB-752: 12 x 23.1 x 4.6in (305 x 588 x 118mm) WxDxH

OB-752C: 12 x 17.4 x 22.6in (305 x 442 x 574mm) WxDxH

OB-762: 12 x 25.1 x 4.6in (305 x 638 x 118mm) WxDxH

OB-762C: 12 x 19.3 x 22.6in (305 x 491 x 574mm) WxDxH

Estimated Shipping Weight

OB-752: 22.0lb (9.98kg)

OB-752C: 24.3lb (11.02kg)

OB-762: 22.0lb (9.98kg)

OB-762C: 26.5lb (12.02kg)

Quick Compare

Features
Picture of 25,000g Capacity Ohaus Defender 5000 Bench Scale, 12x12in Platform

25,000g Capacity Ohaus Defender 5000 Bench Scale, 12x12in Platform

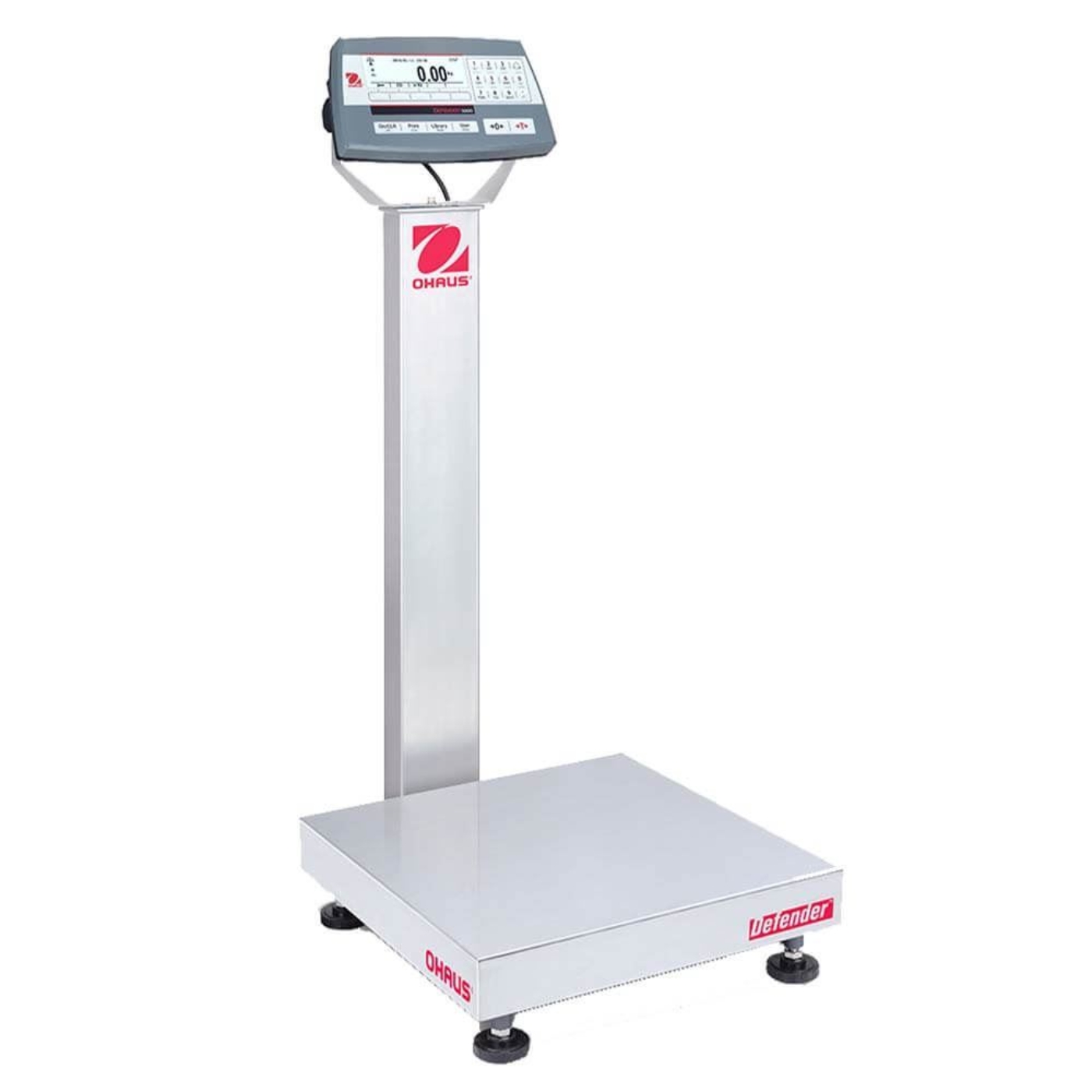

Picture of 25,000g Capacity Ohaus Defender 5000 Bench Scale w/ Column, 12x12in Platform

25,000g Capacity Ohaus Defender 5000 Bench Scale w/ Column, 12x12in Platform

Picture of 25,000g Capacity Ohaus Defender 5000 Bench Scale, 12x14in Platform

25,000g Capacity Ohaus Defender 5000 Bench Scale, 12x14in Platform

Picture of 25,000g Capacity Ohaus Defender 7000 Bench Scale w/ Column, 12x14in Platform

25,000g Capacity Ohaus Defender 7000 Bench Scale w/ Column, 12x14in Platform

Pricing $1,871.80 $2,031.30 $1,949.80 $2,031.30
Platform Size 12x12in (305x305mm), 12 x 12in (305 x 305mm) WxD 12x12in (305x305mm), 12 x 12in (305 x 305mm) WxD 12x14in (305x356mm), 14 x 12in (355 x 305mm) WxD 12x14in (305x356mm), 14 x 12in (355 x 305mm) WxD
Style without Column with Column without Column with Column
Capacity Range 40 – 58lb, 18,000 – 38,000g 40 – 58lb, 18,000 – 38,000g 40 – 58lb, 18,000 – 38,000g 40 – 58lb, 18,000 – 38,000g
Capacity 25,000g (55lb) 25,000g (55lb) 25,000g (55lb) 25,000g (55lb)
Readability 1.0g 1.0g 1.0g 1.0g
Repeatability 2g 2g 2g 2g
Selectable Weighing Units kg, g, lb, oz, and lb:oz kg, g, lb, oz, and lb:oz kg, g, lb, oz, and lb:oz kg, g, lb, oz, and lb:oz
Weigh-Below Option No No No No
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels Dot matrix LCD with white LED backlight, 256 x 80 pixels Dot matrix LCD with white LED backlight, 256 x 80 pixels Dot matrix LCD with white LED backlight, 256 x 80 pixels
Power Requirements 100–240 VAC, 50/60 Hz Universal Power Supply, Rechargeable Lithium Battery (Optional) 100–240 VAC, 50/60 Hz Universal Power Supply, Rechargeable Lithium Battery (Optional) 100–240 VAC, 50/60 Hz Universal Power Supply, Rechargeable Lithium Battery (Optional) 100–240 VAC, 50/60 Hz Universal Power Supply, Rechargeable Lithium Battery (Optional)
Communication Port(s) RS-232 Port, optional second RS-232, RS-485 or USB device; Ethernet; and Wi-Fi/Bluetooth interfaces RS-232 Port, optional second RS-232, RS-485 or USB device; Ethernet; and Wi-Fi/Bluetooth interfaces RS-232 Port, optional second RS-232, RS-485 or USB device; Ethernet; and Wi-Fi/Bluetooth interfaces RS-232 Port, optional second RS-232, RS-485 or USB device; Ethernet; and Wi-Fi/Bluetooth interfaces
Brand Ohaus Ohaus Ohaus Ohaus
Product Dimensions 12 x 23.1 x 4.6in (305 x 588 x 118mm) WxDxH 12 x 17.4 x 22.6in (305 x 442 x 574mm) WxDxH 12 x 25.1 x 4.6in (305 x 638 x 118mm) WxDxH 12 x 19.3 x 22.6in (305 x 491 x 574mm) WxDxH
Estimated Shipping Weight 22.0lb (9.98kg) 24.3lb (11.02kg) 22.0lb (9.98kg) 26.5lb (12.02kg)
