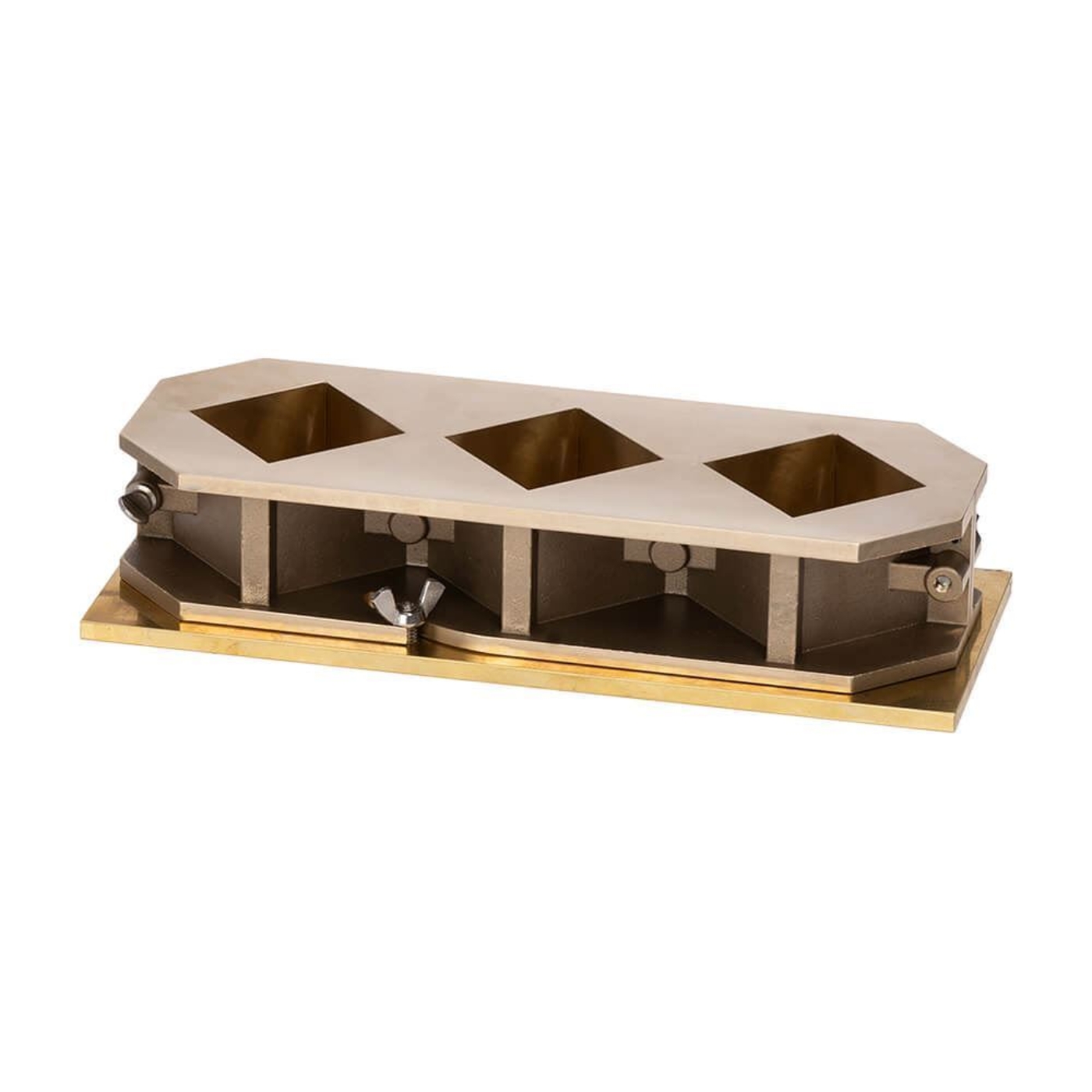

Bronze Cube Molds feature rugged quality construction and are available in 2in (51mm) or 50mm sizes. The forged bronze casting is precision machined to produce three cubes diagonally.
HM-294 is used for 2x2in (51x51mm) samples.
HM-294M is used for 50x50mm samples.

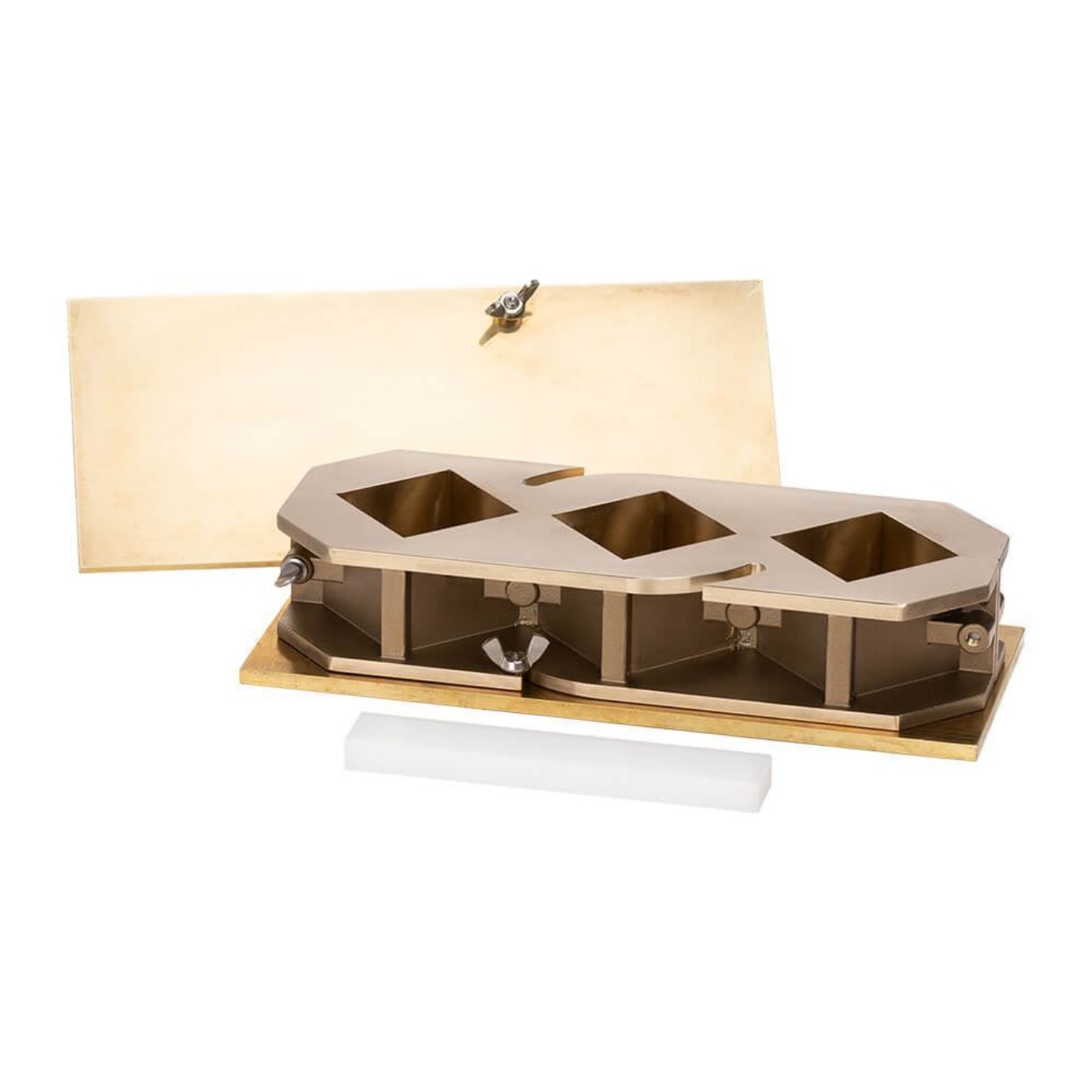

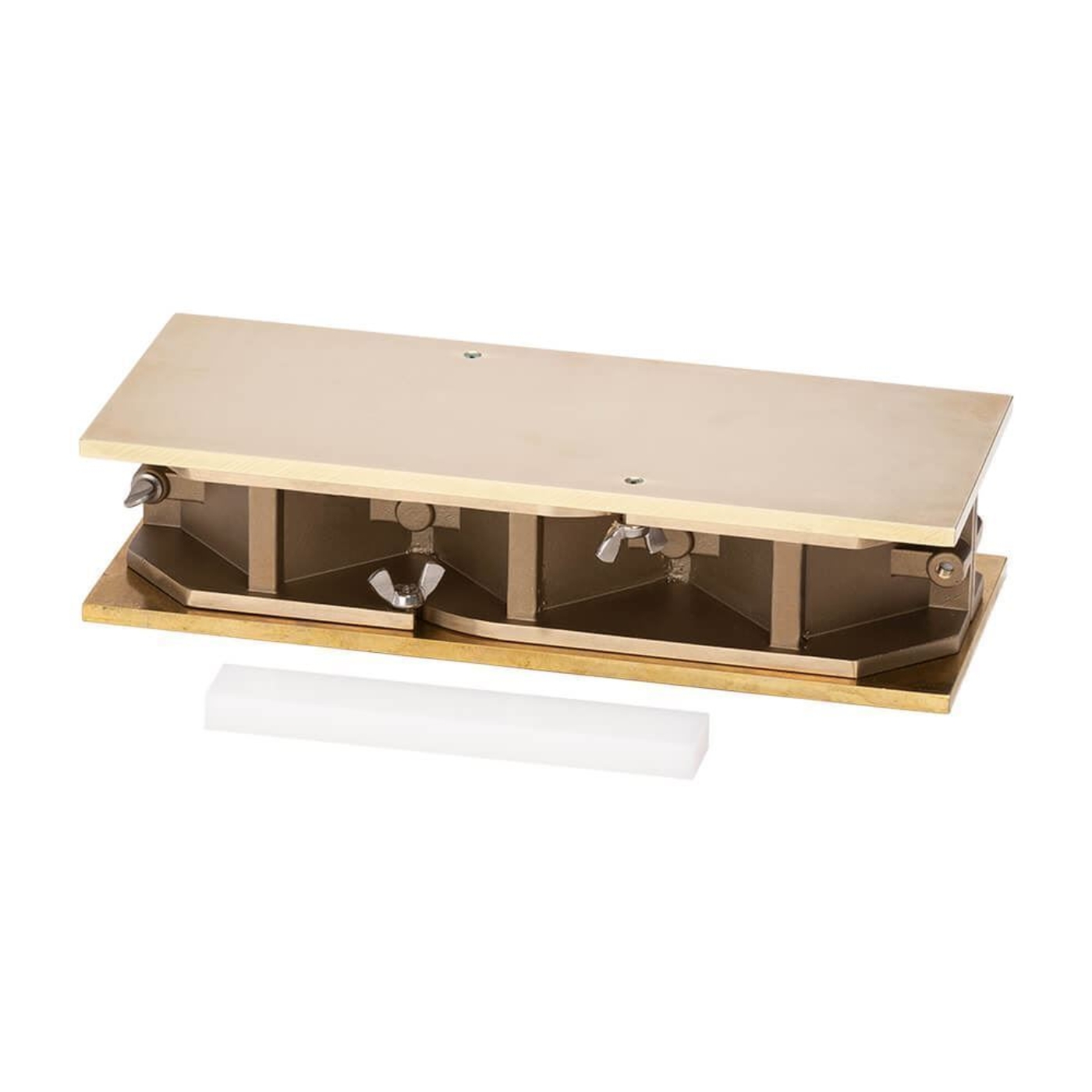

HM-294C is used for 2x2in (51x51mm) samples. It has machined alignment guides for accurate positioning of the included 0.25in (96.4mm) thick brass base and cover plates. Wing nuts and studs secure the mold halves together and clamp the base and cover to the mold body. This mold is ideal for casting expansive grout samples, conventional grouts, and mortars, and is easily flipped over to compensate for worn top surfaces. A 6x1x0.5in white high-density polyethylene (HDPE) tamper is also included.
Several cover plates are available for HM-294 and HM-294M models and are purchased separately. Options include a standard brass cover plate with clamps, a 0.5in thick plastic cover plate, and a brass cover plate with holes for sulfur used when casting sulfur mortar capping compound cubes. Specially machined extra cover plates for the HM-294C model are available as HM-307C.
View our full line of Cube Molds.
Features
- Accurately machined for casting three cubes in a diagonal arrangement
- Forged bronze construction
- Capable of casting expansive grout cubes
- Wing nut assembly secures mold halves together
Included Items
- Bronze Cube Mold (2x2in or 50x50mm)
- Cover Plate (HM-294C model only)
- HDPE White Tamper (HM-294C model only)
- Trowels with a flat or curved edge design is used to strike off, mix, or handle the specimen.
- Rubber Tamper is used for consolidating specimens.

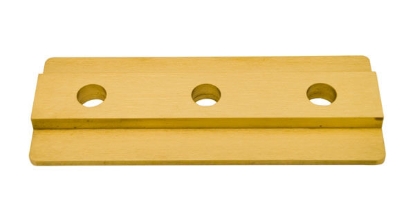

- Brass Cover Plate fits HM-294 and HM-294M and is used for sulfur testing.
- Plastic Cover Plate fits HM-294 and HM-294M molds.

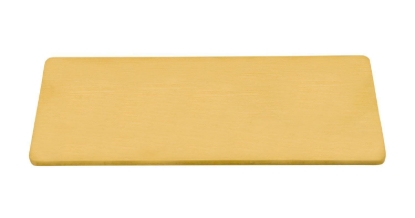

- Brass Cover Plate attaches to the top of HM-294 and HM-294M molds with included clamps.

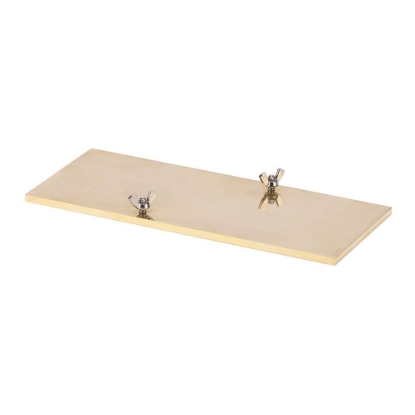

- Brass Cover Plate for HM-294C is a replacement cover for the HM-294C Mold.
