Cube Maker System is used for 2x2in (51x51mm) mortar, grout, and cement cube testing. This inexpensive, time-saving system is reliable for in-house quality control and other nonspecification applications. The system utilizes disposable polyproplene mold liners in a three-gang, aluminum frame. Cured cubes are lifted from the frame, and the liners are stripped away. The reusable frame never needs cleaning, freeing up the user.

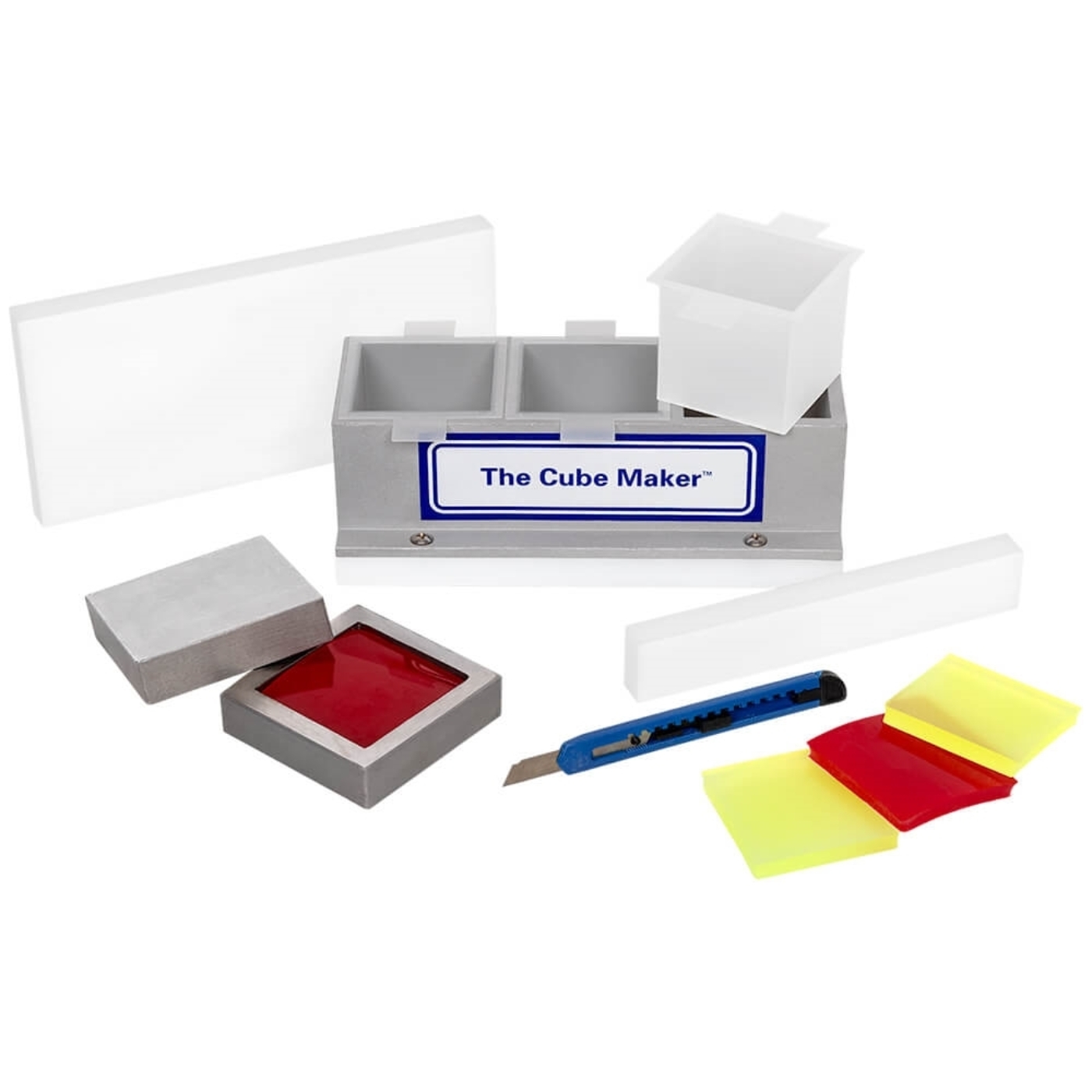

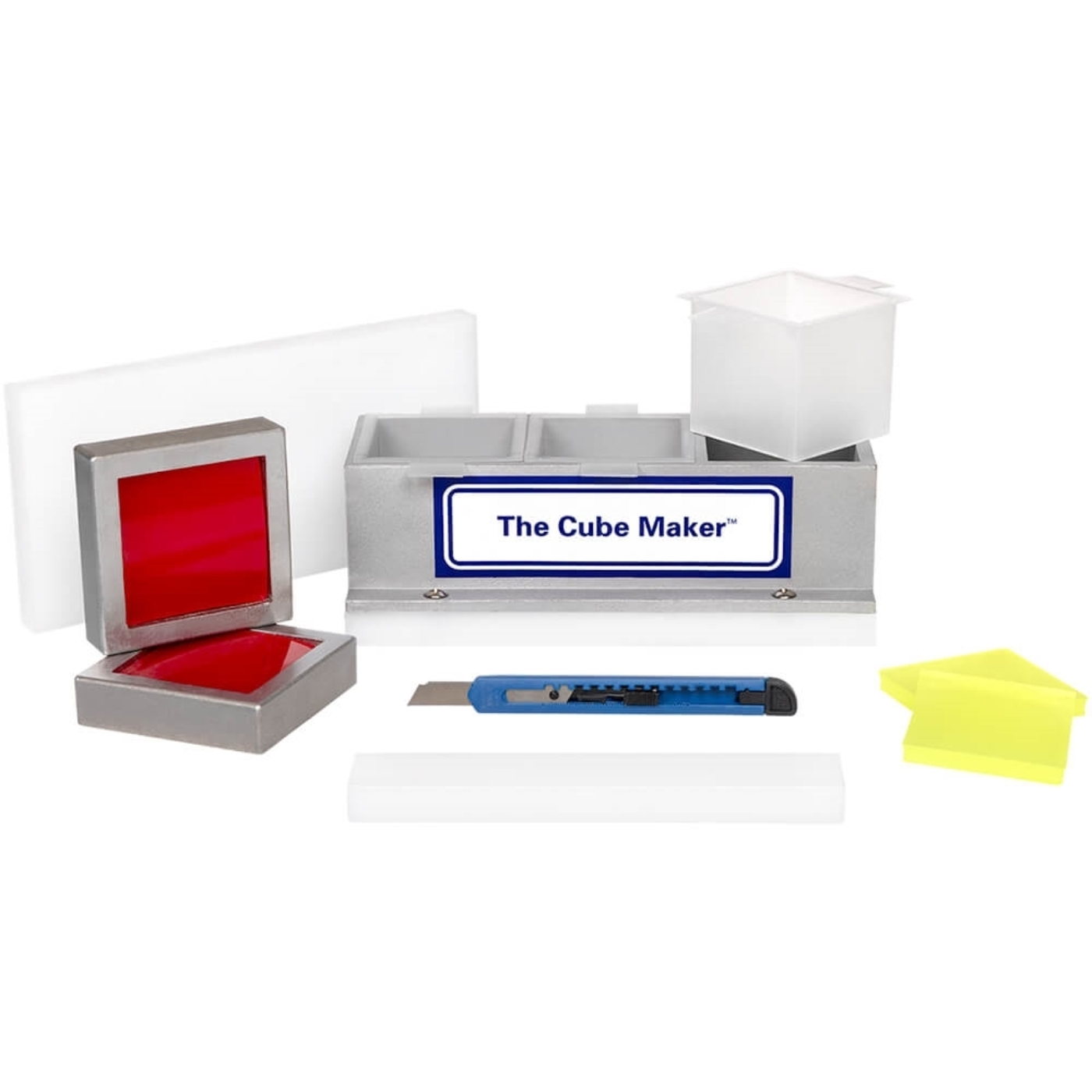

The Cube Maker includes a 3-gang, aluminum frame, two stainless steel retainers for compression testing, 27 polypropylene liners, and two red and two amber unbonded polyurethane pad caps. The red caps are for strengths up to 4,000psi (27.6mPa) and the amber caps are for strengths exceeding 4,000psi. The caps may be reused up to 300 times.
Additional three-gang mold frames, liners, and pad caps can reduce sample preparation time and increase production.
View our full line of Cube Molds.
Features:
- No clean-up needed for Mold Frame
- Provides in-house quality control
Included Items:
- 2x2in Cube Maker System
- Aluminum mold frame
- (2) Stainless steel retainers
- (2) Red polyurethane pad caps
- (2) Amber polyurethane pad caps
- (27) Disposable polypropylene mold liners
- Curing cover
- Stripping knife
- HDPE plastic tamper
Accessories:

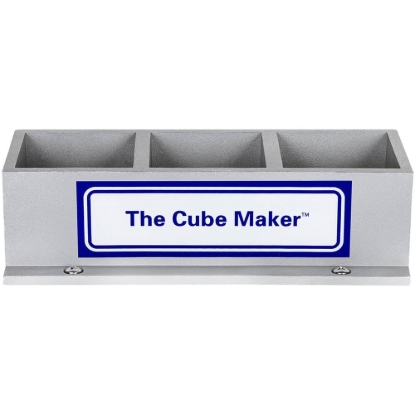

- Extra Aluminum Mold Frame for Cube Maker System increases production
- Trowel with flat blade and wooden handle to use with specimens

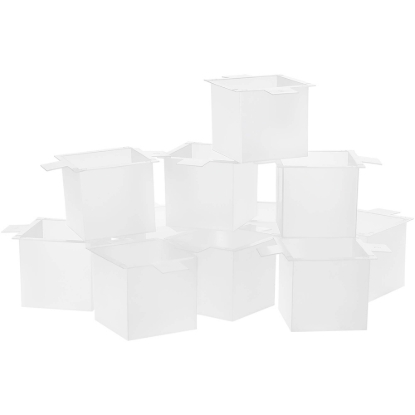

- Extra Liners for Cube Maker System is disposable polypropylene, sold in case of 196

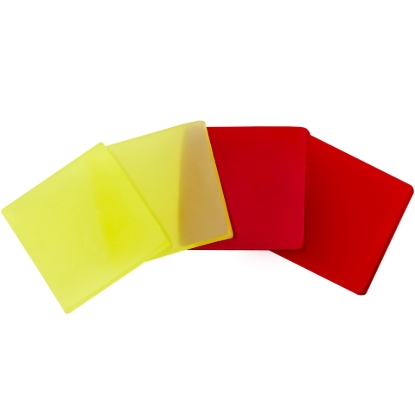

- Extra Pad Caps for Cube Maker System Retainers can be used up to 300 times
- Rubber Tamper for Cube Molds is required by certain specifications when consolidating mortar or grout specimens
