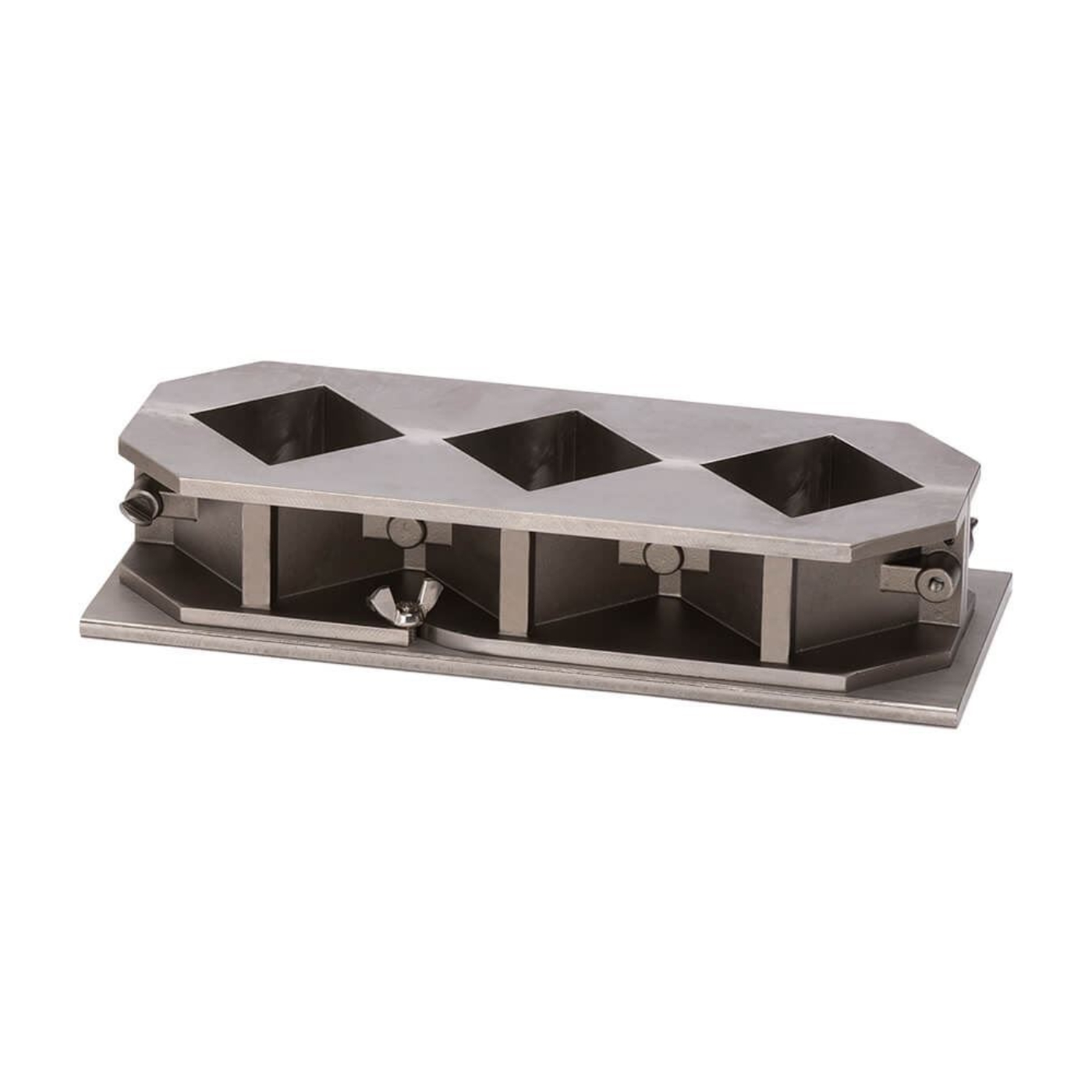

Stainless Steel Cube Mold is accurately machined for casting 2in (51mm) and 50mm cube molds in a diagonal position. Stainless steel construction resists corrosion, cleans easily, and stands up to rough handling.

HM-296 is used for 2x2in (51x51mm) samples.

HM-296M is designed for ISO testing and used for 50x50mm samples.

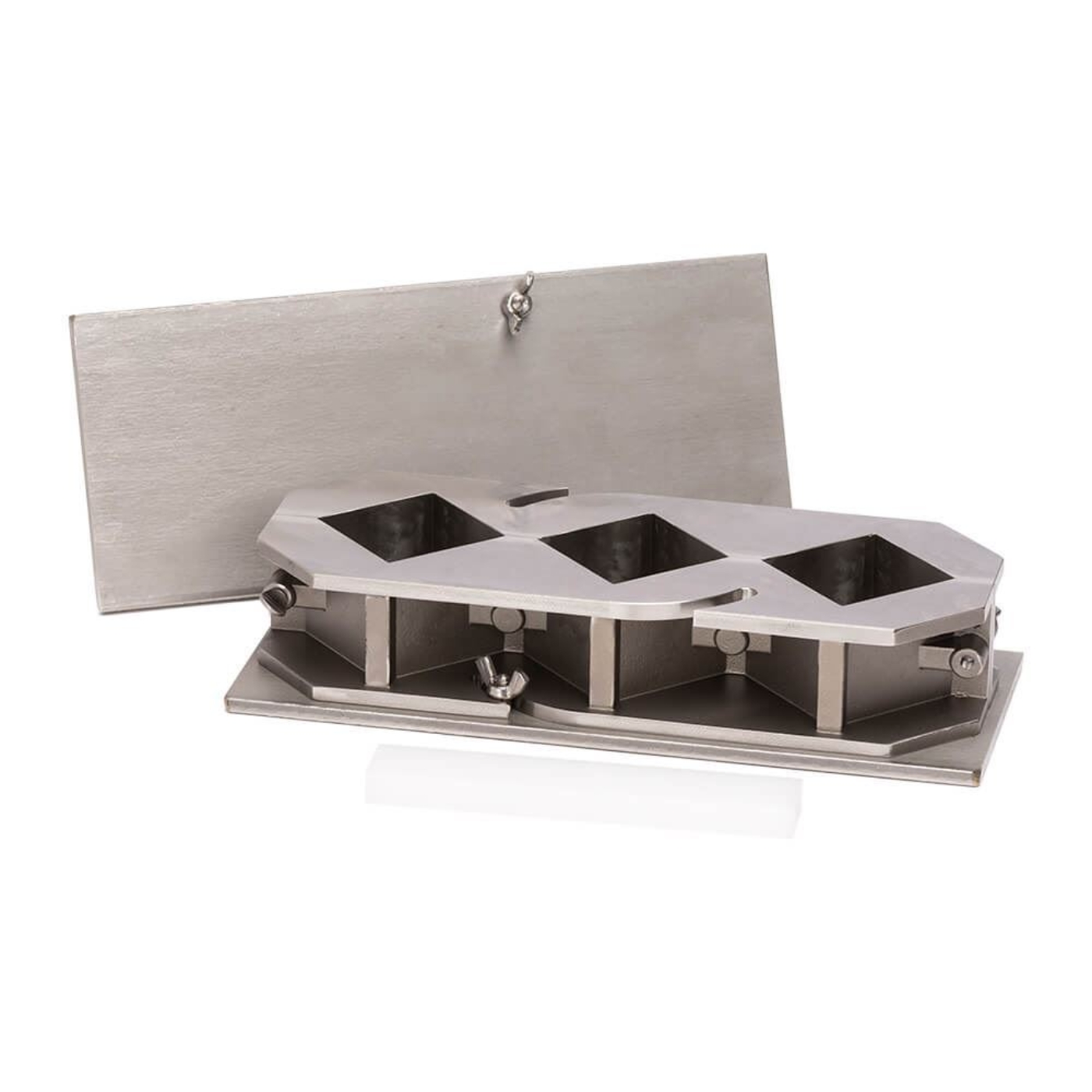

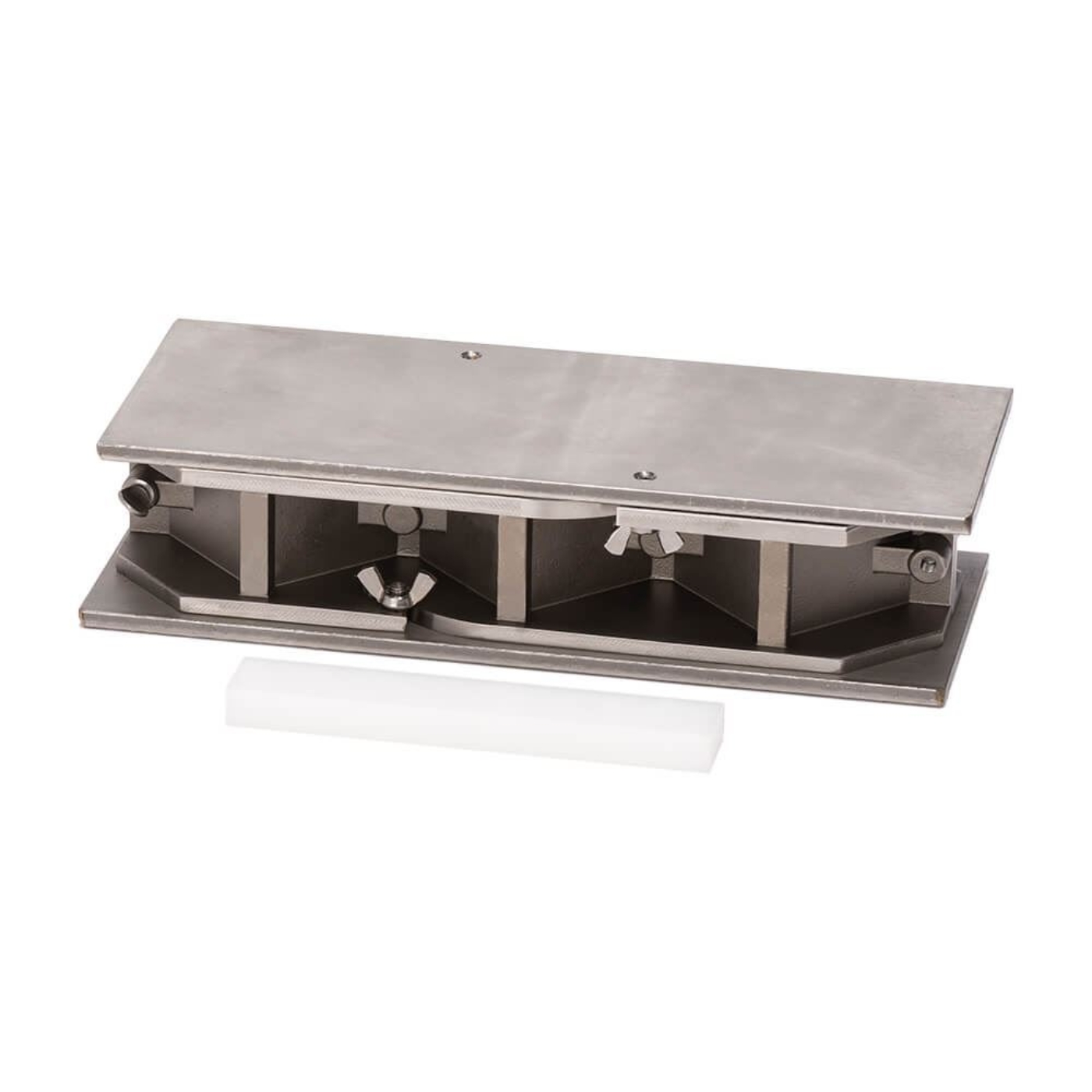

HM-296C has machined alignment guides on both the top and bottom for accurate positioning of the included 0.25in (6.4mm) thick stainless steel base and cover plates. Wing nuts and studs secure mold halves together and clamp the base and cover to the mold body. This mold is appropriate for casting expansive grout samples. Precision-machined extra cover plates for the HM-296C are available as HM-308C.

View our full line of Cube Molds.

Features:

Rugged stainless steel construction
Resists corrosion and is easy to clean
Diagonal cube design
Mold and base secured with wing nuts and thumb screws

Included Items:

Stainless Steel Cube Mold
Cover Plate (HM-296C model only)

Accessories:

HM-298 Hard Rubber Tamper for Cube Molds used for consolidating specimens
Trowels with flat or curved edge designs are used to strike off, mix, or handling of the specimen
HM-308 Stainless Steel Cube Mold Cover Plate attaches to the top of the HM-296 and HM-296M Cube Molds with included clamps.

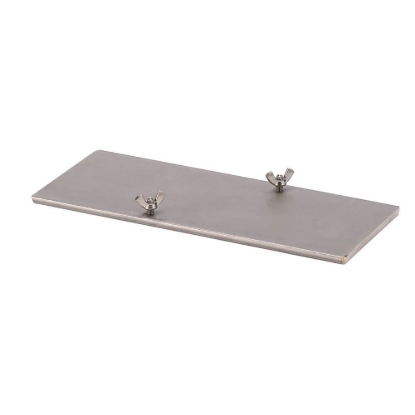

HM-308C Stainless Steel Cover Plate is a replacement for the HM-296C cube mold

Related blogs:

Cement Testing Resource Guide: Methods & Equipment

Specifications

Attribute name	Attribute value
Specimen Size	HM-296/HM-296C: 2 x 2 x 2in (51 x 51 x 51mm) HM-296M: 50 x 50 x 50mm
Product Dimensions	11 x 4.5 x 2.5in (279 x 114 x 64mm), WxDxH
Estimated Shipping Weight	HM-296: 15.0lb (6.80kg) HM-296M: 13.0lb (5.90kg) HM-296C: 18.0lb (8.16kg)
