3in Acrylic Frame Precision Electroformed Sieve, 30µm

Name: 3in Acrylic Frame Precision Electroformed Sieve, 30µm
SKU: GAA-79
Price: 725.00 USD
Availability: InStock

Model: GAA-79

$725.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Questions? Talk to a Product Expert

Get help from our in-house testing equipment specialists.

Open M–F: 8:00am–5:00pm

Call Us: (800) 444-1508

Description
Specifications
Quick Compare
Q&A

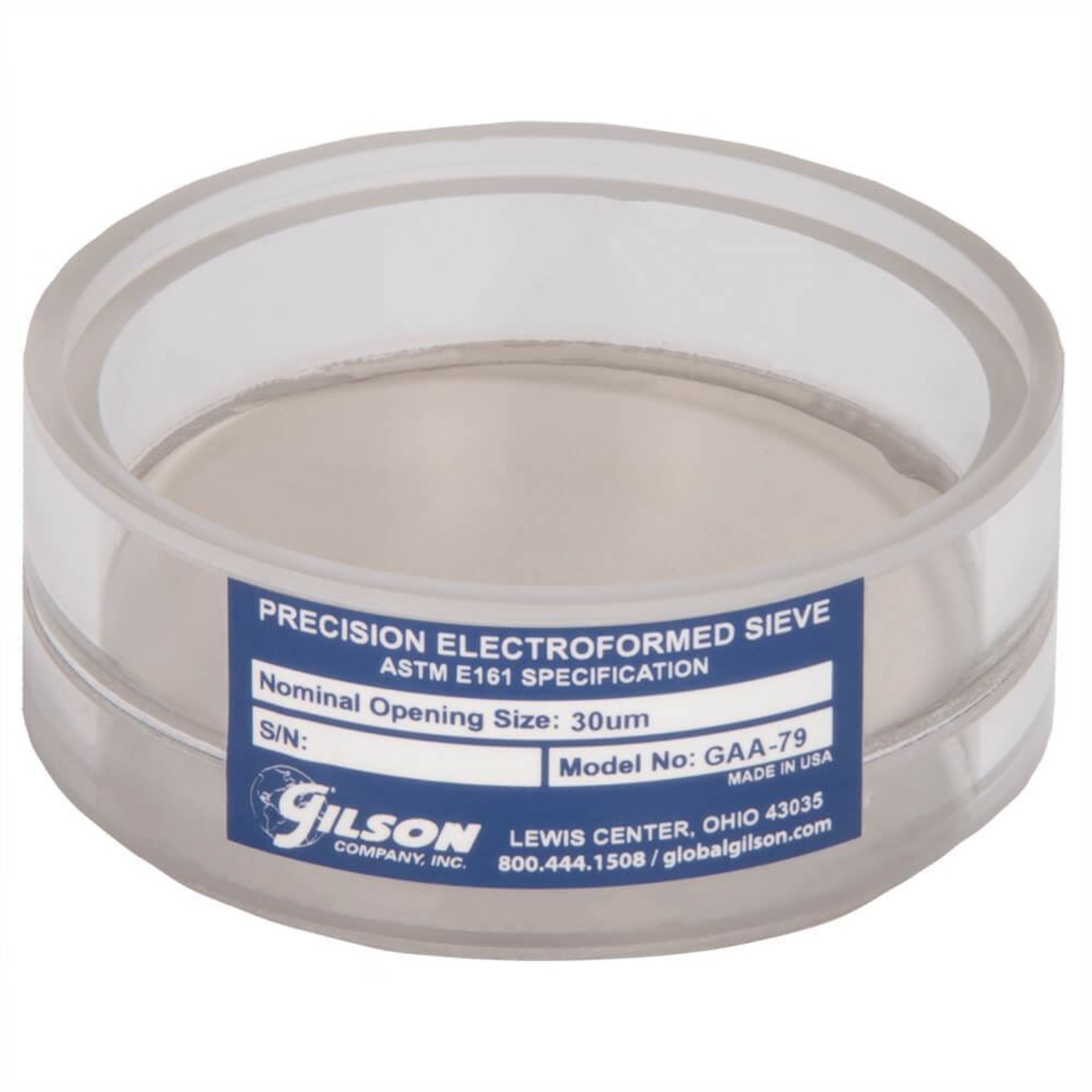

3in (76mm) diameter Precision Electroformed Acrylic Frame Test Sieve has ASTM E161 electroless nickel mesh with 30µm openings and an acrylic frame. The overall height is 1.46in (37.1mm), and the stacked height is 1.38in (35.1mm).

Required for the GA-6 Gilsonic AutoSiever Sonic Sifter.

Features

Individually serial numbered
Greater accuracy of ±2µm for precision particle sizing operations
Compliant with ASTM E161 requirements for Compliance Test Sieves

Included Items

3in Acrylic Frame Test Sieve, 30µm

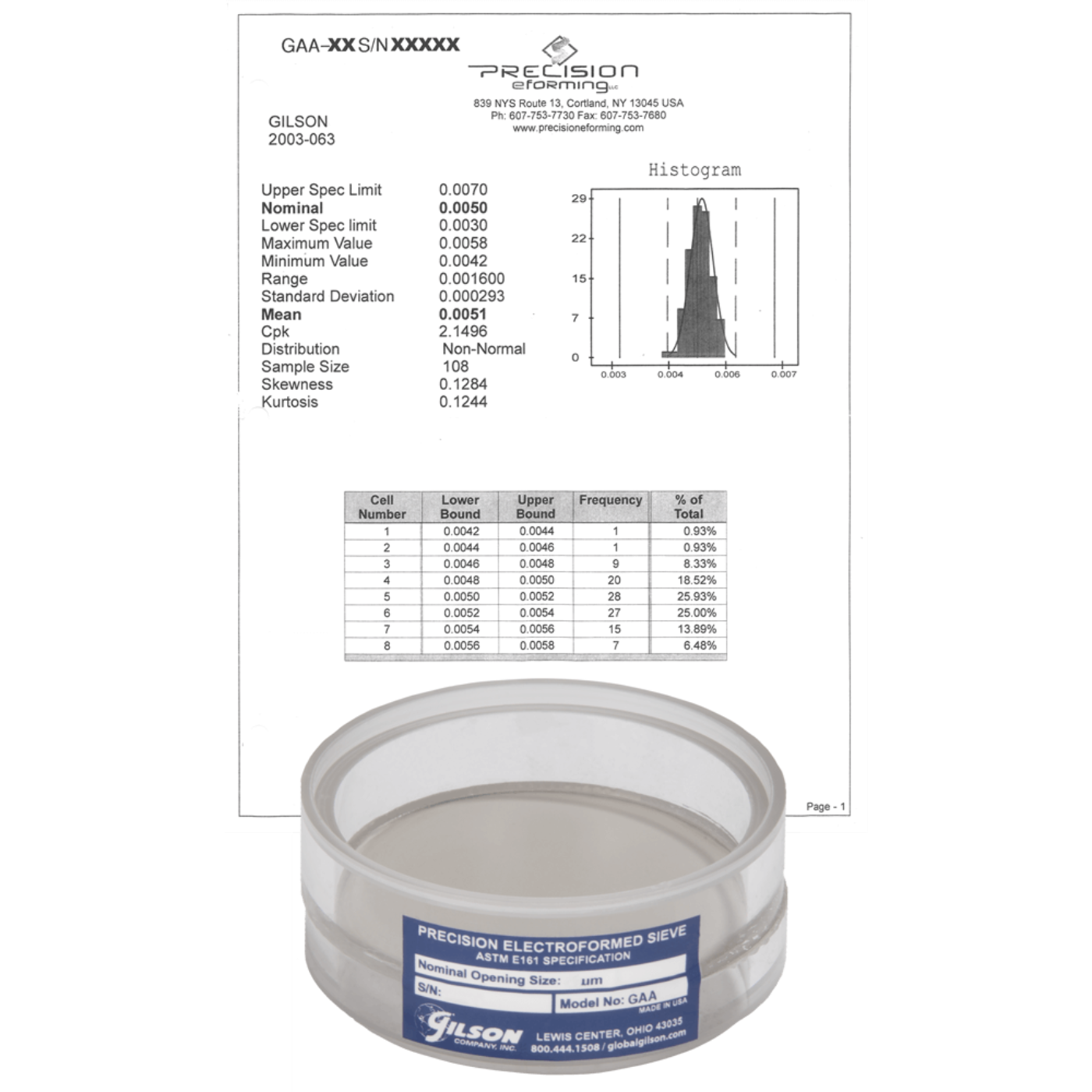

Certificate of Conformance to ASTM E161 requirements

Accessories

Stainless Sieve Pans nest underneath sieves to collect fines.
Stainless Sieve Covers prevent sample loss during agitation.
3in Acrylic Sieve Adapter is necessary to use a stainless steel pan with a 3in Acrylic Sieve.

Product tags

ASTM E161 (90)
,
ISO 3310-3 (1073)

Specifications

Attribute name	Attribute value
Overall Frame Height	1.46in (37.1mm)
Stacked Frame Height	1.38in (35.1mm)
Sieve Frame Diameter	3in (76mm)
Frame Material	Acrylic
Cloth Material	Electroless Nickel Mesh
ASTM E161 Opening Size	30µm
Estimated Shipping Weight	1.0lb (0.45kg)
