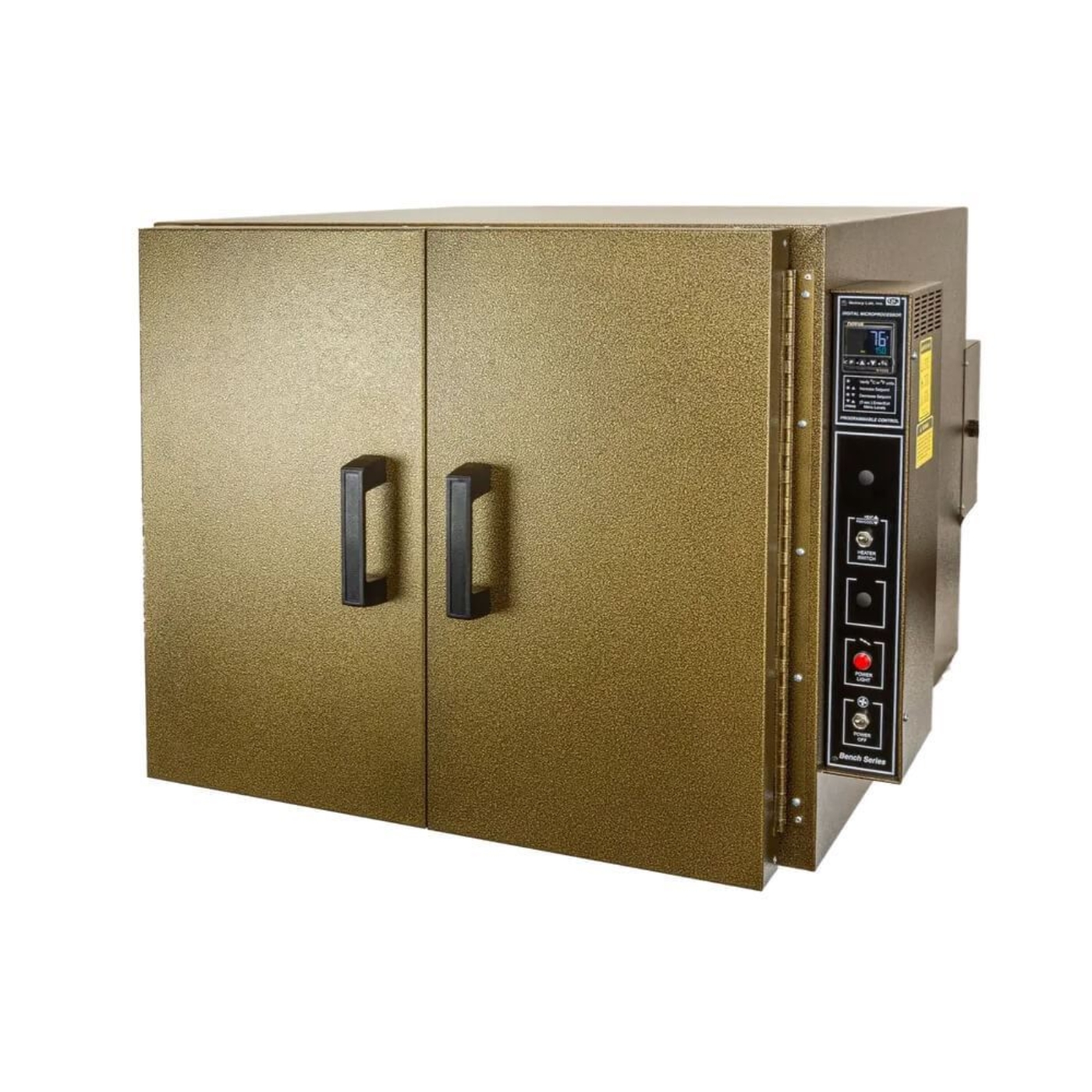

7.0ft³ (198L) Bench Oven has a 300°F (149°C) maximum temperature, ±0.2°C uniformity for drying, and controlled heating applications. It is equipped with a digital controller. Full-width gasket double doors feature high-impact “cool” handles, full-length piano hinges, and a 2in (50.8mm) high-density mineral wool insulation.

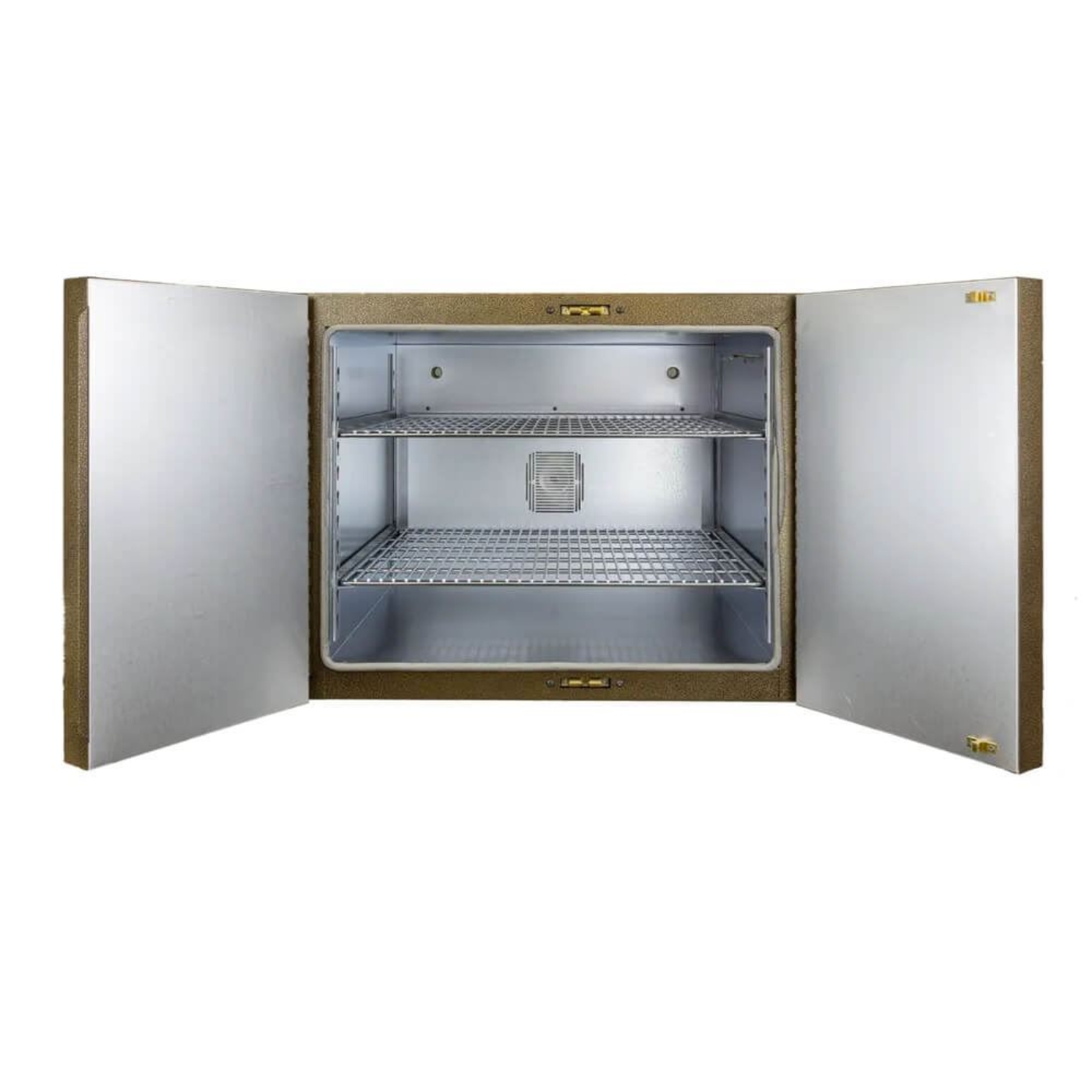

The oven holds up to 11 shelves with an 80lb (36.2kg) capacity that can be adjusted on 1.5in (38.1mm) centers and the PID Microprocessor Controller with digital display offers greater uniformity, repeatability, and resolution. This precise microprocessor with a J-type thermocouple holds set temperatures accurately to ±0.2°C at 100°C with improved chamber uniformity.
Control features include large easy-to-read dual LED displays in °C or °F units, showing both set and process temperatures. Autotune feature optimizes PID oven performance for various loads and applications. A simple On/Off control mode allows for fast recovery times and the processing of batch-style loads. Two-year warranty included.
- BO-250ER operates at 120V and comes with a cord and NEMA 5-15P plug
- BO-250ERF operates at 230V and comes with a NEMA 6-15P plug
- BO-250ERS operates at 120V and is equipped with a factory-installed stainless steel interior
Features:
- 7.0ft³ (198L) capacity
- 300°F maximum temperature with uniformity of ±0.2°C at 100°C for drying and controlled heating applications
- 11 shelf capacity accommodates a variety of applications
- Digital Display Controller offers greater uniformity, repeatability, and resolution
Included Items:
- 7.0ft³ Bench Oven w/ Digital Controller (120V with or without stainless steel interior or 230V)
- Two standard shelves
- Grounded 6ft (1.8m) cord with plug
- Two-year warranty
Accessories:
- BOA-1 Heavy-Duty Shelf speeds up testing by increasing sample capacity
- BOA-2 Bench Oven Floor Cabinet enables positioning of the oven at a convenient working height
- BOA-3 Bench Oven Floor Stand makes it easy to stack or mount oven
- BOA-4 Exhaust Chamber Adapter attaches to the oven back for venting through an exterior wall
- BOA-75 Seven Day Programmable Timer is factory-installed and has programmable options for up to seven days
