Adjustable Soil Trimmers guide the preparation of cylindrical soil samples to any desired diameter from 1 to 4in (25.4 to 101.6mm).

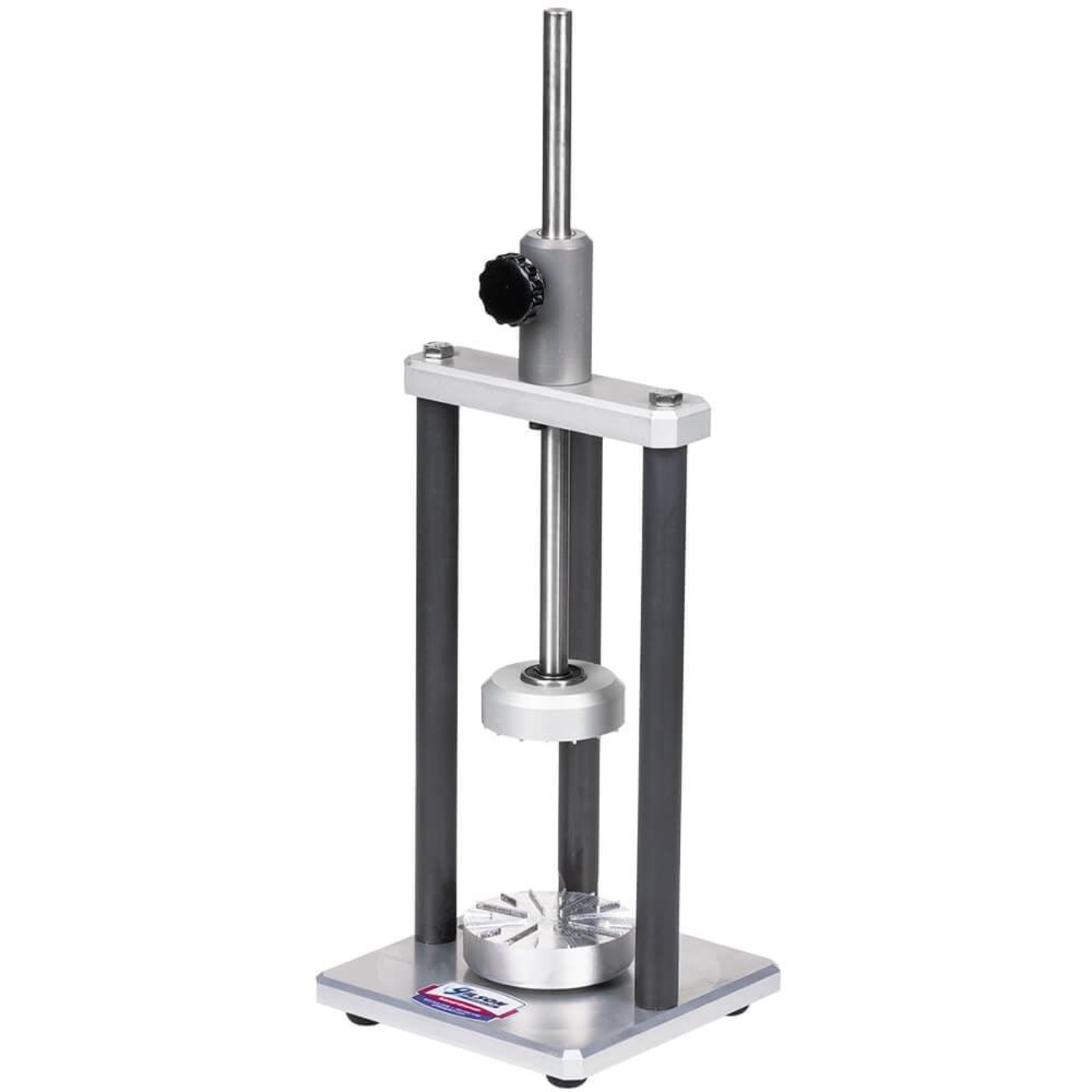

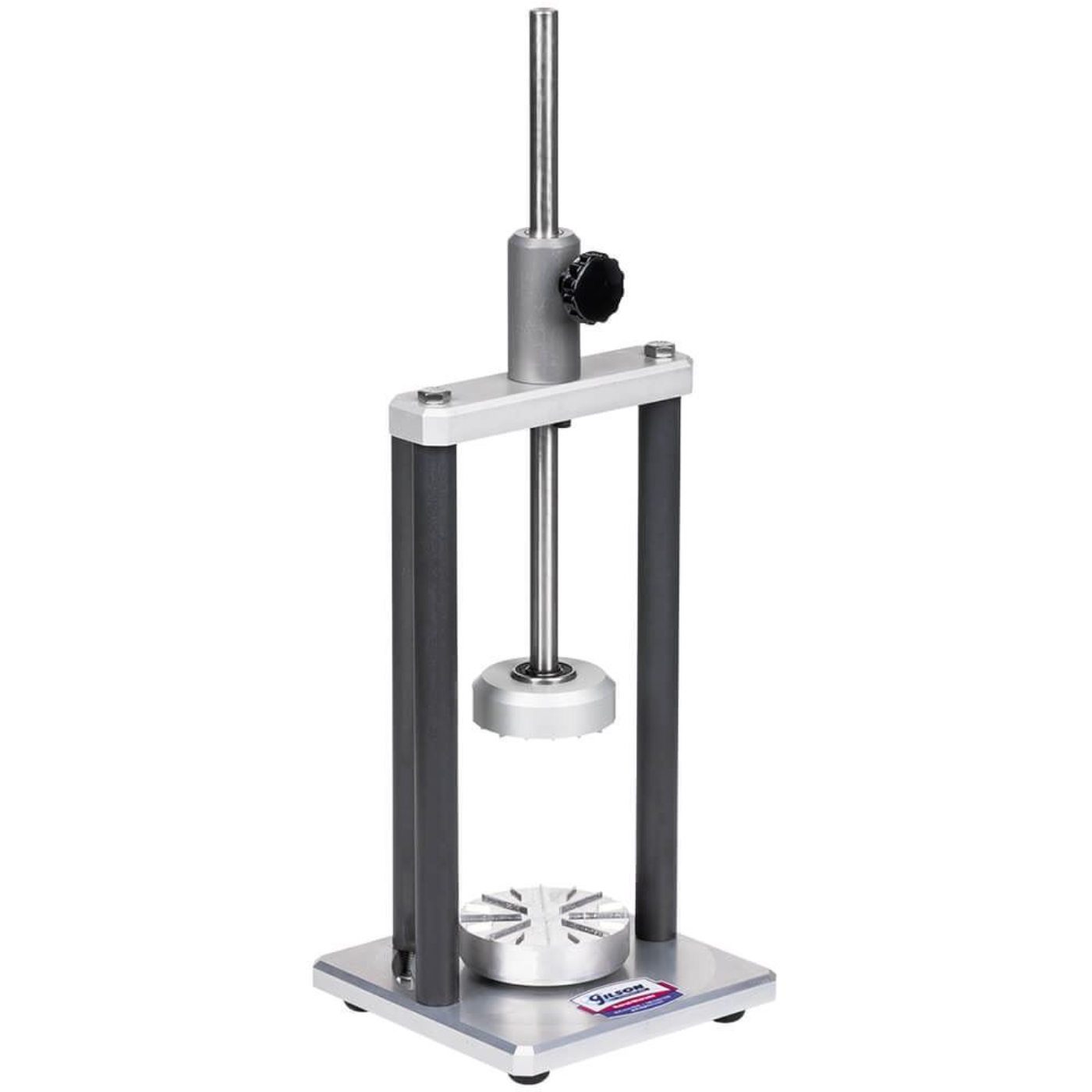

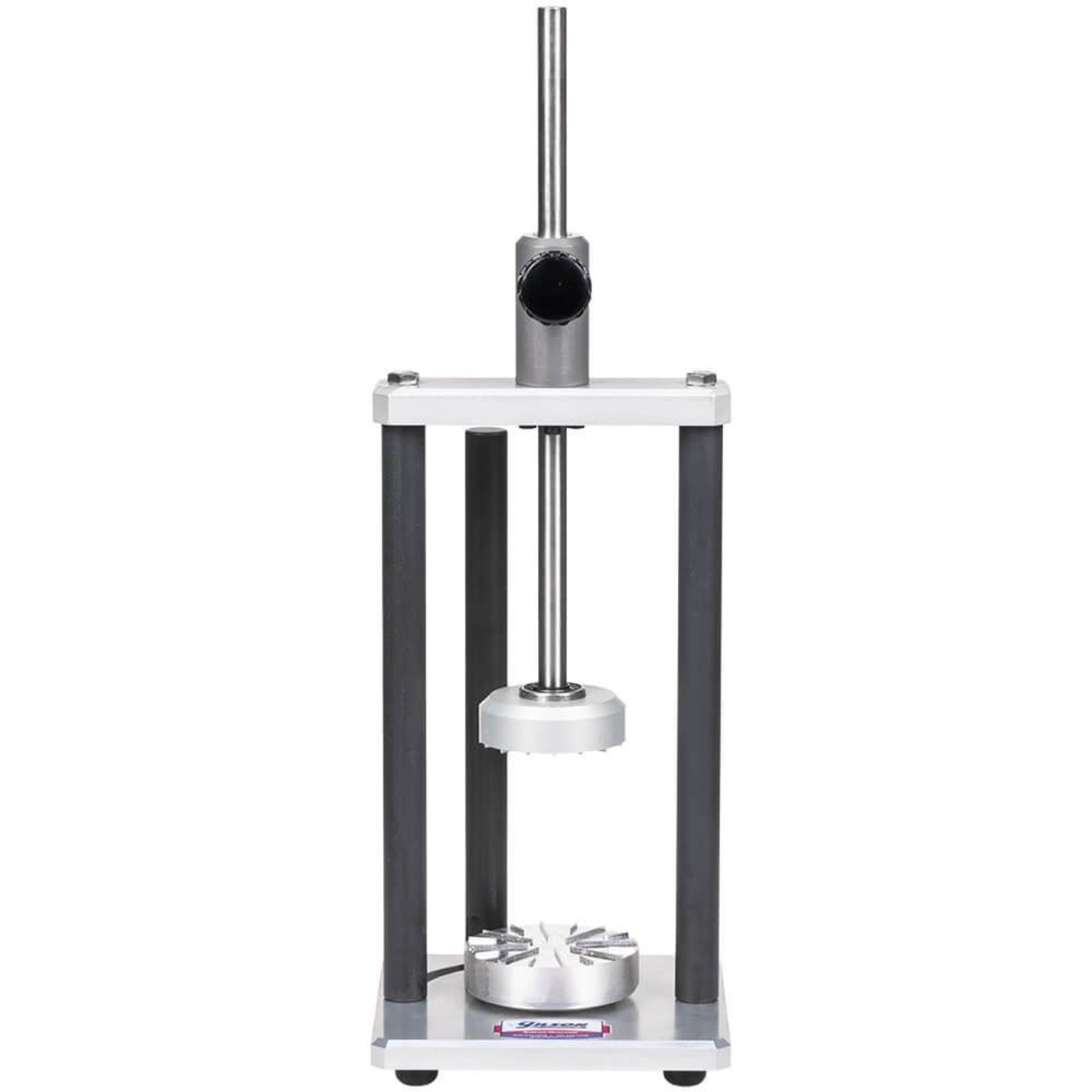

Top and bottom platens turn freely in a rigid vertical metal frame with an adjustable trimming guide to allow precise cuts. The sample is centered on the bottom platen, the top platen assembly is lowered and locked into place. Interchangeable Top Platens are purchased separately for finished diameters desired. Small cuts are made with a trimming knife or Wire Saw as the specimen is rotated to present fresh surfaces for trimming.
Sturdy frames are secured to 6in (152mm) square aluminum bases on nonskid rubber feet. The platens feature short pins to grip the specimen and Top Platens are mounted to a height-adjustable steel rod. Both platens turn on low-friction sealed cartridge bearings with no side play, assuring precise dimensions.

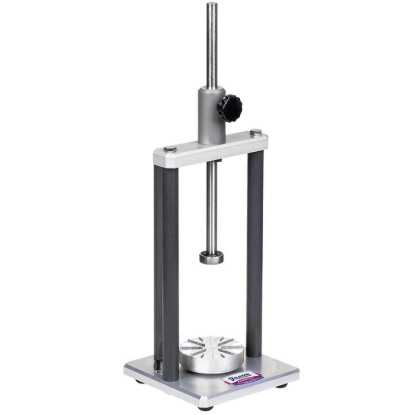

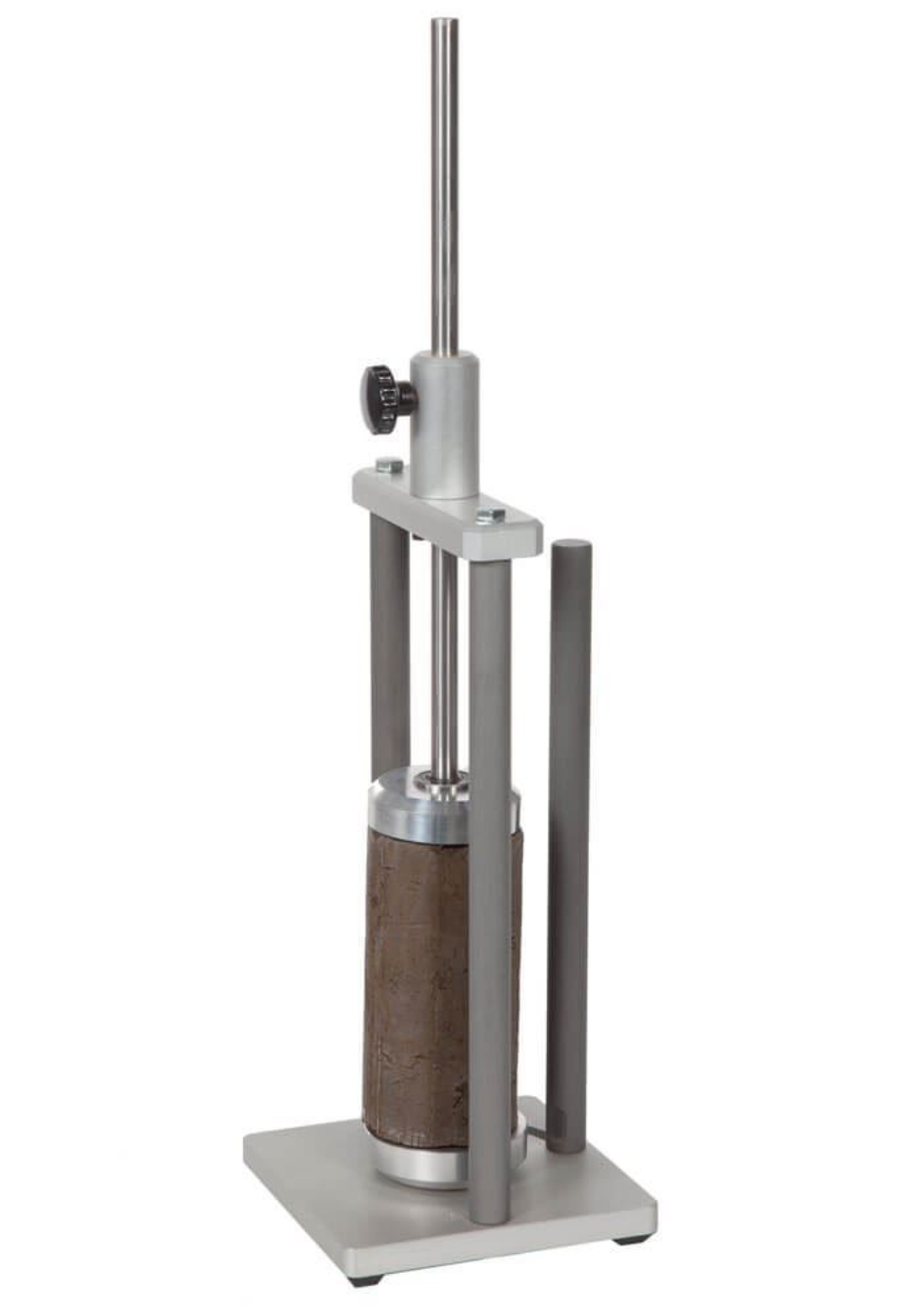

HM-231 1 to 3in Adjustable Soil Trimmer is cost-effective and covers most common soil sample diameters from 1 to 3in (25.4 to 76.2mm) diameter and up to 7.5in (190mm) in length. Interchangeable Top Platens are available separately in varying diameters, and one is required for use.
HM-232 1 to 4in Adjustable Soil Trimmer is needed for larger specimens up to 4in (101.6mm) diameter and 9.75in (247.7mm) long. Interchangeable Top Platens are available separately in varying diameters, and one is required for use.
Features:
- Adjustable for samples diameters of 1 to 3in (25.4 to 76.2mm) or 1 to 4in (25.4 to 101.6mm)
- Sturdy frame
- Precision dimensioning
- Top Platens are interchangeable
Included Items:
- Adjustable Soil Trimmer
Accessories:

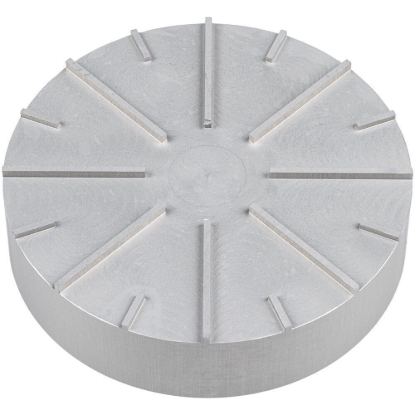

- Top Platens for Adjustable Soil Trimmer ranging from 1.0in (25.4mm) dia. to 4.0in (101.6mm) dia.
- Open-End Wire Saw is used for trimming soil samples
