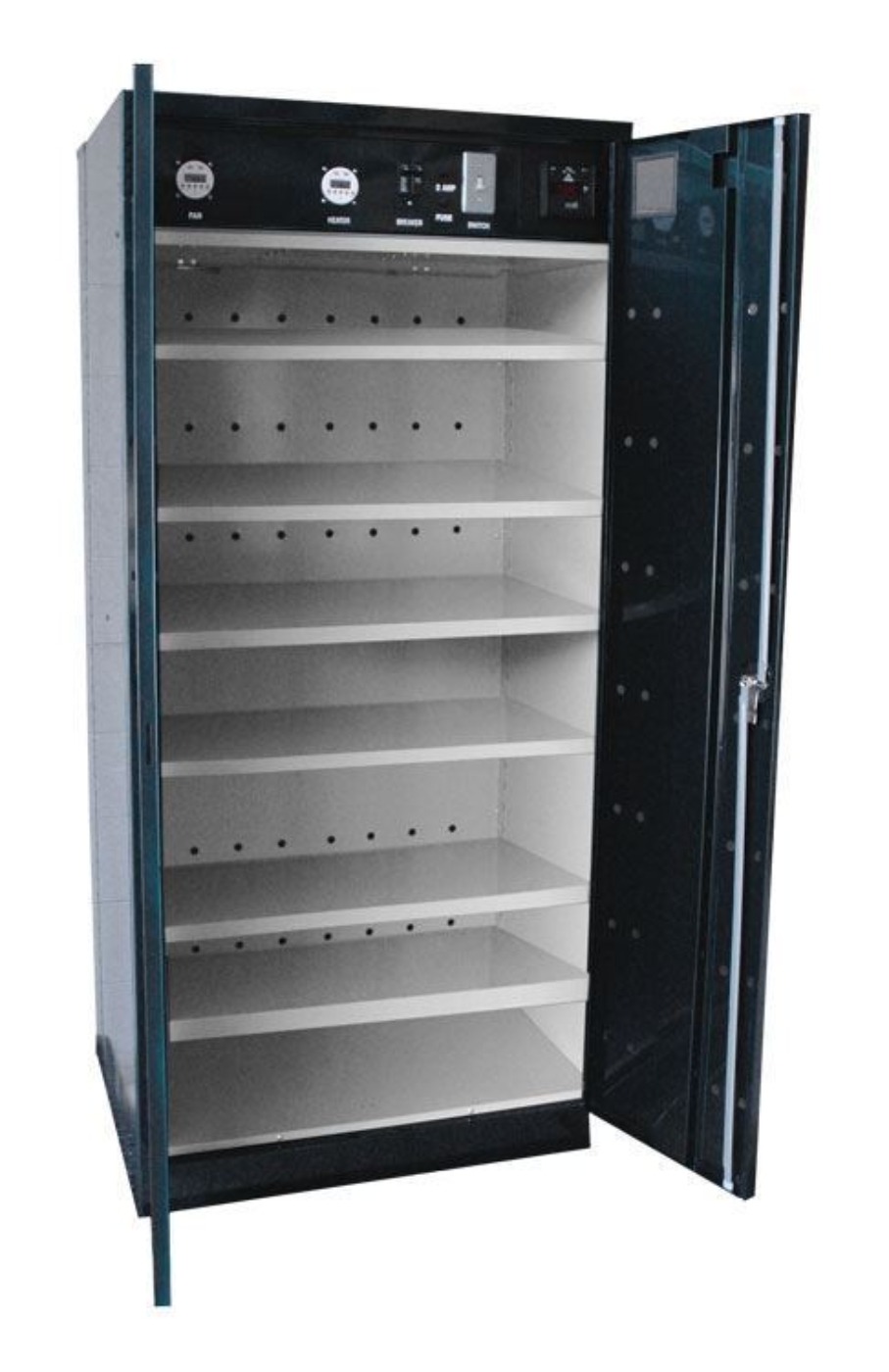

Air Drying Ovens are useful for drying soil, aggregate, and fire-proofing samples as well as other procedures calling for air drying at room temperature. While the 105°F (41°C) maximum temperature is below 140°F (60°C) allowed for some procedures, drying is still rapid and efficient because of the high air flow of 1–4 air changes per minute.
The large 30ft³ (850L) chamber measures 35.75x22.5x64in (908.1x571.5x1,625.6mm), WxDxH to accommodate large drying pans. The six included shelves adjust on 2in (51mm) centers. The maximum weight limit per shelf is 225lbs. Entering air passes over the 2,000 Watt heating element to the rear plenum for distributed horizontal flow through the chamber and out the holes in the front door.
Two separate 24-hour timers are included for heater and fan control, allowing for the unit to run with unheated air circulation. The solid-state temperature controller has a digital chamber display with a switch to read or set the setpoint temperature. The required power is 20 amps at 115V. Heat-up time is 30 minutes or less.
Features:
- Solid performance for drying of soil, aggregate, and fire-proofing samples
- Rapid and efficient drying
- Large 30ft³ chamber
- Unit can run with unheated air circulation when needed
- Digital chamber display
- Quick heat up at under 30 minutes
Included Items:
- Air Drying Oven
- Solid-state controller
- Two timers
- Six shelves
