The Asphalt Tack Coat/Interlayer Shear Strength Apparatus is used in a Marshall Stability Test Load Frame to measure the shear strength of tack coat material between two asphalt layers.
The heavy steel frame holds fixed and moveable shear plates. The moveable plate is centered over the shear plane and features roller bearings to minimize drag. The lateral load on the specimen is controlled by a calibrated spring, and a dial indicator displays force. The shear plane gap and maximum shear travel are both 0.5 inches (12.5mm).

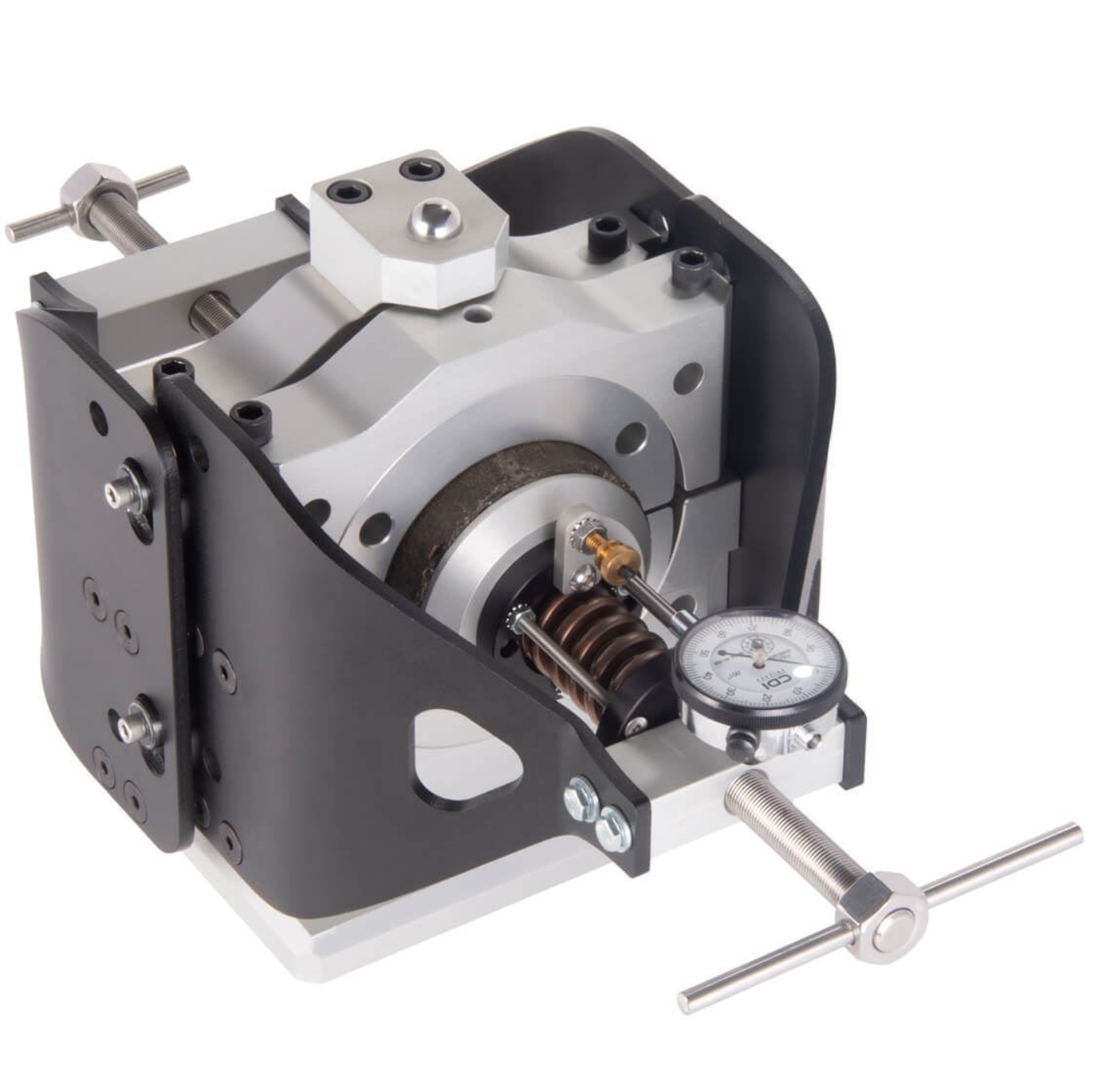

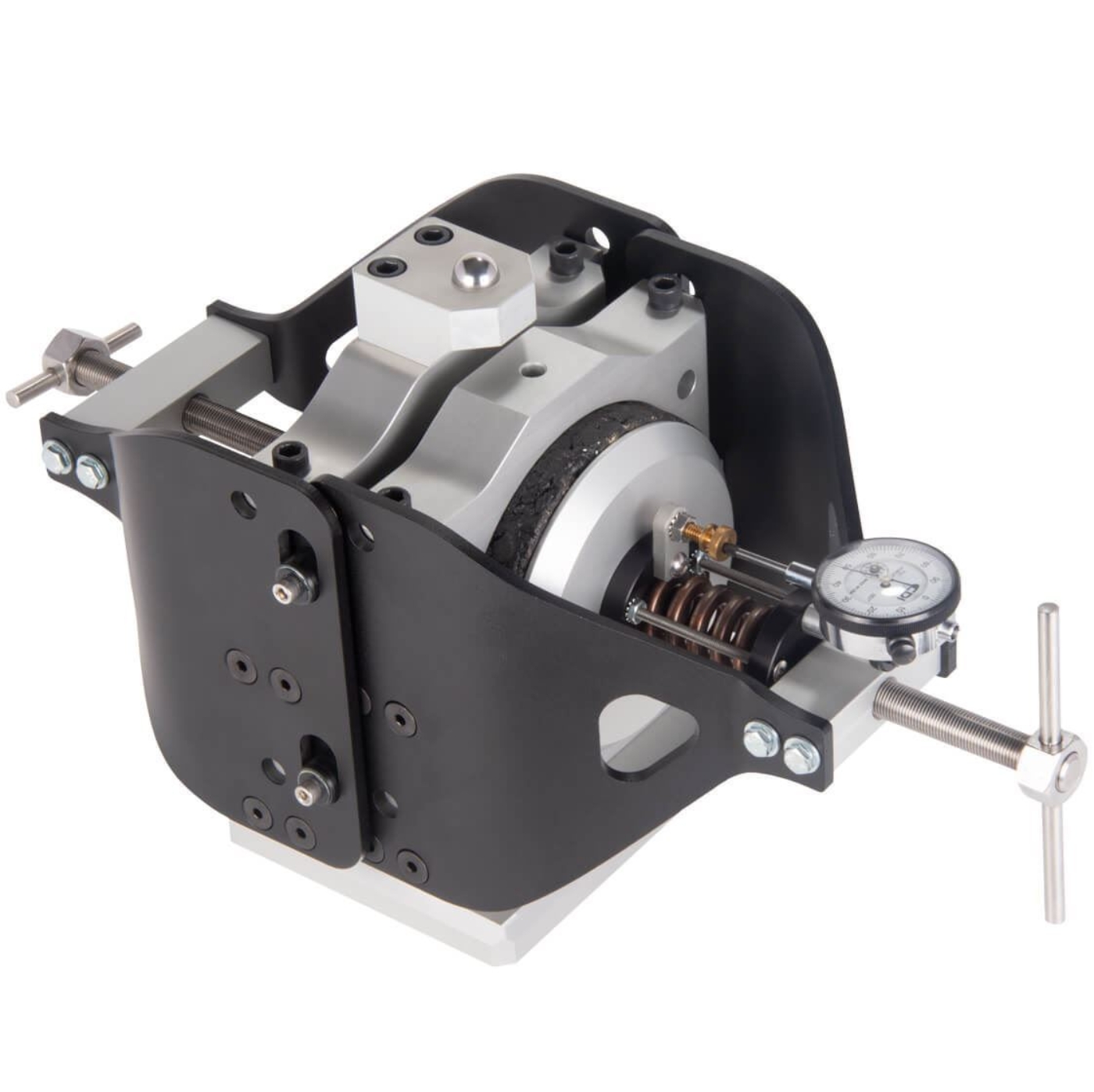

Adapters are included for testing either 4in (102mm) or 6in (152mm) diameter samples. The apparatus is compatible with Gilson's Marshall Load Frames and most load frames with daylight openings of at least 10in (254mm).
MS-43 tests 4in (102mm) and 6in (152mm) Marshall samples.
MS-43F accommodates testing of 100mm and 150mm Marshall specimens.
Features:
- The optimal method for measuring the shear strength of tack coat between two layers of asphalt
- Roller bearings minimize drag
- Compatible with Gilson Load Frames and most Marshall Load Frames
Included Items:

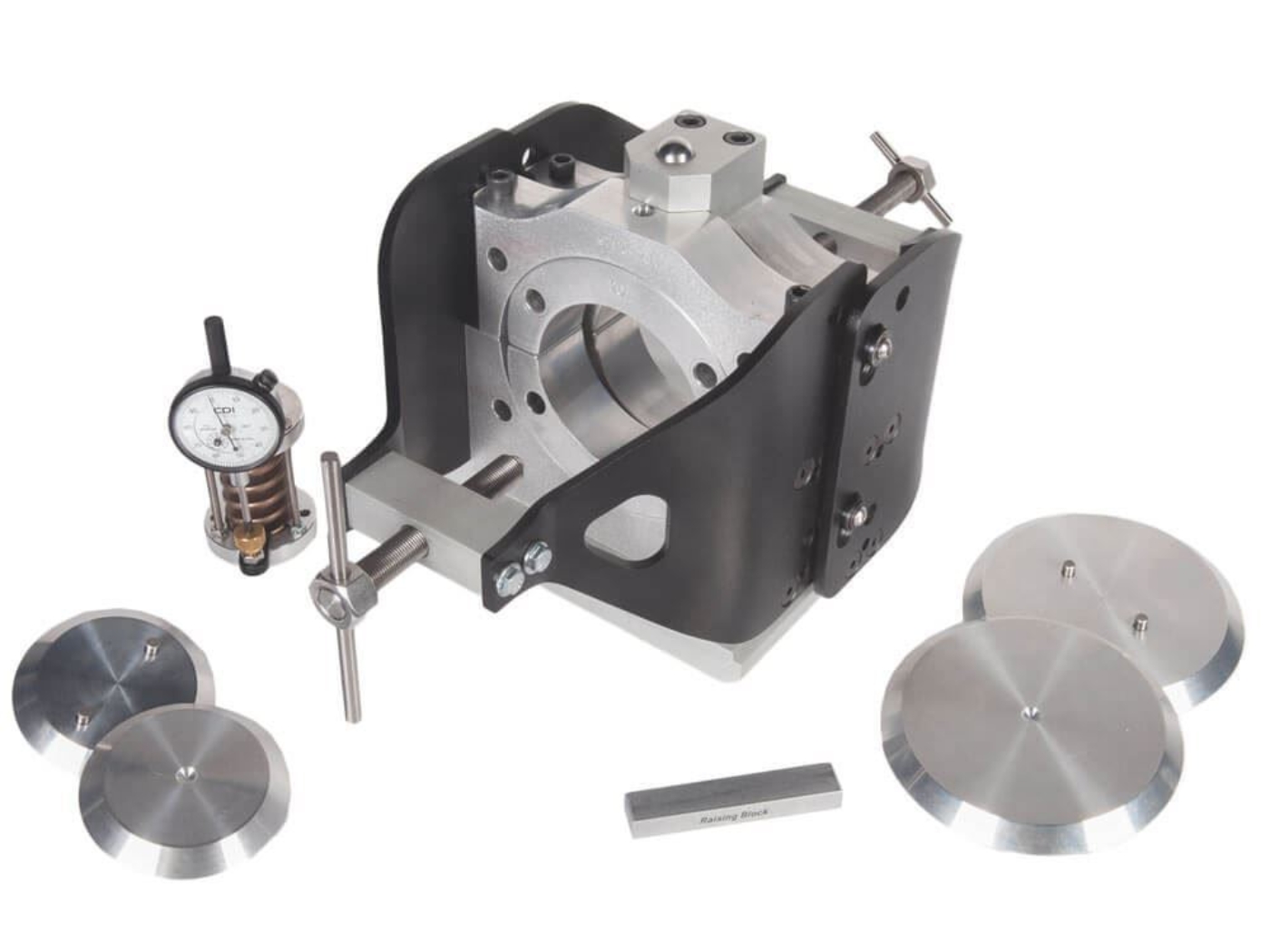

- Asphalt Tack Coat/Interlayer Shear Strength Apparatus for 4 and 6in or 100 and 150mm samples
- Adapters for testing 4in or 6in samples
