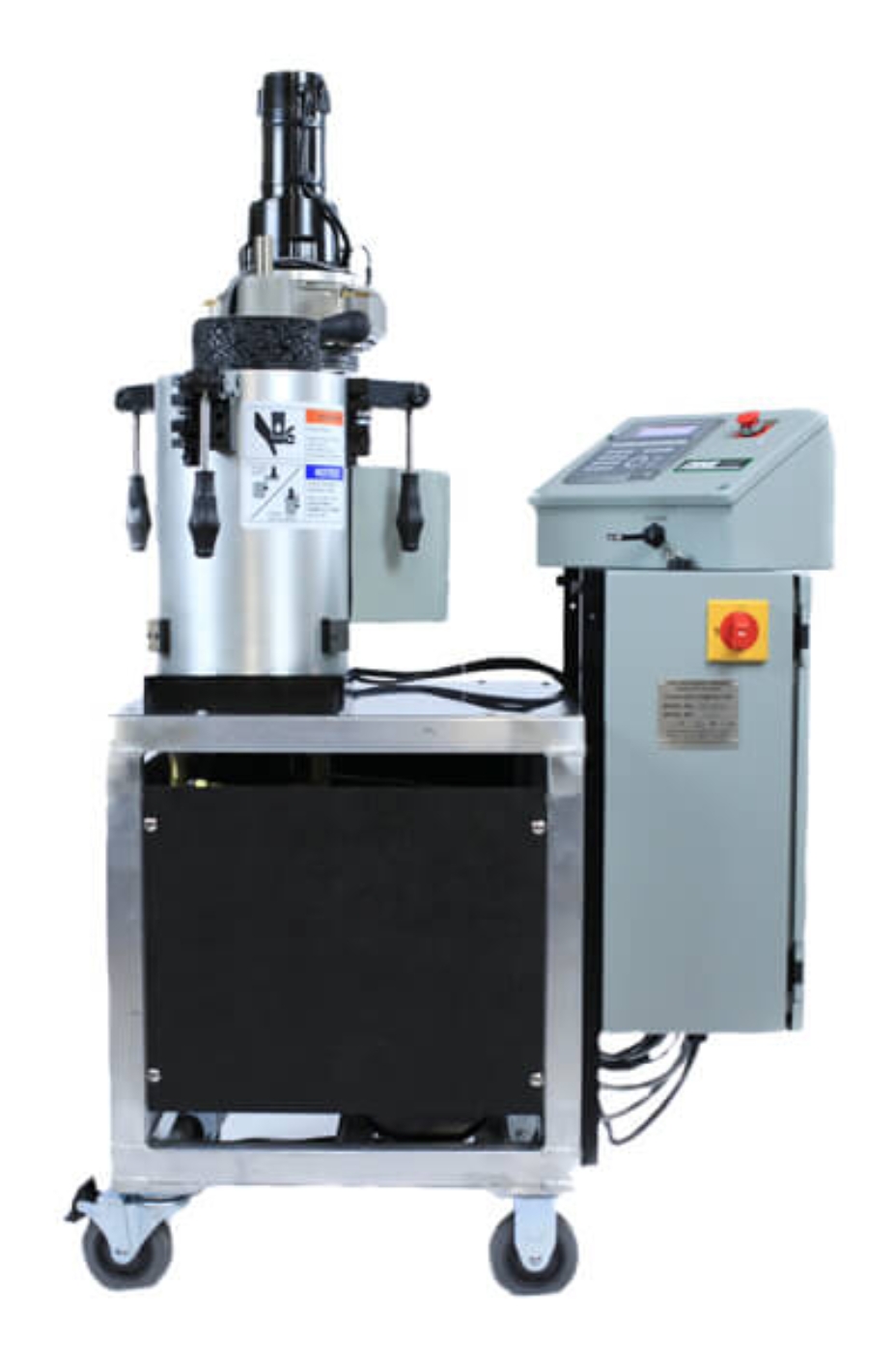

The Brovold Gyratory Compactor is rugged and a proven industry leader for portability and ease of use when compacting hot mix asphalt specimens to Superpave™ mix design requirements. This reliable model is built by Pine Instruments and is ideal for both mix design and QC/QA applications.
The self-contained unit is lightweight and easily transported to remote sites or mobile labs. An integrated industrial computer controls the entire specimen compaction cycle. After compaction parameters are entered through the simple, menu-driven controller and the prepared mold is set in place, simply secure the gyratory head and press start.
The system automatically applies consolidation pressure, induces the angle, and gyrates the mold to the specified settings. At completion, the specimen is extruded with the same hydraulic ram used for compaction, eliminating the handling of hot, heavy molds. Rigid tubular frame design and patented gyratory mechanism assure accurate, repeatable results. Mold Assemblies are sold separately.
The Brovold Gyratory features integrated data logging functionality to save or export data to a portable USB flash drive. Up to ten completed tests are stored in the compactor’s internal memory, and data is also output to the two USB ports as well as an RS-232 serial port. Test data can also be viewed in real time on the four-line digital display.
Default settings control compaction of specimens to the height, number of gyrations, compaction pressure, and speed required by the standard ASTM and AASHTO test methods. All of these parameters can be reset by the user for special applications and different materials. The default angle of gyration is 1.16° internal and 1.25° external. The angle can also be factory set to 0.82° internal if specified when ordering.
Compaction forces are supplied through a hydraulic/electromechanical system. The user can select a specimen squaring function to specify the amount of time pressure is applied to a specimen after squaring, from 0 to 16 seconds in 2-second intervals. The compactor is supplied with a magnet for lifting mold plates, a specimen lifting handle for 150mm specimens, mold tongs for handling 150mm molds, and a mold funnel cap to properly place sample material in the mold.
Electrical requirements are 115V, 60Hz.
Features
- Meets or exceeds requirements for ASTM D6925 and AASHTO T 312
- Unmatched in portability; the 304lb unit is easily transportable in a minivan or pickup
- Optimal for both mix design and QC/QA applications
- The automated industrial computer controls the entire compaction process for top-notch accuracy
- Built-in extruder
Included Items
- Brovold Superpave Gyratory Compactor
- Funnel Cap
- Mold Tongs
- Magnet
- Specimen Lifting Handle
Accessories

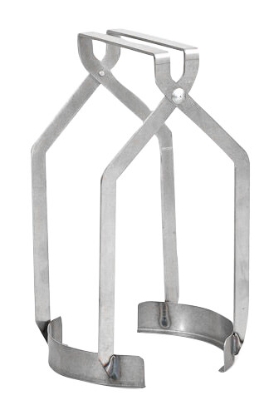

- Specimen Lift Handle is used to handle mold specimens safely and easily.

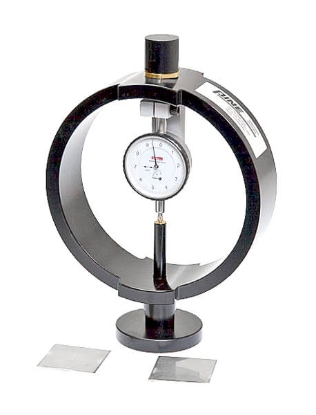

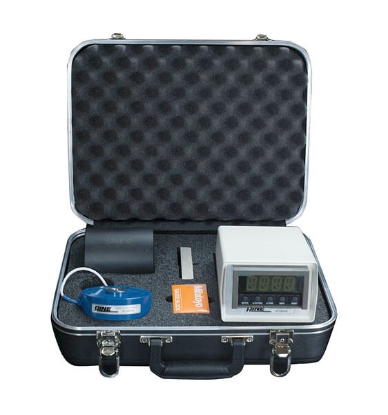

- Complete Calibration Kit with components needed to ensure accurate and precise calibration.
- Circular Paper Discs keep samples from sticking to baseplates or heads during testing.

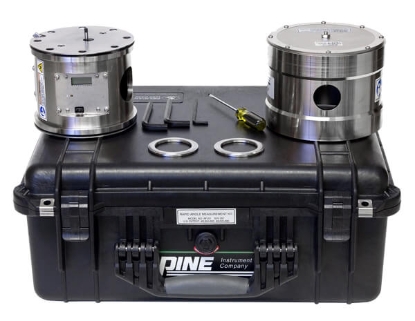

- Rapid Angle Measurement Device verifies angles of gyration both internally and externally.

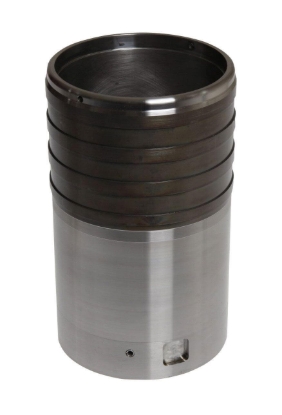

- 150mm Mold Assembly is made of precision-machined steel and is used to prep and process samples efficiently.
- Large Display Digital Stopwatch measures gyration speed during verification.
