Calcium Carbonate Content Chamber provides an easy and quick determination of the calcium carbonate (CaCO3) content of soils. The test is often used as an index to the presence and quantity of calcium carbonate in marine soil specimens, expressed as the percent calcite equivalent.

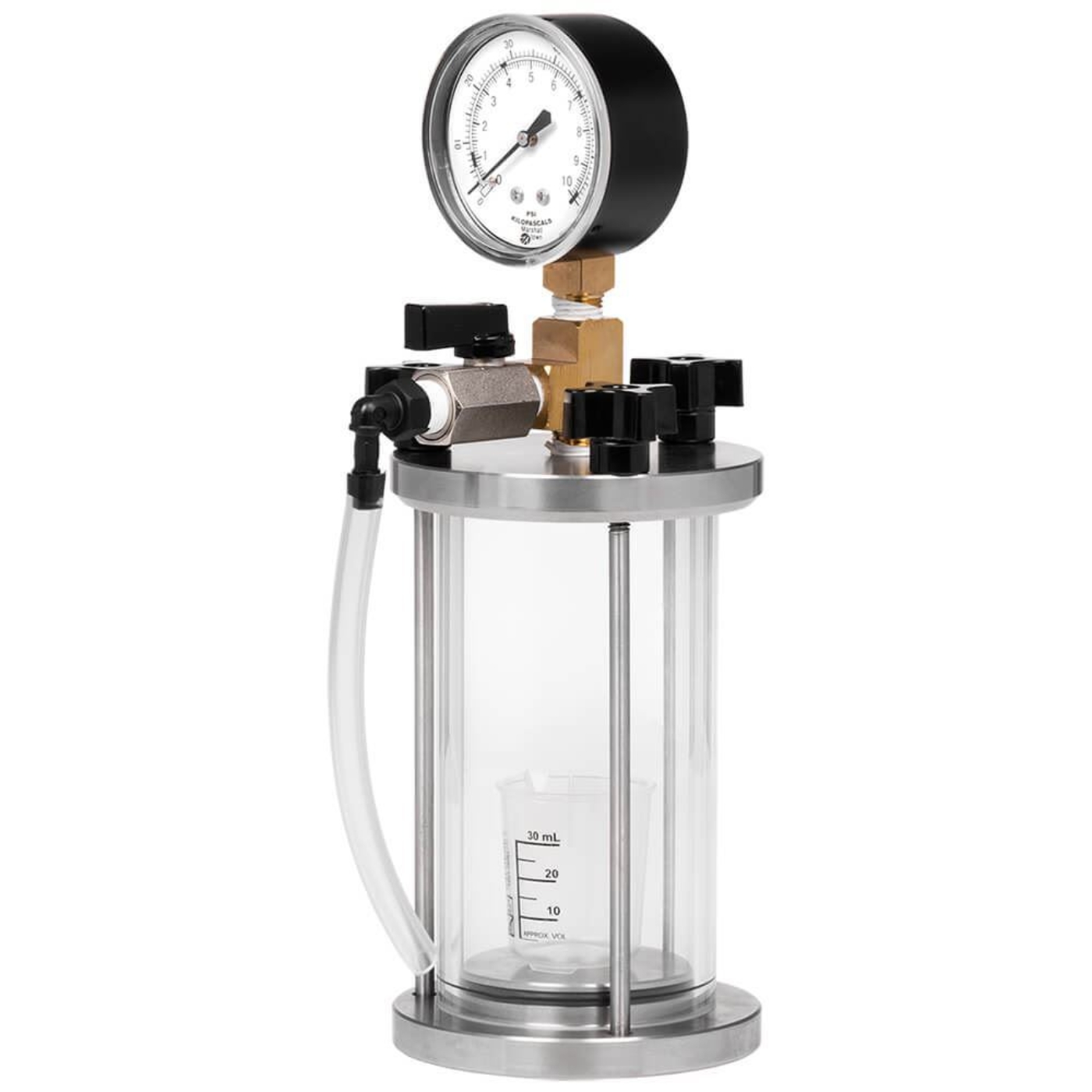

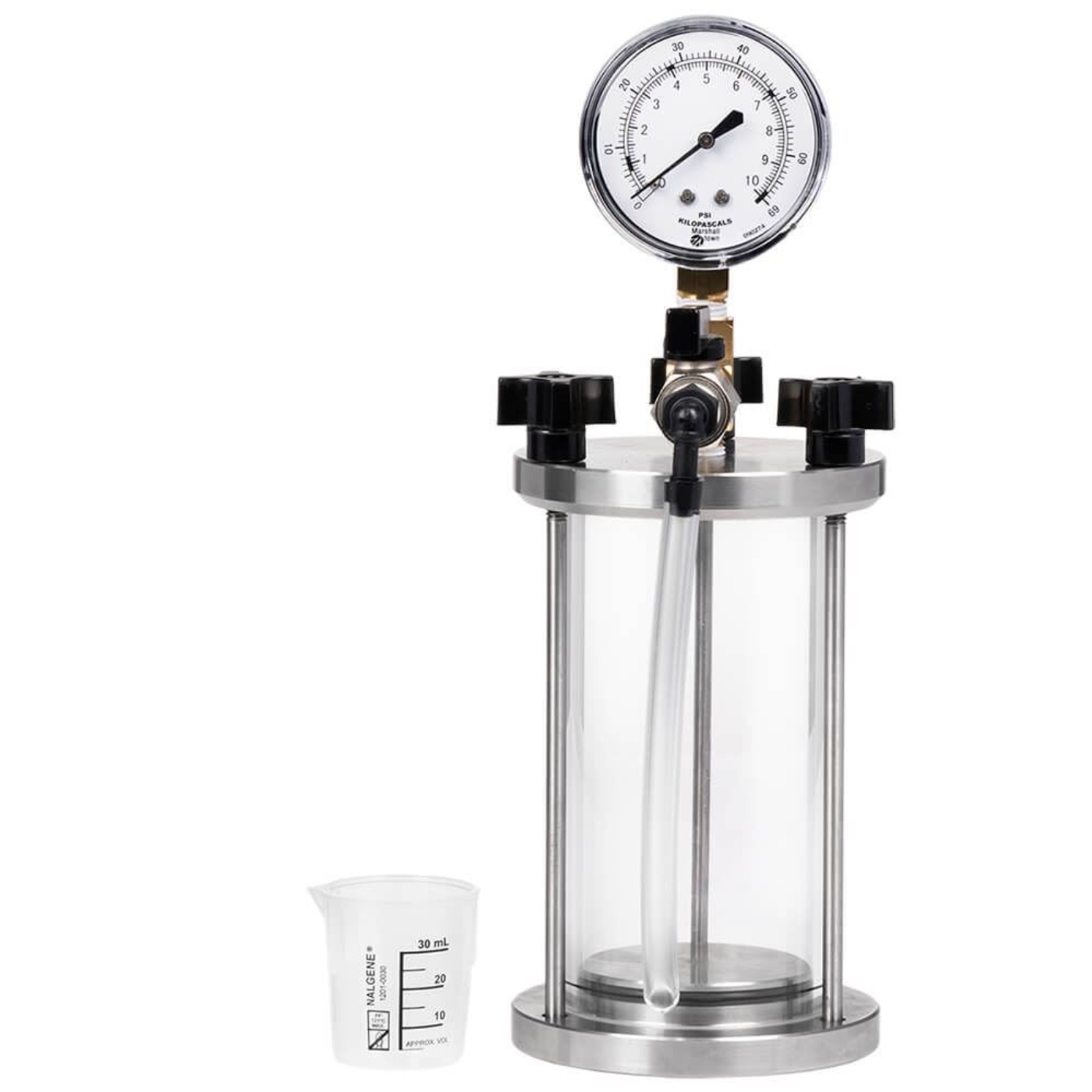

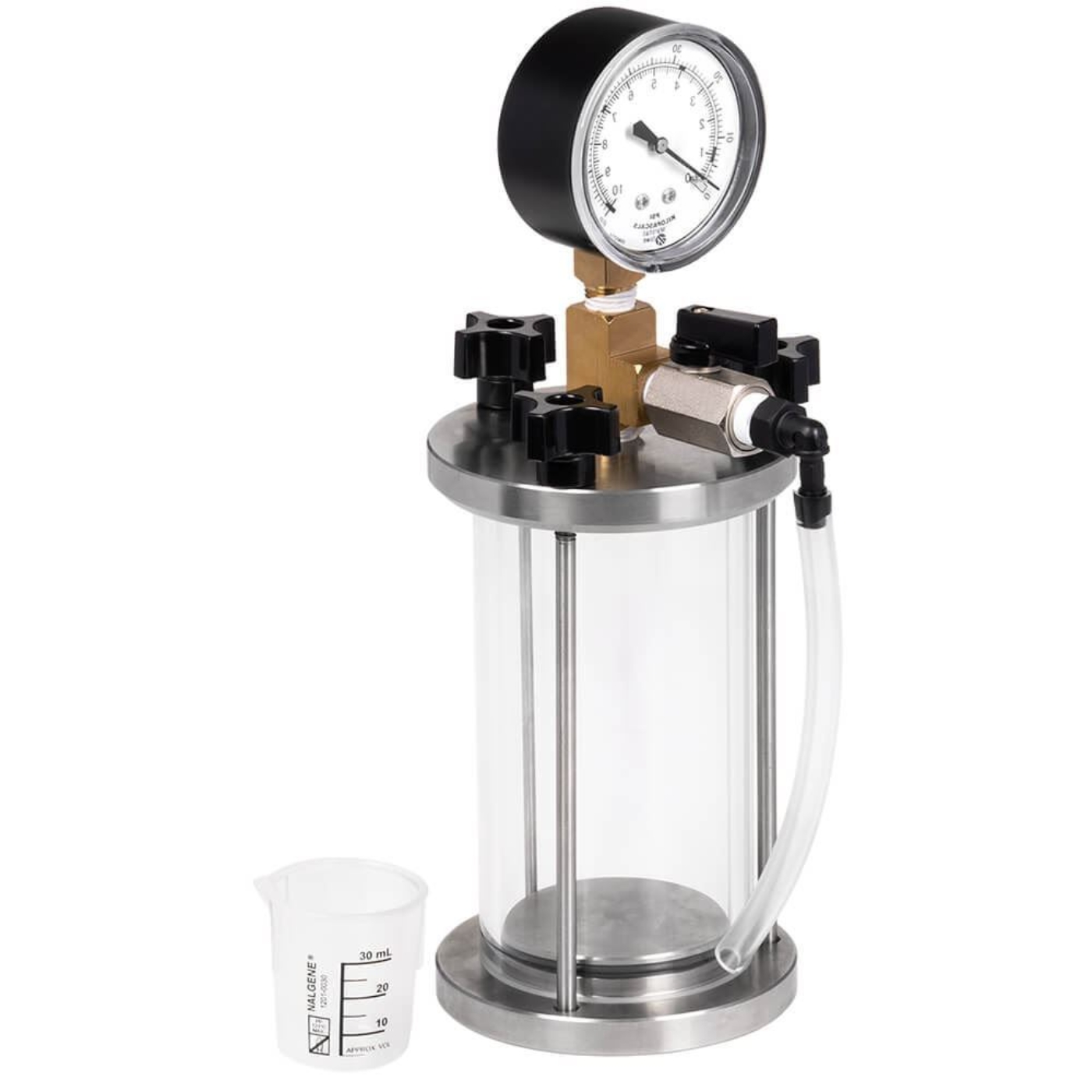

The method involves treating a one-gram soil specimen with hydrochloric acid (HCl) in an enclosed reactor vessel. Carbon dioxide gas is generated from the reaction between the acid and carbonates in the specimen when the chamber is tilted and agitated, and the resulting pressure is measured. The 10psi (69kPa) Bourdon-tube pressure gauge is pre-calibrated with reagent-grade calcium carbonate. The 2.5x5.5in (63.5x140mm) IDxH clear acrylic chamber assembly is sealed to the 303 stainless steel end caps with synthetic rubber O-Rings and secured by threaded rods and knobs. HM-536 is supplied with a pressure gauge, bleed valve, clear tubing, and a 30mL plastic container.
Features:
- The portable unit offers rapid results for Calcium Carbonate Content
- The chamber assembly is clear acrylic
- Easy-to-read pressure gauge
Included Items:
- Calcium Carbonate Content Chamber
- Clear tubing, 0.25in ID
- 30mL plastic container
