CBR Test Set includes all the necessary components to perform the California Bearing Ratio Test in compliance with ASTM D1883 and AASHTO T 193 specifications.
Features:
- Contains components to prepare four testing specimens at a time
- Complies with ASTM & AASHTO standards for CBR test
Included items:
- CBR Test Set:
- (4) California Bearing Ratio Mold Sets
- (4) CBR Annular Surcharge Weights, 5lb
- (4) CBR Slotted Surcharge Weights, 5lb
- (4) Swell Plates
- Filter Paper (pkg. of 100)
- CBR Spacer Disc
- Swell Tripod
- Mechanical Dial Indicator, 1x0.001in
Components:
- BRA-60 California Bearing Ratio (CBR) Mold Sets to hold specimens for CBR testing
- Surcharge Weights are used in applying surcharged loads on the soil surface

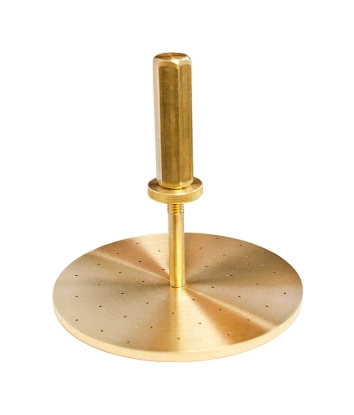

- BRA-67 Swell Plates for measuring specimen swell

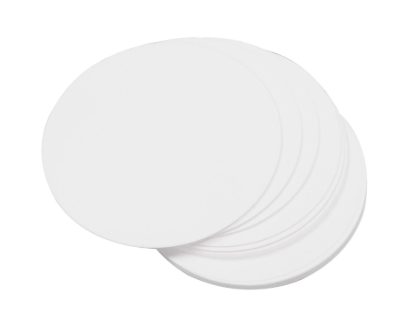

- BRA-76 CBR Paper Filters (100/pkg) for separating soil from the spacer disc during compaction or to place on the top of the soil when compacting is done

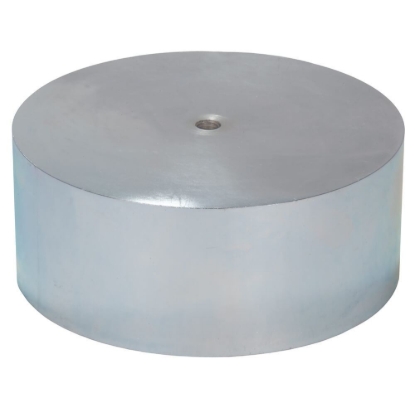

- BRA-61 CBR Spacer Disc which is placed in the mold during compaction

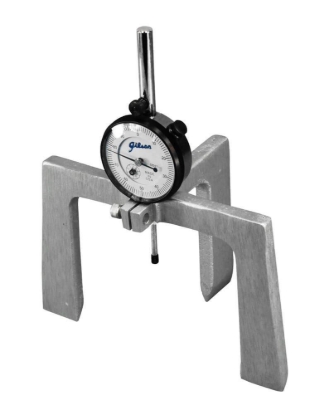

- BRA-68 CBR Swell Tripod which holds the Mechanical Dial Indicator

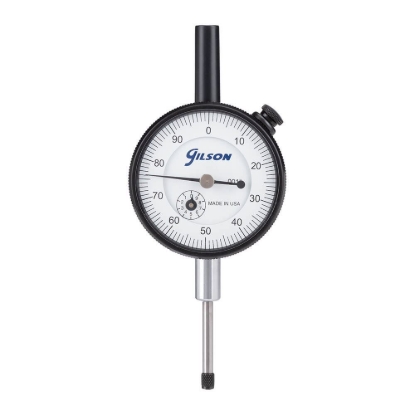

- MA-334 Mechanical Dial Indicator, 1x0.001in is used to measure the amount of swell

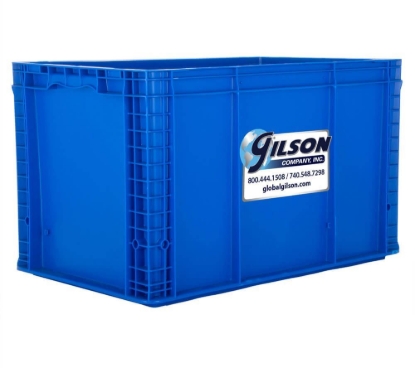

- CBR/LBR Soaking Tank is a heavy-duty container used for the soaking process of two maximum CBR or LBR molds.

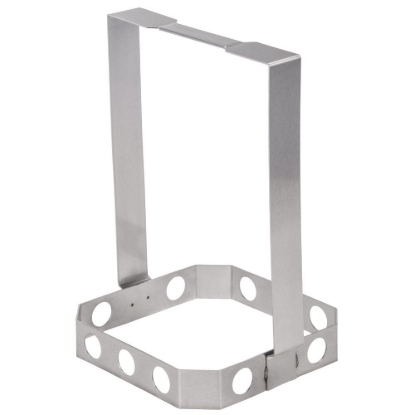

- CBR/LBR Mold Support Rack is used to hold a CBR or LBR mold and test components while soaking in the Soaking Tank.
