Chemical Resistant Diaphragm Vacuum Pump (115V, 60Hz)

Model: MA-33

$1,086.30

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Chemical Resistant Diaphragm Vacuum Pump (115V, 60Hz)

Model: MA-33

$1,086.30

Chemical Resistant Diaphragm Vacuum Pump (230V, 50Hz)

Model: MA-33F

$1,216.40

SKU: MA-33F

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Questions? Talk to a Product Expert

Get help from our in-house testing equipment specialists.

Open M–F: 8:00am–5:00pm

Call Us: (800) 444-1508

Description
Specifications
Quick Compare
Q&A

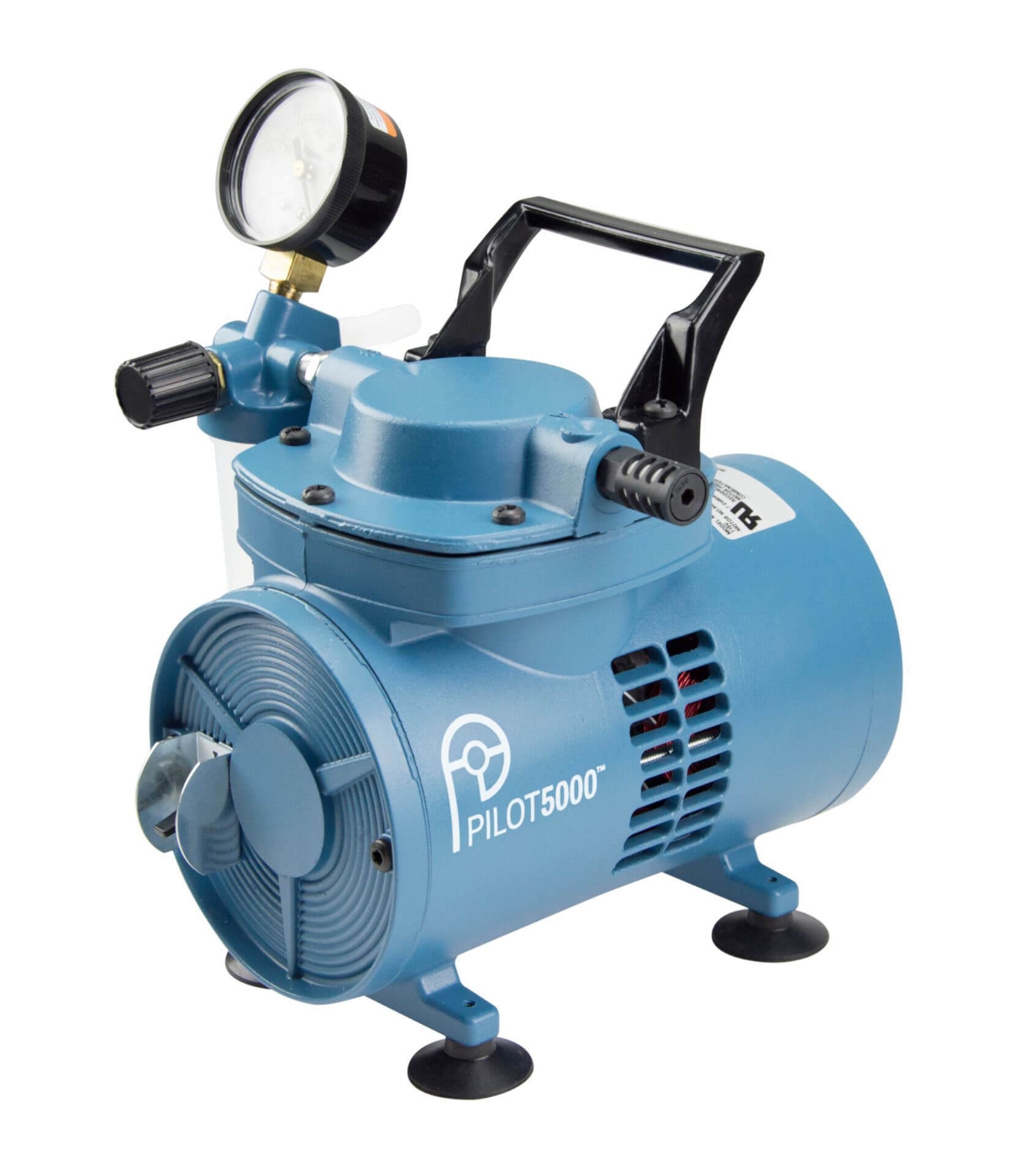

Chemical Resistant Diaphragm Vacuum Pump is a durable, corrosion, and bleach-resistant pump. It is ideal for mid-range vacuum applications and safe for use with cell culture contamination protocols. The included liquid inlet trap and vacuum regulator are suitable for organic aqueous solvents and light acid/base solutions. The 1/5hp motor pulls a 24in Hg (607mm Hg) vacuum, with free air displacement up to 31.2L/min (1.1cfm). The unit is supplied with an electrical line cord, plug, and power switch.

Features:

Durable, corrosion, and bleach-resistant pump
Optimal for mid-range vacuum applications
Safe for use with cell culture contamination protocols
The ultimate vacuum of 24in Hg (607mm)

Included Items:

Chemical Resistant Diaphragm Vacuum Pump

Related blogs:

Product tags

AASHTO T 164 (12)
,
ASTM D2172/2172M (11)

Specifications

Attribute name	Attribute value
Free Air Displacement	31.2L/min (1.1cfm)
Ultimate Vacuum	24in Hg (607mm)
Intake Port	0.25in (6.3mm)
Motor	1/5hp (0.20kW)
Electrical	MA-33: 115V, 60Hz, 3.5 amps MA-33F: 230V, 50Hz, 1.75 amps
Product Dimensions	8.75x5.0x8.75in (222.25x127x222.25mm) WxDxH
Net Weight	10.2lb (4.6kg)
Estimated Shipping Weight	12.4lb (5.62kg)

Quick Compare

Features	Chemical Resistant Diaphragm Vacuum Pump (115V, 60Hz)	Chemical Resistant Diaphragm Vacuum Pump (230V, 50Hz)
Pricing	$1,086.30	$1,216.40
Electrical	115V, 60Hz	230V, 50Hz
Free Air Displacement	37L/min (1.3cfm)	37L/min (1.3cfm)
Ultimate Vacuum	24in Hg (607mm)	24in Hg (607mm)
Intake Port	0.25in (6.3mm)	0.25in (6.3mm)
Product Dimensions	8.75x5.0x8.75in (222.25x127x222.25mm) WxDxH	8.75x5.0x8.75in (222.25x127x222.25mm) WxDxH
Estimated Shipping Weight	12.4lb (5.62kg)	12.4lb (5.62kg)
