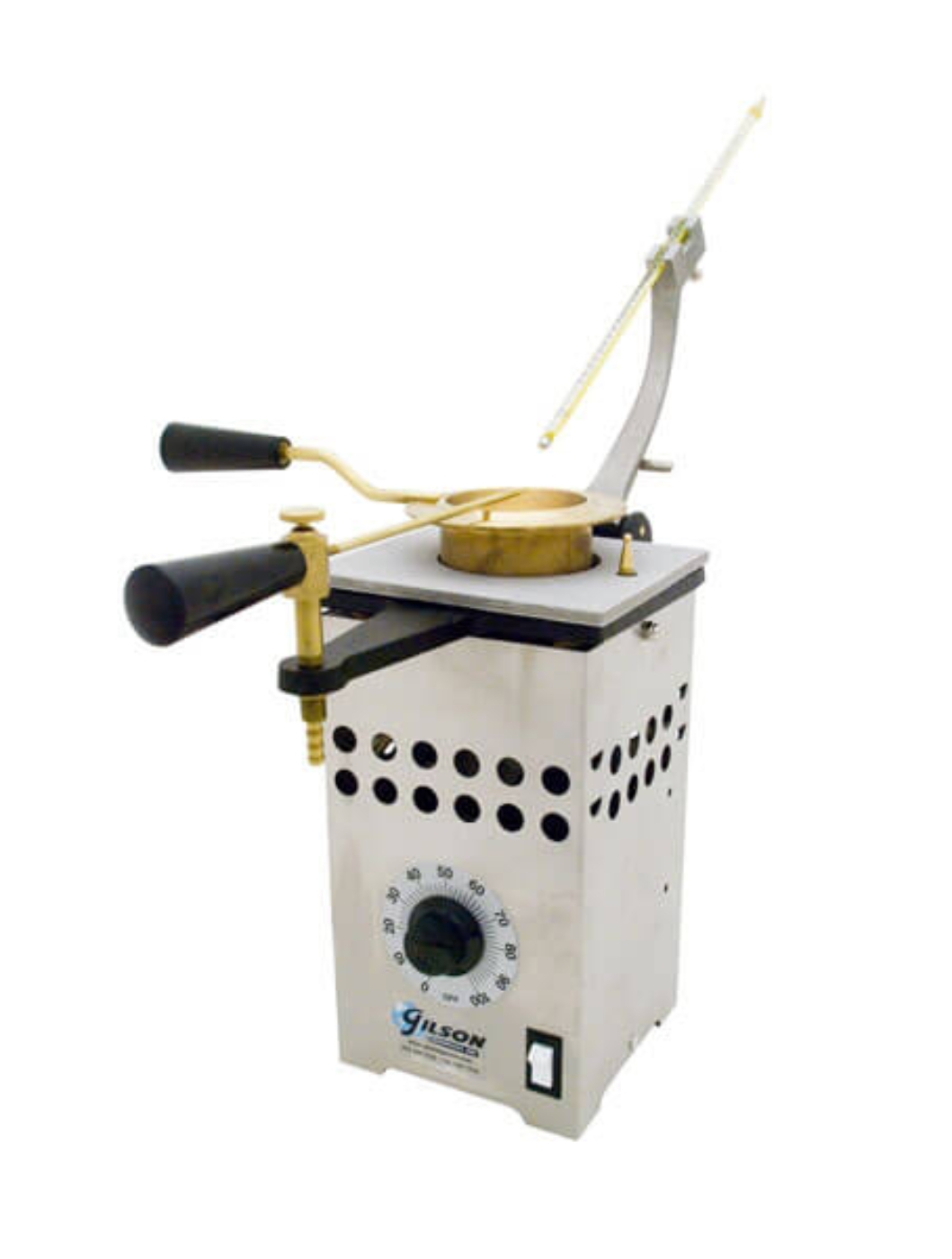

Cleveland Flash Point Tester is used in the Cleveland Open Cup method to measure flash and fire points for petroleum products igniting above 175°F (79°C). The variable control 1,250 Watt nickel-chromium heater assures accurate rate-of-rise temperature settings. The pivoting test-flame burner requires a separate gas supply. The thermometer positioning bracket is adjustable and can be raised for clearance to remove and install the cup. A rugged stainless steel housing with cooling vents encloses the heater and the open flash cup rests on an insulated platform. The MA-212C ASTM 11C Thermometer is required and ordered separately.
Features:
- Used to measure flash and fire points in the Cleveland Open Cup method
- Meets ASTM D92 and AASHTO T 48 requirements
- Variable 1,250 Watt electric heater accurately controls temperatures
- The insulated platform reduces heat loss
Includes:
- Cleveland Flash Point Tester (115V, 60Hz or 220V, 50/60Hz)
- Electric Heater with rheostat
- Thermometer positioning bracket
- Pivoting test-flame burner
- Flash cup
Accessories:

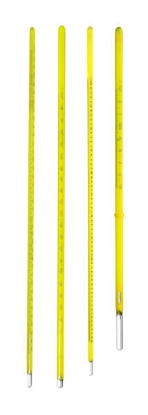

- ASTM 11C Mercury Thermometer, -6° to 400°C is required for use with PT-6A.
- Platinum RTD Min/Max Thermometer with NIST Calibration, -328°–932°F (-200°–500°C), is an alternative to a mercury thermometer.
