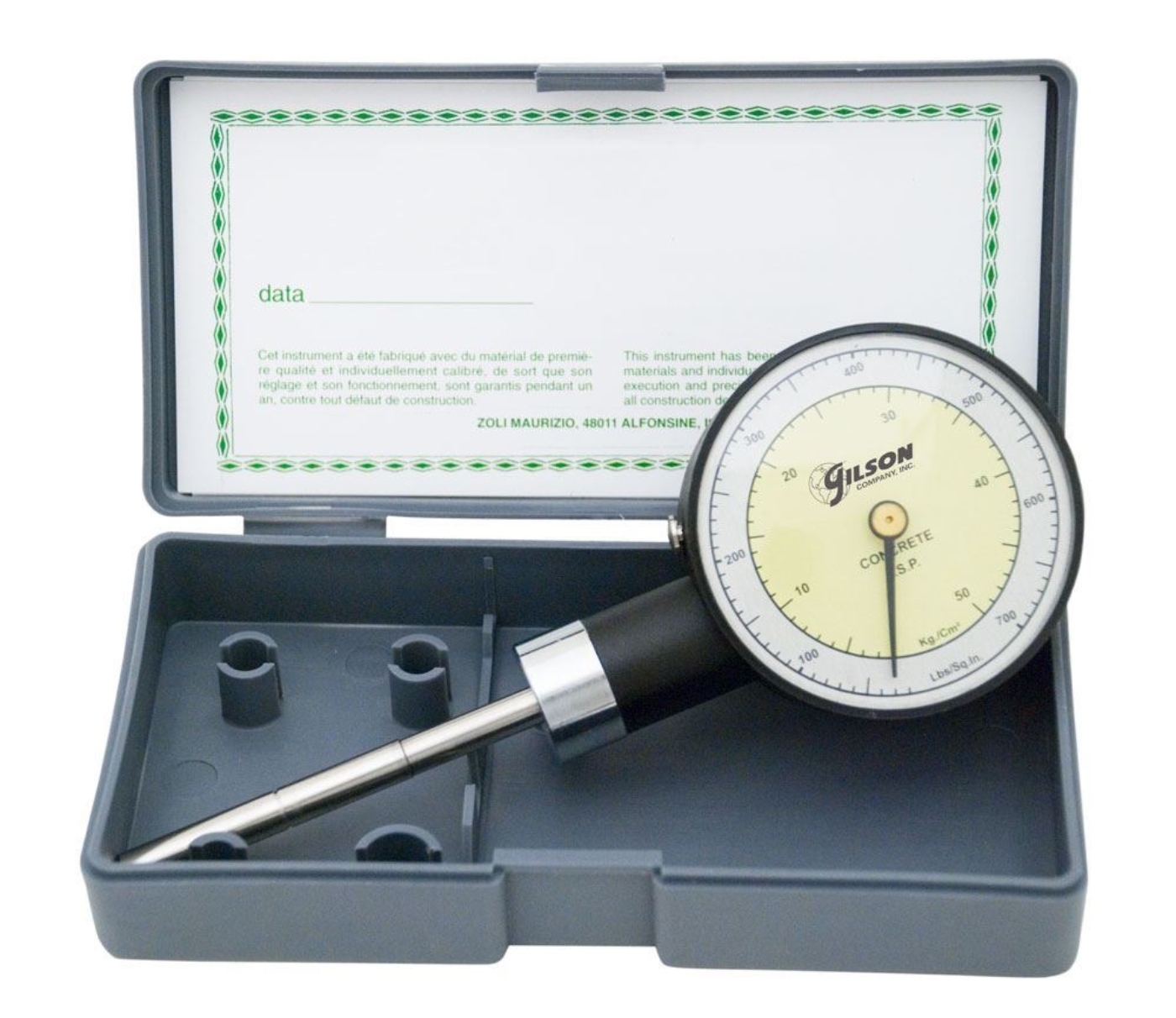

Concrete Dial Penetrometer is a compact instrument to estimate the initial set of concrete mixes. This model is fitted with an easy to read 2.3in (59mm) diameter dial gauge and has dual scales of 0–700psi and 0–50kg/cm² indicate resistance. Maximum readings are locked in until released by the push button. The instrument can be calibrated using an ordinary platform balance and adding or removing the register plates provided. Plastic cases, factory certification, and instructions are included.

Features:

Easy-to-read gauge
Detects concrete initial set
Dual scales for indicating resistance in psi and kg/cm²

Included Items:

Concrete Dial Penetrometer
Factory Certification
Plastic Carrying Case

Accessories:

HMA-295 Concrete Penetrometer Adapter Foot for use when testing cohesive soils with extremely low strength

Specifications

Attribute name	Attribute value
Range	0–700psi and 0–50kg/cm²
Display	2.3in (59mm) diameter dial gauge
Product Dimensions	4.5 x 2.3 x 0.94in (115 x 59 x 24mm), LxWxH
Estimated Shipping Weight	0.5lb (0.23kg)
