4qt Melting Pot (110V / 60Hz, 6 Amps)

Model: HM-200
$1,054.50
Please select the address you want to ship to
Ship to
*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Product Attachments

Expert
Questions? Talk to a Product Expert

Get help from our in-house testing equipment specialists.

Open M–F: 8:00am–5:00pm

Gilson Melting Pots are ideal for preparing capping compounds, wax, tars, liquid asphalt, and other materials in the lab.

Each Melting Pot has precision temperature controls that hold consistently to a set point from 100°–320°F (38°–160°C). A high limit control automatically turns pots off at 360°F (182°C). The cast aluminum inner liner encases the helically wound element from top to bottom to provide uniform heat distribution throughout the melting pot. The stainless steel outer casing ensures long service life.

Features:

  • Precision temperature control for 100°–320°F (38°–160°C) range holds to set point
  • Limit control turns pots off at 360°F (182°C)
  • Sturdy flat lid with a non-metallic knob for easy removal.
  • Element is bonded to the Inner liner from top to bottom for even heat distribution
  • Durable stainless steel outer case assures dependable long-lasting service

Included Items:

  • Melting Pot (4, 8, 12, 20, 24, or 28qt)

Accessories:

Related blogs:

Product tags

Specifications

Attribute name Attribute value
Temperature Range 38°–160°C (100°–320°F)
Application Capping compounds, wax, tars, liquid asphalt or other lab testing materials
Capacity

HM-200 & HM-200F: 4qt (3.8L)

HM-201 & HM-201F: 8qt (7.6L)

HM-202 & HM-202F: 12qt (11.4L)

HM-205 & HM-205F: 20qt (18.9L)

HM-206 & HM-206F: 24qt (22.7L)

HM-204 & HM-204F: 28qt (26.5L)

Electrical

Non-F Models: 110V / 60Hz

F Models: 220V / 50-60Hz

Inside Dimensions

HM-200 & HM-200F: 7.5 x 7in (191 x 178mm), Dia.xD

HM-201 & HM-201F: 10 x 6in (254 x 152mm), Dia.xD

HM-202 & HM-202F: 10 x 9in (254 x 229mm), Dia.xD

HM-205 & HM-205F: 14 x 7in (356 x 178mm), Dia.xD

HM-206 & HM-206F: 14 x 9in (356 x 229mm), Dia.xD

HM-204 & HM-204F: 14 x 11in (356 x 279mm), Dia.xD

Outside Dimensions

HM-200 & HM-200F: 10.8 x 10.5in (273 x 267mm), Dia.xD

HM-201 & HM-201F: 15.4 x 11in (391 x 279mm), Dia.xD

HM-202 & HM-202F: 15.4 x 13in (391 x 330mm), Dia.xD

HM-205 & HM-205F: 18.4 x 13.3in (467 x 337mm), Dia.xD

HM-206 & HM-206F: 18.4 x 15in (467 x 381mm), Dia.xD

HM-204 & HM-204F: 18.4 x 15.1in (467 x 384mm), Dia.xD

Estimated Shipping Weight

HM-200: 20.0lb (9.07kg)

HM-200F: 20.0lb (9.07kg)

HM-201: 39.0lb (17.69kg)

HM-201F: 39.0lb (17.69kg)

HM-202: 39.0lb (17.69kg)

HM-202F: 39.0lb (17.69kg)

HM-205: 55.0lb (24.95kg)

HM-205F: 55.0lb (24.95kg)

HM-206: 55.0lb (24.95kg)

HM-206F: 55.0lb (24.95kg)

HM-204: 55.0lb (24.95kg)

HM-204F: 55.0lb (24.95kg)

Quick Compare

Features

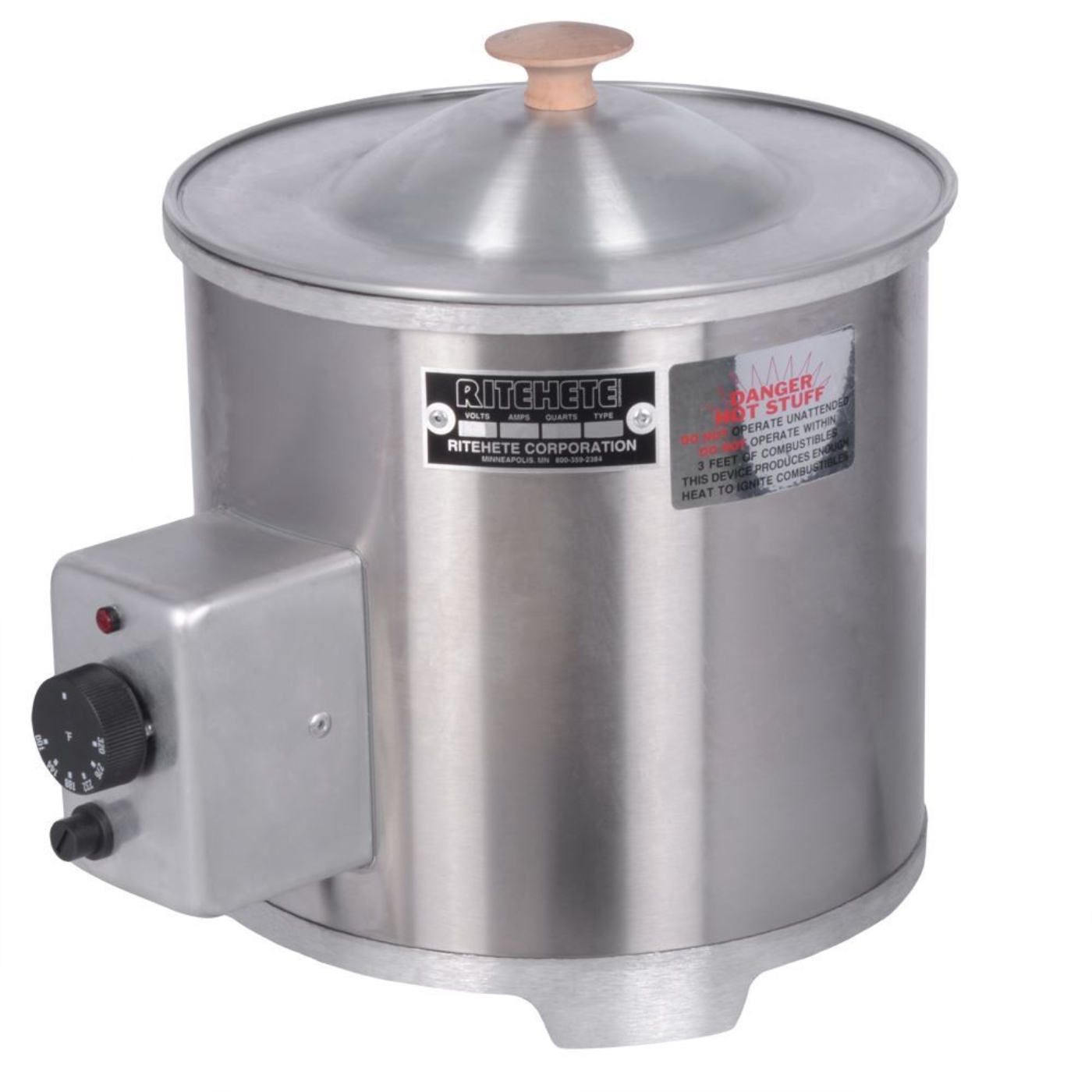

Picture of 4qt Melting Pot (110V / 60Hz, 6 Amps)

4qt Melting Pot (110V / 60Hz, 6 Amps)

Picture of 4qt Melting Pot (220V / 50-60Hz, 3 Amps)

4qt Melting Pot (220V / 50-60Hz, 3 Amps)

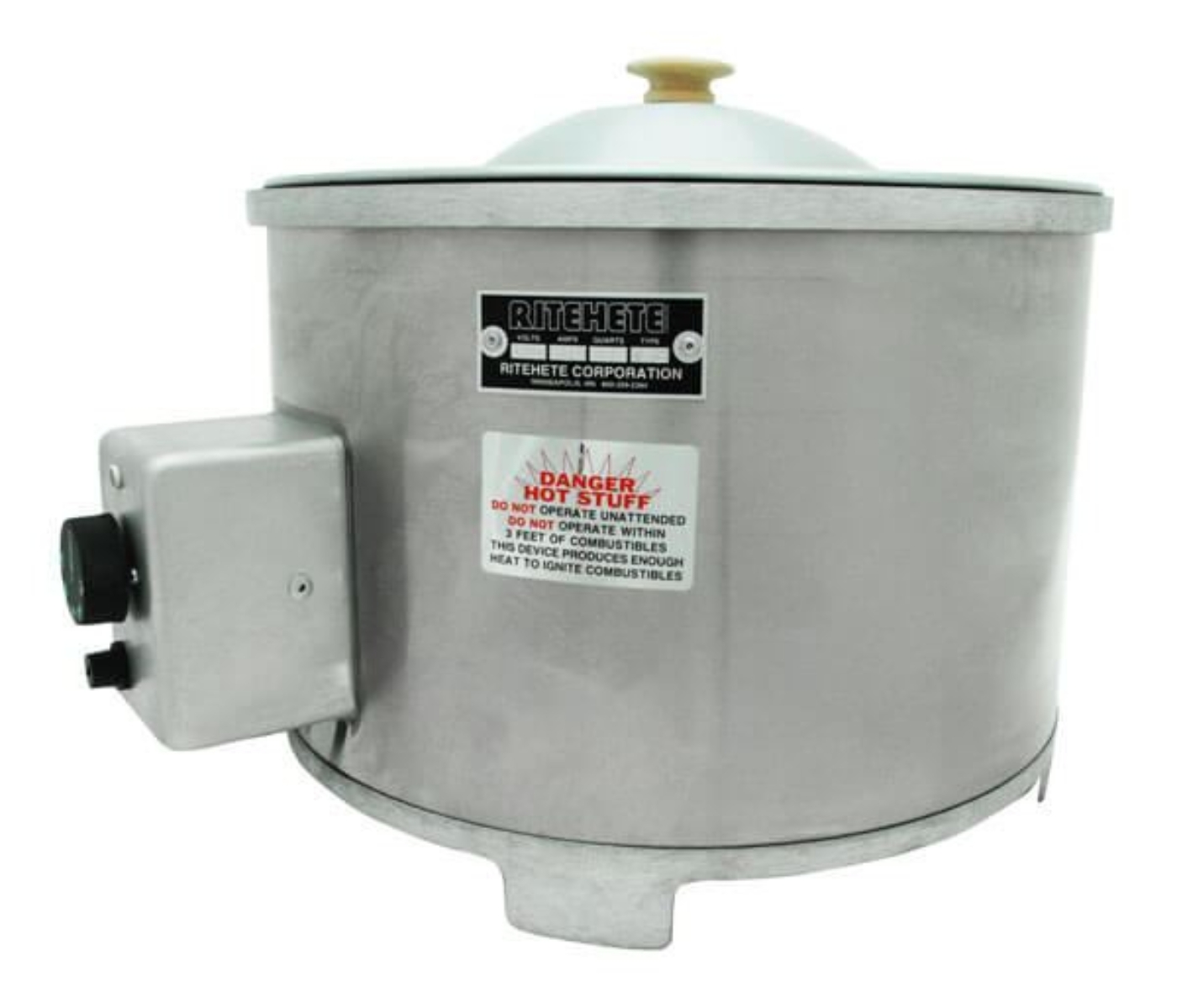

8qt Melting Pot (110V / 60Hz, 10 Amps)

8qt Melting Pot (110V / 60Hz, 10 Amps)

8qt Melting Pot (220V / 50-60Hz, 5 Amps)

8qt Melting Pot (220V / 50-60Hz, 5 Amps)

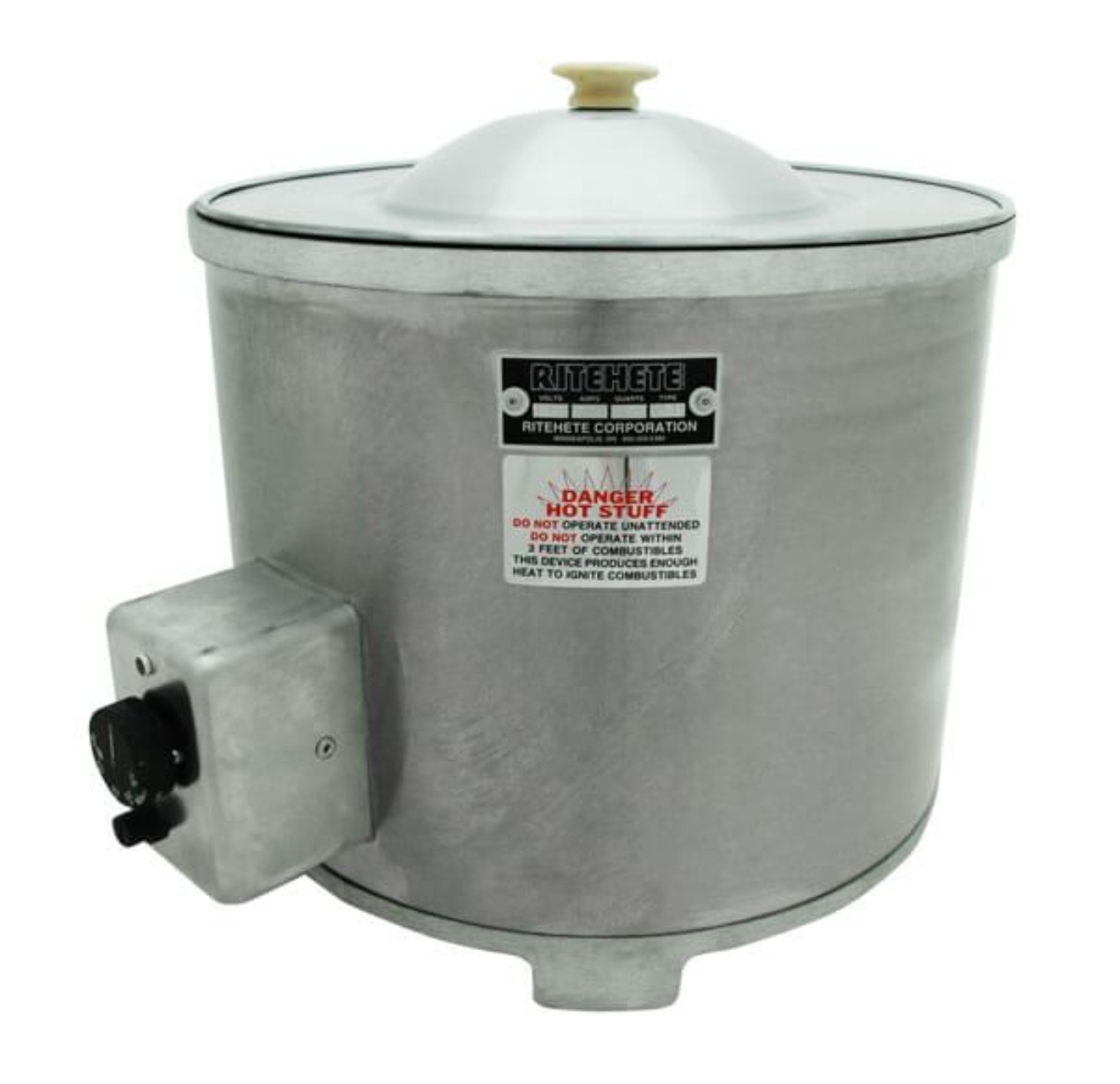

12qt Melting Pot (110V / 60Hz, 11 Amps)

12qt Melting Pot (110V / 60Hz, 11 Amps)

12qt Melting Pot (220V / 50-60Hz, 5.5 Amps)

12qt Melting Pot (220V / 50-60Hz, 5.5 Amps)

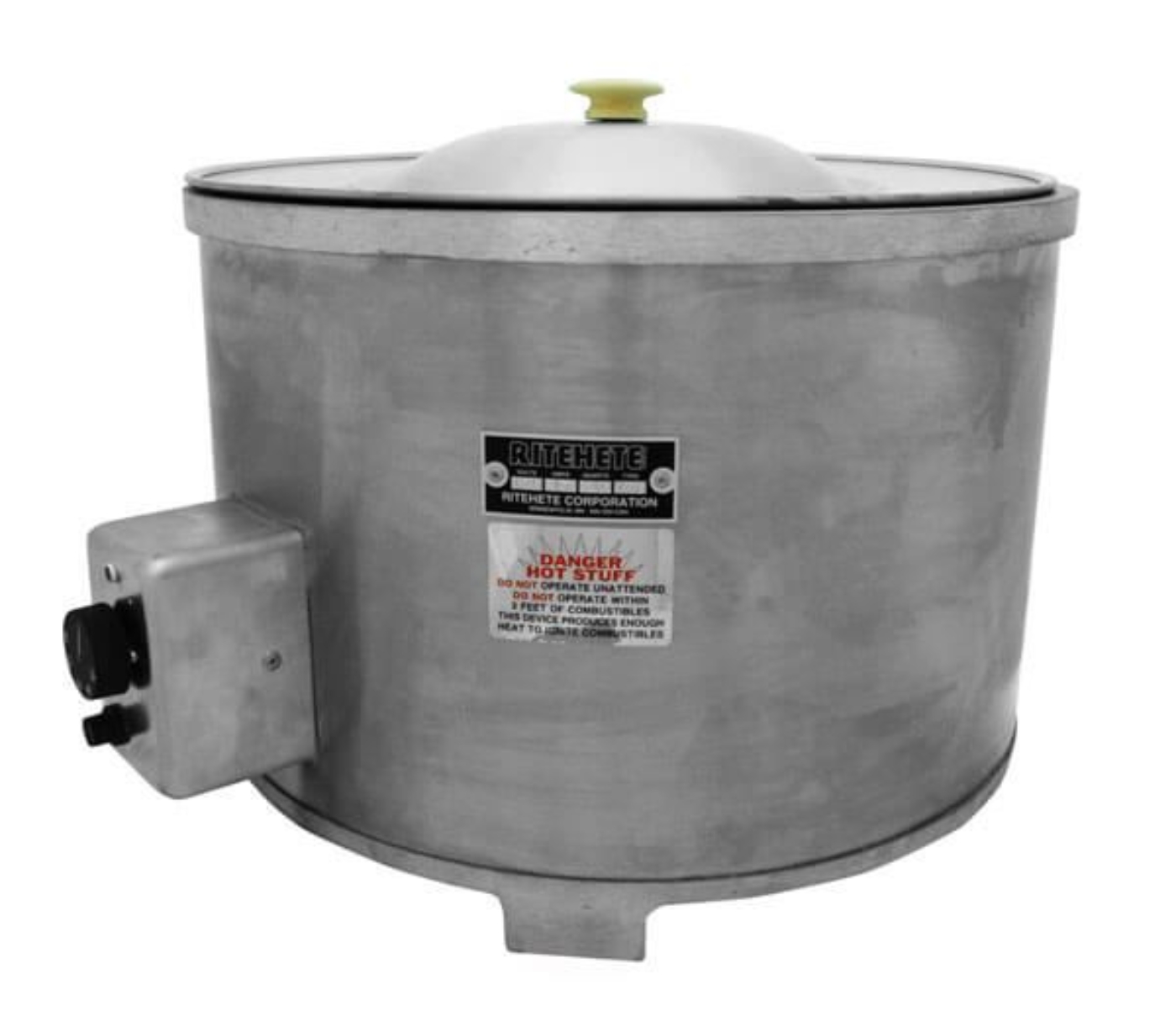

Picture of 20qt Melting Pot (110V / 60Hz, 13 Amps)

20qt Melting Pot (110V / 60Hz, 13 Amps)

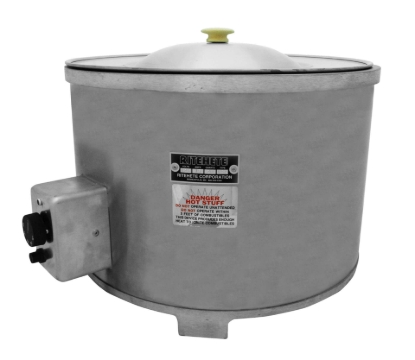

Picture of 20qt Melting Pot (220V / 50-60Hz, 6.5 Amps)

20qt Melting Pot (220V / 50-60Hz, 6.5 Amps)

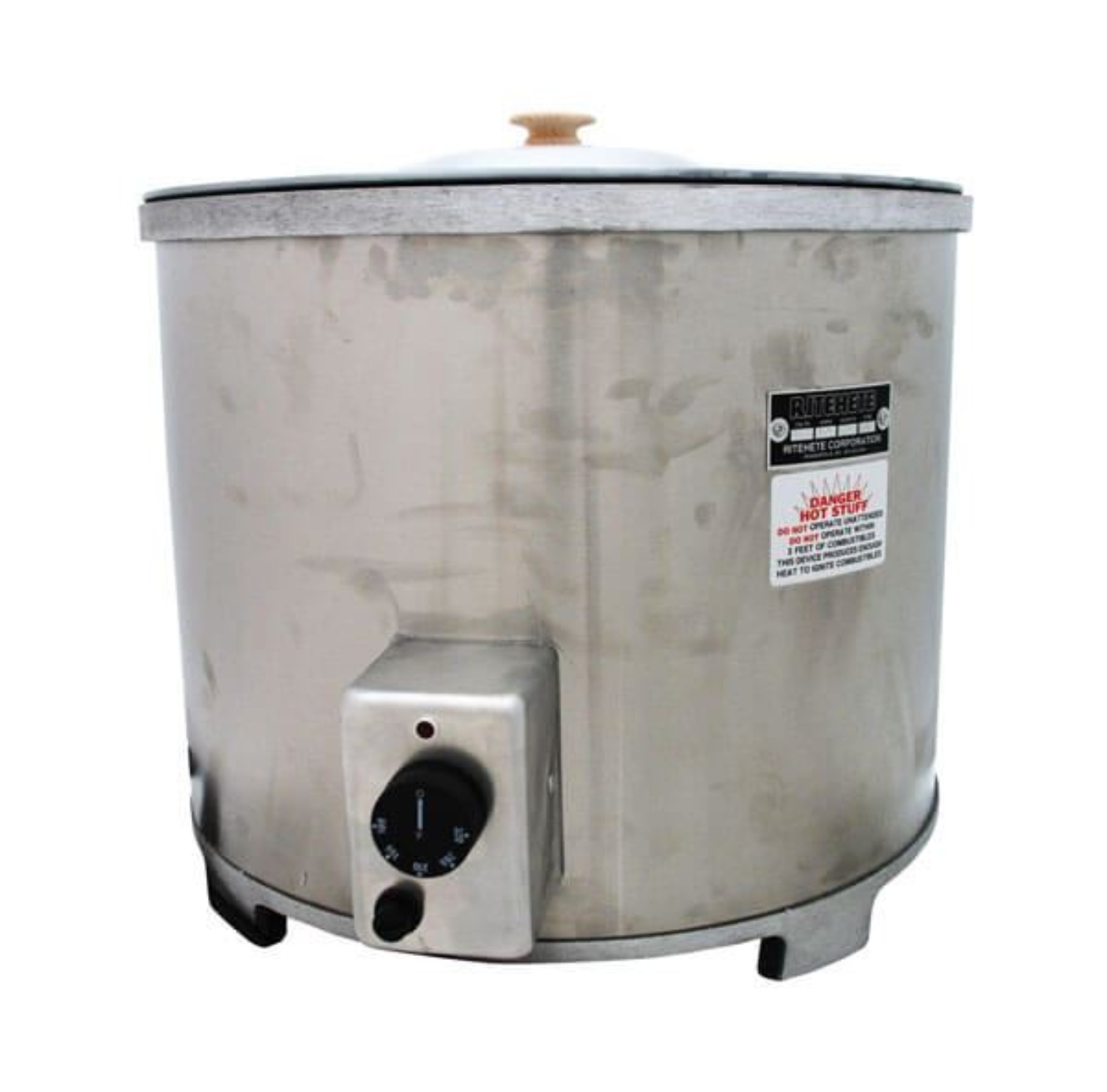

24qt Melting Pot (110V / 60Hz, 14 Amps)

24qt Melting Pot (110V / 60Hz, 14 Amps)

24qt Melting Pot (220V / 50-60Hz, 7 Amps)

24qt Melting Pot (220V / 50-60Hz, 7 Amps)

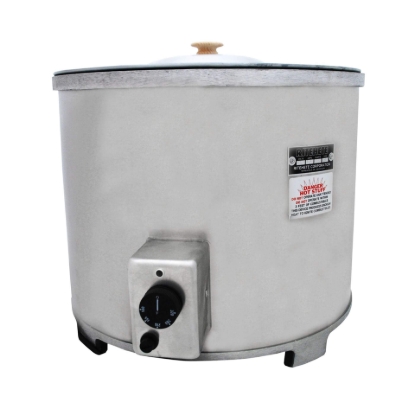

Picture of 28qt Melting Pot (110V / 60Hz, 15 Amps)

28qt Melting Pot (110V / 60Hz, 15 Amps)

Picture of 28qt Melting Pot (220V / 50-60Hz, 7.5 Amps)

28qt Melting Pot (220V / 50-60Hz, 7.5 Amps)

Pricing $1,054.50 $1,054.50 $1,845.40 $1,845.40 $1,939.40 $1,939.40 $2,145.90 $2,145.90 $2,439.60 $2,439.60 $2,736.10 $2,736.10
Capacity 4.0qt (3.8L) 4.0qt (3.8L) 8.0qt (7.6L) 8.0qt (7.6L) 12qt (11.4L) 12qt (11.4L) 20qt (18.9L) 20qt (18.9L) 24qt (22.7L) 24qt (22.7L) 28qt (26.5L) 28qt (26.5L)
Electrical 110V, 60Hz 220V, 50/60Hz 110V, 60Hz 220V, 50/60Hz 110V, 60Hz 220V, 50/60Hz 110V, 60Hz 220V, 50/60Hz 110V, 60Hz 220V, 50/60Hz 110V, 60Hz 220V, 50/60Hz
Estimated Shipping Weight 20.0lb (9.07kg) 20.0lb (9.07kg) 39.0lb (17.69kg) 39.0lb (17.69kg) 39.0lb (17.69kg) 39.0lb (17.69kg) 55.0lb (24.95kg) 55.0lb (24.95kg) 55.0lb (24.95kg) 55.0lb (24.95kg) 55.0lb (24.95kg) 55.0lb (24.95kg)
