HMA-608 Consolidation Data Acquisition Software automatically records the rate of consolidation during the incremental loading of soil samples. This intuitive software utilizes clear data entry fields and testing prompts to reduce user error and increase repeatability.
Consolidation software runs on computers with Windows XP or newer operating systems and is designed for convenient use on tablets and laptops with touchscreen control. A large pop-up keyboard can be enabled for touchscreen computers or disabled when a PC with a mouse and keyboard is used.

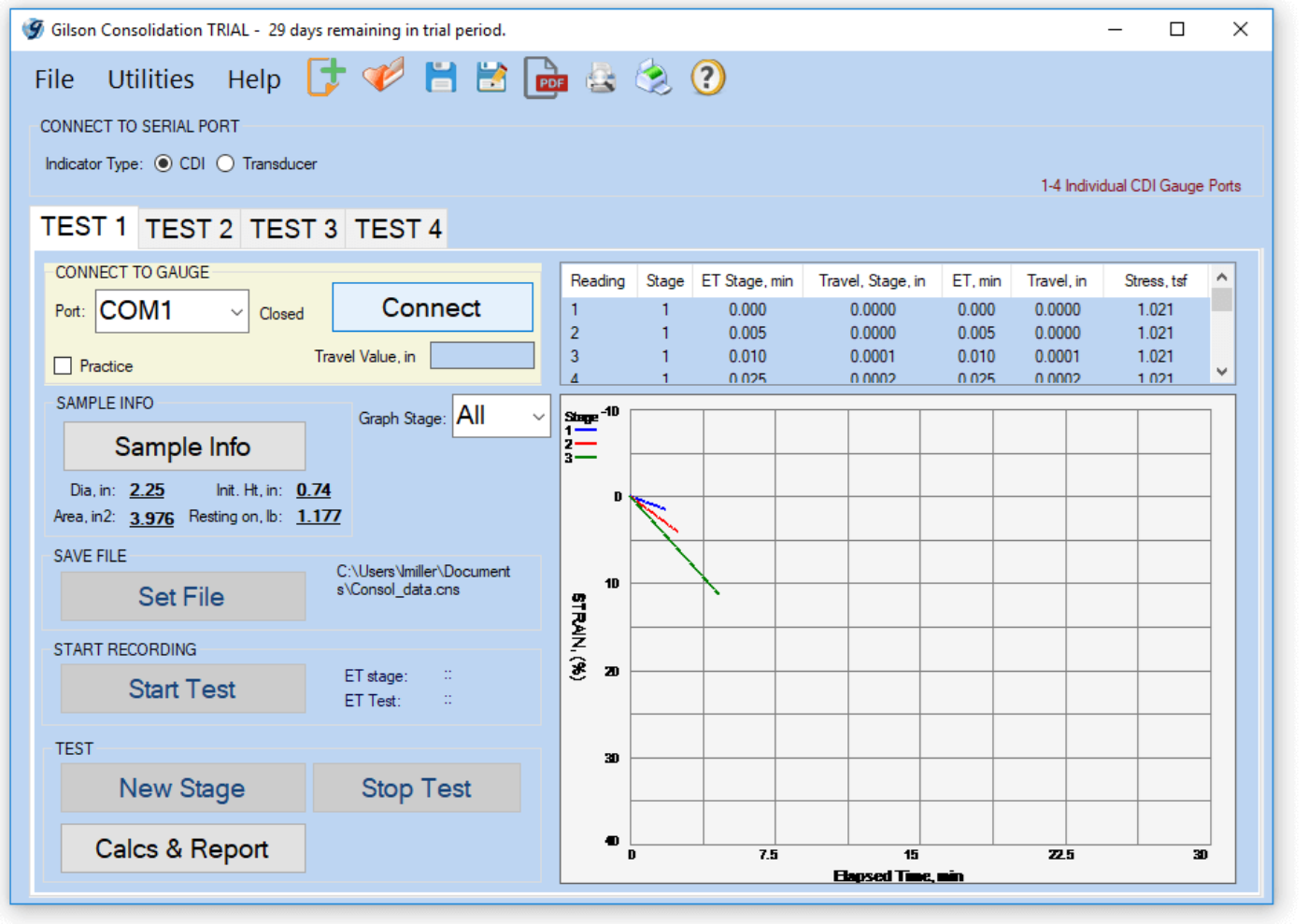

Real-time graphing and calculations are performed throughout the test procedure and saved automatically at test completion in accordance with ASTM and AASHTO specifications. The testing agency information, company logo, sample data, final test results, and corresponding graph are included in the final testing report. Test data and sample information can also be exported to a spreadsheet application or converted into a PDF document.

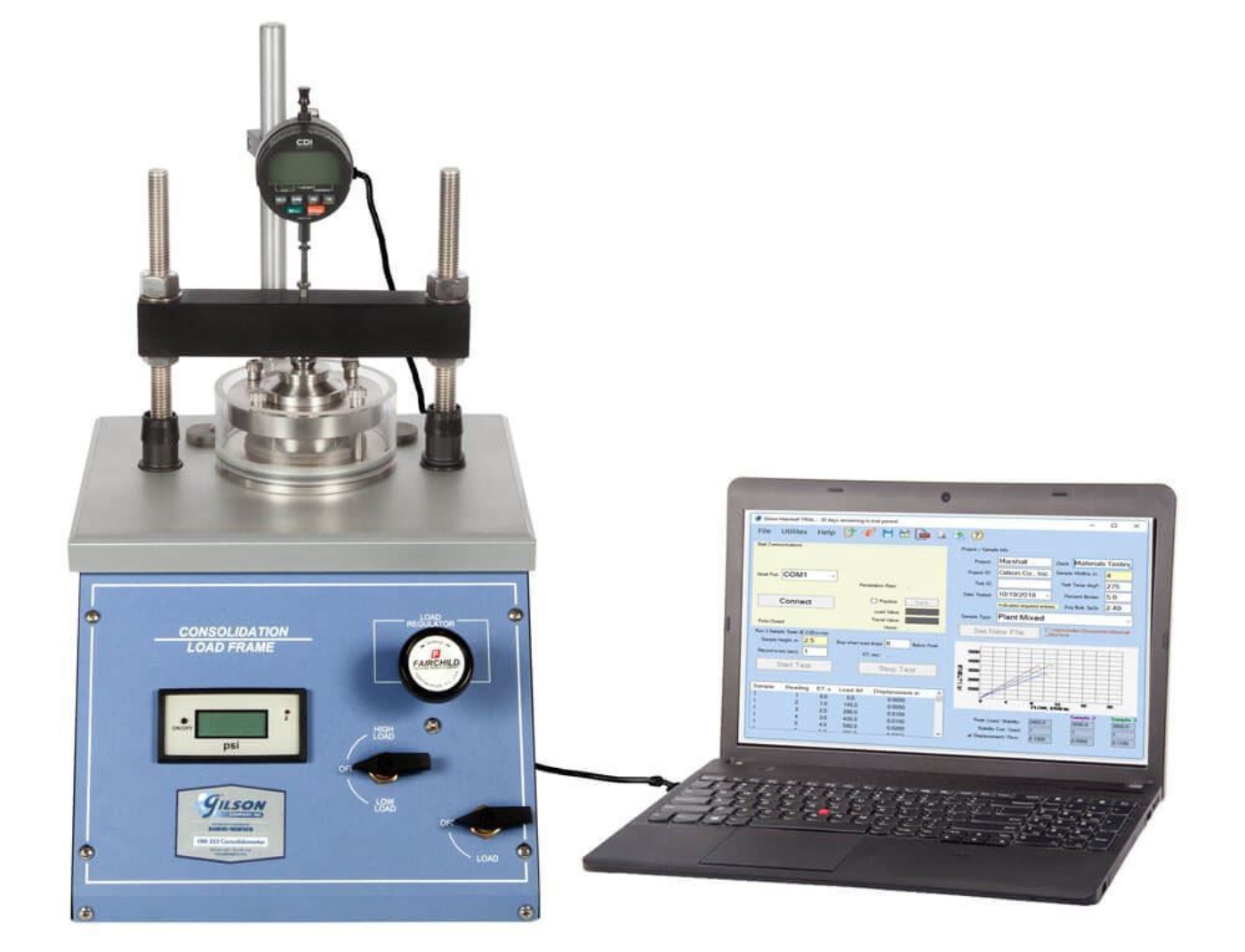

Consolidation Data Acquisition Software requires a two-channel or four-channel Digital Readout Box equipped with Displacement Transducer(s) for operation. Alternatively, the software can be configured for use with a Digital Dial Indicator and USB Cable. All components and sets are purchased separately. Customization using third-party displacement components is possible. Contact Gilson tech support for compatibility information.
Add to Cart to download Consolidation Software as a free, fully-functional 30-day trial. A USB security key and licensing information to unlock the software for a permanent operation will be sent upon purchase.
Features:- Displays real-time graph during each consolidation stage
- Allows a user to recall previous stages and graph of all stages at test completion
- Automatically saves final reports to a computer, network, or cloud
- Calculations and reports in accordance with ASTM and AASHTO standards
- Optimized for use with desktop, laptop, or tablet devices
- Consolidation Data Acquisition Software

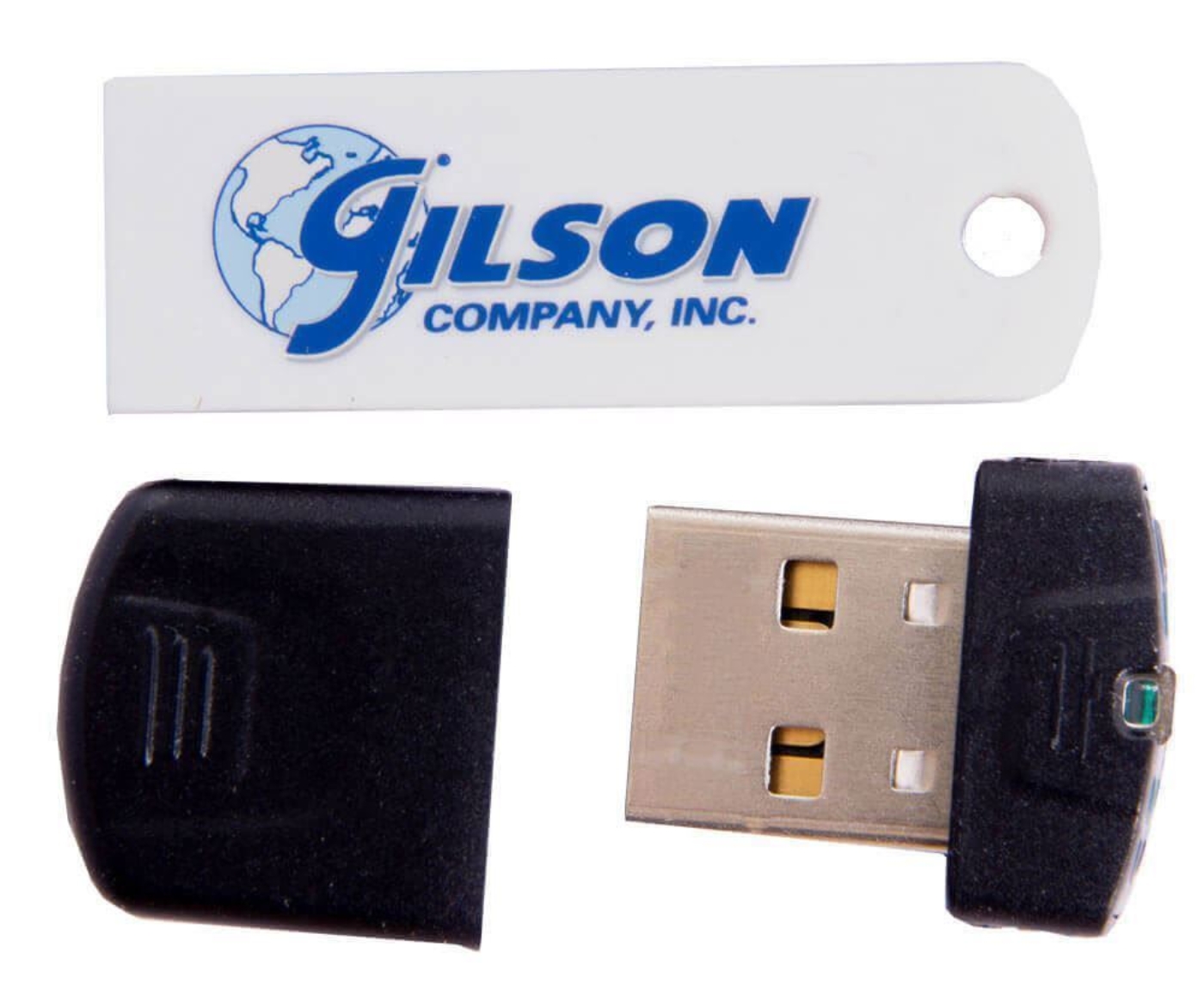

- USB flash drive with installation files

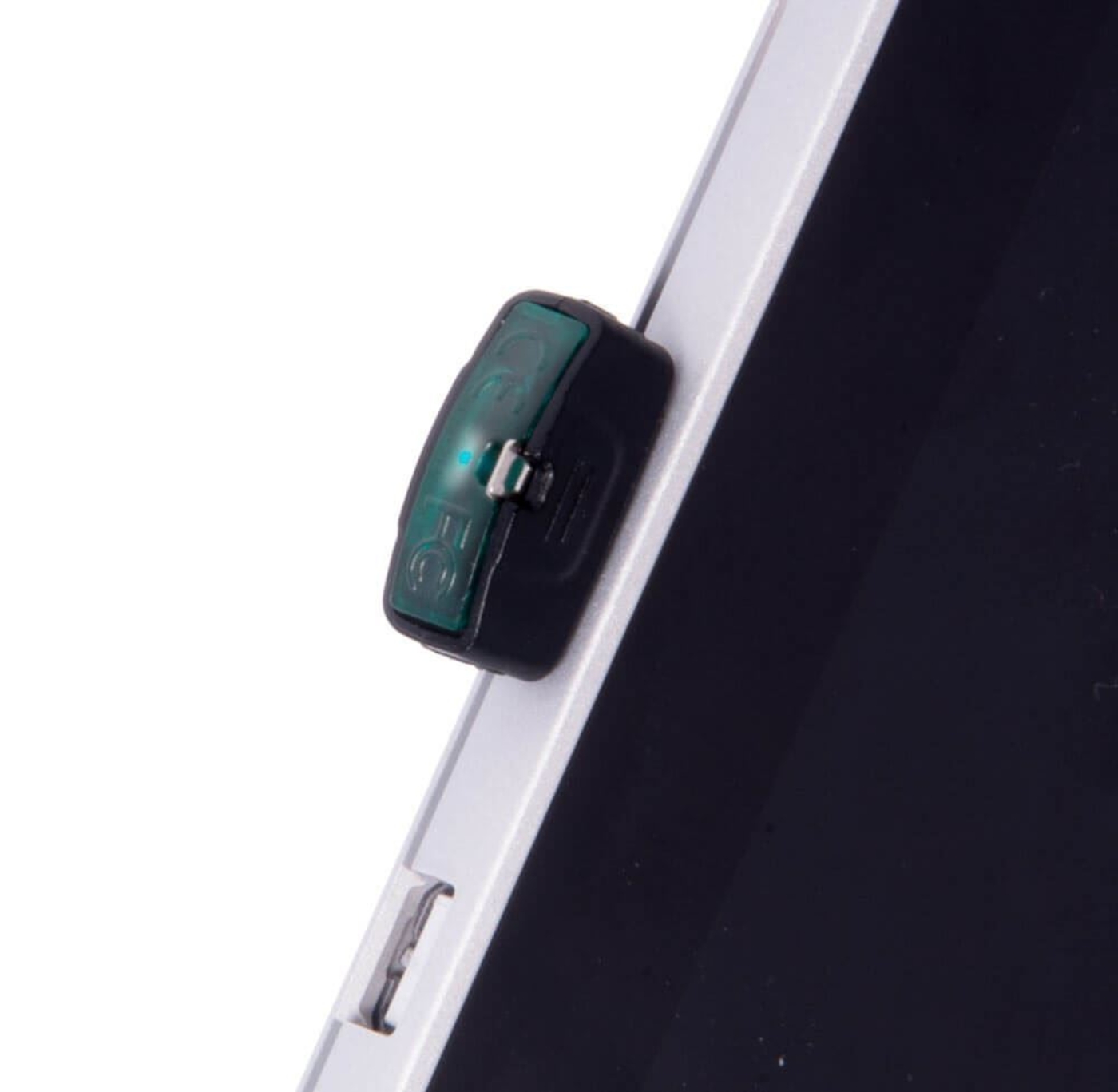

- USB security key
