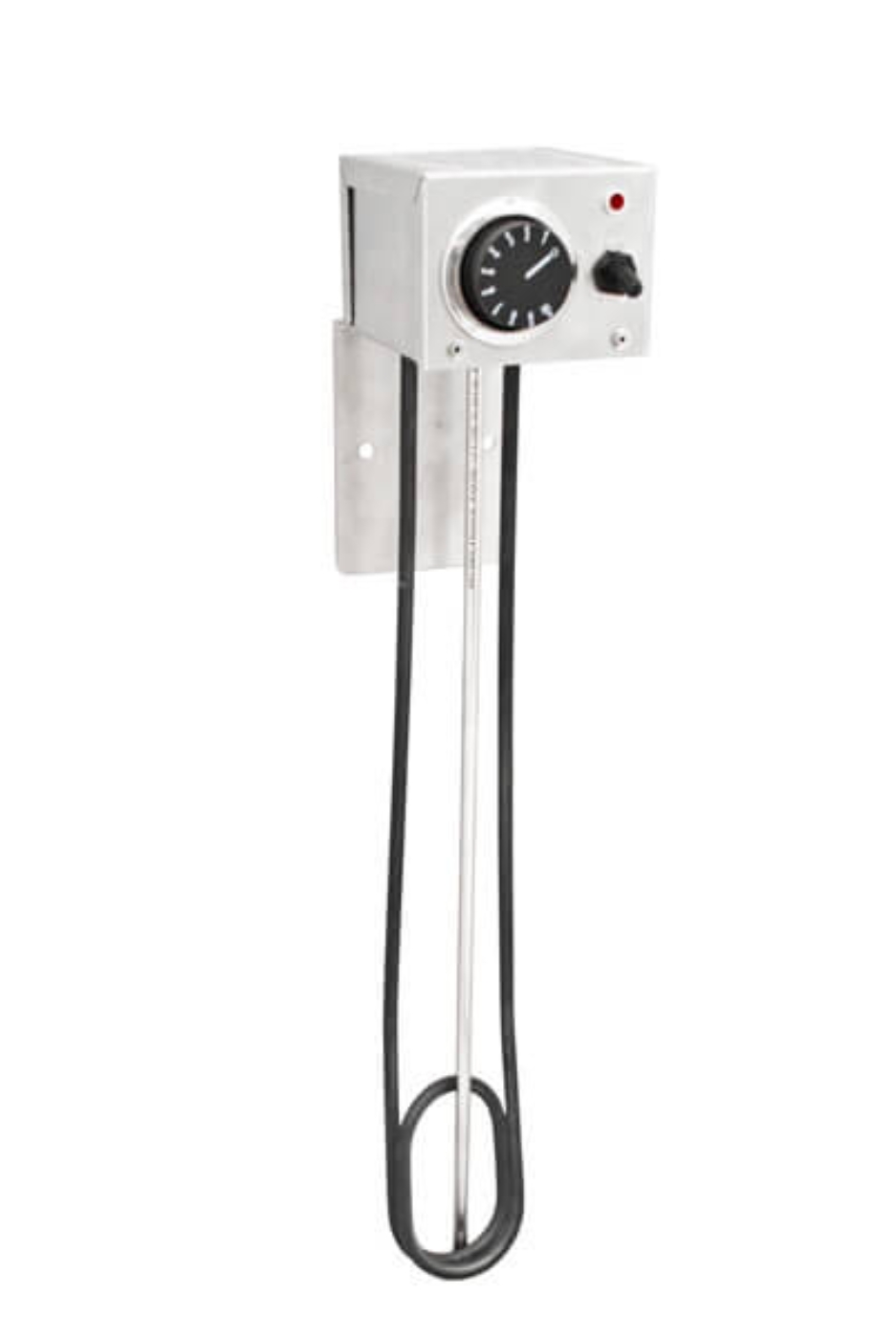

Curing Tank Heater is designed to maintain water temperatures in Concrete Curing Tanks up to 350gal (1,325L) for proper curing of concrete specimens. The heater maintains the required concrete curing temperature of 73.4°F ±3°F (23°C ±1.7°C) when the ambient temperature is between 53°–72°F (12°–22°C).
One heater is recommended per 200 gallons of water. Additional tank heaters may be needed based on the size of the tank, specimen loading, and ambient air temperature. The heating element must be immersed in water to a depth of no less than 12in (305mm) at all times.
The Heater has Incoloy shielded 19in (483mm) long element attached to a sealed stainless steel housing. A dial-type proportional controller regulates the required temperatures in curing tanks. The 1,000-watt unit operates on 120V, 60Hz power supplies and requires a 15 amp circuit. The heater is equipped with a 9ft long three-prong grounded plug, fuse, run light, and mounting bracket.
Note: For 230V operation order TR-3002 3,000W Step-Up/Step-Down Transformer.
Features:
- Stainless steel housing
- Incoloy shielded element
- Maintains the needed temperature for curing
Included Items:
- Curing Tank Heater
