Description
Specifications
Quick Compare
Q&A

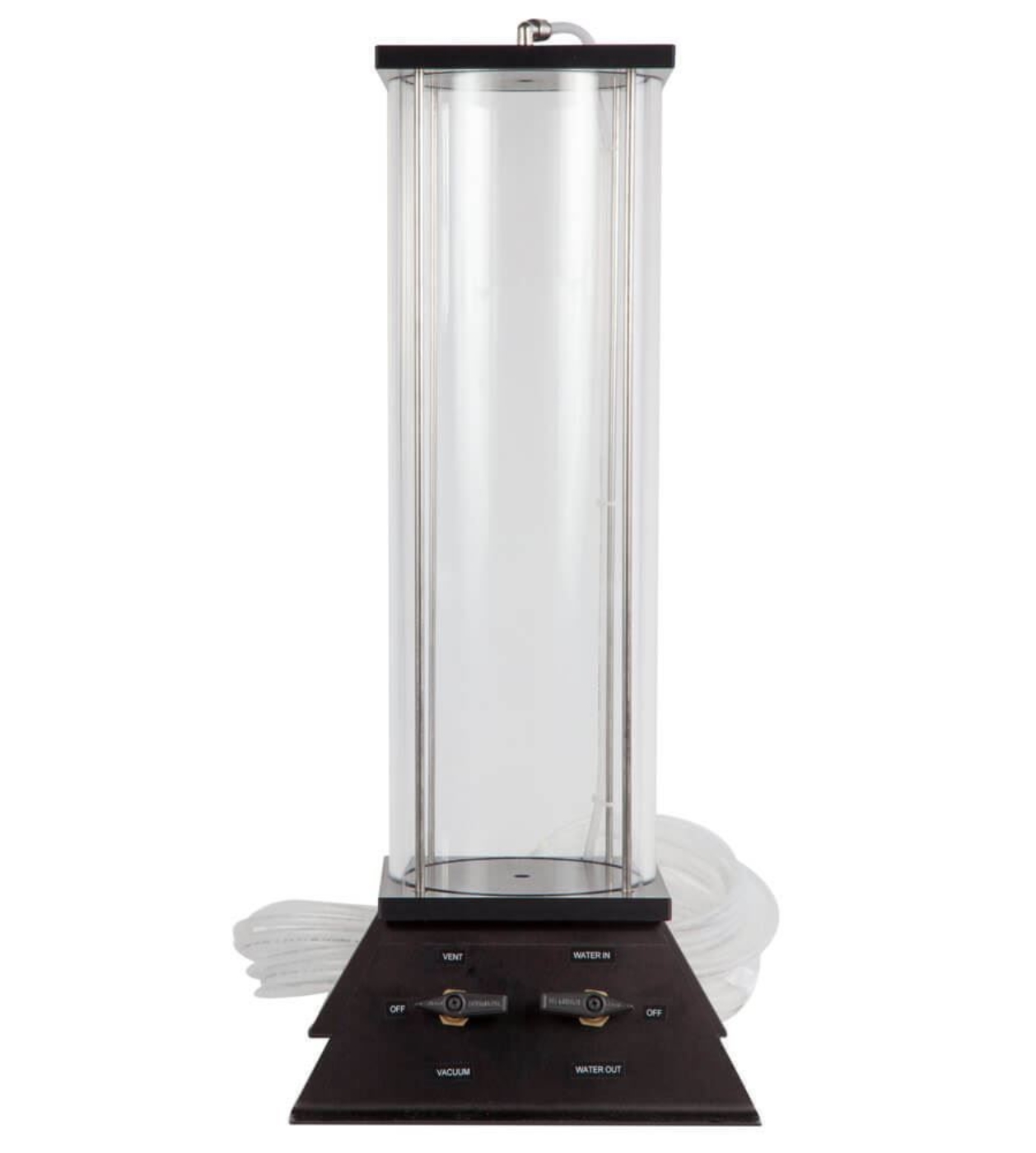

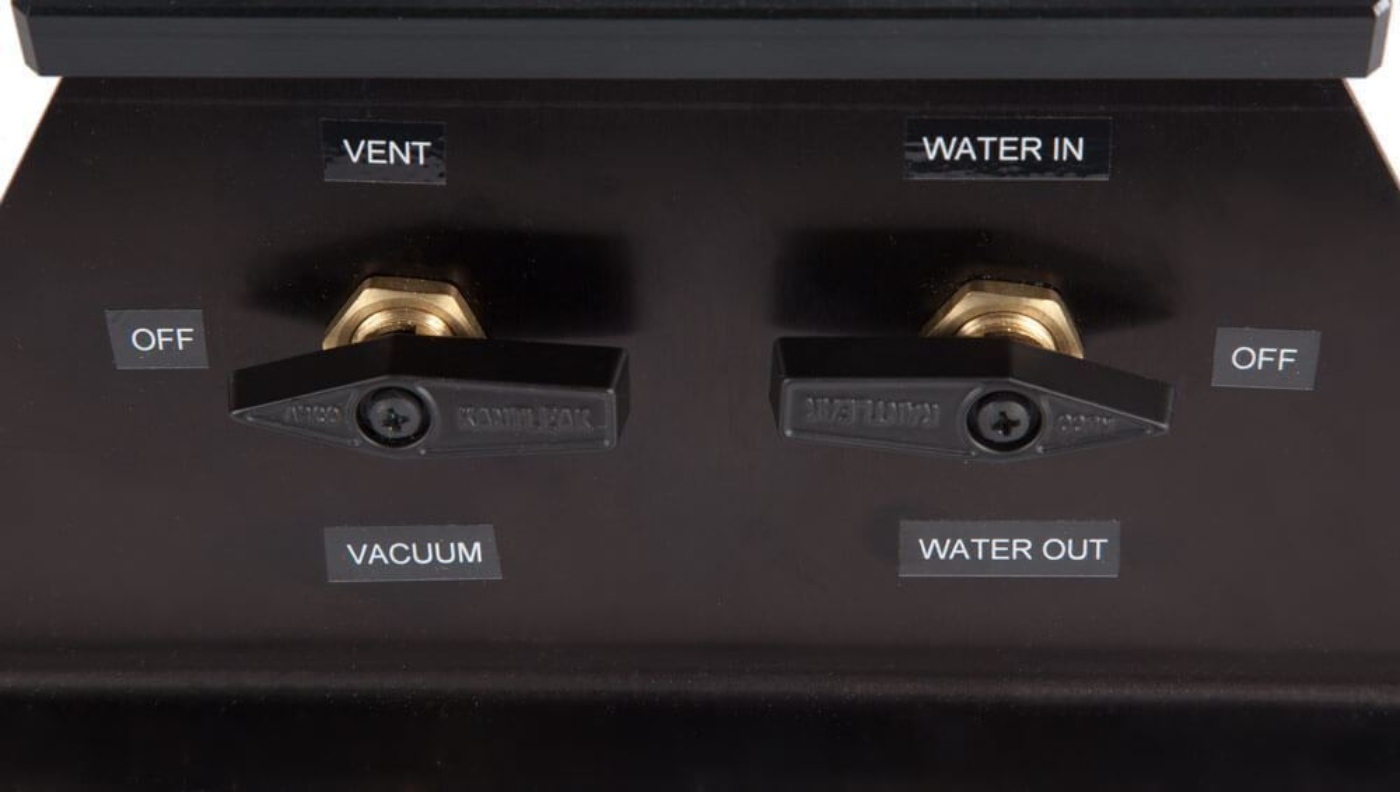

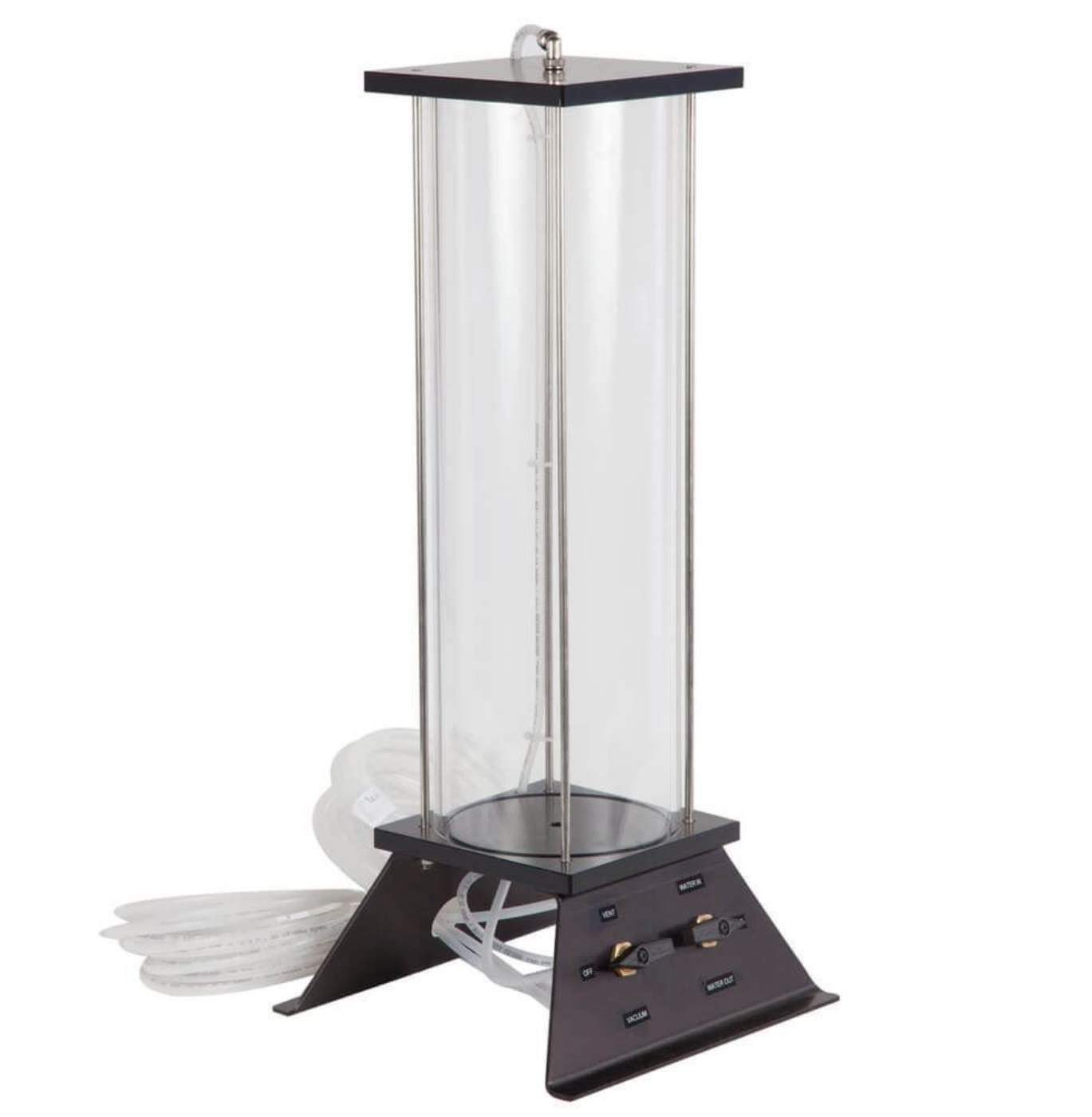

Deairing Tanks are used with Triaxial and Permeability Test Systems to remove entrapped air in the water for use in Control Panels and Test Cells. The Deairing Tanks are constructed of clear acrylic and come with valves, fittings, and 1/4in outer diameter tubing for connecting to a user-supplied vacuum.

HMA-520 has a 1.5 gallon (5.7L) tank.
HMA-505 has a 5.0 gallon (18.9L) tank.

Features:

Chamber constructed of durable clear acrylic

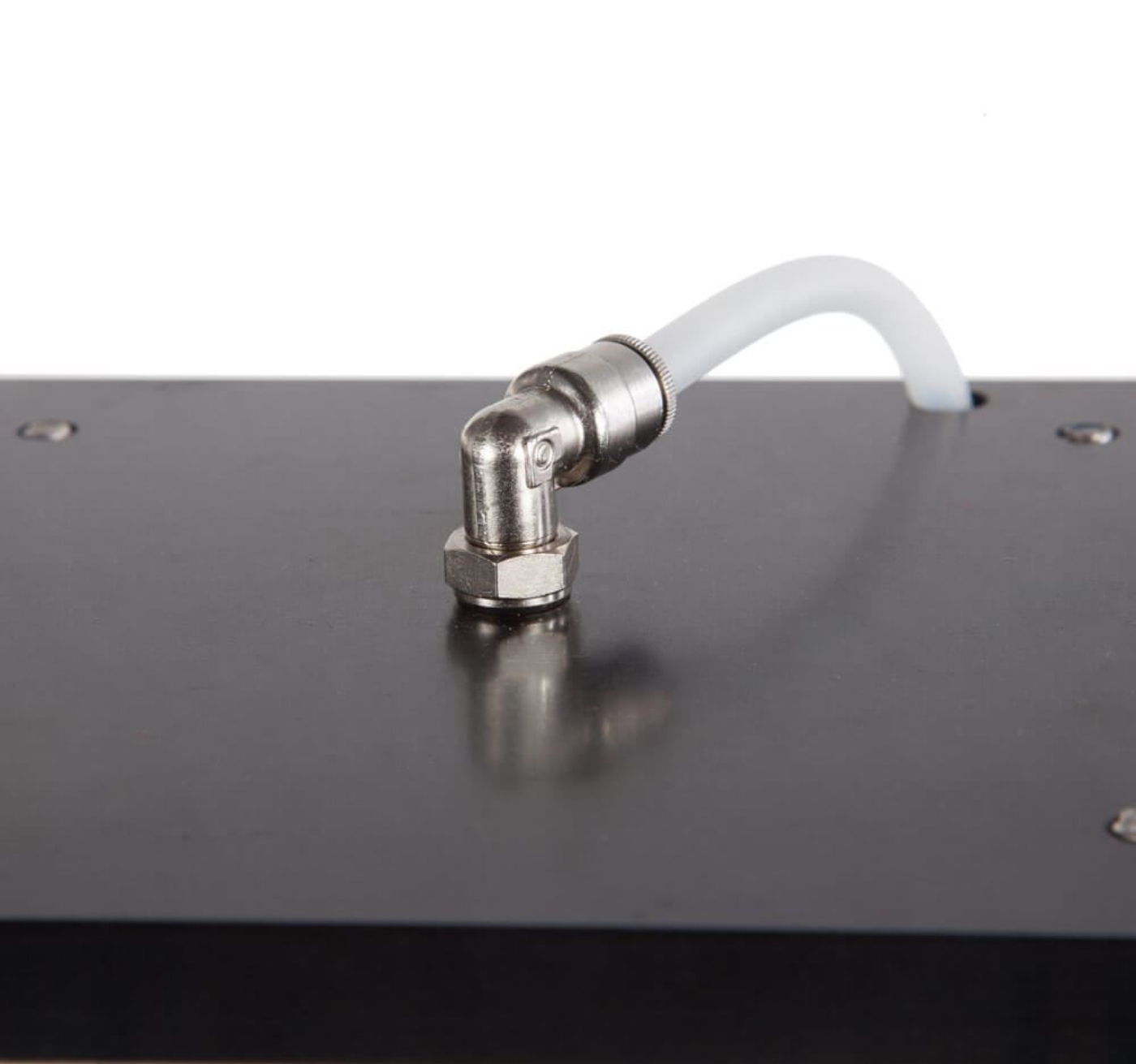

Included 1/4in OD tubing for easy hookup to vacuum source
Systems produce desired water for triaxial and flexible wall permeability testing

Included Items:

Deairing Tank (5.0 or 1.5 gallons)
Tubing

Product tags

AASHTO T 296 (166)
,
ASTM D2850 (166)
,
ASTM D4767 (166)
,
ASTM D5084 (161)

Specifications

Attribute name	Attribute value
Capacity	HMA-520: 1.5 gal (5.7L) HMA-505: 5.0 gal (18.9L)
Product Dimensions	HMA-520: 6.5 x 6.5 x 23in (165 x 165 x 584mm), WxDxH HMA-505: 9.75 x 9.75 x 29.5in (248 x 248 x 749mm) WxDxH
Estimated Shipping Weight	HMA-520: 12.0lb (5.44kg) HMA-505: 30.0lb (13.61kg)

Quick Compare

Features	1.5 gal Deairing Tank	5.0 gal Deairing Tank
Pricing	$808.00	$1,120.00
Capacity	1.5gal (5.7L), 1.5gal (5.7L)	5gal (18.9L), 1.5gal (5.7L)
Product Dimensions	6.5 x 6.5 x 23in (165 x 165 x 584mm), WxDxH	6.5 x 6.5 x 23in (165 x 165 x 584mm), WxDxH
Estimated Shipping Weight	12.0lb (5.44kg)	30.0lb (13.61kg)
