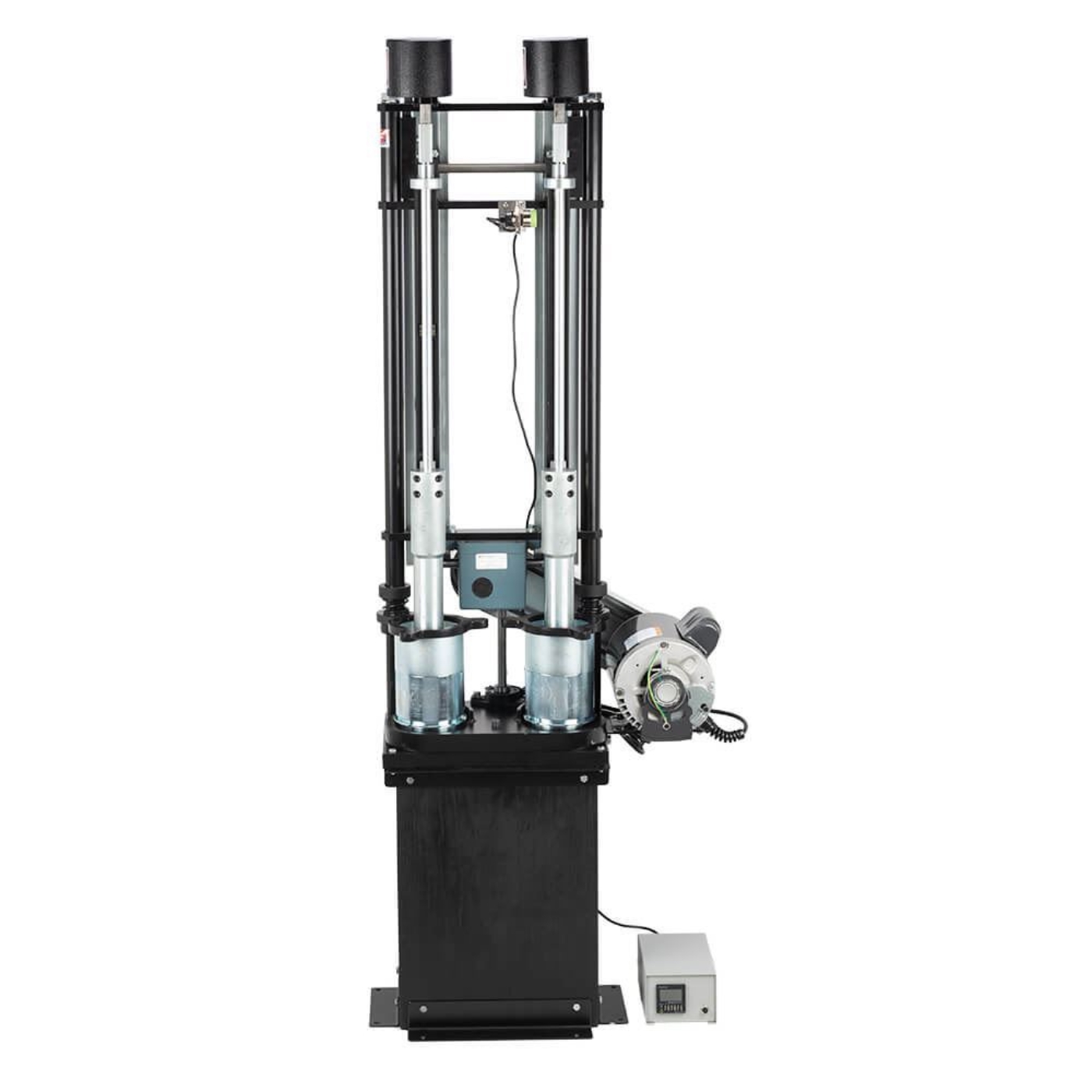

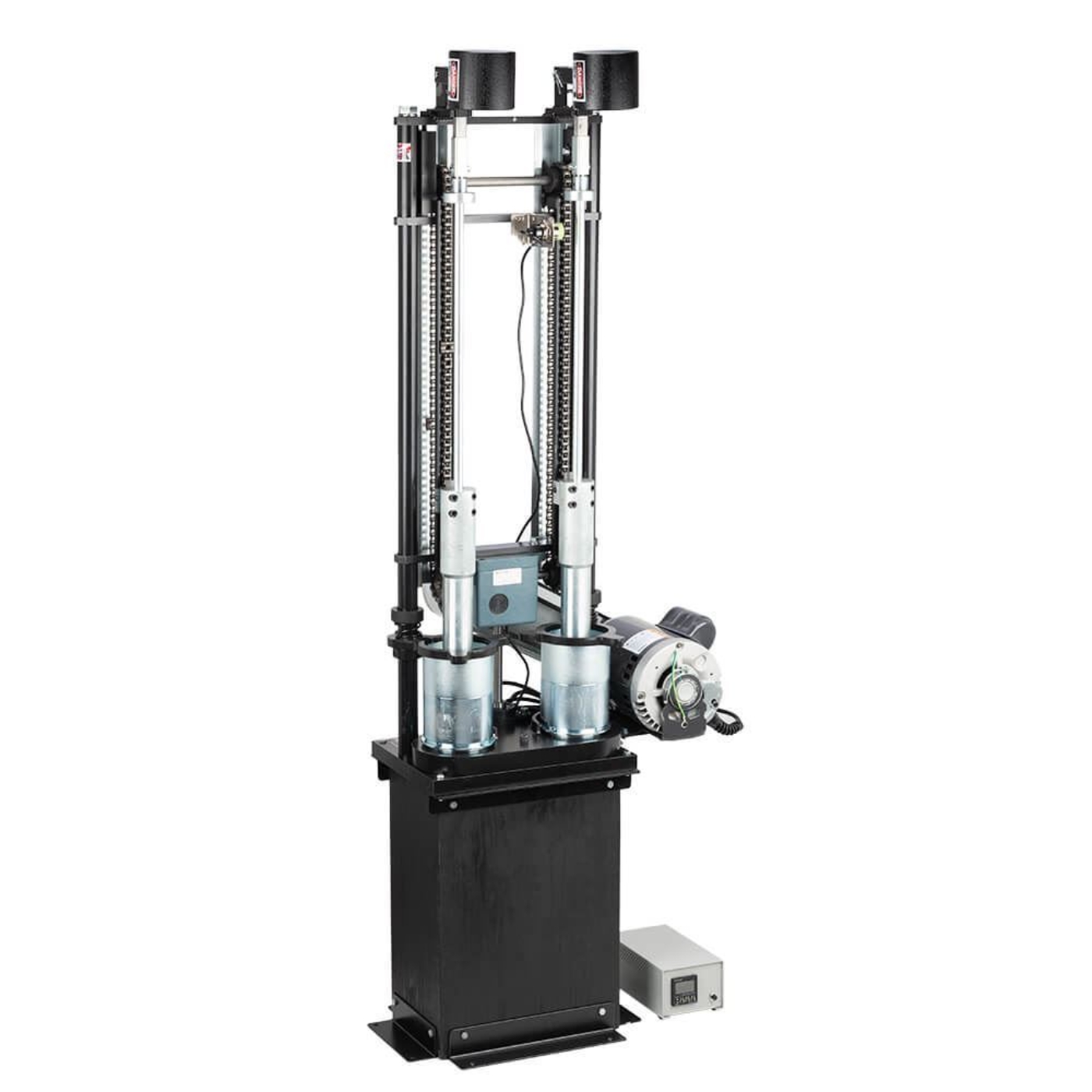

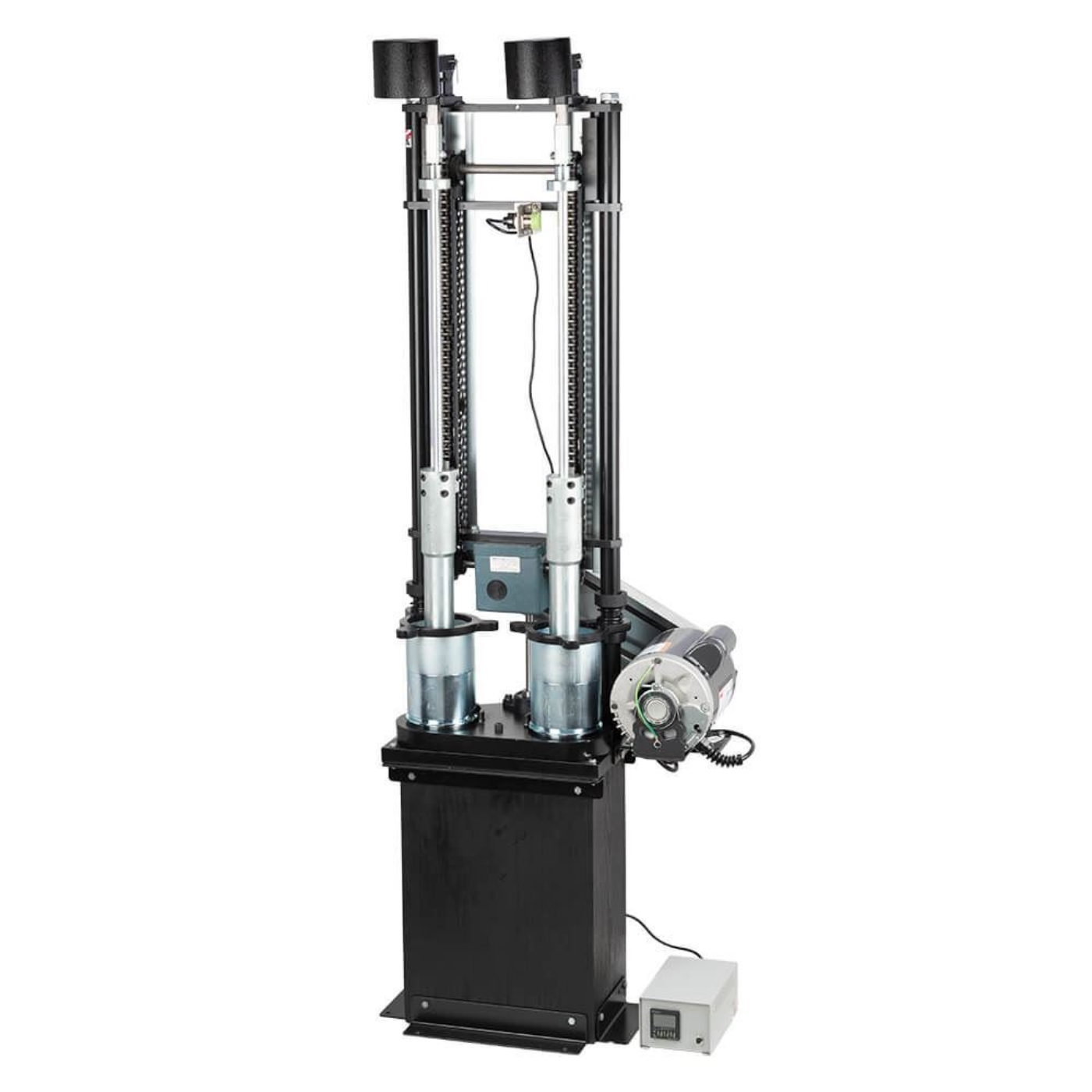

Marshall Compactor, Automatic, Rotating Base, Double 4in Molds compact two 4in (102mm) asphalt specimens simultaneously in rotating-base molds. Tapered-foot hammers and rotating base plates produce a consistent kneading action during compaction. Molds rest on steel plates covering the large ASTM-compliant oak pedestal during compaction. A powerful motor operates the hammer and rotation, and the automatic counter automatically shuts off operation at the required number of blows. The compactor includes the counter, oak pedestal, two 10lb (4.54kg) tapered-foot hammers, a package of paper discs, and two 4in mold, base, and collar assemblies.
Features:
- Optimal for simultaneous compaction of two Marshall asphalt specimens
- Hammers and rotating base plates produce uniform kneading motion during compaction
- Automatic counter shuts off hammer blows at preset number
- The single motor operates the hammer and rotation
Included Items:
- Marshall Compactor, Automatic, Rotating Base, Double 4in Molds (115V, 60Hz or 230V, 50Hz)
- ASTM-compliant oak pedestal with steel plate
- Automatic Counter
- (2) 10lb (4.54kg) tapered-foot hammers
- (2) 4in compaction mold assemblies
- Paper discs (package of 1,000)
Accessories:
- MSA-101 4in Marshall Compaction Mold Assembly is recommended as an additional assembly to increase efficiency
- MSA-120 4in Circular Paper Discs help keep asphalt samples from sticking to the equipment
- MSA-112 4in Hammer Assembly is available as an additional unit to increase capacity
- Sample Ejectors easily remove asphalt samples from 4in molds
