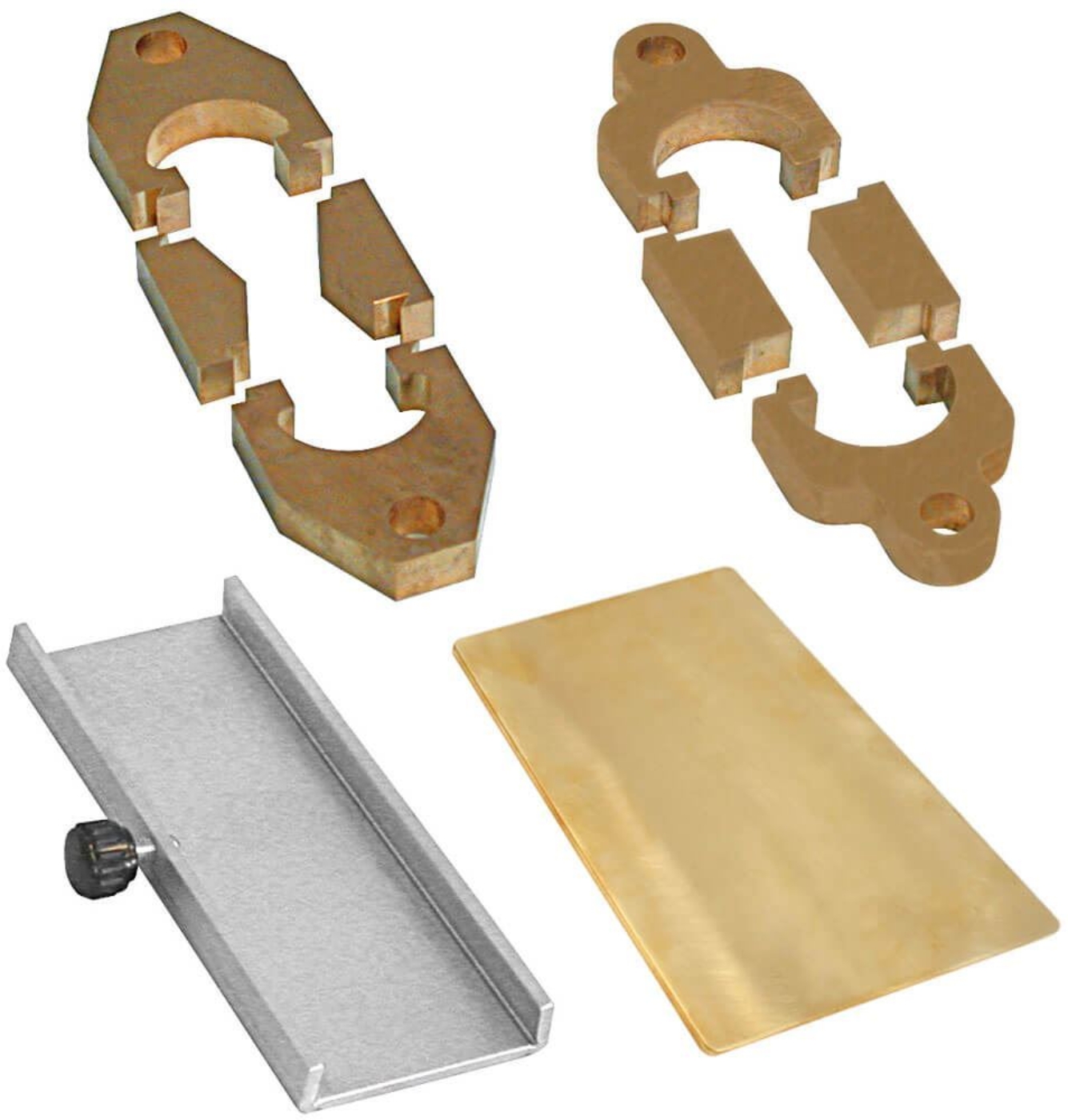

Ductility Molds and Base Plates are for use with Temperature-Controlled Ductility Testers when testing binder specimens, and meet several ASTM/AASHTO standards. Molds and plates are each needed for testing, and each product is sold separately. Up to three mold/plate sets can be used simultaneously in the ductility tester. Molds are constructed of precision-machined brass, while the base plates are made of aluminum or brass. Having additional molds available allows for more efficient sample preparation and high-volume testing.

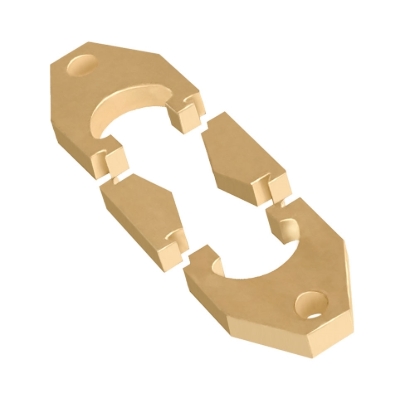

LPA-20 Standard Ductility Mold is made of brass. It consists of two side pieces and two end clips with mounting holes and meets ASTM D113.

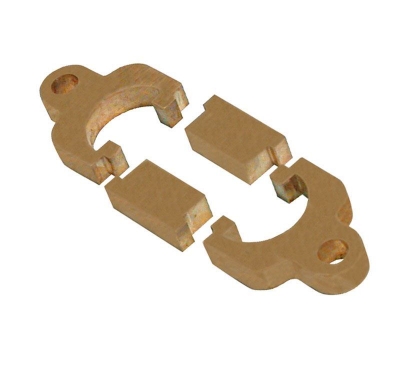

LPA-21 Force Ductility Mold is also machined brass and includes two end clips and two sides designed to meet elastic recovery requirements in ASTM D6084 and AASHTO T 301, and force ductility requirements in AASHTO T 300.

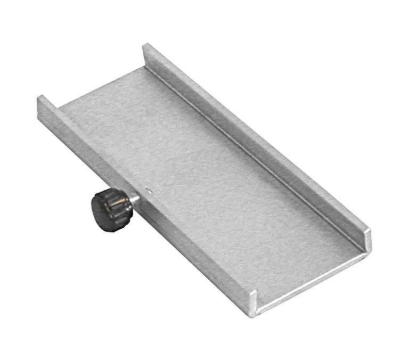

LPA-24 Standard Ductility Base Plate is aluminum and used to form the base for one LPA-20 or LPA-21 mold. Plate dimensions are 5.5x2x0.1in (140x51x3mm).

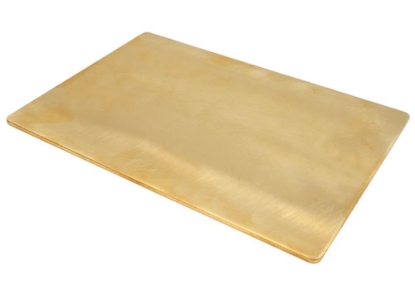

LPA-26 Large Ductility Base Plate is made of brass. It is 5x8x0.1in (127x203x3mm) in size, and can accommodate three Standard or Force Molds at the same time.
Features:
- Molds are precision-machined brass
- Base plates made of aluminum or brass
- Meet several ASTM/AASHTO standards
Included Items:
- Ductility Mold (Standard or Force), or
Base Plate (Standard or Large)
