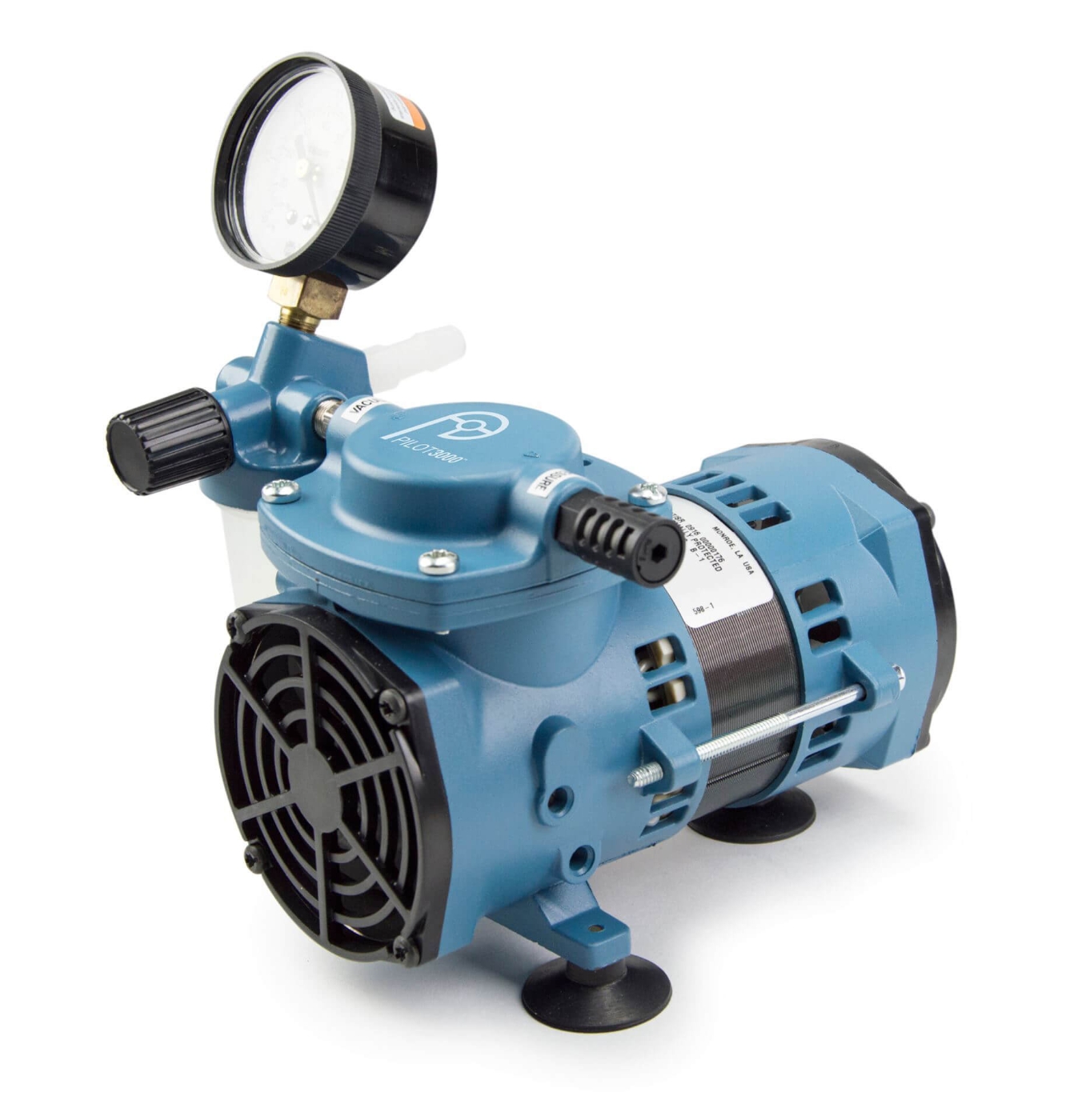

Chemical Resistant Oilless Diaphragm Vacuum Pump, Economy

Name: Chemical Resistant Oilless Diaphragm Vacuum Pump, Economy
SKU: MA-31
Price: 695.40 USD
Availability: InStock

Model: MA-31

$695.40

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Questions? Talk to a Product Expert

Get help from our in-house testing equipment specialists.

Open M–F: 8:00am–5:00pm

Call Us: (800) 444-1508

Description
Specifications
Quick Compare
Q&A

Oilless Diaphragm Vacuum Pump, is a smaller, economical, chemical-resistant oilless pump optimized for ultimate protection against corrosive solvents. This quiet model exhibits noise levels as low as 54dB and is ideal for vacuum filtration and degassing applications. The low-maintenance MA-31 is equipped with a 1/7hp motor that pulls a vacuum to 22in Hg (559mm Hg), with free air displacement up to 20L/min (0.7cfm). The pump includes a regulator gauge to adjust and monitor vacuum levels, and the inlet catch-pot protects from the accidental intake of fluids and particulates.

Features:

A smaller, cost-effective model protects against corrosive solvents
Quiet unit with noise levels as low as 54dB
Optimal for vacuum filtration and degassing applications
The ultimate vacuum of 22in Hg (559mm)

Included Items:

Chemical Resistant Oilless Diaphragm Vacuum Pump

Related blogs:

Product tags

AASHTO T 164 (12)
,
ASTM D2172/2172M (11)

Specifications

Attribute name	Attribute value
Free Air Displacement	20L/min (0.7cfm)
Ultimate Vacuum	22in Hg (559mm)
Intake Port	0.25in (6.3mm)
Motor	1/7hp (0.14kW), 1.5 Amps
Electrical	115V, 60Hz, 1.5 amps
Product Dimensions	6.8 x 7.3 x 8.3in (173 x 185 x 211) WxDxH
Net Weight	6.4lb (2.9kg)
Estimated Shipping Weight	8.6lb (3.90kg)
