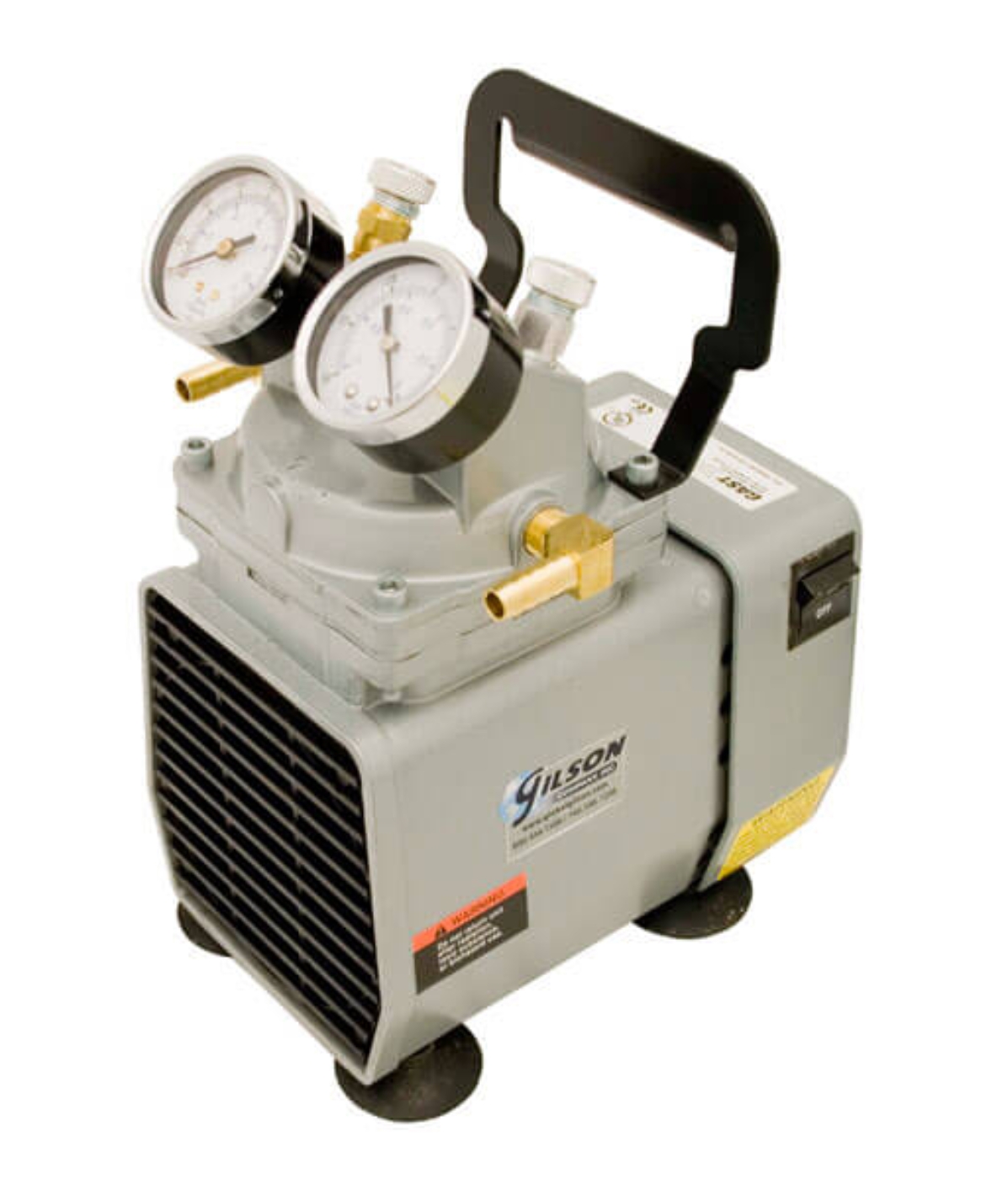

Oilless Diaphragm Vacuum Pump/Compressor (115V, 60Hz)

Model: MA-32

$1,278.80

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Oilless Diaphragm Vacuum Pump/Compressor (115V, 60Hz)

Model: MA-32

$1,278.80

Oilless Diaphragm Vacuum Pump/Compressor (230V, 50Hz)

Model: MA-32F

$1,237.50

SKU: MA-32F

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Questions? Talk to a Product Expert

Get help from our in-house testing equipment specialists.

Open M–F: 8:00am–5:00pm

Call Us: (800) 444-1508

Description
Specifications
Quick Compare
Q&A

Oilless Diaphragm Vacuum Pump/Compressor is a budget oilless diaphragm pump that is ideal for light to medium-duty lab applications. This popular unit comes complete with gauges, connections, and relief valves for vacuum and pressure applications and has a built-in On/Off switch and carrying handle. The pump has a free air capacity of 1.1cfm (31.2L/min) and can produce pressure to 25.5in Hg (648mm Hg) or up to 60psi (414kPa) pressure as a compressor. It is quiet, portable, and maintenance-free. The pump has a 1/8hp, 115V, 60Hz or 230V, 50Hz motor with thermal protection and is UL-listed and CSA-approved.

Features:

Cost-effective oil-free pump optimal for light to medium-duty applications
Quiet, maintenance-free pump
Integral On/Off switch for easy, user-controlled operation
Convenient carrying handle for portability

Included Items:

Oilless Diaphragm Vacuum Pump & Compressor
Gauges
Connections
Relief Valves

Related blogs:

Product tags

AASHTO T 164 (12)
,
ASTM D2172/2172M (11)

Specifications

Attribute name	Attribute value
Free Air Displacement	32L/min (1.1cfm)
Ultimate Vacuum	25.5in Hg (648mm Hg)
Pressure Rating	60psi (414kPa)
Intake Port	0.25in (6.3mm)
Motor	1/8hp (0.10kW)
Electrical	MA-32: 115V, 60Hz, 1.5 amps MA-32F: 230V, 50Hz, 1.75 amps
Product Dimensions	5.3x7.6x10.5in (133x194x267mm), WxDxH
Estimated Shipping Weight	15.0lb (6.80kg)

Quick Compare

Features	Oilless Diaphragm Vacuum Pump/Compressor (115V, 60Hz)	Oilless Diaphragm Vacuum Pump/Compressor (230V, 50Hz)
Pricing	$1,278.80	$1,237.50
Electrical	115V, 60Hz	230V, 50Hz
Free Air Displacement	32L/min (1.1cfm)	32L/min (1.1cfm)
Ultimate Vacuum	25.5in Hg (648mm Hg)	25.5in Hg (648mm Hg)
Intake Port	0.25in (6.3mm)	0.25in (6.3mm)
Product Dimensions	5.3x7.6x10.5in (133x194x267mm), WxDxH	5.3x7.6x10.5in (133x194x267mm), WxDxH
Estimated Shipping Weight	15.0lb (6.80kg)	15.0lb (6.80kg)
