EZ Mount Heater/Circulator

Model: HM-649
$1,190.00
Please select the address you want to ship to
Ship to
*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Expert
Questions? Talk to a Product Expert

Get help from our in-house testing equipment specialists.

Open M–F: 8:00am–5:00pm

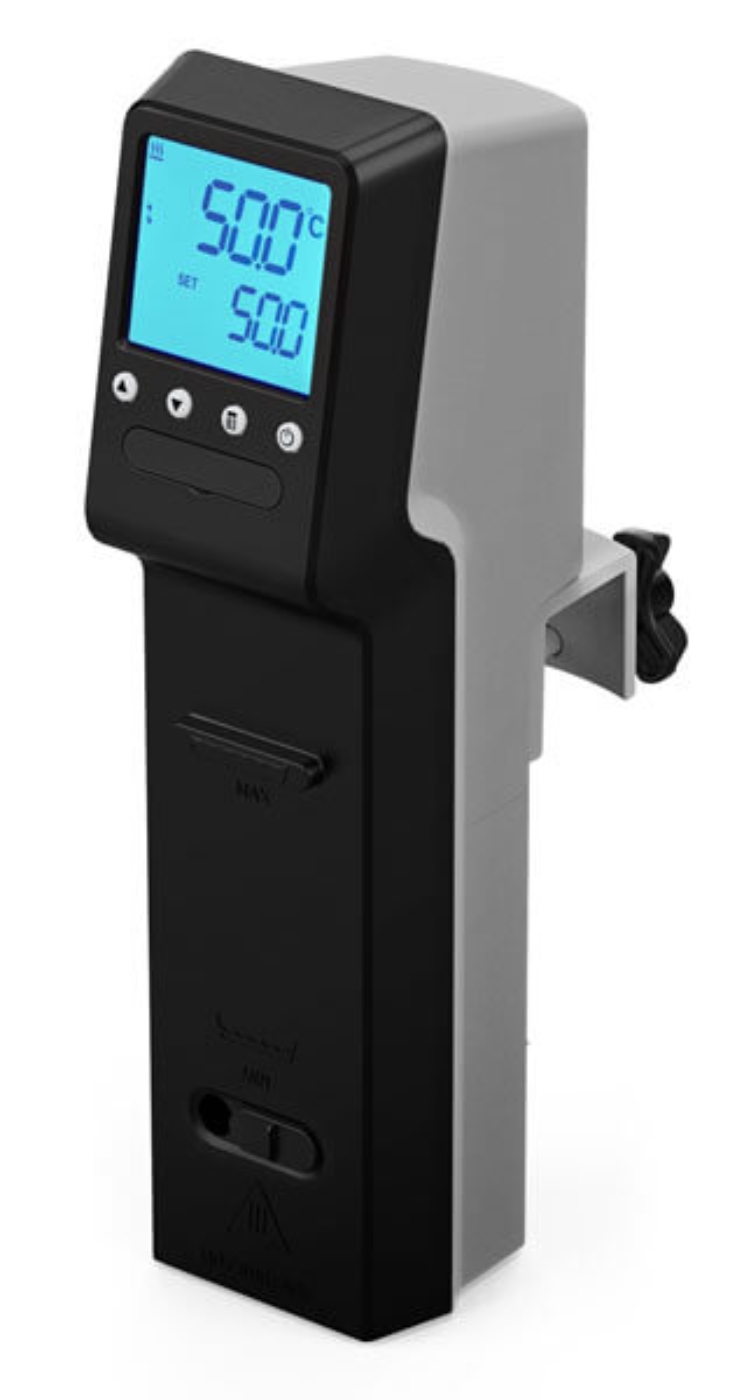

EZ Mount Heater/Circulator combines circulation and temperature functionality into a single compact and portable unit. The device mounts easily and securely to the straight or curved tank and bath walls with an adjustable clamp, and can quickly be dismounted and moved to another tank. The streamlined design maximizes available tank space. Design features include push-button controls and easy to read 3.25” LCD backlit display with on-screen prompts. A convenient sliding control adjusts the flow rate. Tough plastic protective housing guards the pump and heater and is easy to keep clean. Over-temperature and low-liquid level shut-offs are set by the user to assure safe operation.

HM-649 has a 1,100 Watt output and adjustable pump flow up to 3.4gpm (12.8Lpm) and is capable of heating and maintaining tap water in suitable water tanks up to 7.4 gallons. Temperatures are controlled to ±0.13° from ambient + 20° to 212°F (±0.07° from ambient + 10° to 100°C) in water. The maximum flow rate for model HM-649F is 2.8gpm (10.6Lpm). Both models suitable for tanks with a working depth of 7.25” (18.4 cm) or more, using tap or distilled water only. Two-year manufacturer’s warranty. Supplied with a 5ft power cord with a grounded plug.

Features:

  • Compact, portable unit for circulating heat around tanks and bath walls
  • Secure mounting capability to straight or curved surfaces
  • Push-button controls promote easy operation
  • Easy-to-read LCD backlit display prompts users on-screen
  • Convenient sliding control adjusts the flow rate
  • Over-temperature and low-liquid level shut-off features support safety

Included Items:

  • EZ Mount Heater/Circulator

Related blogs:

Specifications

Attribute name Attribute value
Mounting Capability Yes
Display 3.25" LCD Backlit
Power Requirements 1,100 Watt heat output
Electrical 120V, 60Hz
Flow Rate Maximum is 3.4gpm for 120V or 2.8gm for 240V
Estimated Shipping Weight 9.0lb (4.08kg)
