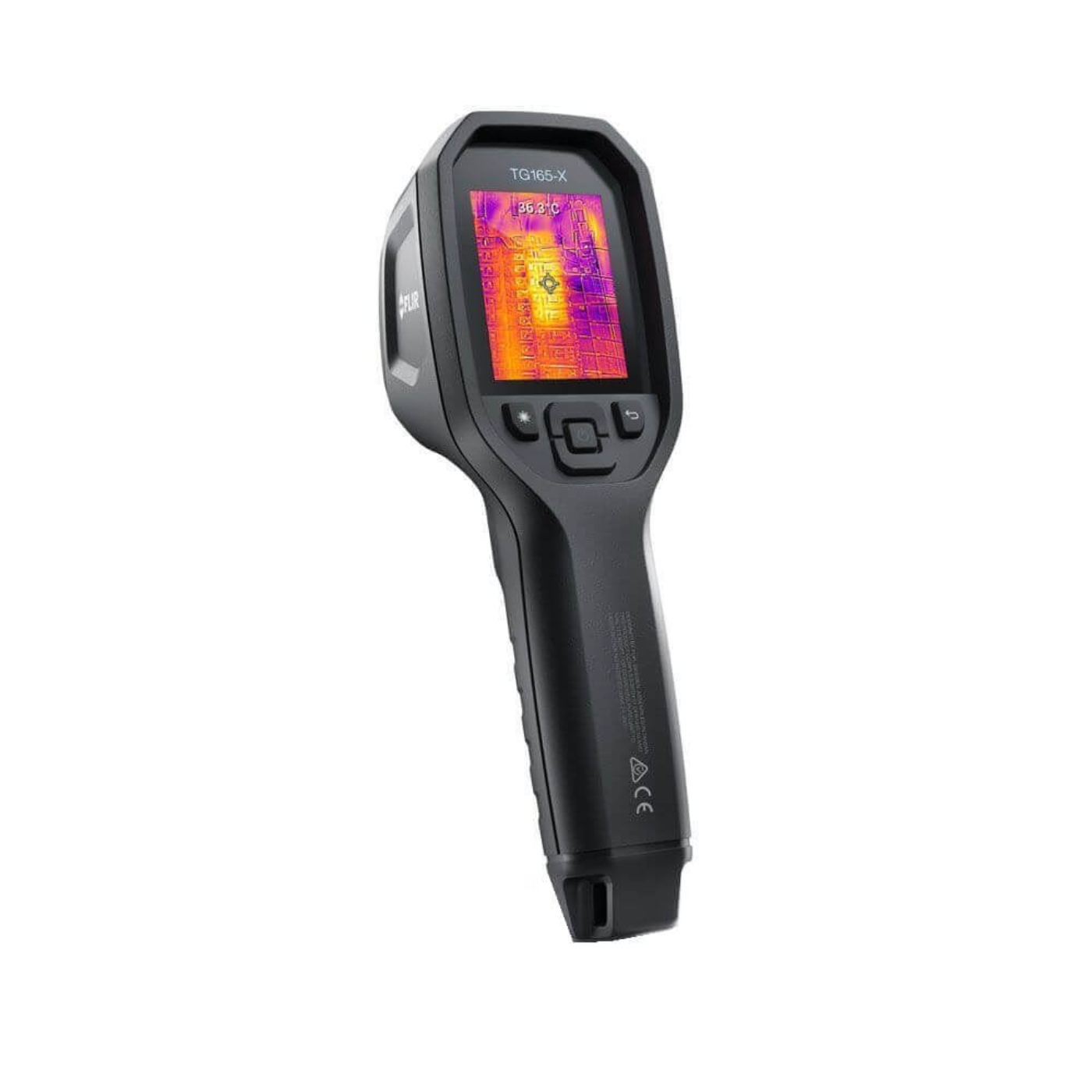

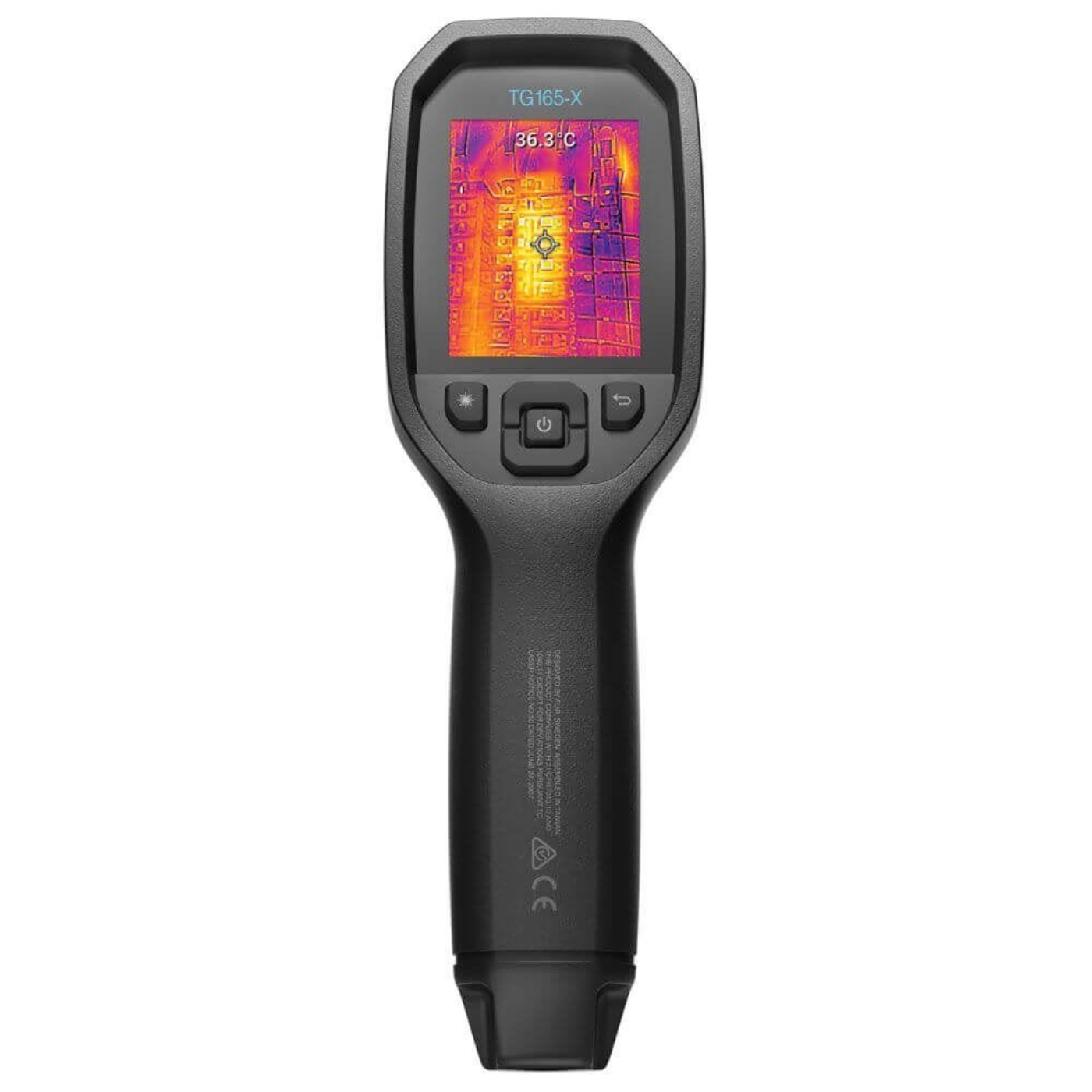

FLIR® TG165 Spot Thermal Camera

Model: MA-769
$399.00
Please select the address you want to ship to
Ship to
*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Expert
Questions? Talk to a Product Expert

Get help from our in-house testing equipment specialists.

Open M–F: 8:00am–5:00pm

FLIR® Spot Thermal Camera has a temperature range of -13–572°F (-25–300°C). It is an affordable option that bridges the gap between ordinary digital infrared thermometers and FLIR infrared Thermal Imaging Cameras. This camera lets you easily visualize complete heat patterns instead of relying on spot temperatures. Problem areas are quickly uncovered, and accurate surface temperatures and images are recorded to the internal memory or downloaded to a PC via a USB connection. Simple, intuitive operation requires no special training. The measurement field is framed by dual-laser pointers and has a 24:1 spot ratio for accurate measurements at a safe distance.

The 2.4in (61mm) display has 80x60 (4,800) pixel image resolution and grayscale or hot iron color palettes. The field of view is 51x66°, and the temperature range is -13–572°F (-25–300°C). The rechargeable battery lasts up to 5 hours with continuous use and has an adjustable auto power-off feature. The internal memory is 4GB. A USB-C cable and lanyard are included. The MA-769 is covered by FLIR’s exclusive 2-year product and 10-year Thermal Detector warranty.

Note: Due to export regulations, this item cannot be shipped outside of the United States.

Features:

  • Affordable solution for accurate surface temperatures and images recording
  • Intuitive operation requires no special training
  • Dual-laser pointers and a 24:1 spot ratio offers accurate measurements at a safe distance
  • The rechargeable battery lasts up to 5 hours with continuous use; powers off automatically

Included Items:

  • FLIR® Spot Thermal Camera, -13–572°F (-25–300°C)
  • Lanyard
  • USB Cable
  • Manufacturer’s Warranty

Specifications

Attribute name Attribute value
Temperature Range -13°–572°F (-25°–300°C)
Accuracy Varies ±1.5°–3° C
Thermal Sensitivity <70mK
Display Resolution 80x60 (4,800) pixels
Memory Capacity 4GB
Field of View 51°x60°
Display 2.4in (61mm)
Power Supply Rechargeable Li ion battery via USB-C
Product Dimensions 2.5 x 3.2 x 8.3in (64 x 81 x 211mm), WxDxH
Estimated Shipping Weight 2.0lb (0.91kg)
