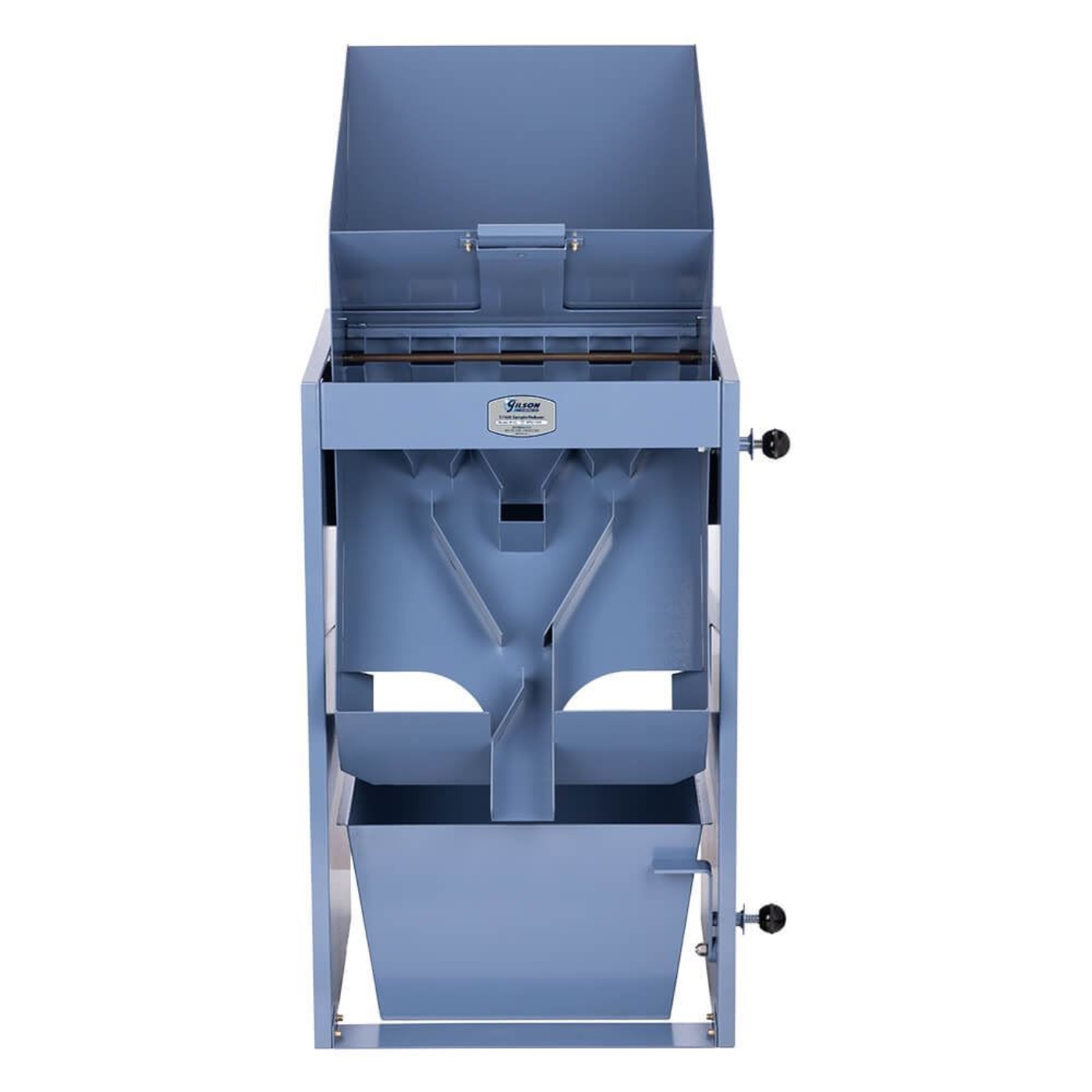

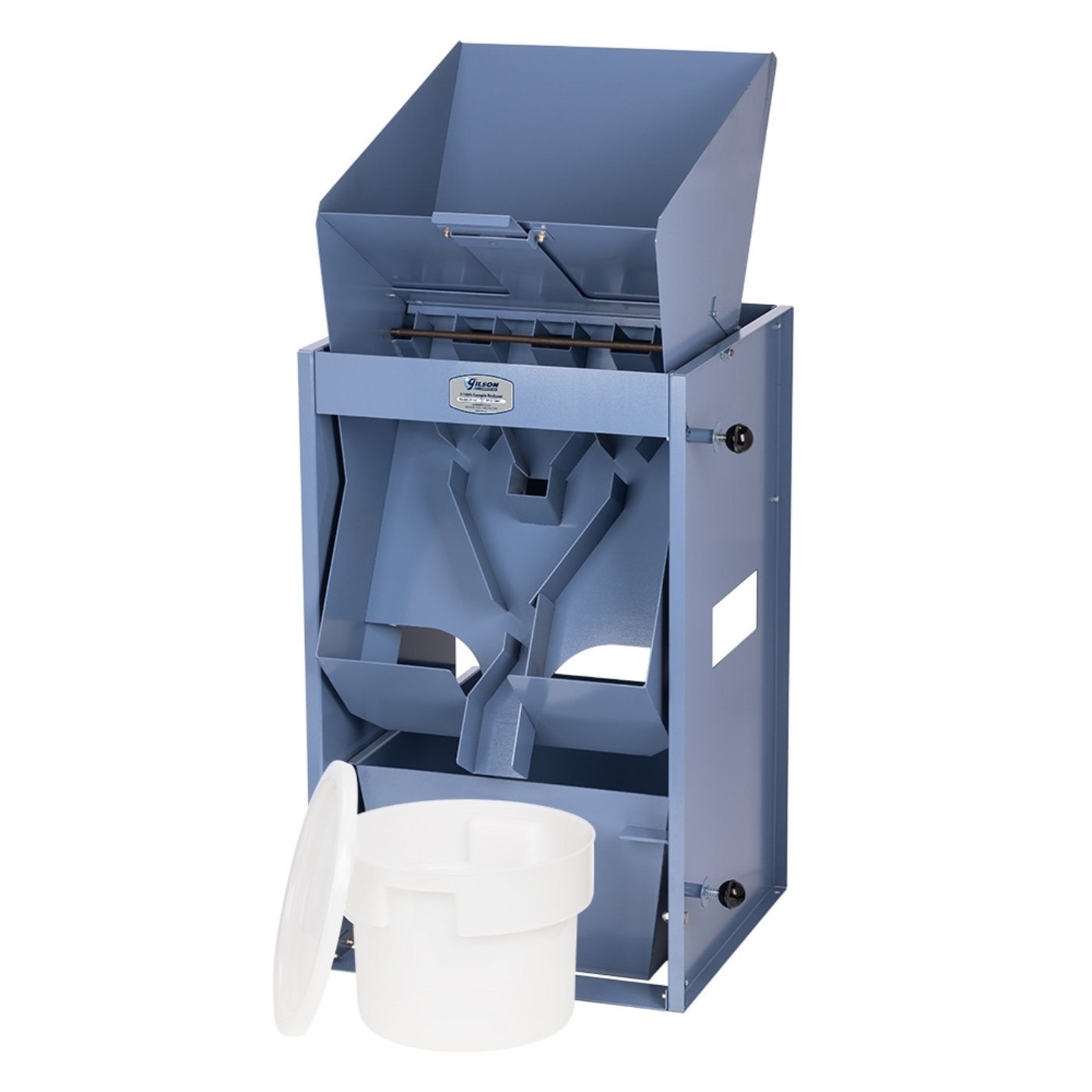

Heavy-Duty 1/16 Sample Reducer features a hopper with four times more sample capacity than traditional reducer models. A spring-loaded positive-locking knob quickly adjusts the flow table to 45° or 60° dividing positions.
The 1ft³ (28L) hopper has a fully adjustable sliding gate for precise control of the flow rate. The gate can also be locked open for continuous flow-through. The reducer is especially useful for sample preparation and the dividing of proppant materials for hydraulic fracturing operations.
Sturdy welded all-steel construction stands up to heavy use. A rugged steel waste pan is included.
Features:
- The spring-loaded positive-locking knob adjusts to 45° or 60° dividing positions
- The fully adjustable sliding gate allows precise control of flow rate or can be locked fully open for continuous flow-through
- Integral frame/floor stand positions the divider at the optimum height for loading and operation
- Sturdy painted-steel welded construction
- Flow table leaves minimal sample residue behind after use
- Compliant with multiple ASTM and AASHTO standards
Included Items:
- Heavy-Duty 1/16 Sample Reducer
- Waste Pan
Accessories:

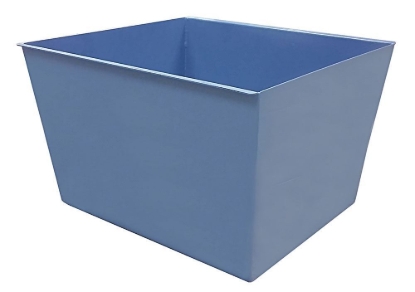

- SPA-115 Waste Pan is an additional pan to increase efficiency in collecting waste fractions
- SC-20 Polyethylene Sample Container has 12qt capacity and is used to store samples
