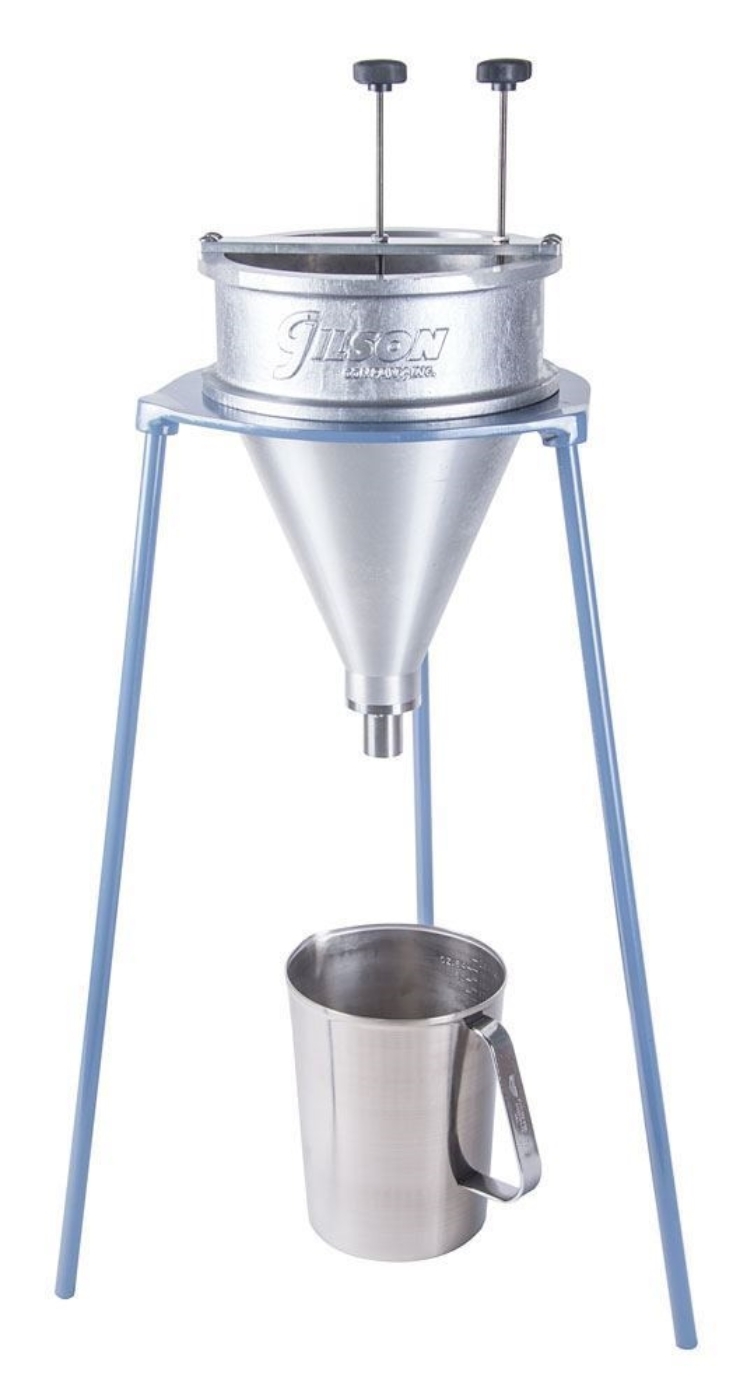

The Grout Flow Cone Set measures the flowability of fluid hydraulic cement grout used in preplaced aggregate concrete. The flowability is measured by the time of efflux from a 1.725L sample of grout as it passes through a 0.5in (12.7mm) ID orifice of the flow cone.
The cast aluminum Flow Cone is 7x12in (178x305mm), top IDxH, and with a grout volume of 1,725 5mL. It has an adjustable point gauge measurement assembly to indicate the initial sample level.
Flow Cones are available with or without 0.5in or 0.75in Orifices. Both Orifice sizes are compatible with the HM-371 Flow Cone and easily interchanged.
The set also includes a 20.5in (521mm) high sturdy painted steel Stand. A 2qt (1.9L) Stainless Steel Beaker sized to receive grout from a single test and graduated in oz and cc.
Grout Flow Cones, Orifices, and other set components are available separately.
HM-372 Flow Cone Set includes a flow cone with a replaceable 0.5in (12.5mm) Orifice. This model meets the standard ASTM C939 flow cone method./p>
HM-373 Flow Cone Set includes a flow cone with a replaceable 0.75in (19mm) Orifice. This model is for less flowable grouts and meets the ASTM D6449 test standard flow cone method.
Features:
- Durable cast aluminum construction
- Available with 0.5in or 0.75in Orifices
- The steel stand has adjustable feet
- Orifices can be easily switched
- Easily disassembled for transporting or storing
Included Items:
- Cast Aluminum Flow Cone with 0.5in or 0.75in Orifice
- 3-legged Flow Cone Steel Stand
- 2qt Stainless Steel Beaker
- Adjustable point gauge measurement assembly
Accessories:

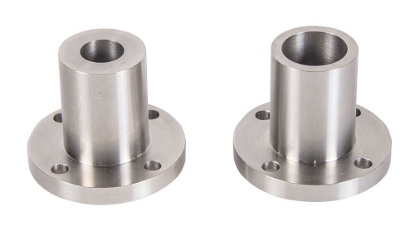

- Flow Cone Stainless Steel Orifices are available in two sizes: 0.5in (12.7mm) for testing flowable grouts or 0.75in (19.0mm) is best used for thicker grouts.

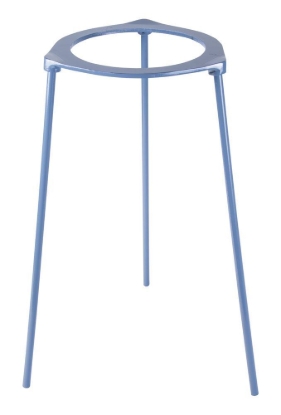

- HM-372A Flow Cone Stand for proper positioning of flow cones

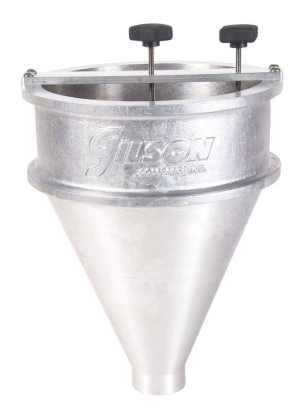

- HM-371 Flow Cone for testing flowable grouts; requires HMA-146 or HMA-147 Orifice, purchased separately
- HM-372B Flow Cone with 0.5in Orifice measures the flowability of hydraulic grout

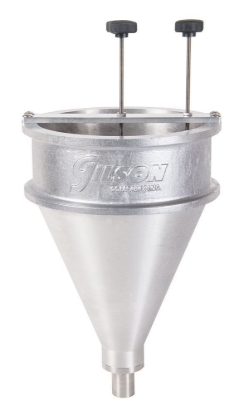

- HM-373B Flow Cone with 0.75in Orifice used for less flowable grouts
- MA-42 2qt Stainless Steel Beaker is sized to receive grout from a single test

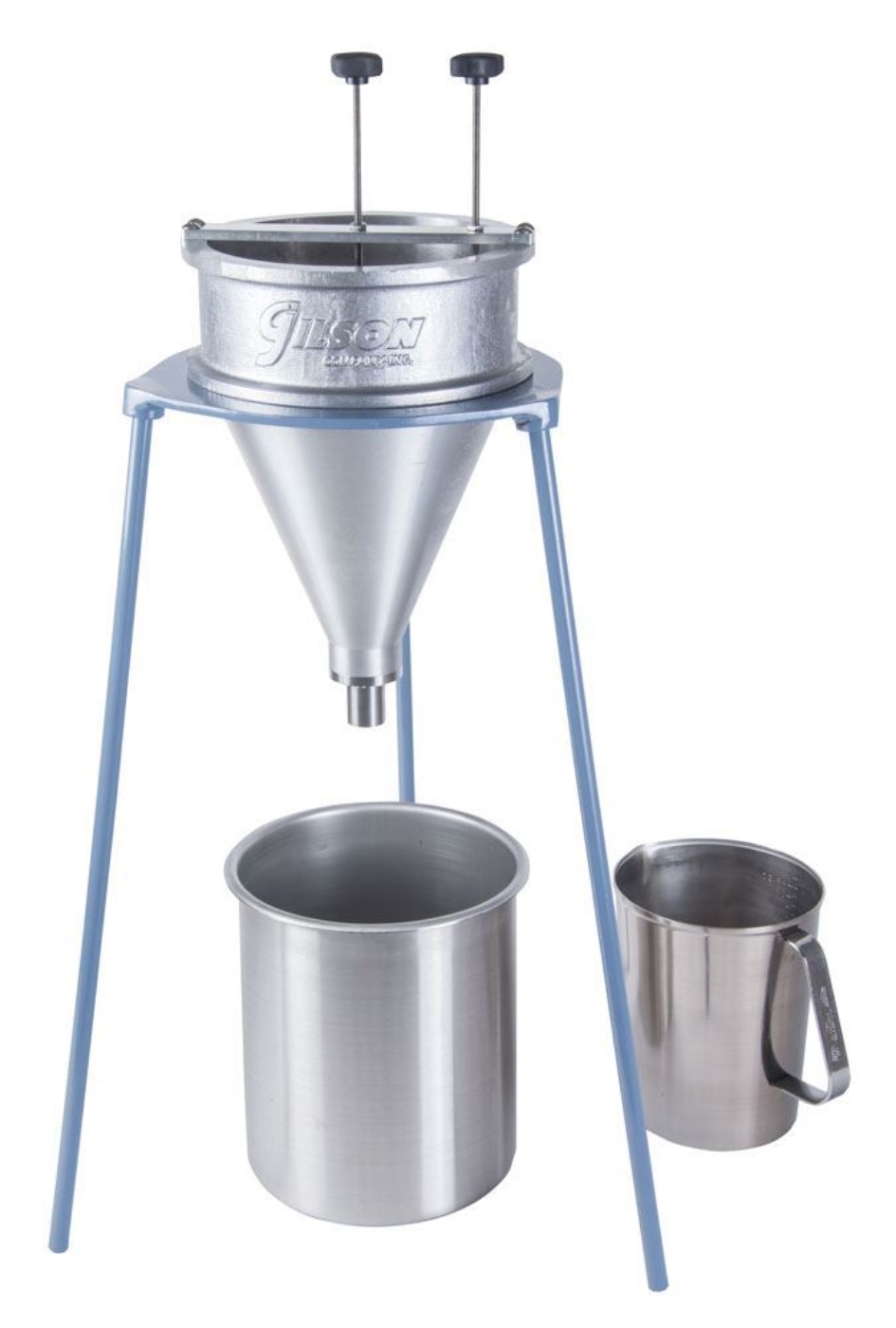

- MA-48 6qt Stainless Steel Beaker collects grout from up to three tests
- MA-30 Large Display Stopwatch for determining flowability time
