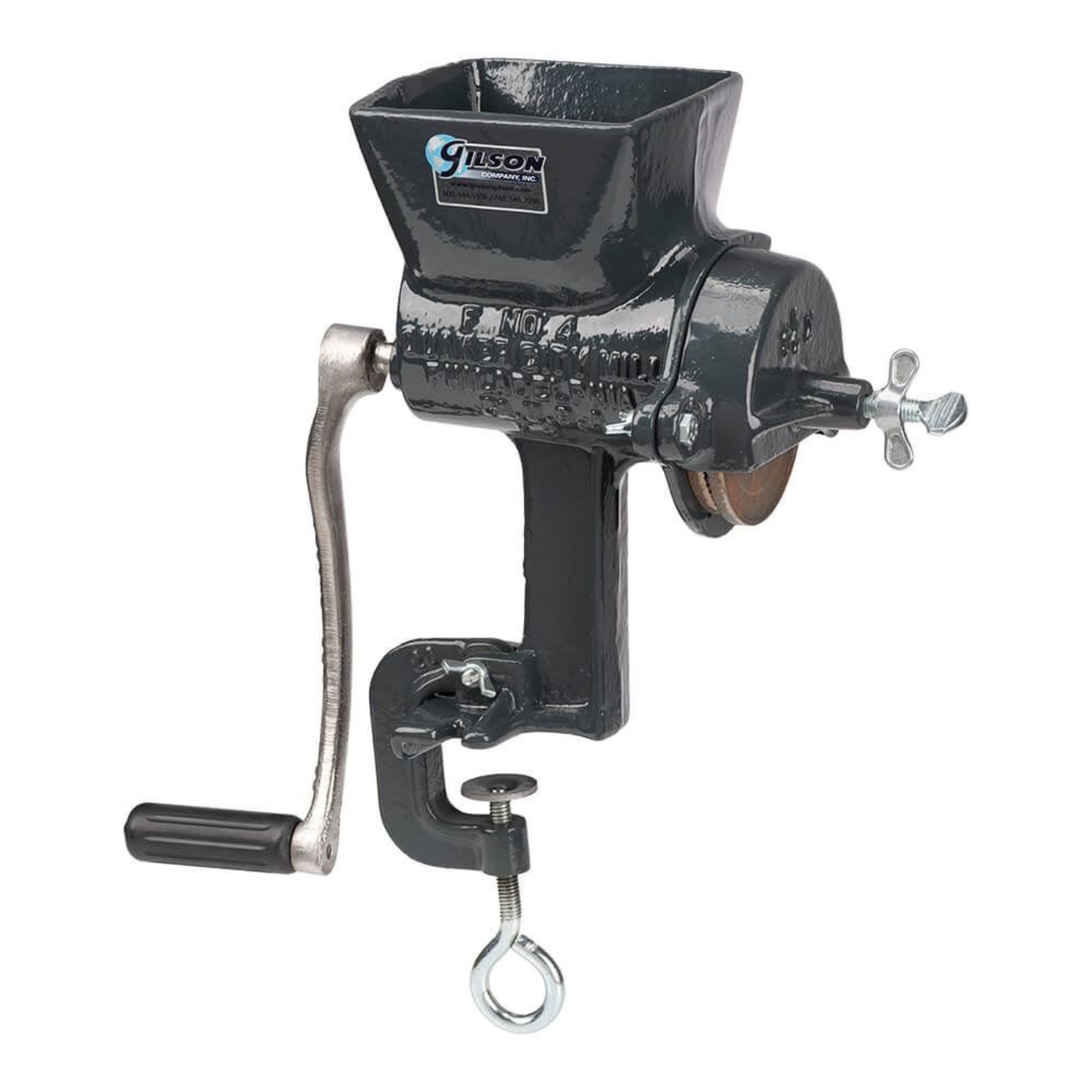

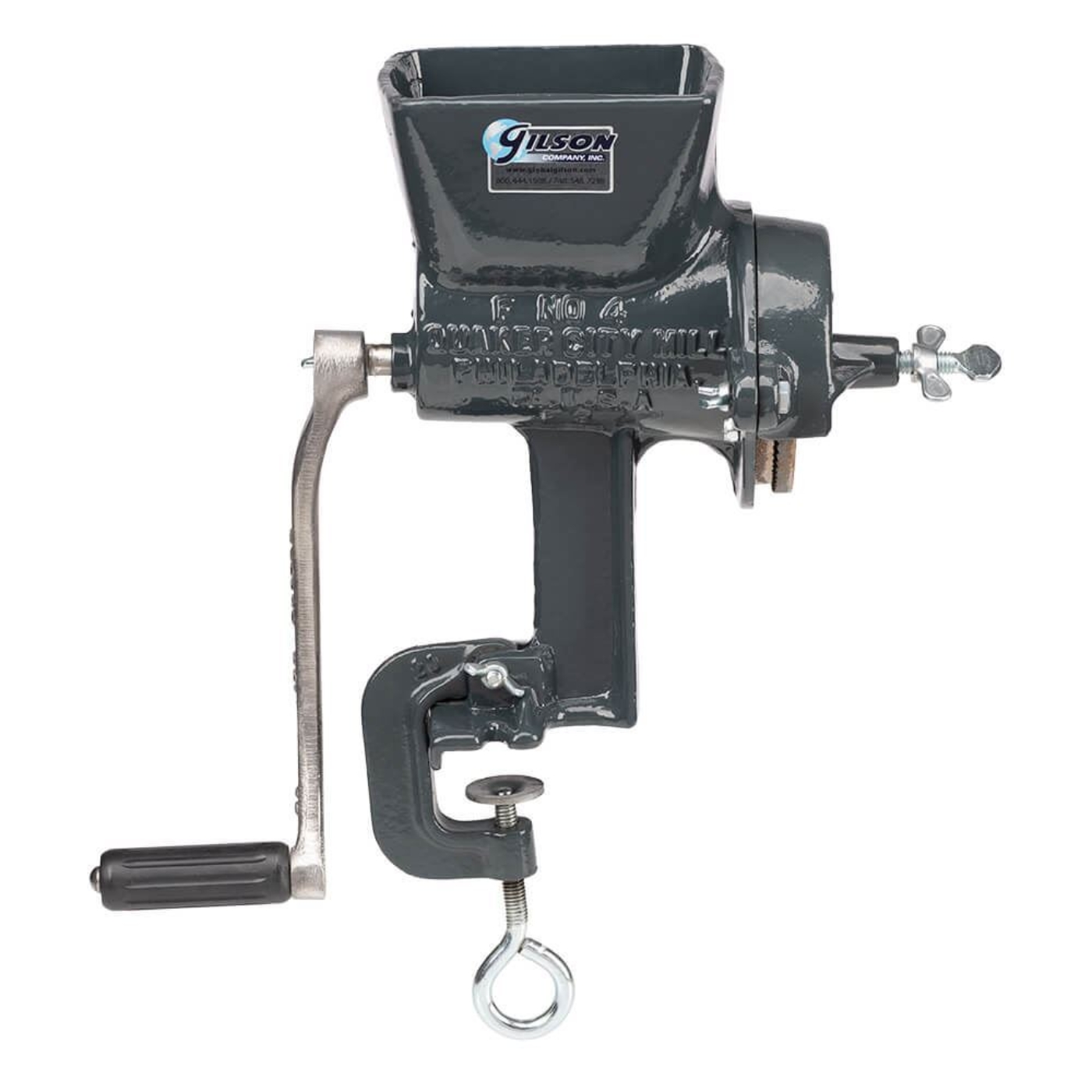

Hand-Crank Disk Mill provides effective performance for limited dry or wet grinding to the moderate fineness of coal, chemicals, ores, pharmaceuticals, nuts, grains, and other friable materials. This hand mill has a painted, cast iron body that mounts by screw clamp to a benchtop up to 1.5in (38.1mm) thick. Throughput varies with material type, but 10lb (4.6kg) per hour is typical. The overall height is 14in (356mm). Includes LCA-175 Dry-Feed Auger and Grinding Disc Set.
The mill is equipped with tooth-type feed augers for dry materials and a set of fine-grinding disks. For wet or oily materials, LCA-172 Wet-Feed Auger Set, which includes a worm-type feeder and fine-grinding disks, can be purchased separately. The LCA-171 Coarse Grinding Disc Set, also available separately, allows higher throughput of coarse product. Feeders and Grinding Discs quickly interchange and having more than one can prove useful for different sample types and avoid contamination.
Features:
- Feed hoppers have 50in³ (0.8L) volume
- 4in (102mm) diameter iron alloy grinding discs
- No.80–No.100 (180–150μm) typical fineness limit
- Easily disassembles for cleaning
Included Items:
- Hand-Crank Disk Mill
- Dry Grinding Feeder and Disk Set
Accessories

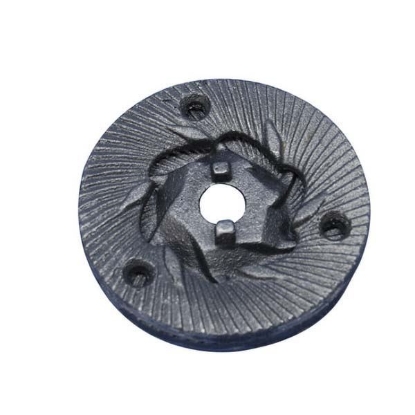

- Grinding Disk Set avaible for coarse and fine materials.

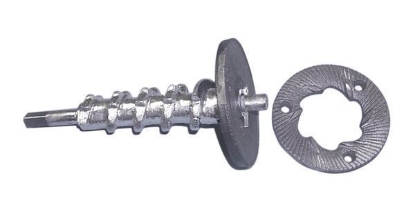

- LCA-172 Wet-Feed Auger Set feeds wet or oily materials more efficiently
- LCA-175 Dry-Feed Auger and Grinding Disk Set produces very fine particle sizes
