L-Box Test Apparatus offers an alternate method of determining flow and passing ability of self-consolidating concrete (SCC) mixes. This test method is in use in Europe and some DOT’s in the United States have adopted the procedure or are examining it (ASTM procedure is still pending).

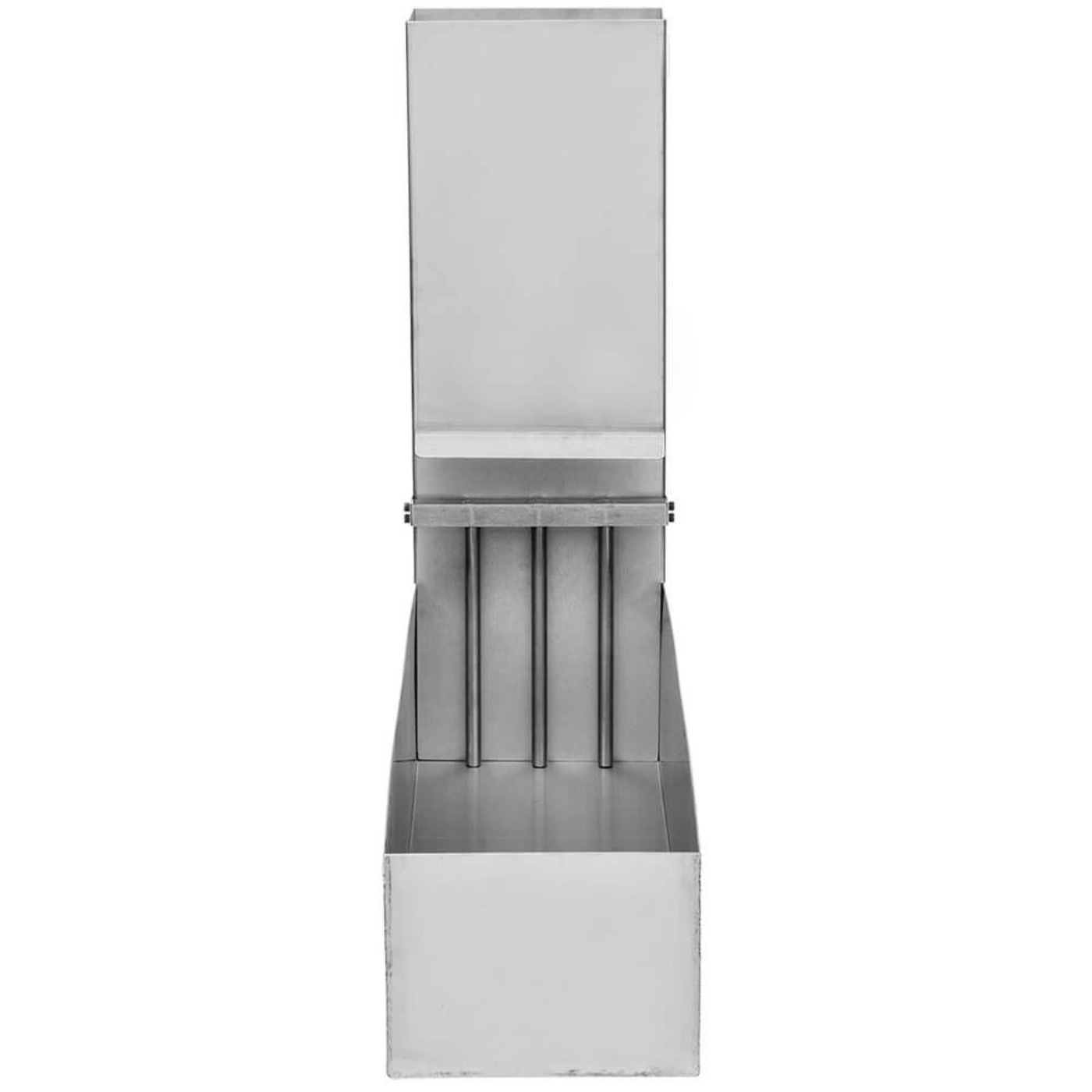

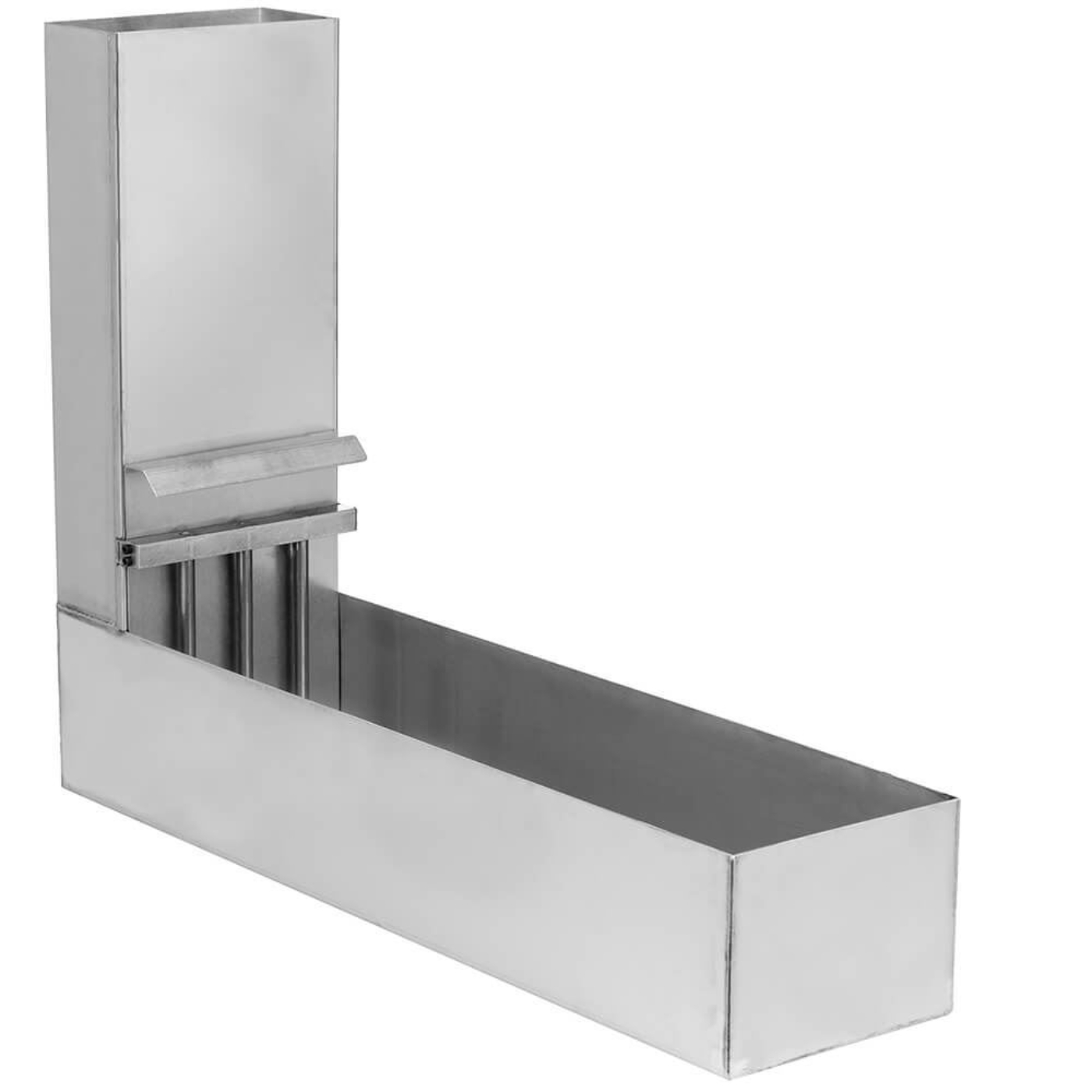

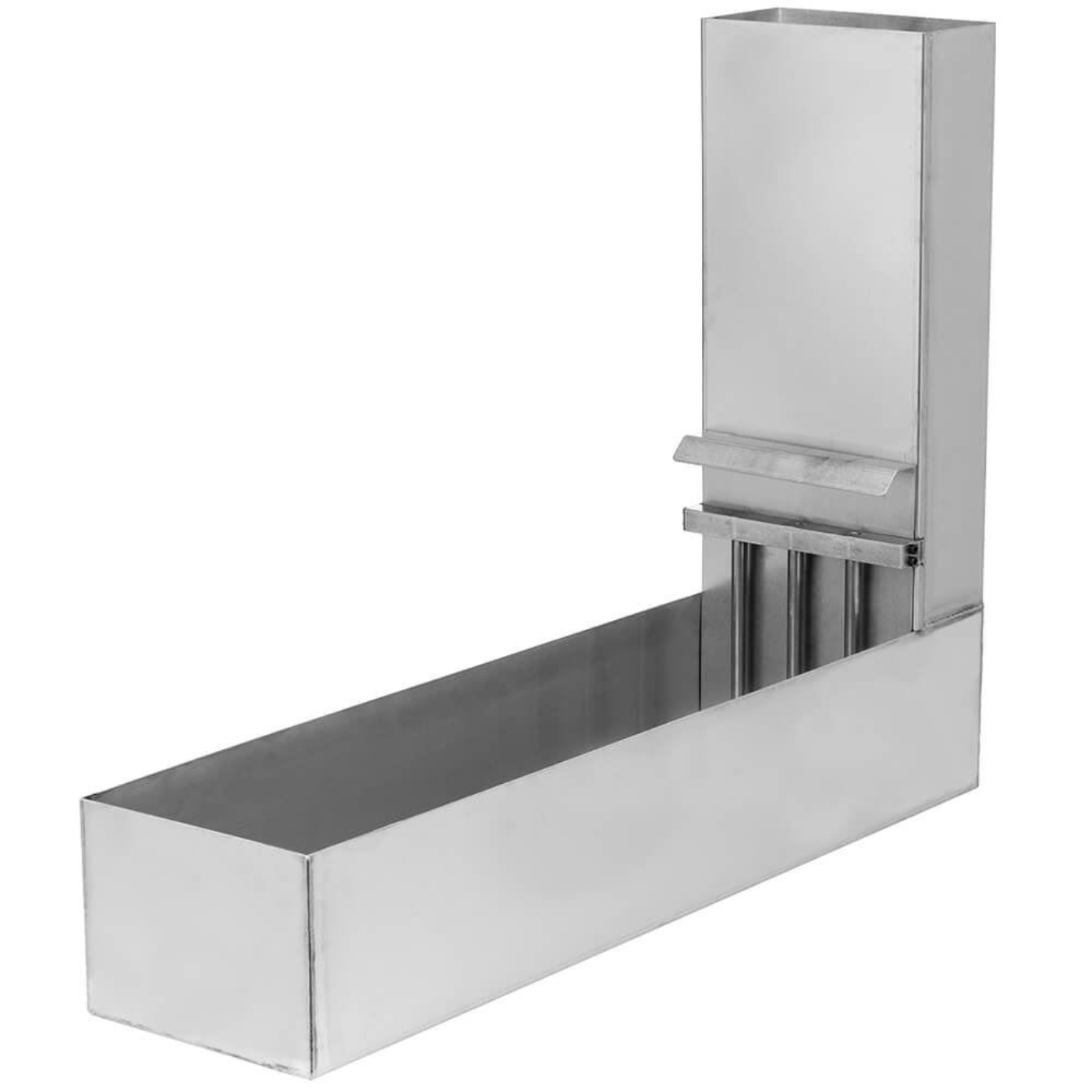

The L-Box is constructed of durable stainless steel with welded joints and consists of a vertical hopper with a sliding gate at the bottom. There are three bars representing reinforcing steel and a horizontal trough in front of the gate. Fresh concrete is placed in the vertical hopper without consolidating. Lifting the slide gate allows the concrete to flow past the bars into the horizontal trough. The final depth of the concrete at the gate and at the end of the trough is measured and the proportional difference expressed as a blocking ratio.
Features:
- Provides another method to determine flow and passing ability of self-consolidating concrete
- Made of durable stainless steel
- Welded joints
Included Items:
- L-Box for Self-Consolidating Concrete
Accessories:
- HMA-135 Stainless Steel Straightedge for striking-off the concrete surface
- MA-30 Large Display Digital Stopwatch some versions of this procedure requires timing the flow with a stopwatch
