Laboratory Burners with nickel-plated zinc alloy base are available for varying lab functions and work with 800 to 1,200btu/cf natural gas.

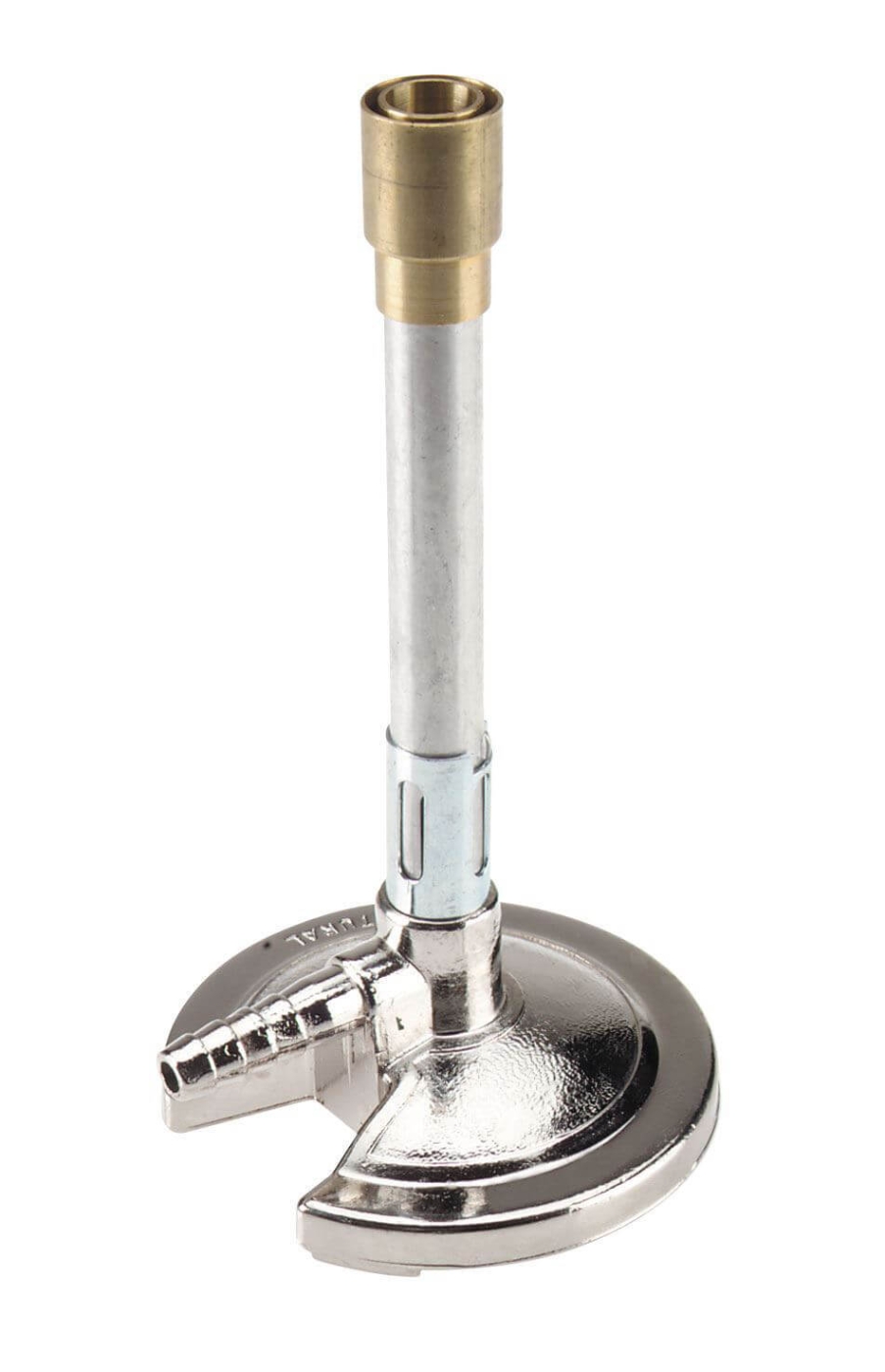

MA-190 Bunsen Burner is a standard lab burner has a 0.50in (12.7mm) aluminum mixing tube with flame stabilizer, circular base with opening, and 5/16in (7.9mm) OD serrated gas inlet connection. Burner height is 6.125in (156mm).

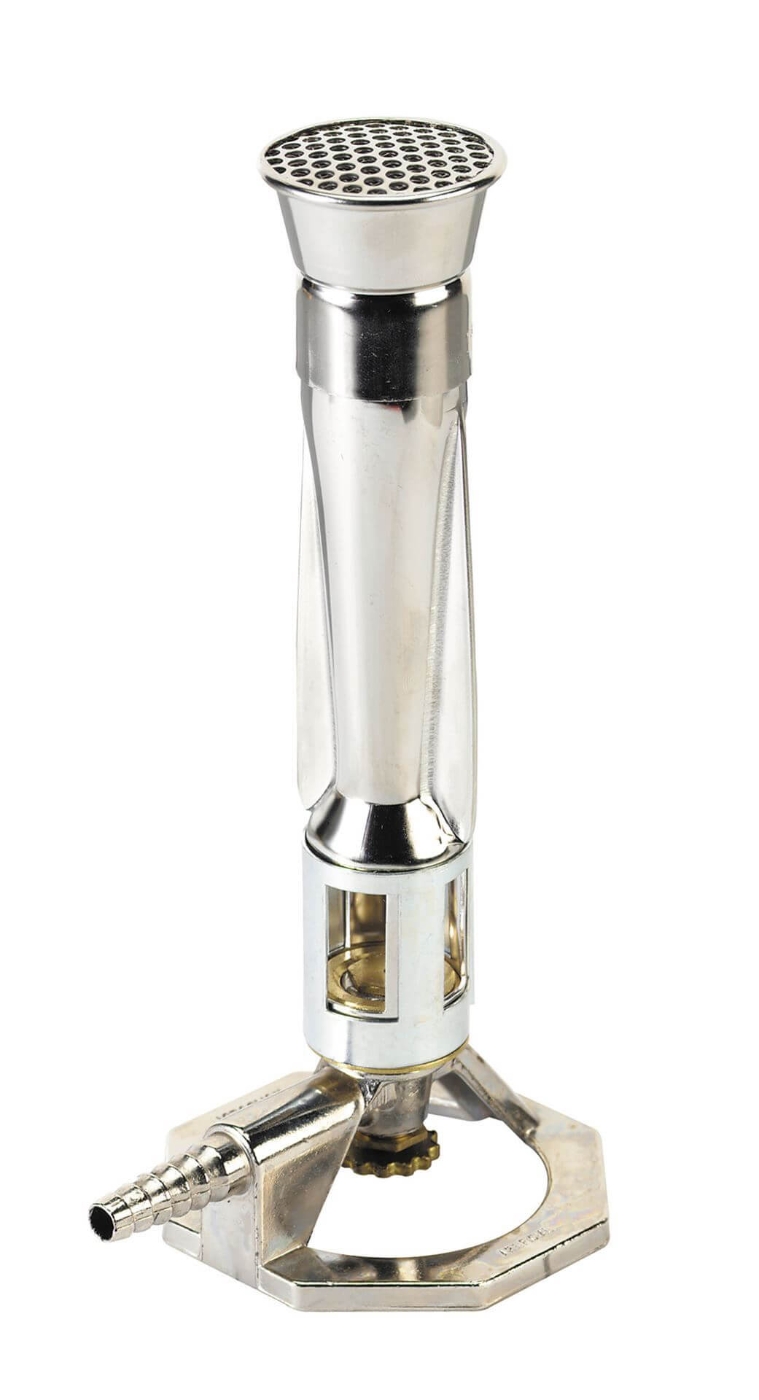

MA-191 Meker Burner is a high-temperature unit for use with an extremely hot flame and forms uniform blue heat cones with no backlash. This one-piece unit has a nickel-plated venturi 1.5in (38mm) mixing tube with monel grid and mesh backing, a knurled adjustment valve, an octagonal base, and a 5/16in (7.9mm) OD serrated gas inlet, and is 8.5in (216mm) high.

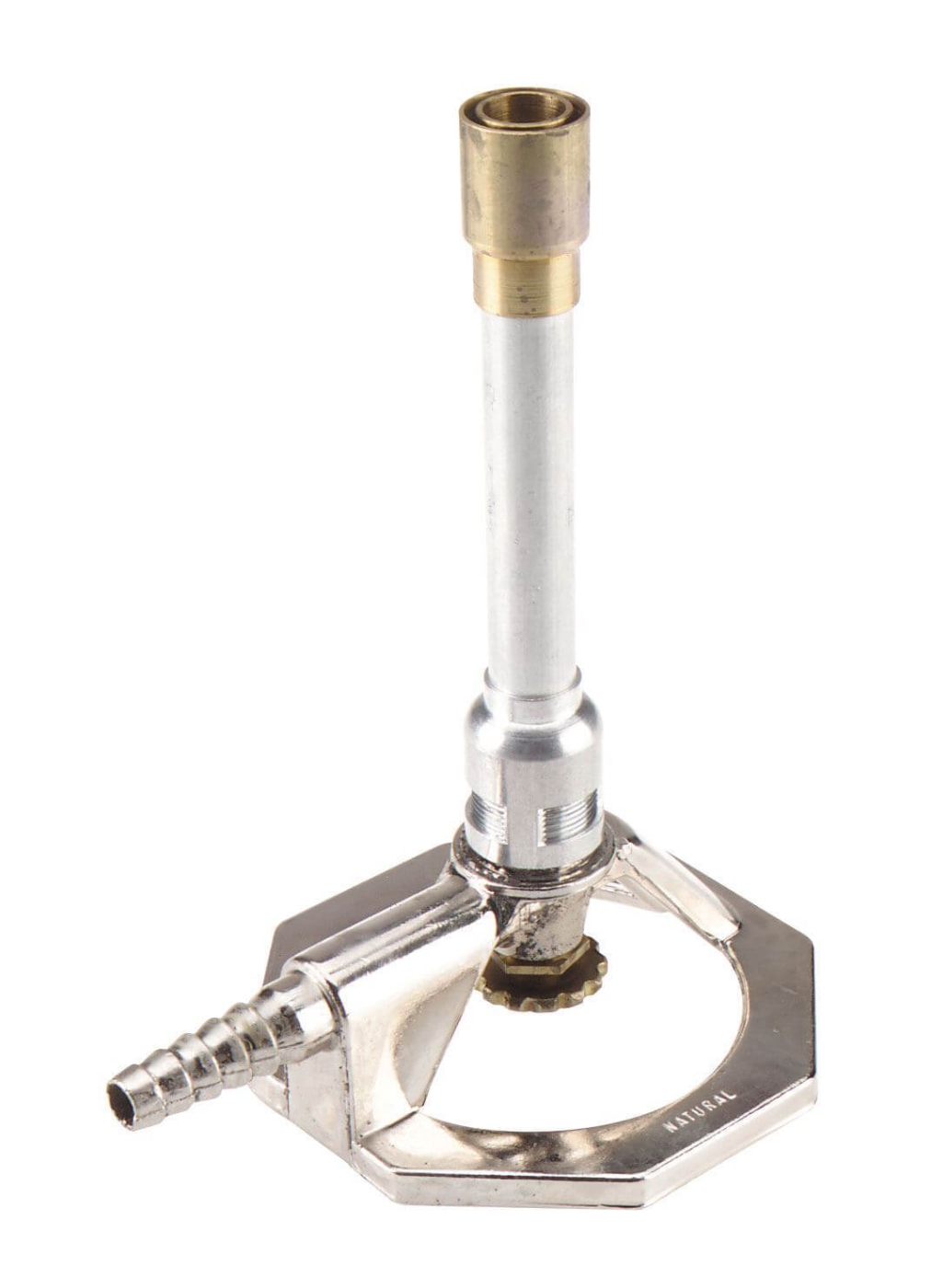

MA-192 Tirrill Burner is a general-purpose unit with a flame stabilizer, a 7/16in (11mm) aluminum mixing tube, an octagonal base, and an overall height of 6in (152mm). Flame height is adjustable from 0.50 to 12in (12.7 to 305mm), with separate control of flame length and temperature.
Features:
- Used with natural gas
- Sturdy Ni-plated zinc bases
- High-temperature option (Meker burner only)
- Flame stabilizer (Tirill Burner only)
Included Items:
- Laboratory Burner
