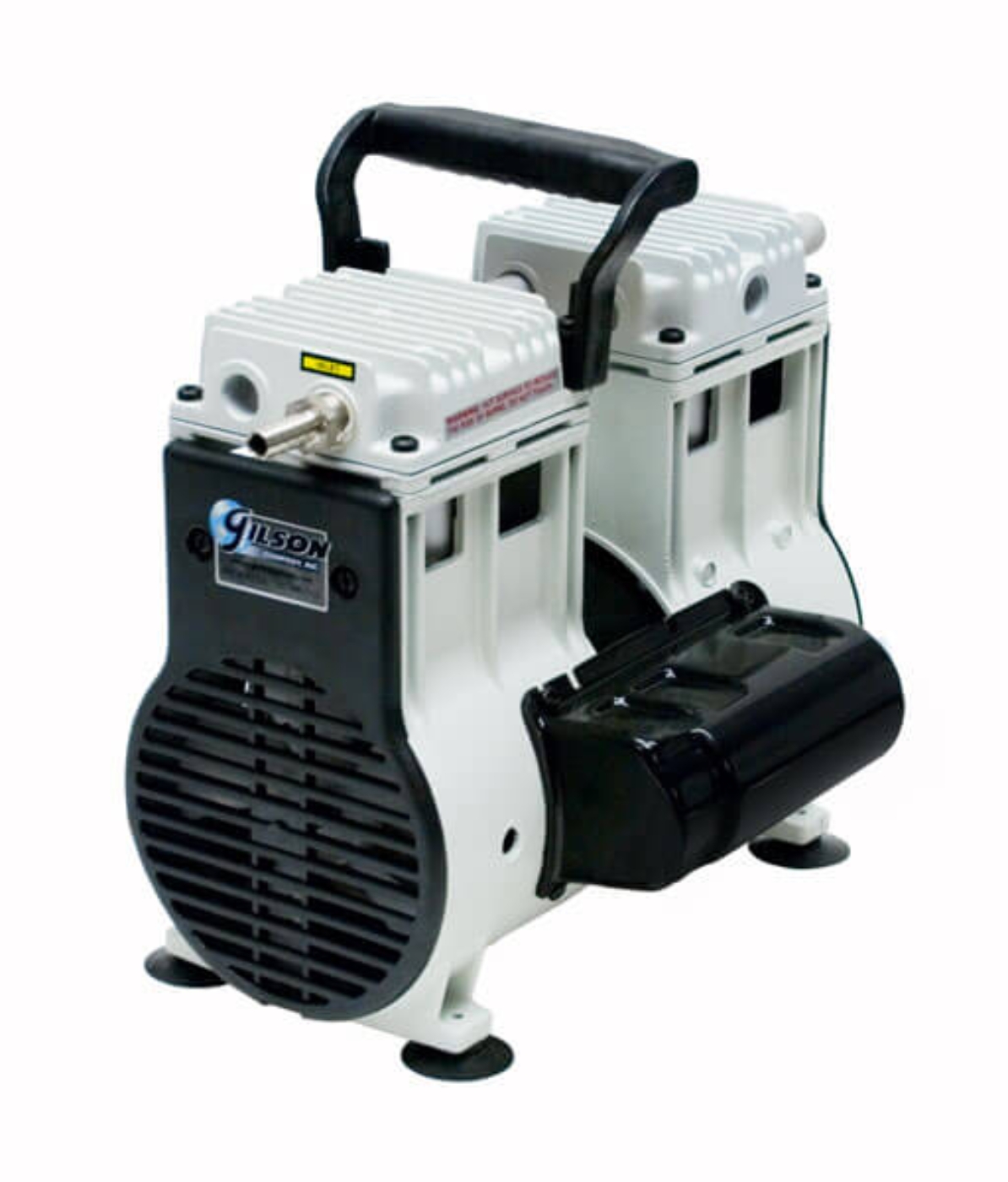

Oilless Vacuum Pump, Heavy-Duty (115V, 60Hz)

Model: MA-23

$2,280.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Oilless Vacuum Pump, Heavy-Duty (115V, 60Hz)

Model: MA-23

$2,280.00

Oilless Vacuum Pump, Heavy-Duty (230V, 50Hz)

Model: MA-23F

$2,280.00

SKU: MA-23F

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Questions? Talk to a Product Expert

Get help from our in-house testing equipment specialists.

Open M–F: 8:00am–5:00pm

Call Us: (800) 444-1508

Description
Specifications
Quick Compare
Q&A

Heavy-duty Oilless Vacuum Pump is a large oilless pump that allows multiple specific gravity tests to be performed simultaneously. This heavy-duty unit combines large capacity with maintenance-free operation. The 1/3hp motor pulls 29.6in Hg (759.46mm Hg) with free air displacement up to 99L/min (3.5cfm). Includes a NEMA guarded switch and grounded electric cord.

Features:

An ideal option when performing multiple specific gravity tests simultaneously
No maintenance is needed with the oilless pump
Large capacity unit

Included Items:

Oilless Vacuum Pump, Heavy-Duty (115V, 60Hz or 230V, 50Hz)
NEMA guarded switch
Grounded electric cord

Related blogs:

Specifications

Attribute name	Attribute value
Free Air Displacement	99L/min (3.5cfm)
Ultimate Vacuum	29.6in Hg (759.46mm)
Intake Port	0.375in (9.5mm)
Motor	1/3hp (0.25kW)
Electrical	MA-23: 115V, 60Hz, 2.5 amps MA-23F: 230V, 50Hz, 1.36 amps
Product Dimensions	7.8x13.3x11.7in (198x338x297mm), WxDxH
Net Weight	22.5lb (10.3lg)
Estimated Shipping Weight	MA-23: 28.0lb (12.70kg) MA-23F: 25.0lb (11.34kg)

Quick Compare

Features	Oilless Vacuum Pump, Heavy-Duty (115V, 60Hz)	Oilless Vacuum Pump, Heavy-Duty (230V, 50Hz)
Pricing	$2,280.00	$2,280.00
Electrical	115V, 60Hz	230V, 50Hz
Free Air Displacement	99L/min (3.5cfm)	99L/min (3.5cfm)
Ultimate Vacuum	29.6in Hg (759.46mm)	29.6in Hg (759.46mm)
Intake Port	0.375in (9.5mm)	0.375in (9.5mm)
Product Dimensions	7.8x13.3x11.7in (198x338x297mm), WxDxH	7.8x13.3x11.7in (198x338x297mm), WxDxH
Estimated Shipping Weight	28.0lb (12.70kg)	25.0lb (11.34kg)
