LBR Compaction Mold Only

Model: BRA-59M

$119.90

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

LBR Compaction Mold Only

Model: BRA-59M

$119.90

LBR Compaction Mold Collar Only

Model: BRA-59C

$73.70

SKU: BRA-59C

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

LBR Compaction Mold Base Only

Model: BRA-59B

$64.00

SKU: BRA-59B

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Questions? Talk to a Product Expert

Get help from our in-house testing equipment specialists.

Open M–F: 8:00am–5:00pm

Call Us: (800) 444-1508

Description
Specifications
Quick Compare
Q&A

Limerock Bearing Ratio (LBR) mold set parts can be purchased as individually. Components are zinc-plated for rust resistance and made of durable steel. Components meet AASHTO and FM testing requirements. The complete assembly can be purchased as BRA-59 LBR Mold Assembly.

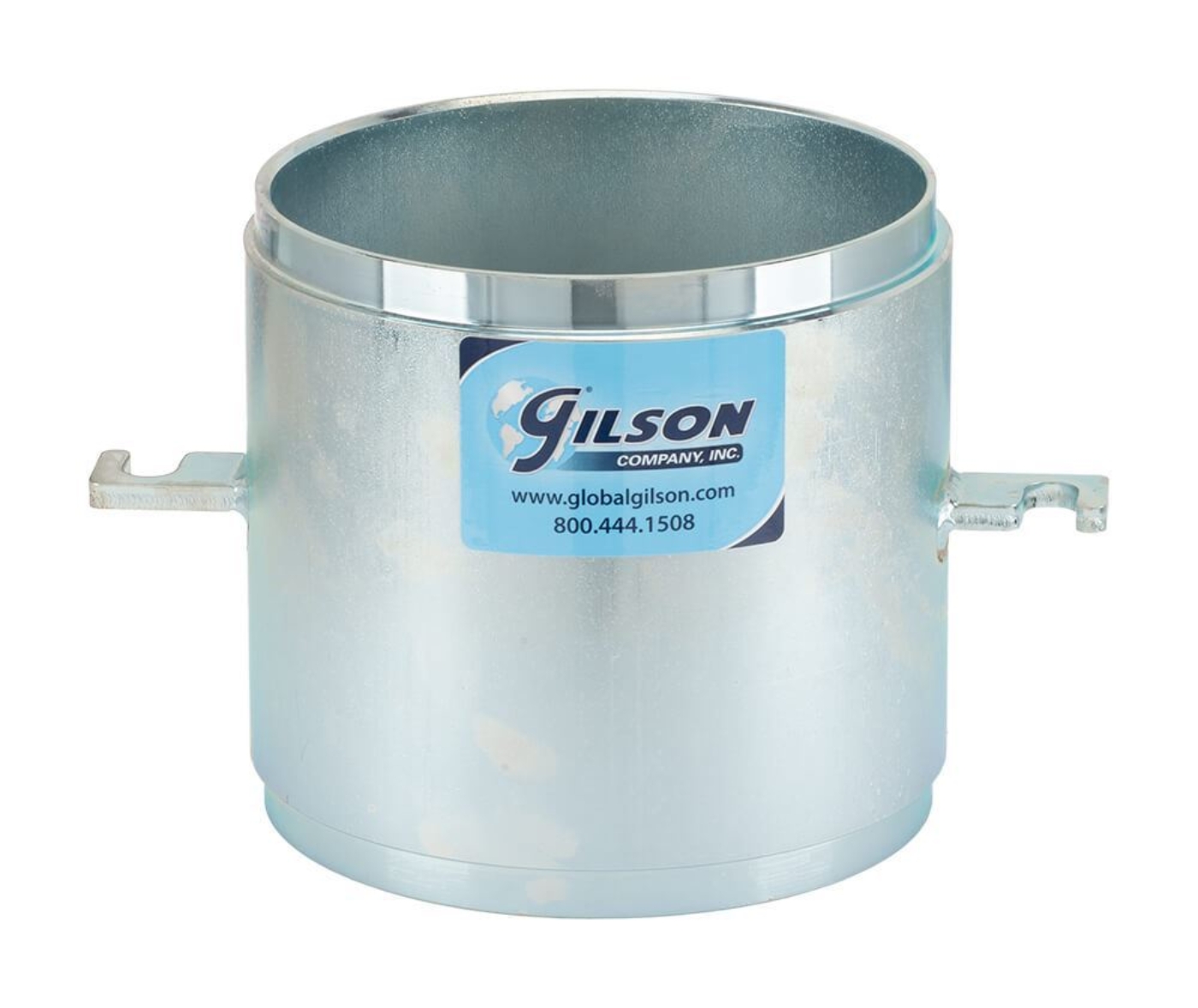

BRA-59M LBR Compaction Mold Only has slotted tabs to secure the mold to the base with threaded rods. 6x6in (152x152mm) I.D. x H.

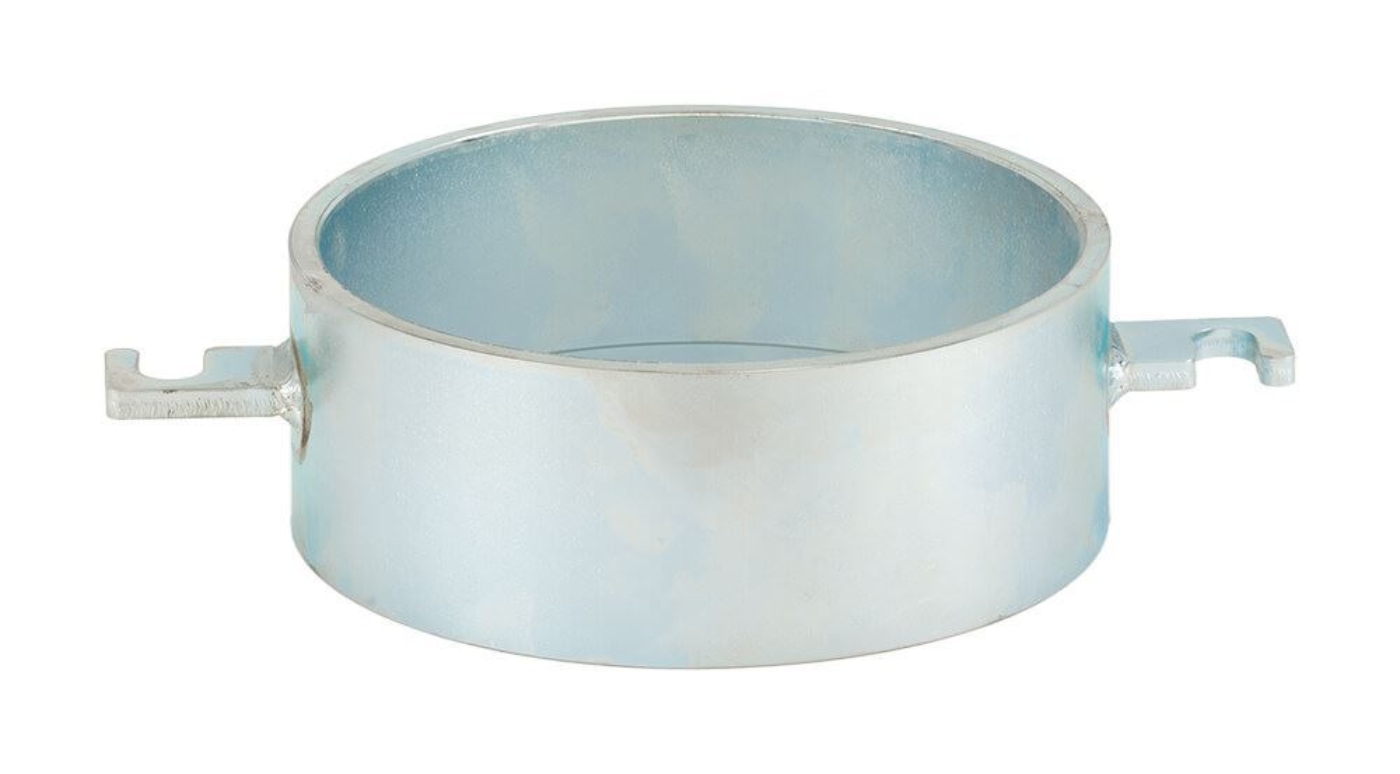

BRA-59C LBR Compaction Mold Collar Only fits on top of the mold and assists in filling and compaction. The collar can be used with other LBR molds and is 2.5in (64mm) tall.

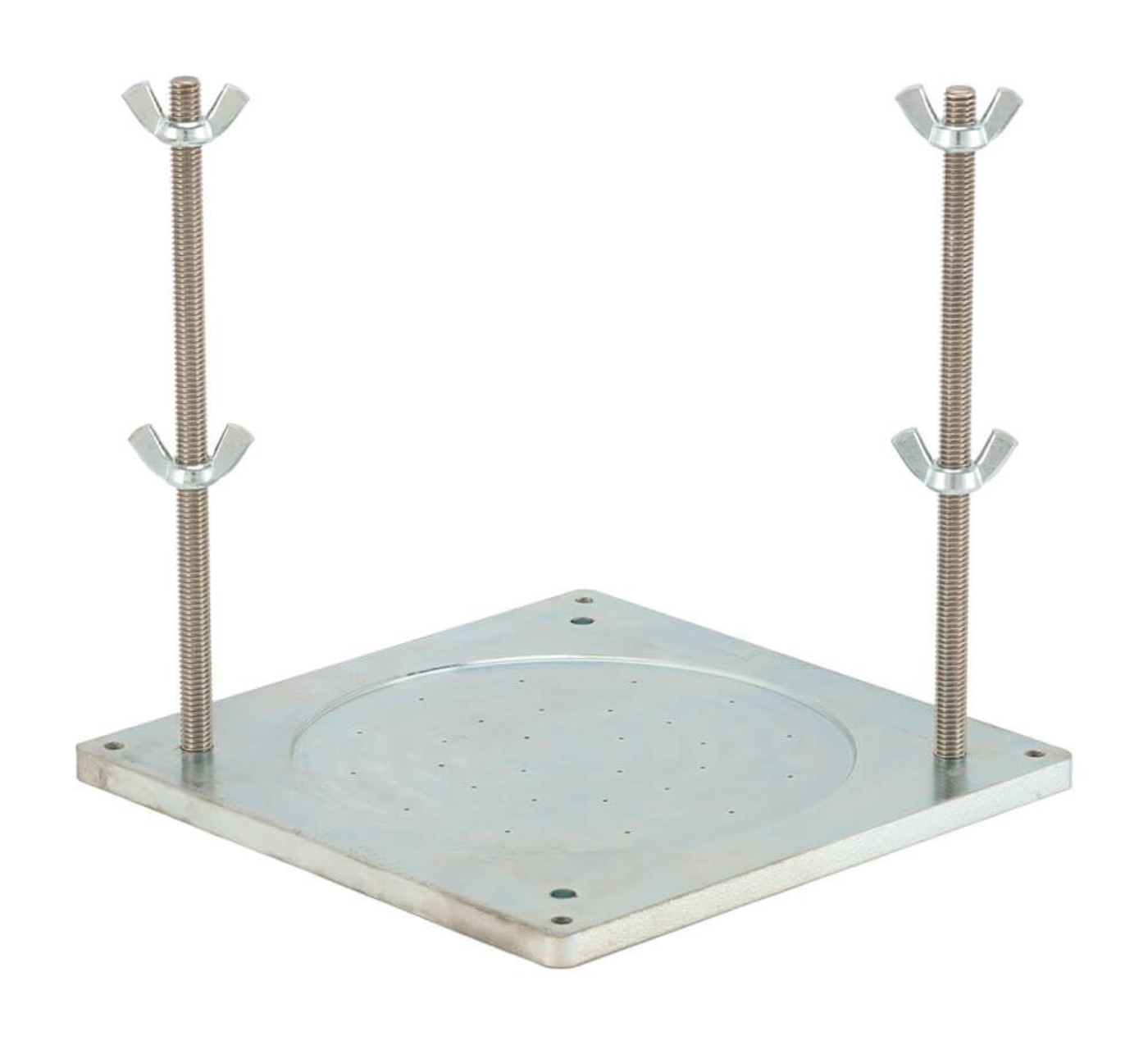

BRA-59B LBR Compaction Mold Base Only is perforated and secures the mold during compaction. The mold is fitted with threaded upright rods and wing nuts.

Features:

Rust-resistant, durable steel construction
Components can be purchased individually as needed
Meet FM 5-515 test method

Included Items:

LBR Compaction Mold Components (Mold, Collar, or Base)

Related blogs:

Proctor Compaction Test: A Basic Guide

Product tags

AASHTO T 220 (9)
,
FM 5-515 (10)

Specifications

Attribute name	Attribute value
Estimated Shipping Weight	BRA-59M: 9.0lb (4.08kg) BRA-59C: 2.0lb (0.91kg) BRA-59B: 7.3lb (3.29kg)

Quick Compare

Features	LBR Compaction Mold Only	LBR Compaction Mold Collar Only	LBR Compaction Mold Base Only
Pricing	$119.90	$73.70	$64.00
Style	Standard Mold Only	Mold Collar Only	Mold Base Only
Estimated Shipping Weight	9.0lb (4.08kg)	2.0lb (0.91kg)	7.3lb (3.29kg)
