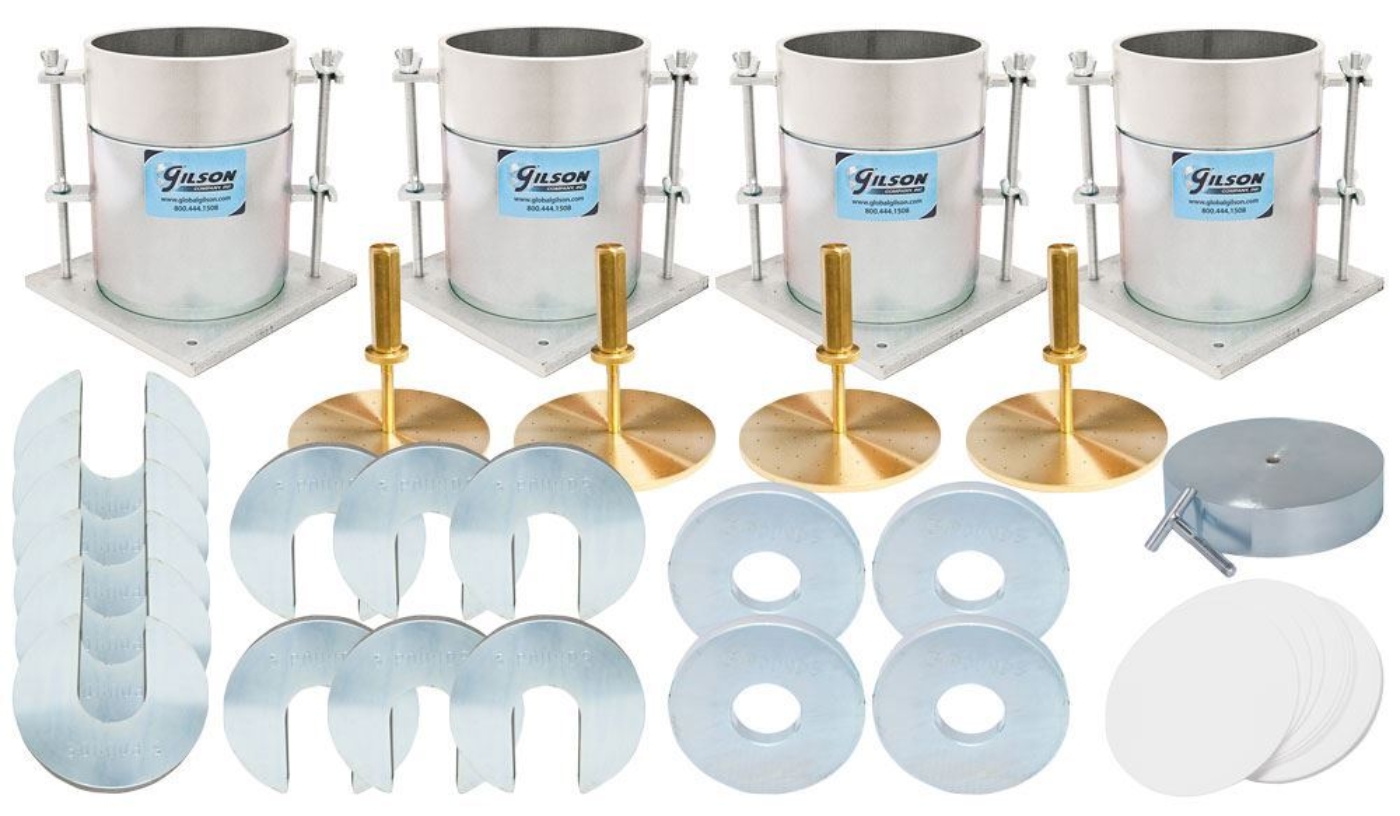

LBR Test Set contains products to prepare samples for the Limerock Bearing Ratio Test. The set includes four BRA-59 Mold Assemblies, four BRA-63 Annular Surcharge Weights, 12 BRA-64 Slotted Surcharge Weights, and four BRA-67 Swell Plates. Also included is one BRA-62 LBR Spacer Disc which is placed in the mold during compaction and one package of BRA-76 Paper Filters (100/pkg).
Features:
- Allows set up to four LBR test specimens at one time
- Meets Florida standards for LBR testing
Included items:
- BRA-57 LBR Test Set:
- (4) BRA-59 Mold Assemblies
- (4) BRA-63 Annular Surcharge Weights, 5lb
- (12) BRA-64 Slotted Surcharge Weights, 5lb
- (4) BRA-67 Swell Plates
- BRA-62 LBR Spacer Disc
- BRA-76 Paper Filters, 100/pkg
Accessories:
- BRA-59 LBR Mold Set to hold specimens for LBR testing
- Surcharge Weights are used in applying surcharged loads on the soil surface
- BRA-67 Swell Plates for measuring specimen swell
- BRA-76 Paper Filters (100/pkg) for separating soil from the spacer disc during compaction or to place on the top of the soil when compacting is done
- BRA-62 LBR Spacer Disc which is placed in the mold during compaction
- CBR/LBR Soaking Tank is a heavy-duty container used for the soaking process of two maximum CBR or LBR molds.
- CBR/LBR Mold Support Rack is used to hold a CBR or LBR mold and test components while soaking in the Soaking Tank.
