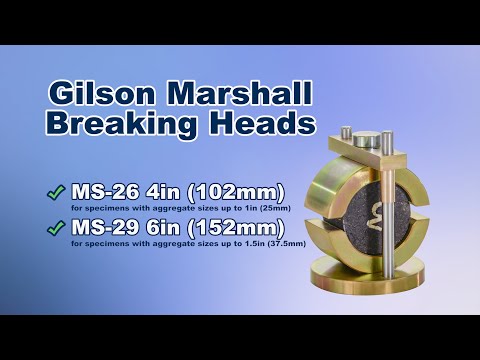

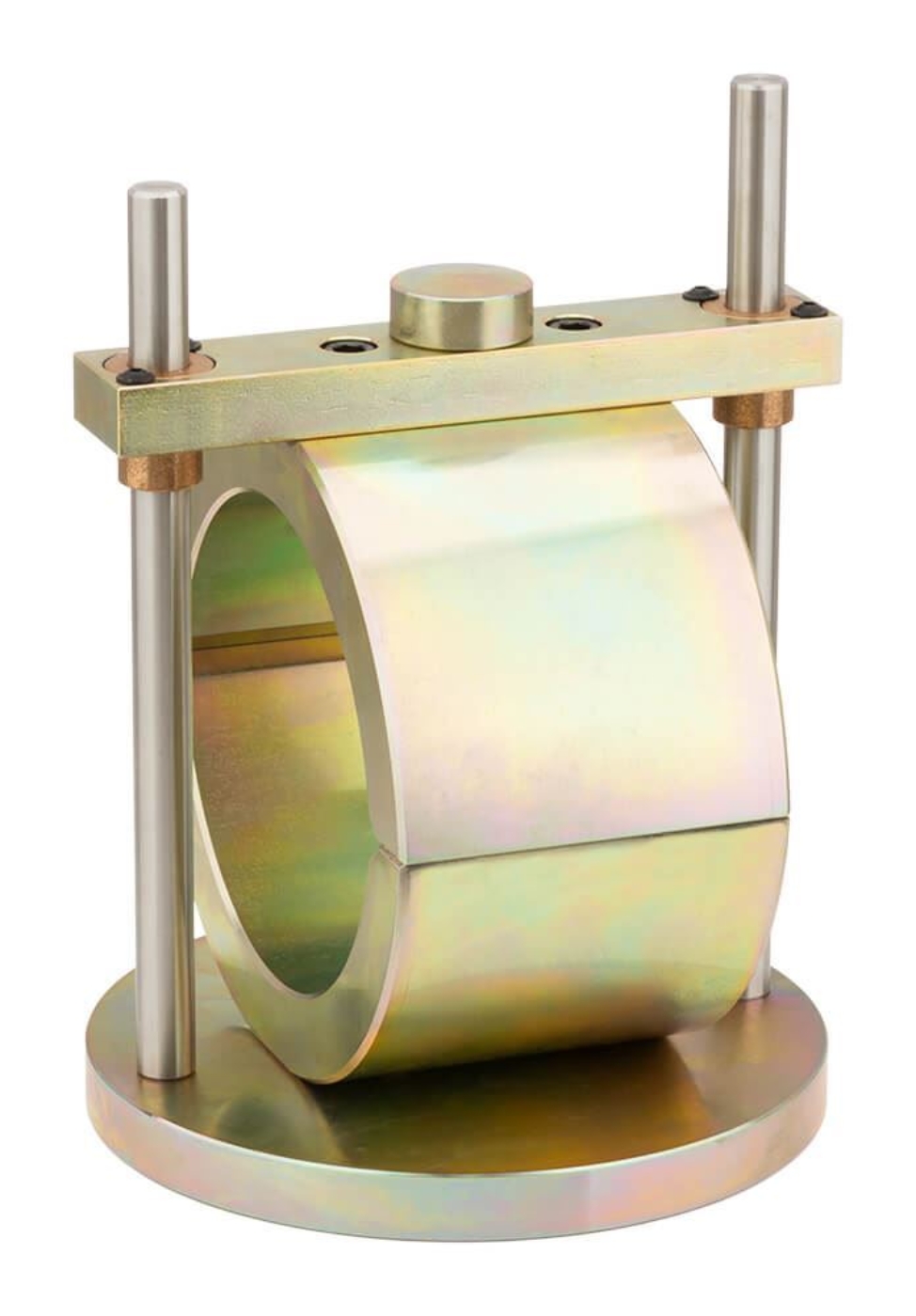

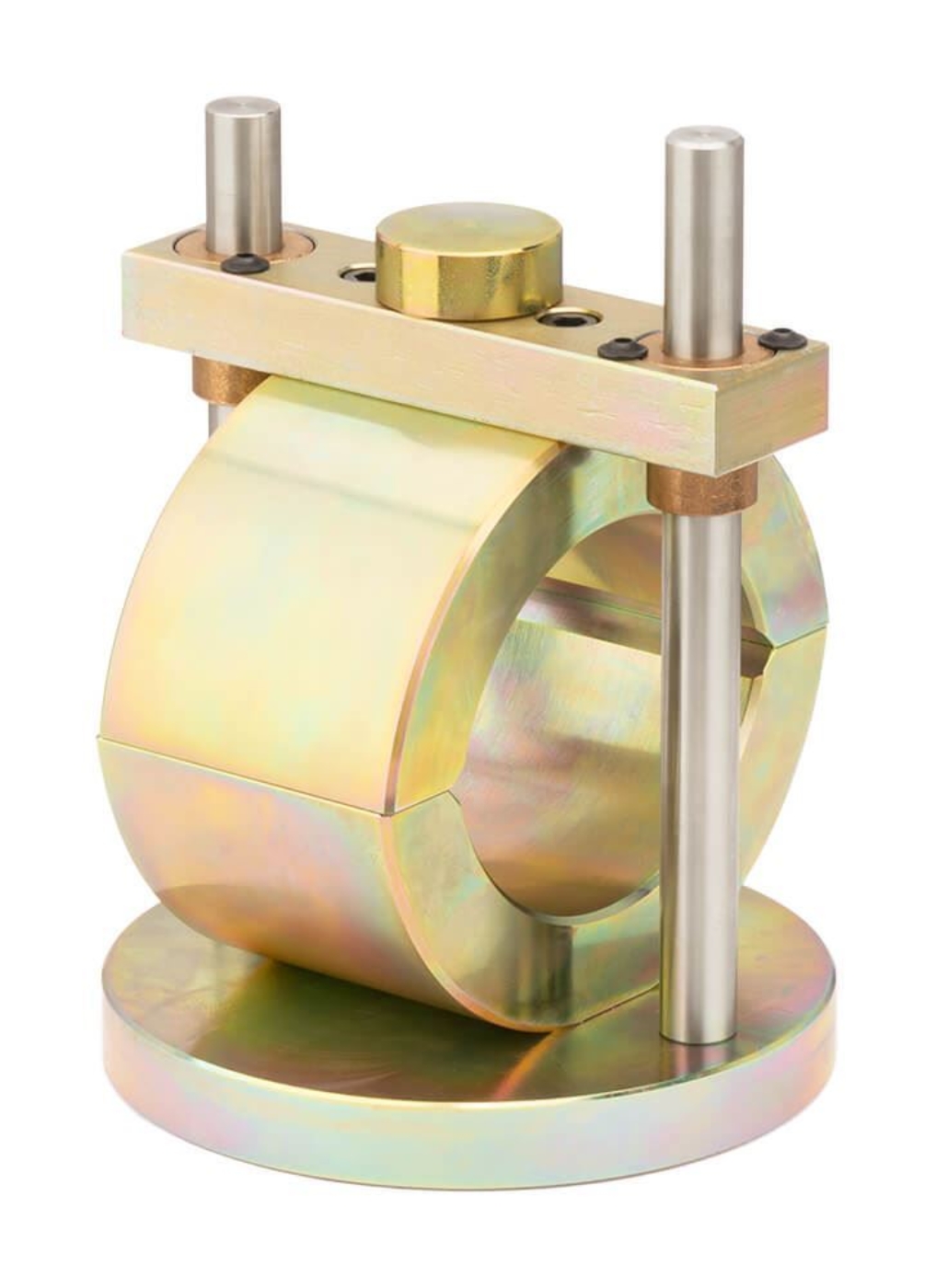

Mounted in Load Frames for Marshall Testing of hot mix asphalt specimens to measure load and flow rate, the MS-26 and MS-29 Marshall Breaking Heads have machined upper/lower segments to fit asphalt specimens. Segments are connected by two vertical guide rods with precisely machined sleeves to reduce friction and assure non-binding movement. Designed for use with the Marshall Stability Load Frames, but are compatible with most load frames.

Features:

4in (102mm) or 6in (152mm) sample sizes
Precision-machined sleeves reduce friction
Machined upper and lower segments
Compatible with most load frames

Included Items:

4 or 6in Marshall Breaking Head

Accessories:

MSA-134 Marshall Data Acquisition Software works with the MSA-860D Digital Component Set to record specimen information and real-time test data, calculate results, then prepare reports following ASTM requirements.
Marshall Stability Load Frames

Related blogs:

Marshall Test Method: Everything You Need to Know

Specifications

Attribute name	Attribute value
Specimen Size	MS-26: 4in (102mm) MS-29: 6in (152mm)
Product Dimensions	MS-26: 6 x 7.5in (152.4 x 190.5mm) Dia. x H MS-29: 8 x 9.5in (203.2 x 241.3mm) Dia. x H
Estimated Shipping Weight	MS-26: 21.0lb (9.53kg) MS-29: 41.0lb (18.60kg)
