Proper sample preparation for materials such as coal or ores requires careful and thorough mixing to assure consistent and accurate results.

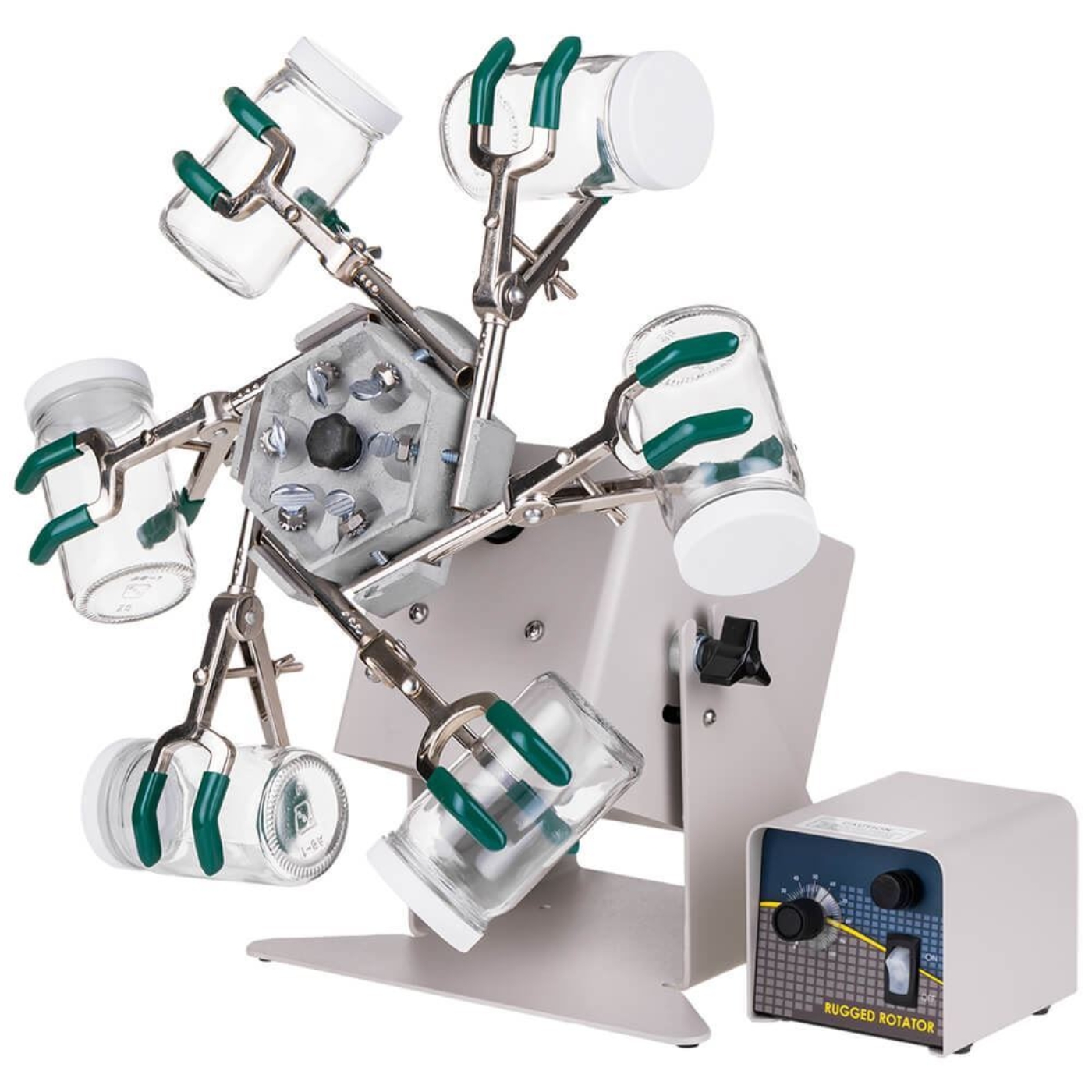

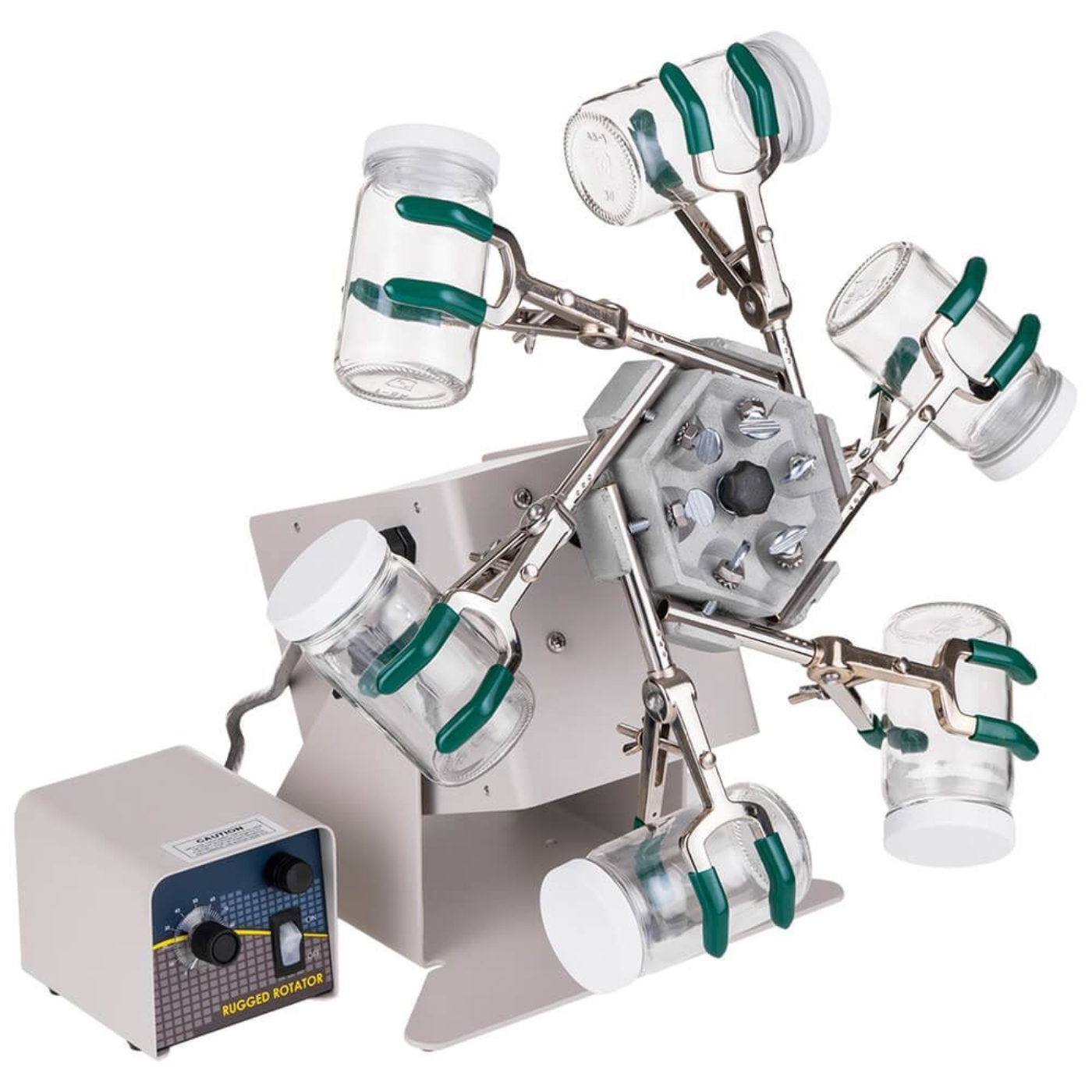

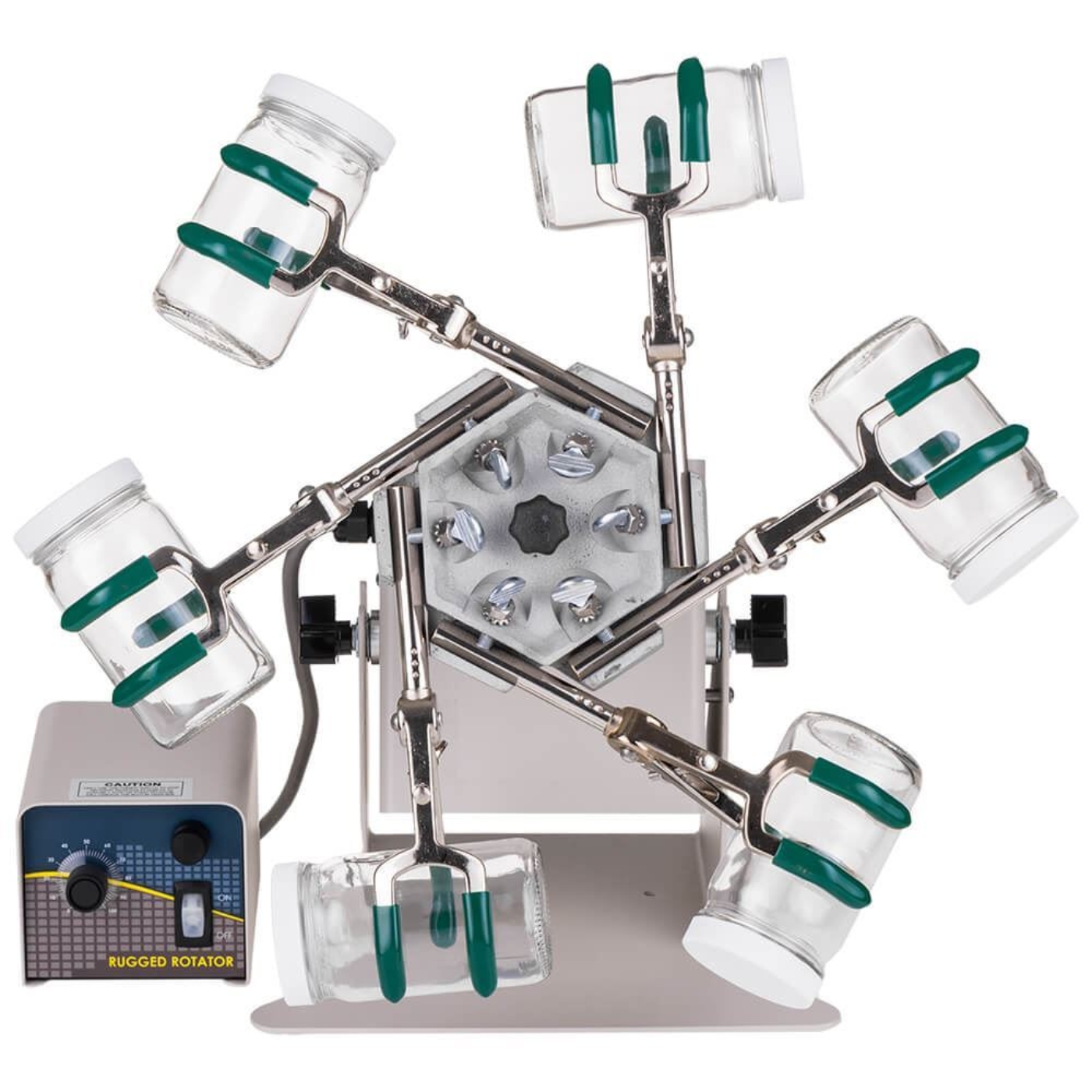

SP-42 Mini Mixing Wheel rotates up to six 8oz (237ml) sample jars over a 10–60rpm adjustable speed range. The large three-finger thumbscrew clamps lock bottles securely at a 45° angle (as specified by ASTM D2013) or other required position. The sturdy bench unit with a painted steel frame has resilient rubber feet and includes a 6ft (1.8m) three-wire cord. The cord-attached speed control module permits safe use away from wheel rotation. The continuous-duty motor is adequate to rotate containers with diameters up to 3.5in (89mm).
Features:
- Speed control module with a 6ft cord
- Continuous-duty motor with variable-speed at 10-60rpm
- Rotates up to six 8oz (237ml) sample jars
- Thumbscrew clamps lock at 45° angle to meet ASTM D2013
- Bench mounted or wall-hung
Included Items:
- Mini Mixing Wheel, 120V/60Hz
Accessories:
- TR-502 Transformer, for operation on 230V power supplies

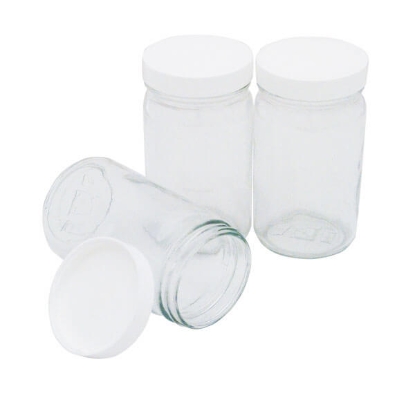

- SPA-60 Sample Glass Jars, 8oz wide-mouth jars with a screw-on cap
