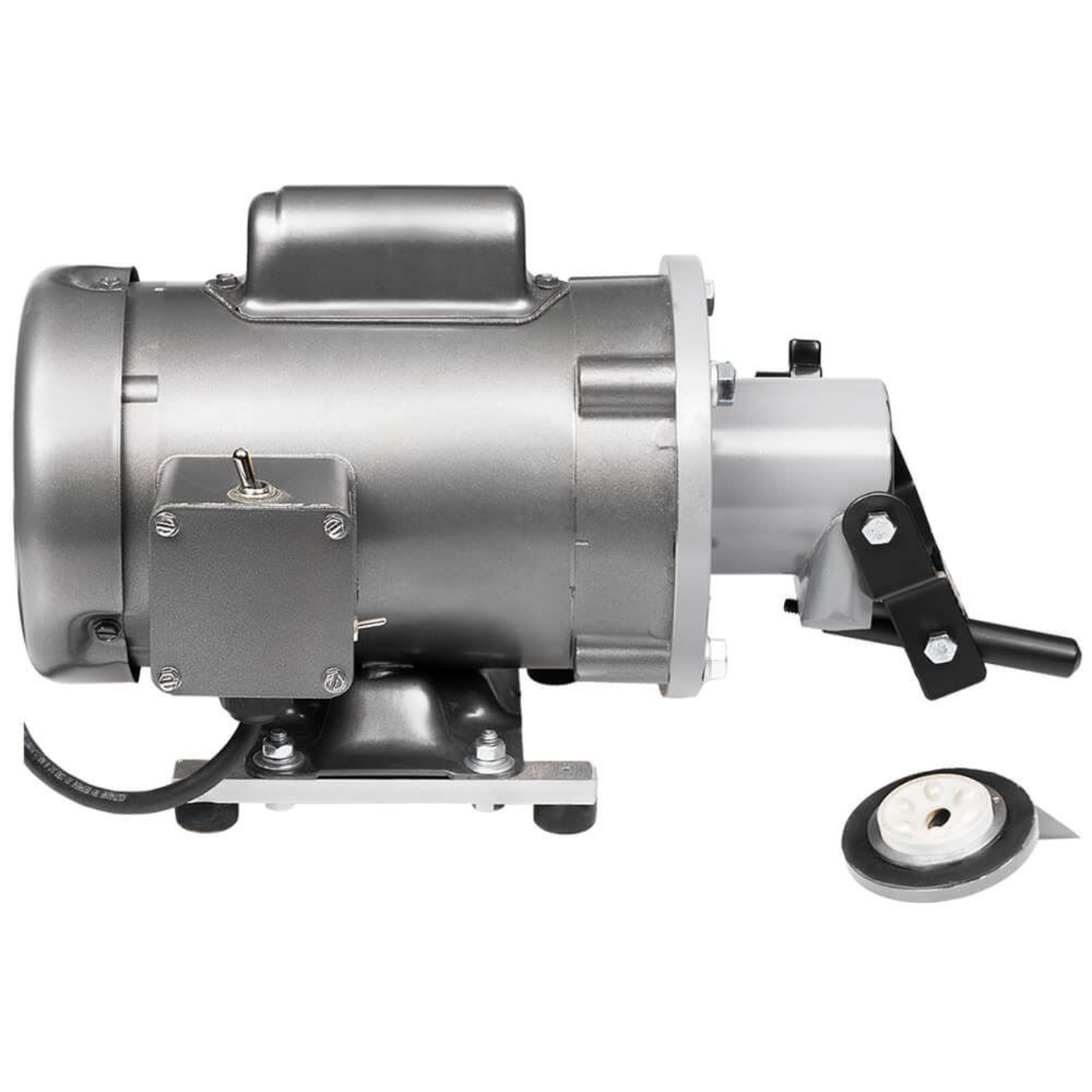

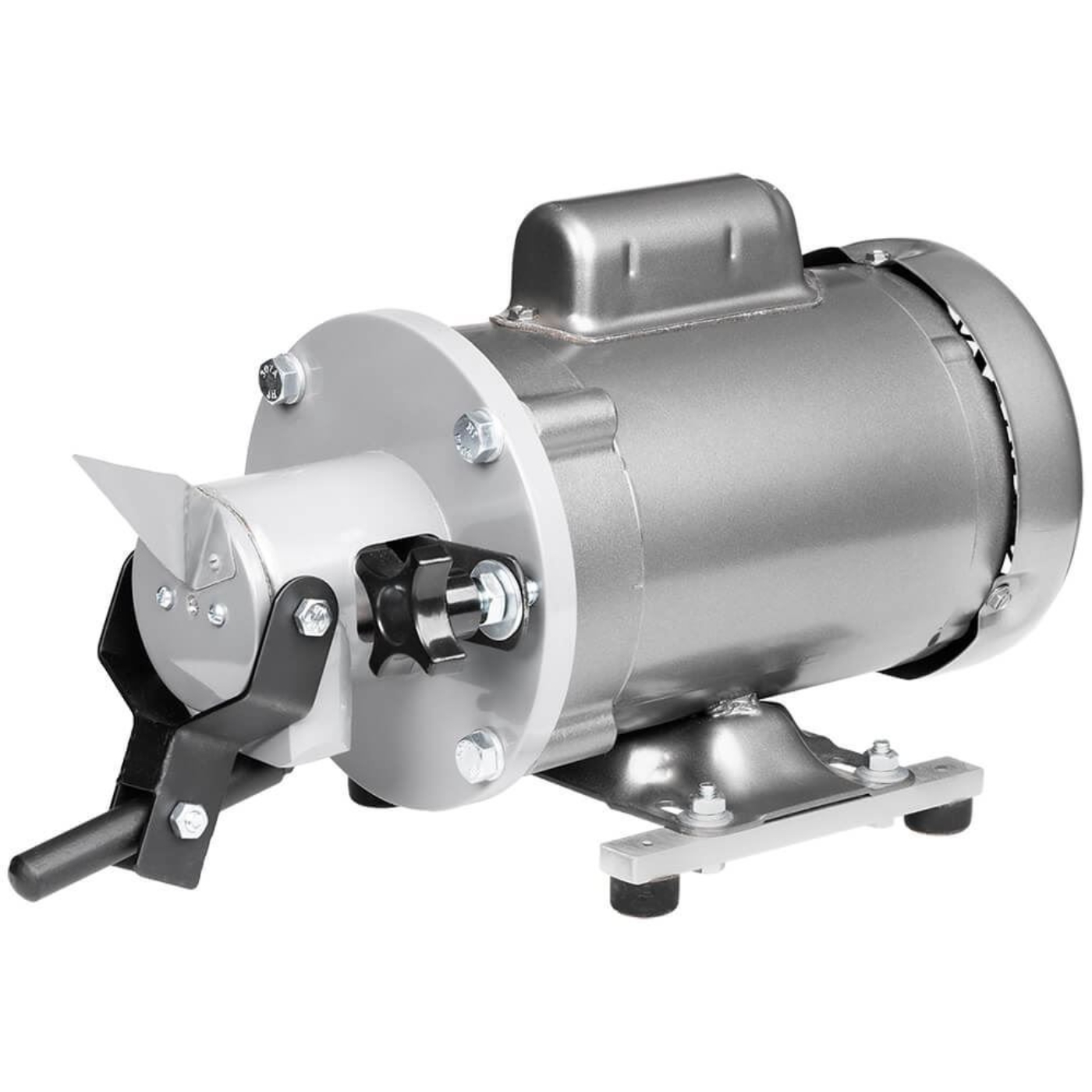

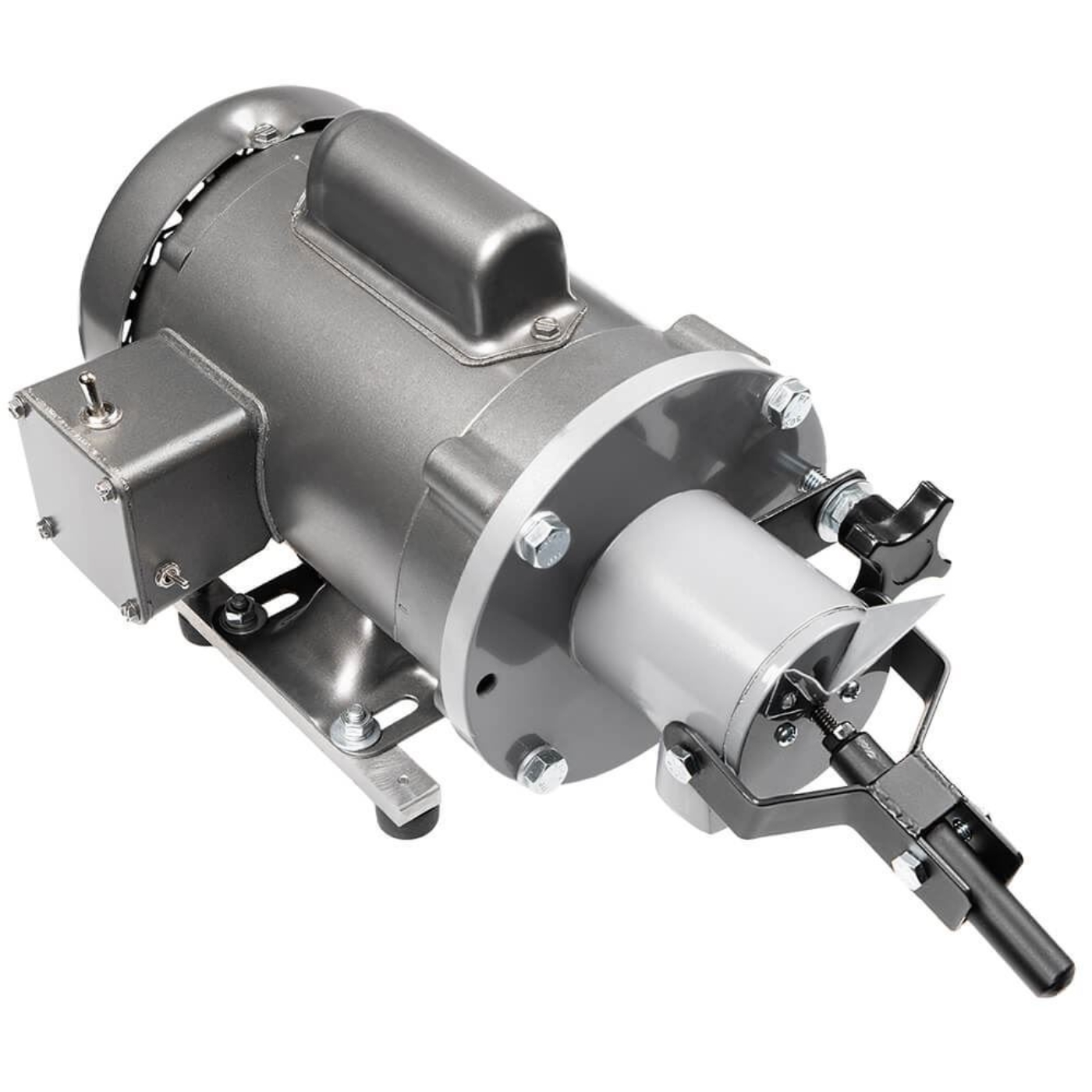

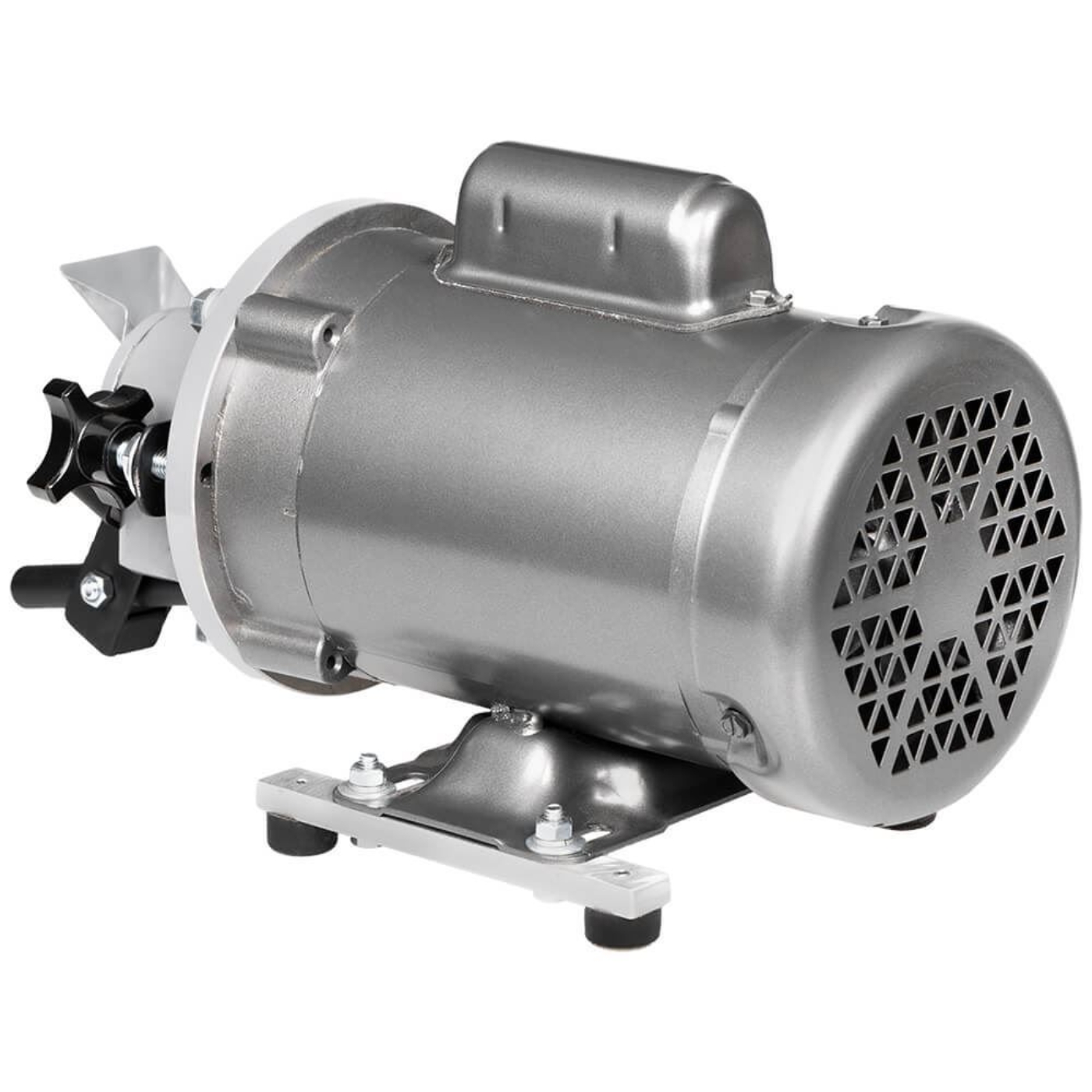

The Mini-Pulverizer has a sample capacity of 20g with a maximum feed size of 1/8in (3.2mm). Its adjustable grinding plates allow for precise reduction of material to particle sizes ranging from No.40 to No.140 (425–106µm). Nearly all ground material can be easily recovered by brushing, minimizing sample loss. This feature makes the Mini-Pulverizer highly efficient for small-scale, precise grinding and sample recovery, ideal for laboratory testing purposes.
The unit is supplied with 1.625in (41mm) diameter high-density alumina ceramic grinding plates. A switch reverses the direction of plate rotation for extended plate life of up to 3,000 samples. The LCA-56 Tungsten Carbide Plate Set is available separately for use with extra-hard materials.
The LC-7 has cam actuated closure with sealed bearings and is driven by a 1/3hp capacitor-start motor mounted on rubber feet. It operates at 115V, 60Hz or 230V, 50Hz, depending on the chosen model.
Features:
- Adjustable grind to produce a range of sample sizes
- Sealed bearings
- Reversible drive for extended plate life
- Grinding plates are high-density alumina ceramic
Included Items:
- Mini Pulverizer
- Alumina grinding plate set

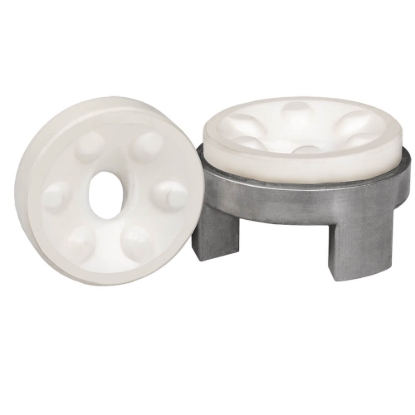

- Alumina Plates Set as replacement units

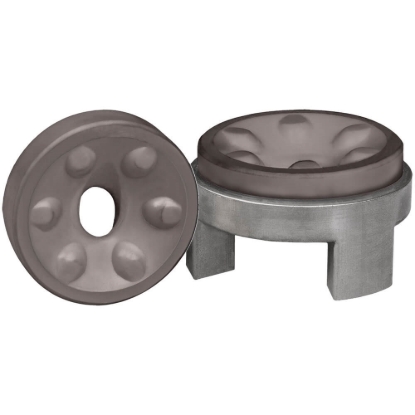

- Tungsten Carbide Plate Set for use with tougher materials
