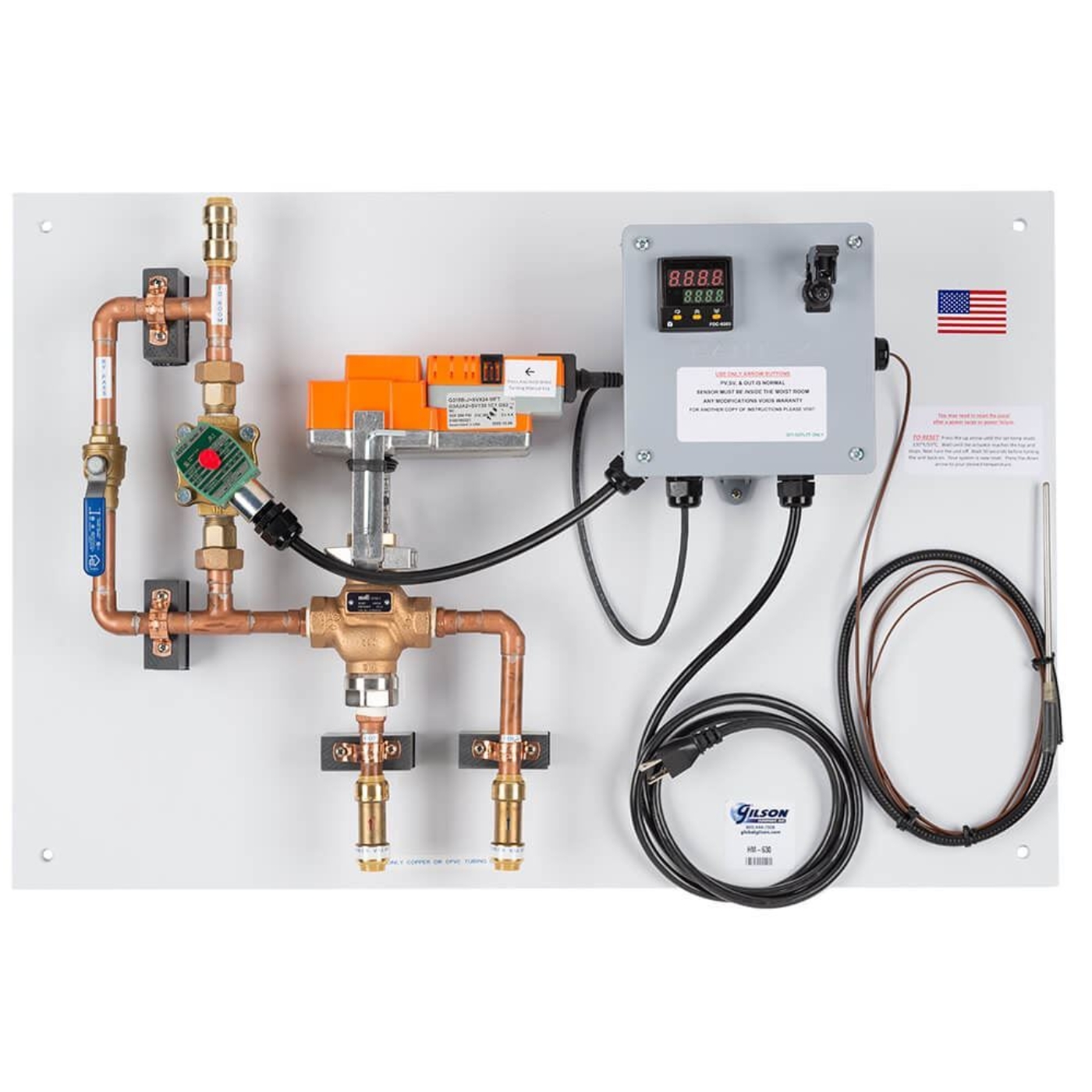

Moisture Room Control Panel is a wall-mounted system that automatically blends hot and cold water supplies to keep your concrete specimen curing environment at precisely 73.4 ± 3°F (23 ± 1.7°C) and 100% humidity. It is a stand-alone device used specifically with HMA-298 Atomizing Spray Heads and does not integrate with other foggers, misting devices, compressed air, or HVAC units. A dedicated hot water tank is recommended to assure constant temperatures.
The easy-to-read digital controller display allows simple input of temperature set points for automated control. A manual bypass system assures continuous maintenance of specified temperature and humidity levels if power is interrupted. The panel has space to add a temperature recorder or data logger, available separately. Quick-connect water line fittings are fast and easy to install. Inquire for custom design of a closed-loop layout with atomizing spray head pattern for your cure room based on room dimensions, and water temperatures and pressures. One-pass water chillers also available as required.
Note: The HM-630 is only offered in 120V, 60Hz and the use of a transformer is not recommended.
Features:
- Manual bypass system maintains temperature and humidity levels if power is lost
- Wall-mounted unit
- Digital controller display
- Can be outfitted with temperature recorder or data logger
Included Items:
- Moisture Room Control Panel
Accessories:

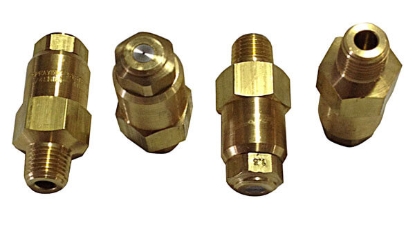

- HMA-298 Atomizing Spray Heads distribute moisture and number needed depends on the size of concrete curing room
