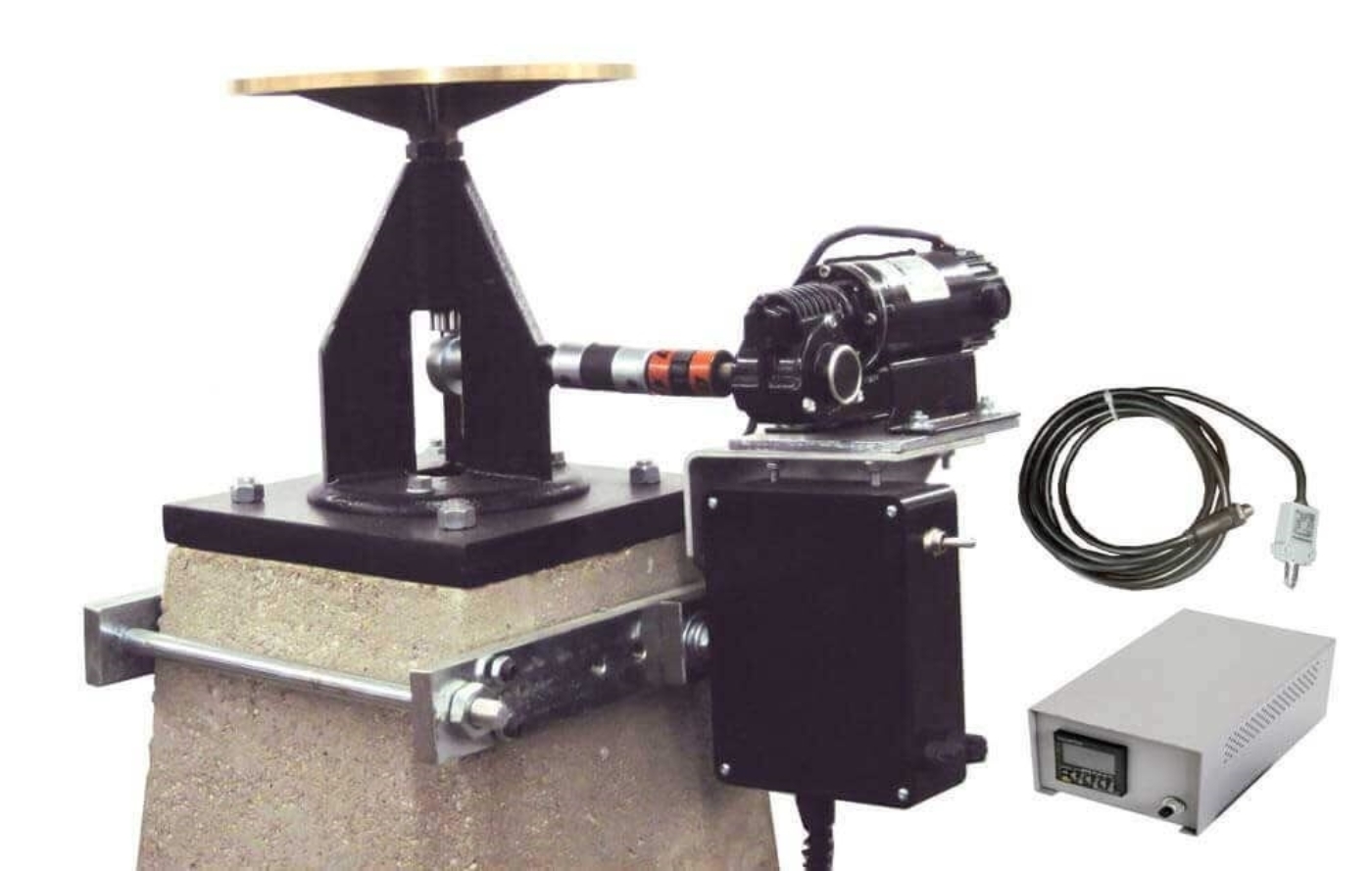

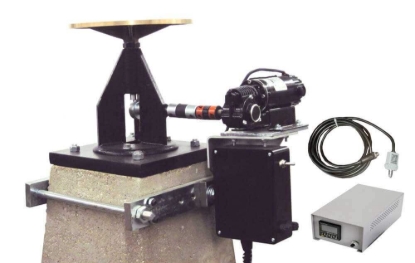

Motorized Flow Tables are used for determining consistency (flow) and for preparing mortars of standard consistency for testing. Flow Tables have 10in (254mm) diameter rigid cast bronze table supported in cast iron frame. Base and special drive motor bracket mount to the concrete pedestal. Concrete pedestal not included with Flow Table. Included cast bronze flow mold has 2.75/4in (70/102mm) top/bottom ID with a collar. HM-272 and HM-273 have rates controlled precisely in accordance with ASTM and AASHTO standards.
Features:
- Cast bronze table supported in cast iron frame
- Mounts to the concrete pedestal (not supplied)
Included Items:

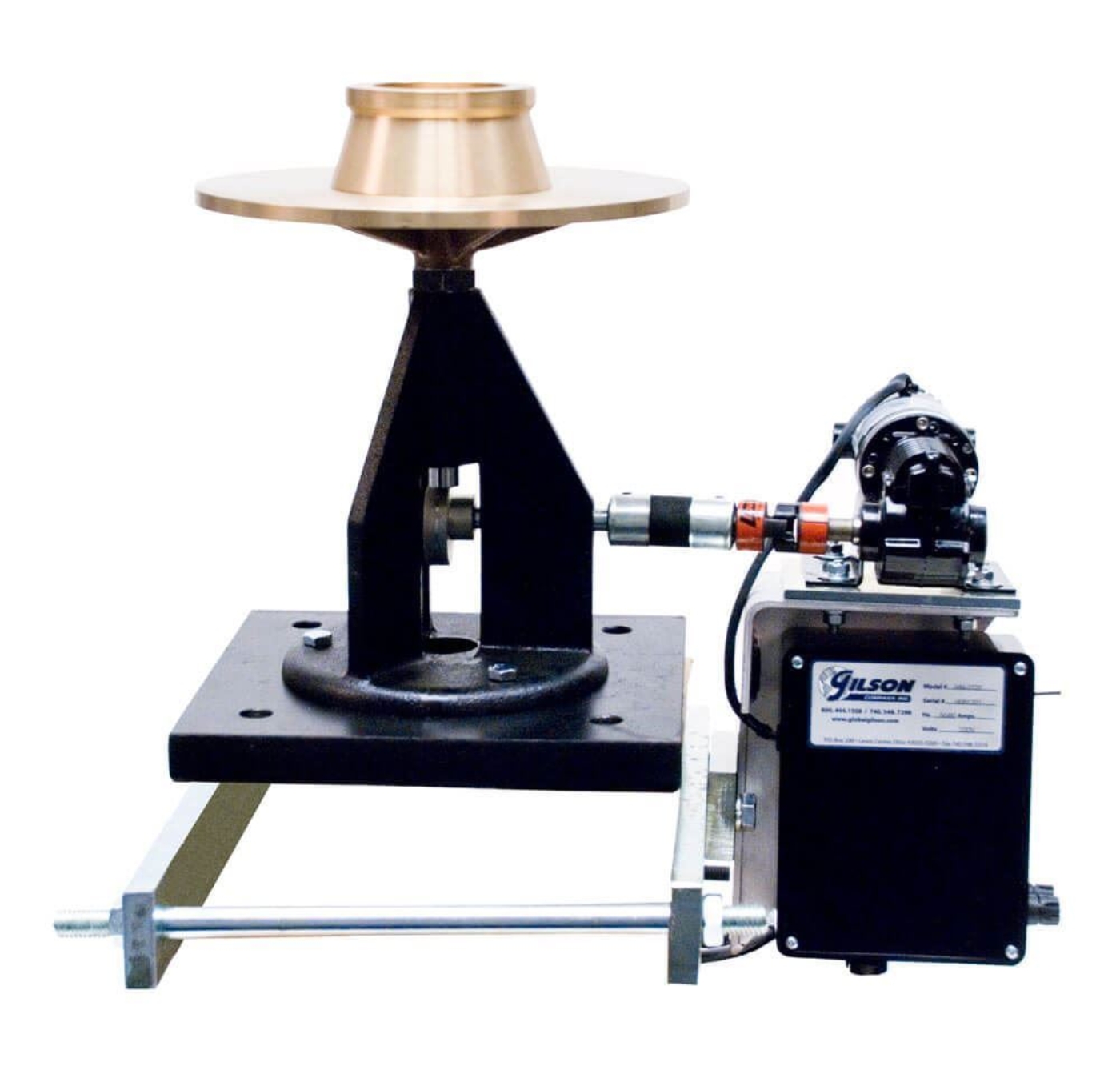

- Motorized Flow Table (with or without counter)

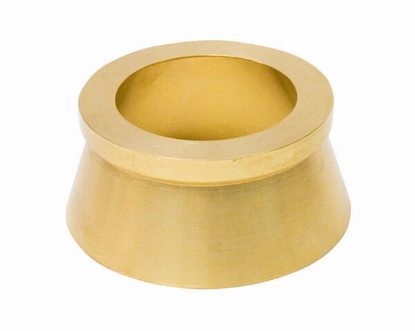

- Cast bronze flow mold
Accessories:
- HMA-134 Percent Flow Caliper with a special scale to give average flow
- HMA-133 Extra Flow Mold for efficient sample preparation or as replacement
- HM-298 Rubber Tamper for consolidating mortar or grout specimens into molds
- HMA-368 Strike-Off Bar for striking off specimens
