The NCAT Field Asphalt Permeameter Kit was selected by the National Center for Asphalt Technology (NCAT) for its close correlation with laboratory test results. This falling-head permeameter uses Darcy’s Law to determine the rate of water flows through asphalt pavement. The AP-1B permits accurate, on-site estimation of permeability, eliminating the need for coring, patching, and laboratory testing. Corrections to mix and placement procedures can be implemented right away, and testing can be completed in just 10–15 minutes by one technician, with no extensive training necessary.

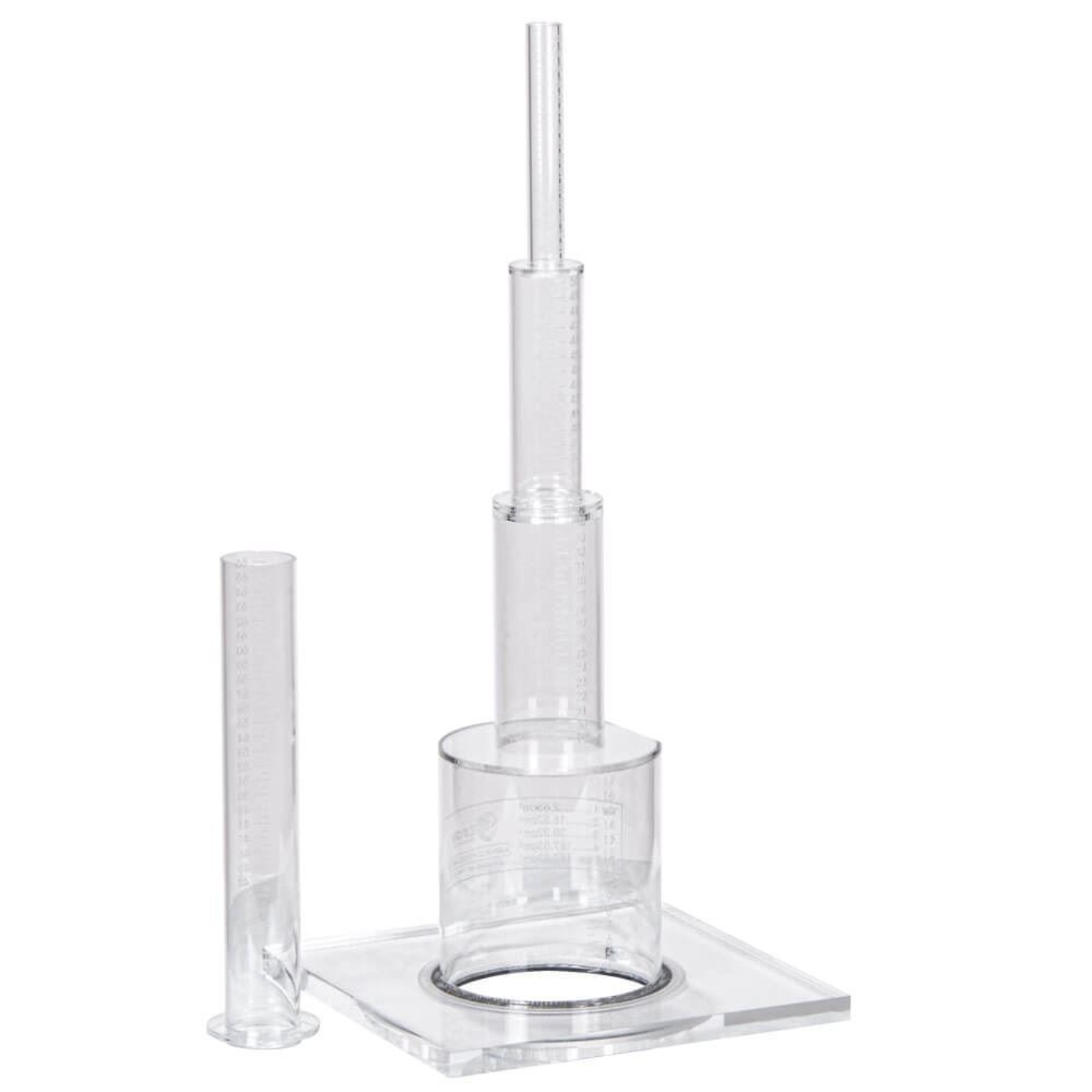

The APA-11B 4-tiered graduated standpipe is supplied in two sections and constructed of rugged plastic. A sealing material is placed on the base plate, and the unit is positioned on the test site and seated against the pavement using gentle foot pressure and included base weights. After filling with water, the outflow is observed against the clearly marked graduations and timed. The uppermost tier allows rapid determinations in low-porosity pavements. The larger diameter tiers offer enough time to accurately read flow on more porous pavements. An alternate top section is included to replace the two top tiers with one larger diameter tier for extended test times on moderately permeable mats or for rapid filling when testing highly permeable mixes.

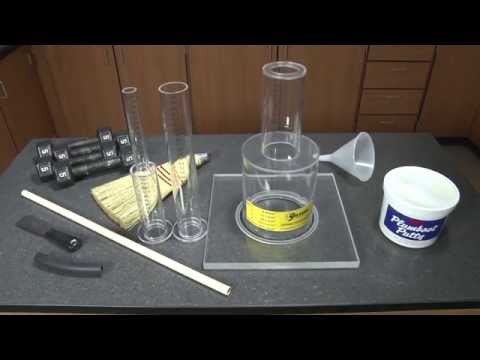

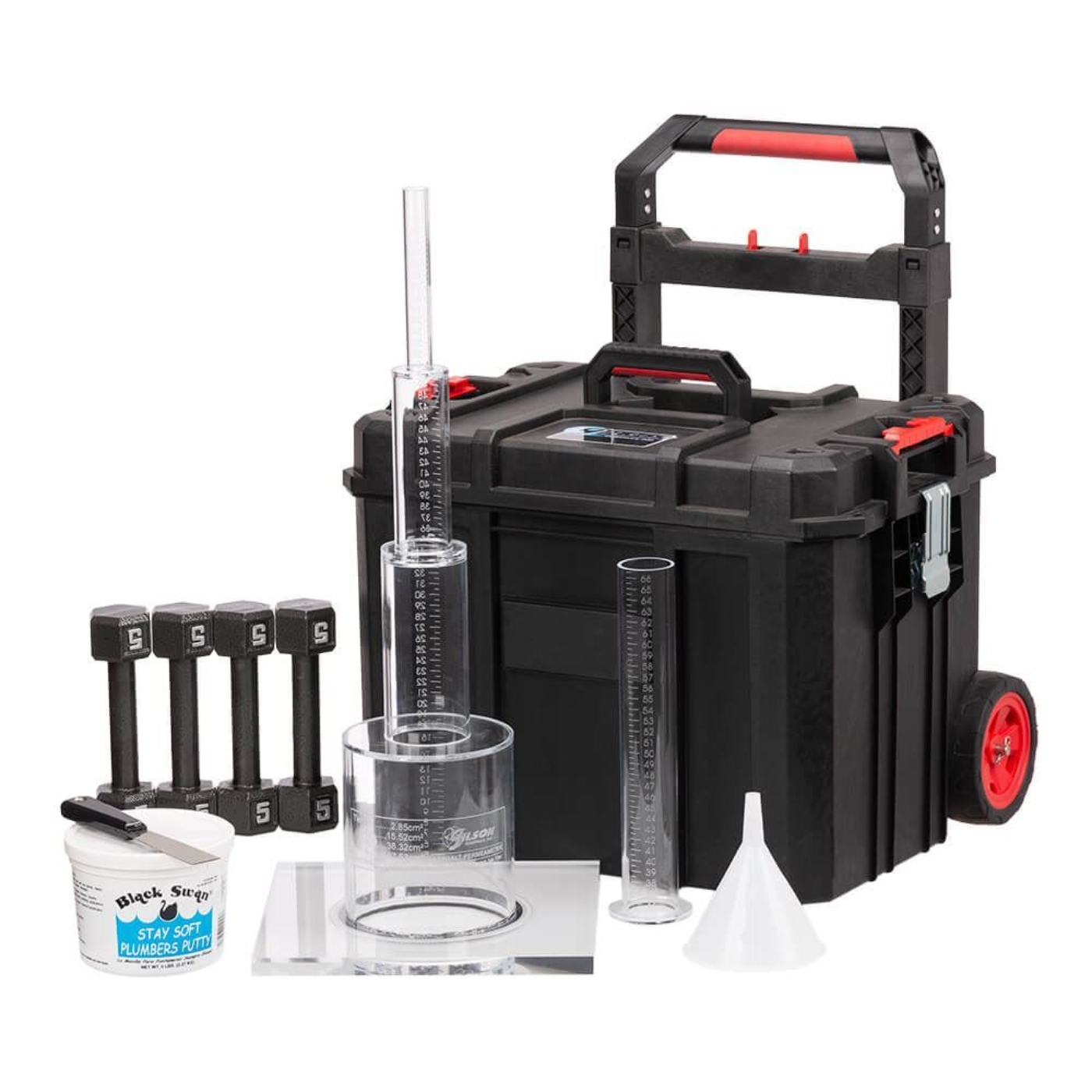

The AP-1B Kit includes the 4-tiered APA-11B Permeameter with alternate top tier, 6in (152.4mm) filling tube, 24in (609.6mm) long tube, 5lb (2.3kg) container of moldable sealant, a putty knife, a whisk broom for test site preparation, and four 5lb (2.3kg) base weights, which are all packaged in a heavy-duty carrying case.
Features:
- Offers precise, on-the-spot estimation of permeability
- Eliminates the need for coring, patching, laboratory testing, and extensive training
- The test procedure can be completed in 10–15 minutes
- Adapts for testing of low-porosity, high-porosity, and highly permeable pavements
Included Items:
- NCAT Field Asphalt Permeameter Kit
- NCAT Asphalt Field Permeameter
- Alternate top tier
- 6in filling tube
- 24in tube
- 5lb container of moldable sealant
- Whisk broom
- (4) 5lb base weights
- Carrying case
Accessories:
- APA-18 Alternate Permeameter Top is a larger diameter top tier option for rapid filling

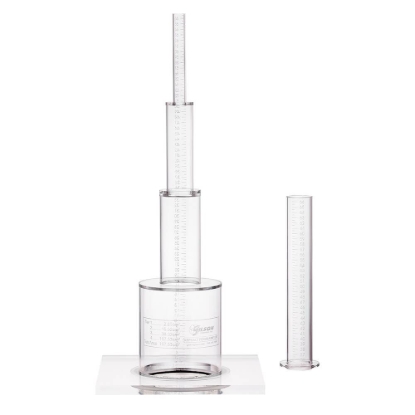

- APA-11B NCAT Asphalt Field Permeameter s a four-tiered graduated permeameter supplied in two sections

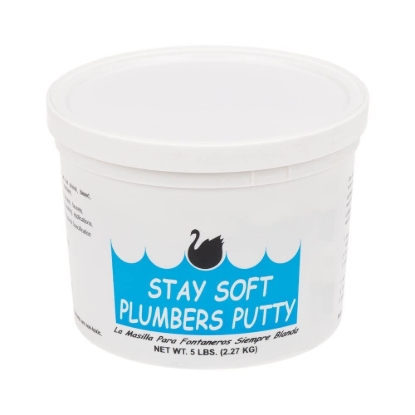

- APA-22 Moldable Sealant secures permeameter to pavement surface during field tests

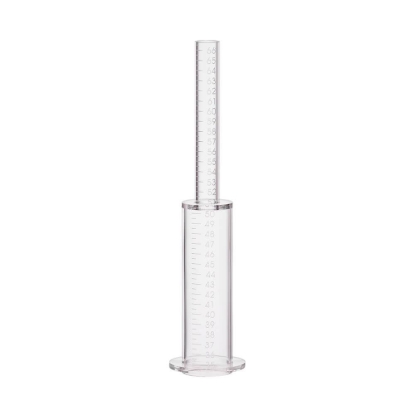

- APA-17 Standard Tiered Permeameter Top is a two-tier graduated standpipe for permeameter
