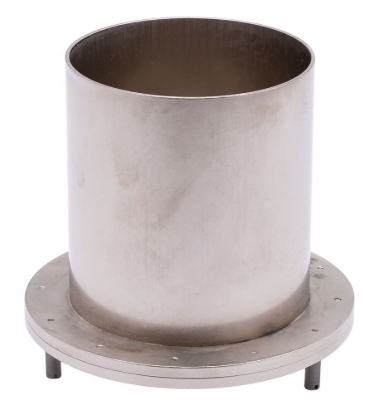

4in Two-Piece Nickel Plated Wet-Wash Sieve Frame

Model: WT-60

$181.50

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

4in Two-Piece Nickel Plated Wet-Wash Sieve Frame

Model: WT-60

$181.50

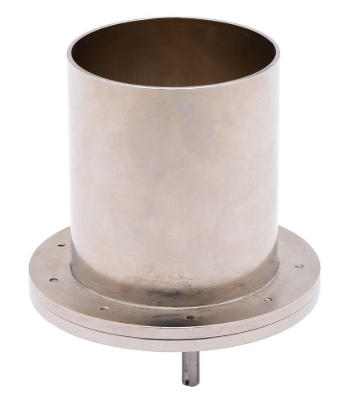

3in Two-Piece Nickel Plated Wet-Wash Sieve Frame

Model: WT-61

$215.00

SKU: WT-61

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

2in Two-Piece Nickel Plated Wet-Wash Sieve Frame

Model: WT-62

$225.00

SKU: WT-62

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Questions? Talk to a Product Expert

Get help from our in-house testing equipment specialists.

Open M–F: 8:00am–5:00pm

Call Us: (800) 444-1508

Description
Specifications
Quick Compare
Q&A

Two-Piece Nickel-Plated Wet-Wash Sieve Frames are corrosion-resistant, dry easily in ovens or on hot plates after washing, and use replaceable ASTM E11 stainless steel mesh discs, available separately.

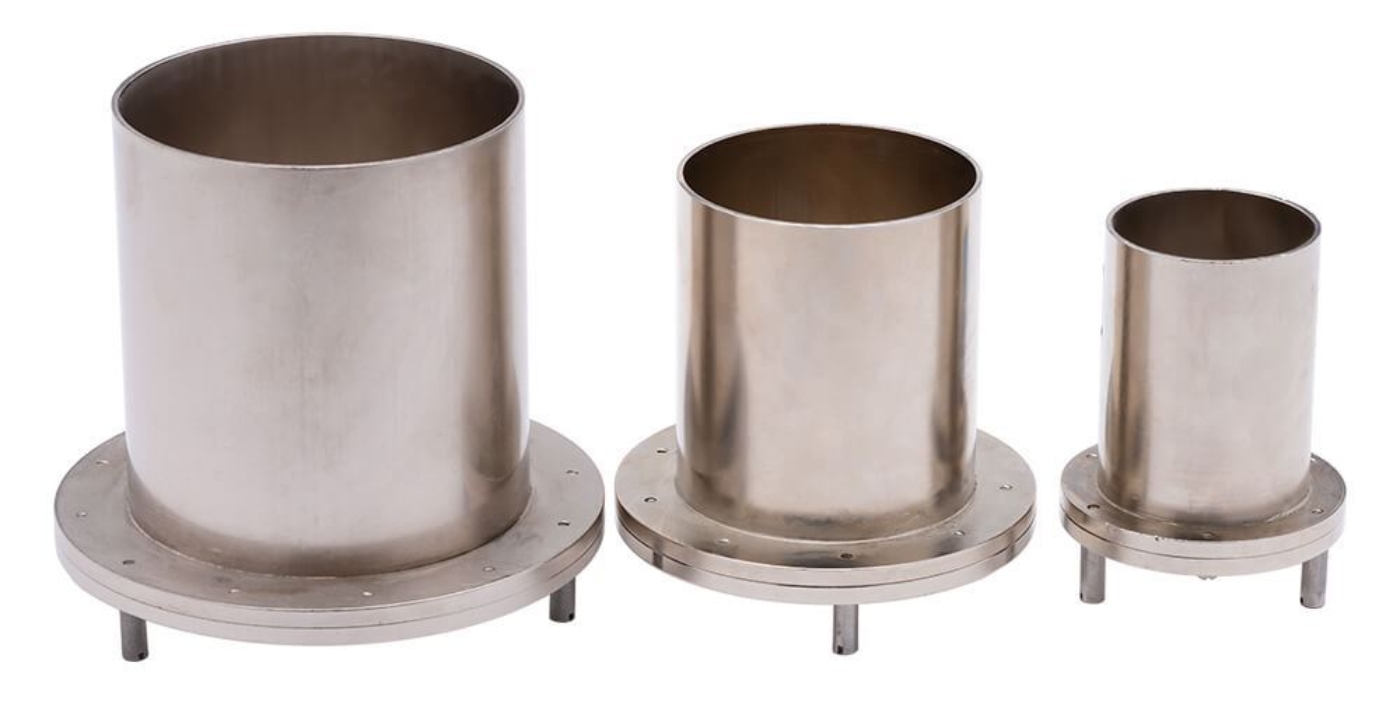

Gilson’s popular two-piece frames are available in three sizes: 2x3in, 3x3.5in, and 4x4.5in. The three threaded, removable legs aid drying and add 1in to the overall height. They use solderless construction to expedite drying and special notched stainless steel mesh discs are held in nickel-plated frames with machine screws.

WT-62 with No.325 cloth (WTA-49) is designed specifically for ASTM C430 and AASHTO T 192 for fineness of cement.

Features:

Resistant to corrosion
Solderless construction for efficient drying
Threaded legs offer further support and drying capability

Included Items:

Nickel-Plated Wet Wash Sieve Frame

Accessories:

Replacement Mesh Discs for replacing worn-out mesh discs

Product tags

AASHTO M 92 (262)
,
AASHTO T 192 (11)
,
ASTM E11 (1956)
,
ASTM C430 (11)

Specifications

Attribute name	Attribute value
Material	Nickel Plated
Sieve Frame Diameter	WT-60: 4in (102mm) WT-61: 3in (76mm) WT-62: 2in (51mm)
Frame Height Above Cloth	WT-60: 4.5in (114mm) WT-61: 3.5in (89mm) WT-62: 3in (76mm)
Product Dimensions	WT-60: 4 x 5.5in (102 x 140mm) dia.xH WT-61: 3 x 4.5in (76 x 114mm) dia.xH WT-62: 2 x 4in (51 x 102mm) dia.xH
Estimated Shipping Weight	WT-60: 5.0lb (2.27kg) WT-61: 1.0lb (0.45kg) WT-62: 1.0lb (0.45kg)

Quick Compare

Features	4in Two-Piece Nickel Plated Wet-Wash Sieve Frame	3in Two-Piece Nickel Plated Wet-Wash Sieve Frame	2in Two-Piece Nickel Plated Wet-Wash Sieve Frame
Pricing	$181.50	$215.00	$225.00
Sieve Frame Diameter	4in (102mm)	3in (76mm)	2in (51mm)
Product Dimensions	4x5.5in (102x140mm) dia.xH	3x4.5in (76x114mm) dia.xH	2x3in (50.8x76.2mm) dia.xH
Estimated Shipping Weight	5.0lb (2.27kg)	1.0lb (0.45kg)	1.0lb (0.45kg)
