Lightweight Perfa-Cure Curing Boxes maintain the required initial curing temperatures of 60°–80°F (16°–27°C) and provide portable storage and protection for concrete test specimens. Users simply plug in the unit and set the thermostat to the desired temperature. Models comply with current ASTM C31 and AASHTO T 23 standards for the initial curing of concrete test specimens in the field.
The durable hard-sided insulated curing box has tie-down slots for secure transport, and the rubber lid gasket keeps internal temperatures stable. The Heater Panel on the inner lid and cooling units are easily replaceable. A max-min registering thermometer mounted inside the box monitors temperature conditions. The heating panel uses a safe aluminum base to radiate heat.
Perfa-Cure boxes operate on 110V, 60Hz electrical supply. Capacity specifications are based on cylinders using flat plastic lids.

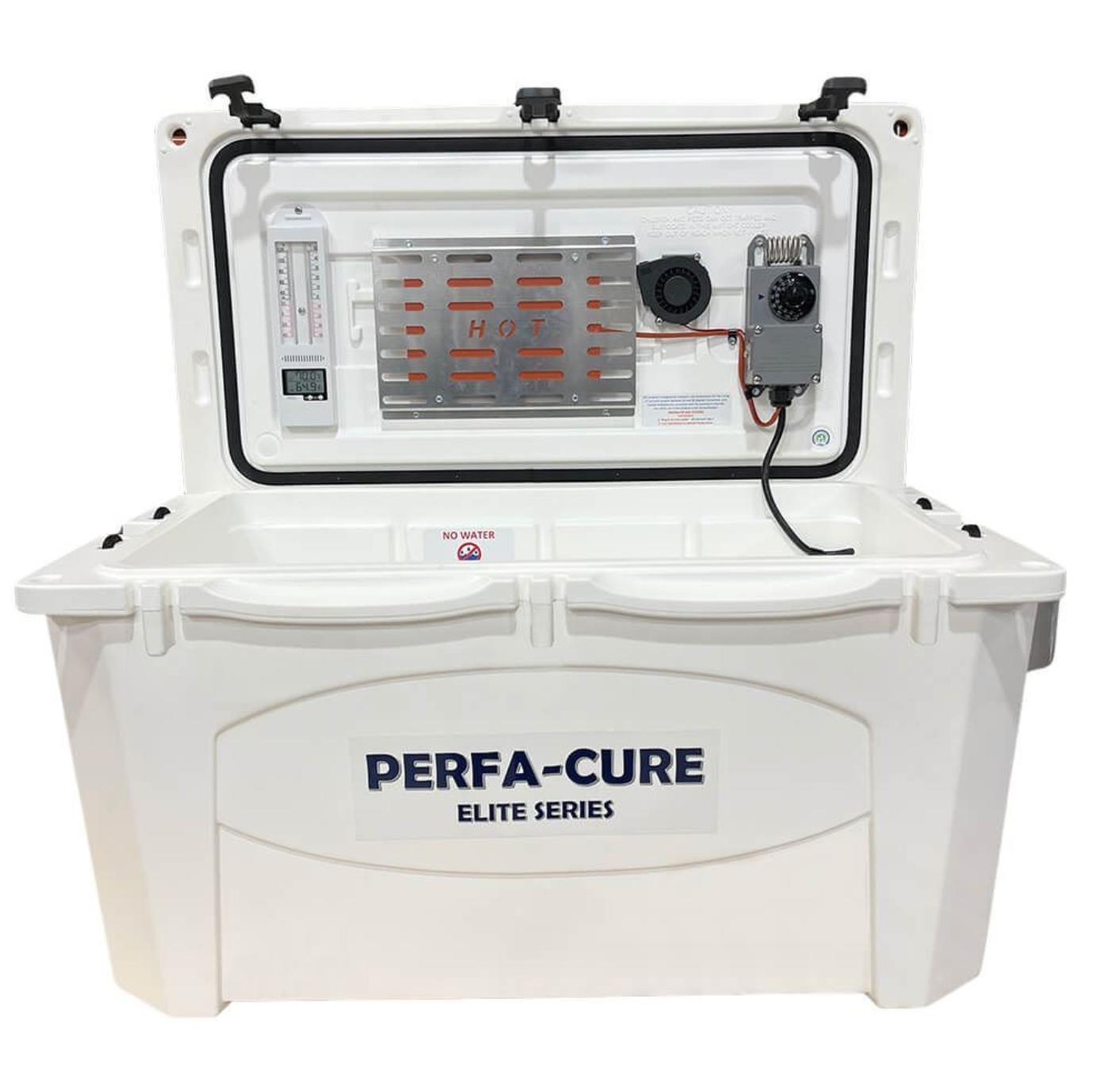

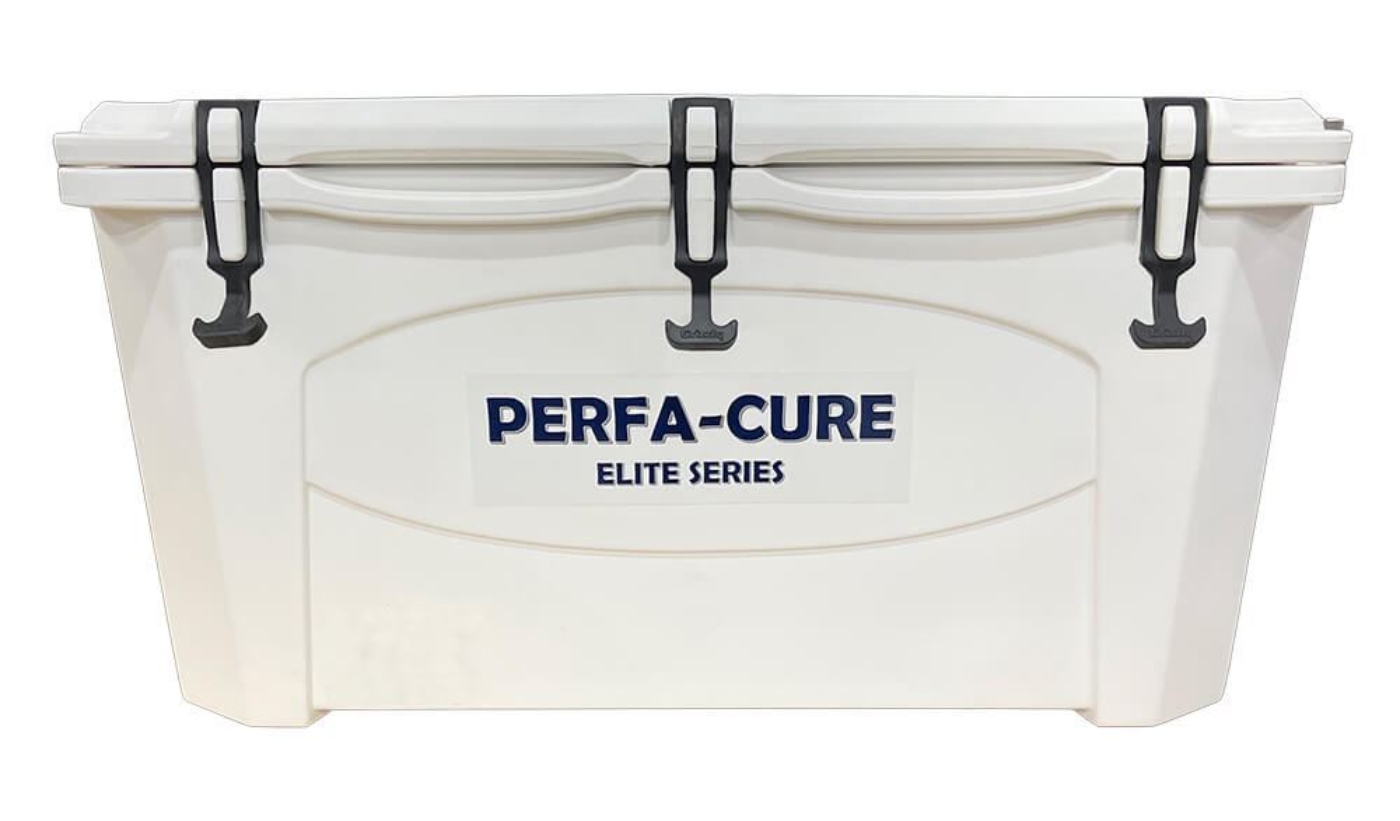

HM-489 Perfa-Cure Elite Mini is heat-only, and the 15.6gal (71L) volume capacity holds five 6x12in (152x305mm) cylinders or seventeen 4x8in (102x203mm) cylinders.

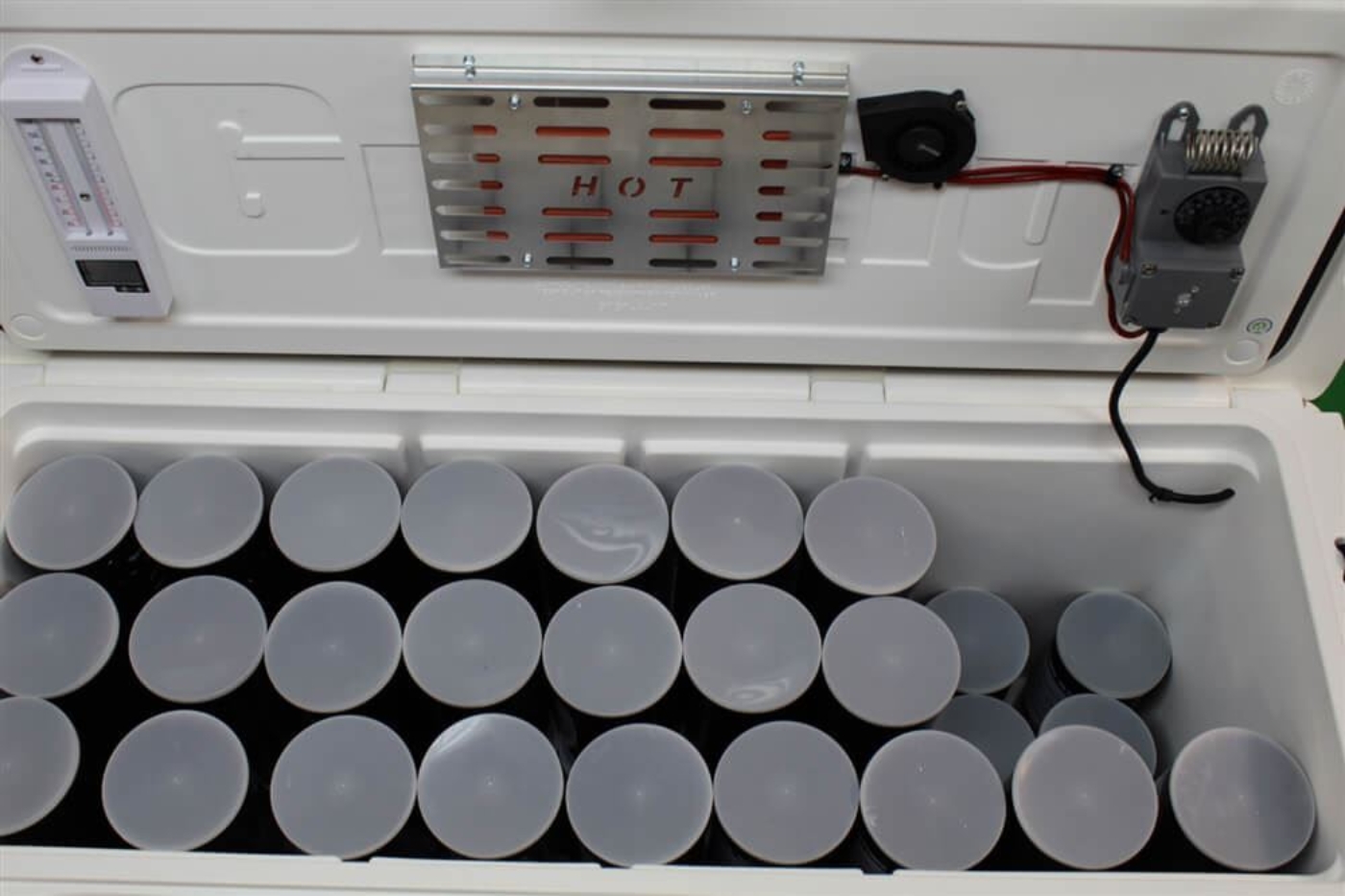

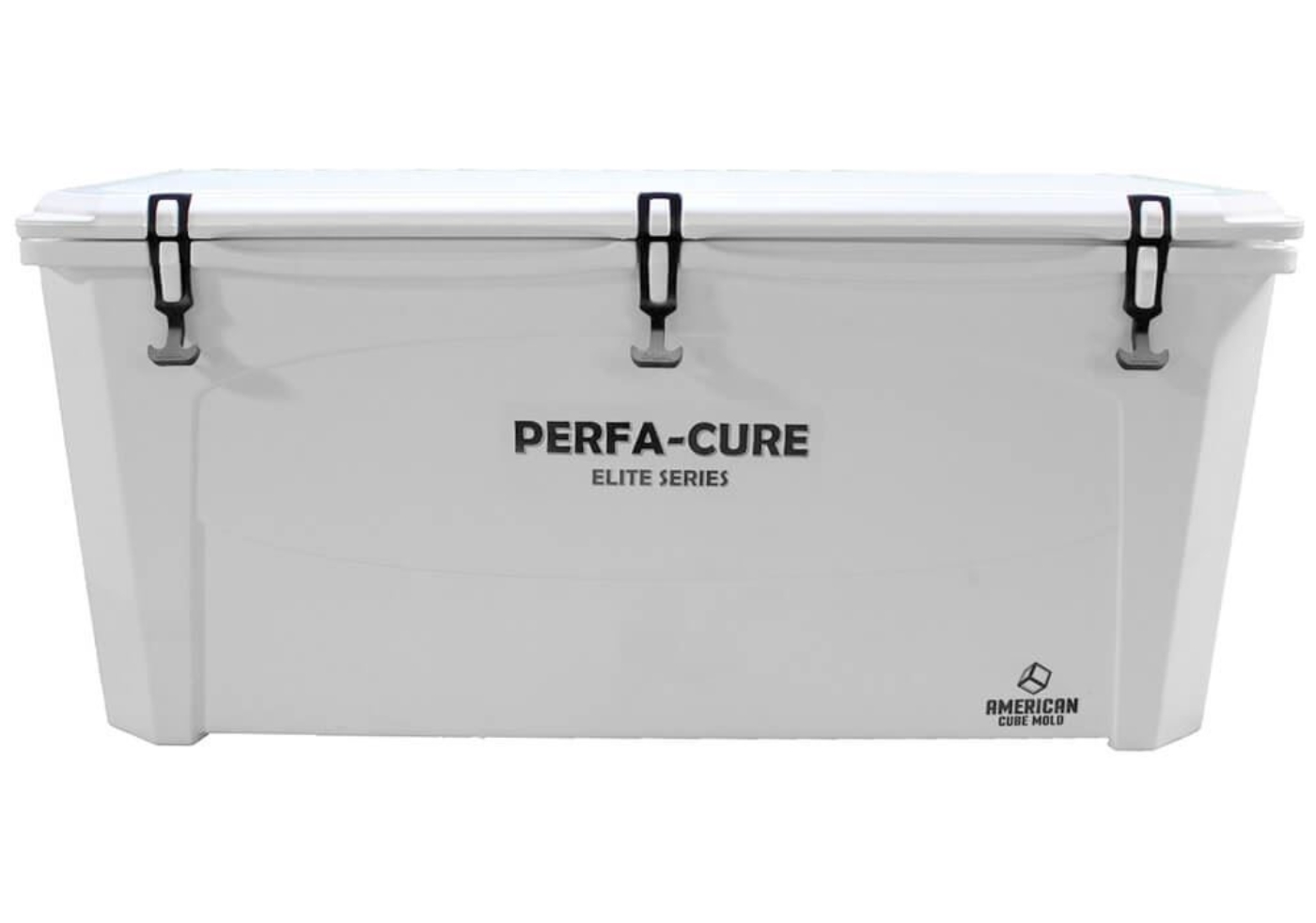

HM-494 Perfa-Cure Elite provides heat-only, and the 34gal (156L) volume capacity accommodates up to twelve 6x12in (152x305mm) cylinders or fifty 4x8in (102x203mm) cylinders.
The Perfa-Cure Mini and Elite models with heating only are designed for cold conditions in the fall and winter seasons.

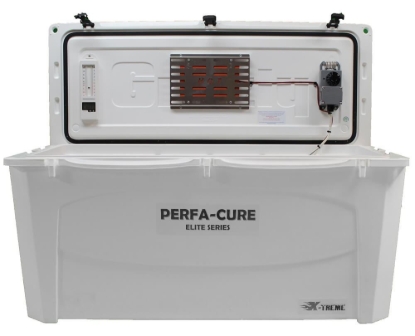

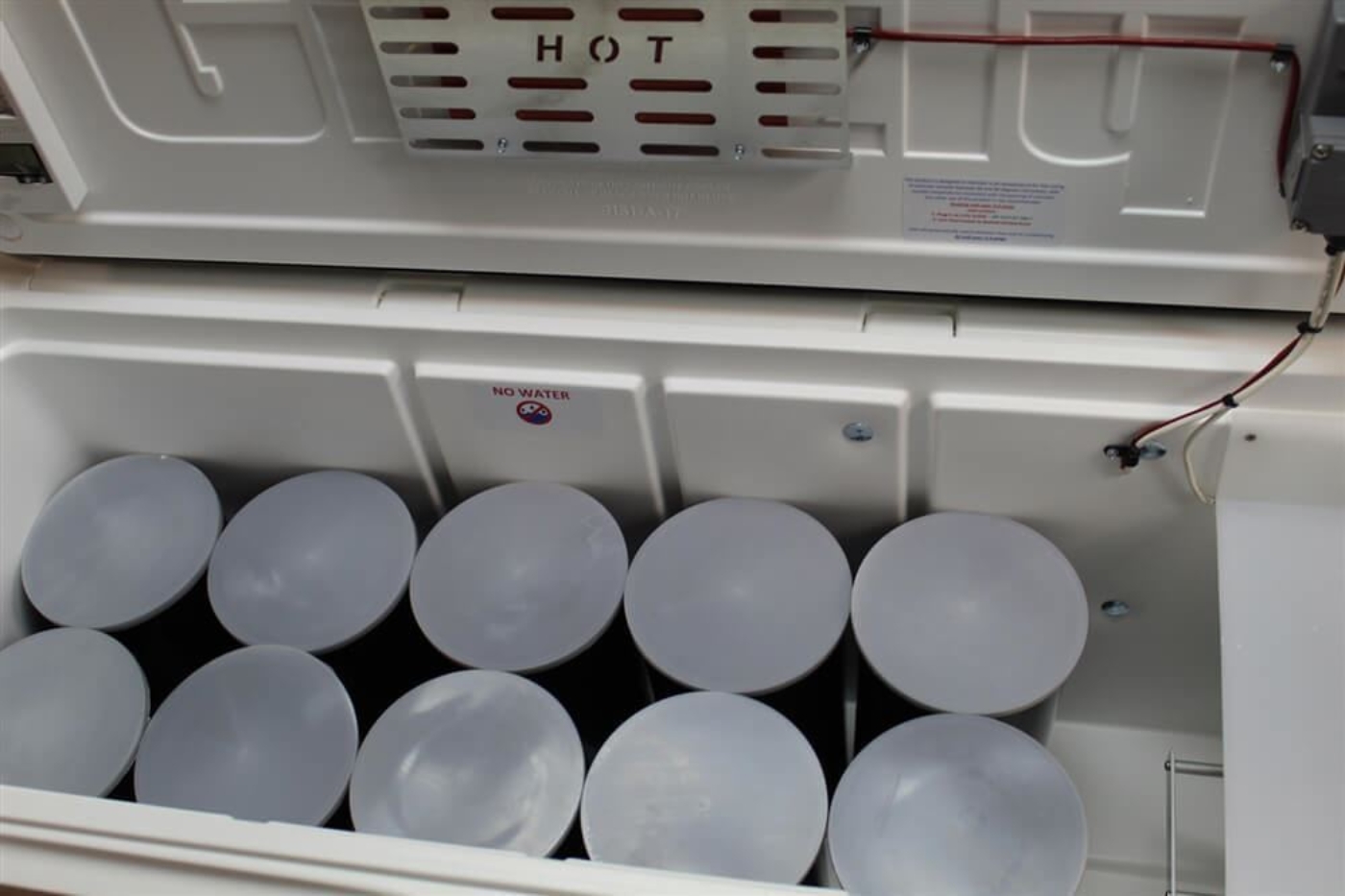

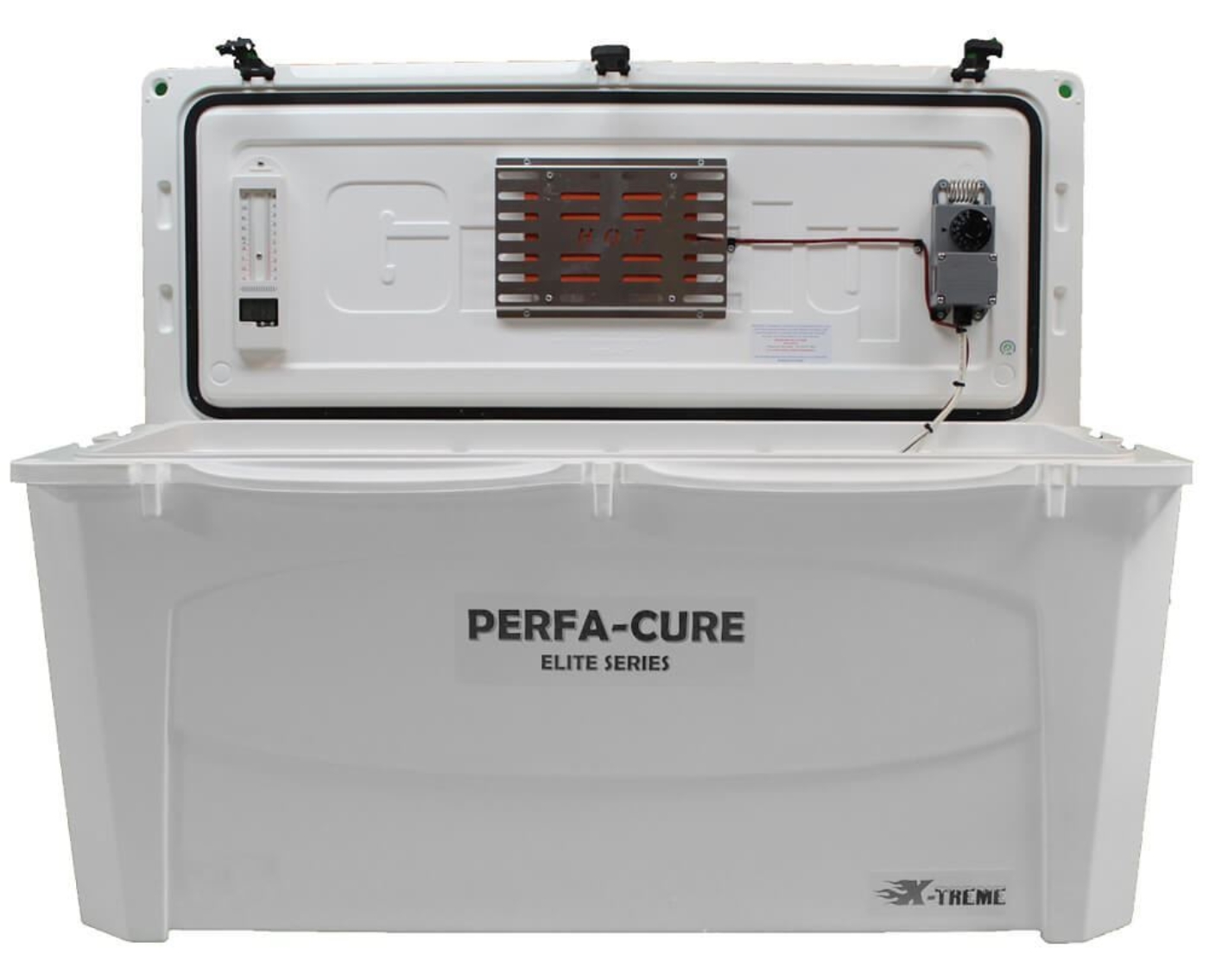

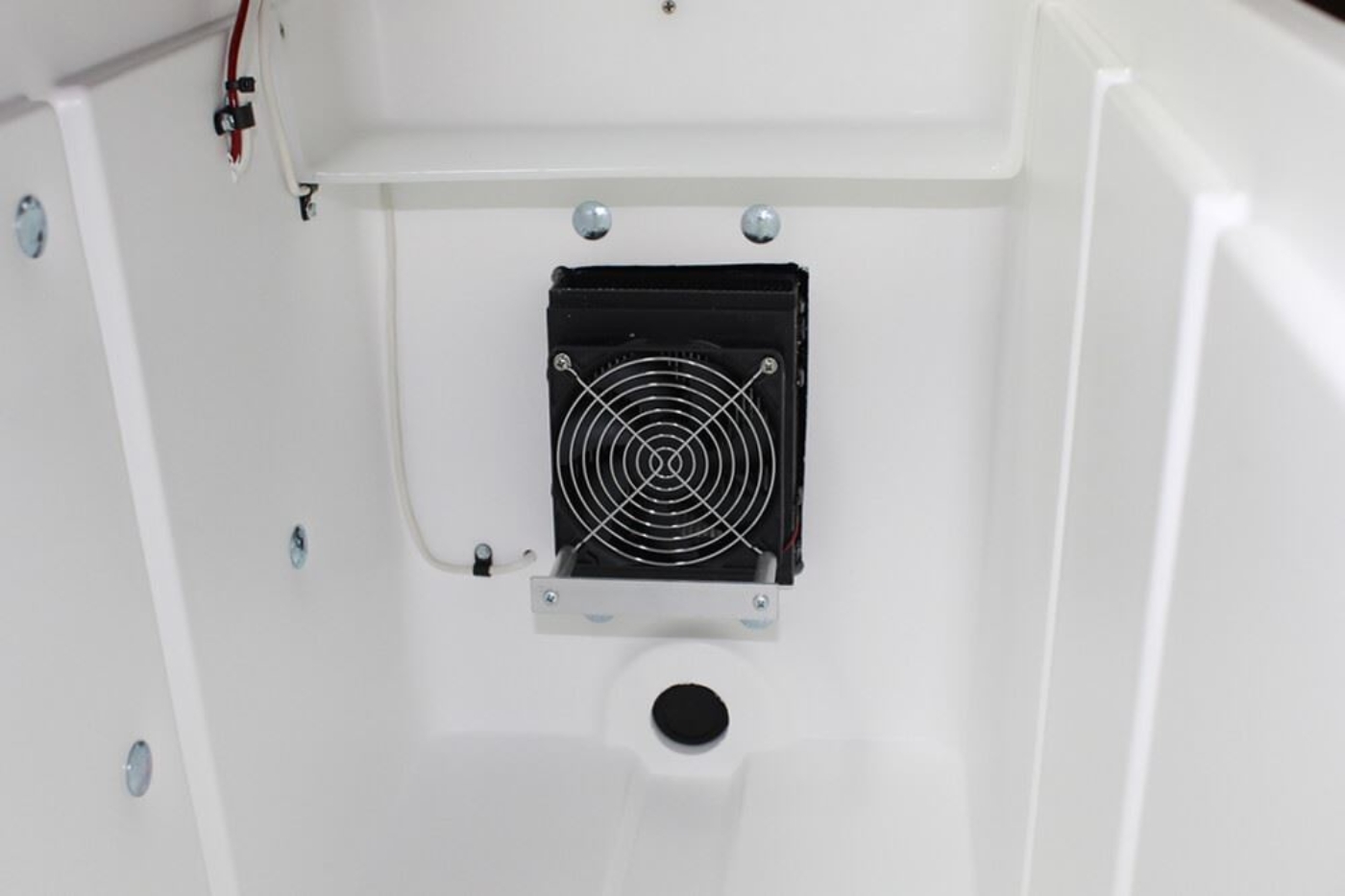

HM-496 Perfa-Cure Elite Xtreme features both heating and cooling functionality and can be used year-round and automatically switches from heating to cooling based on temperature conditions. This model with cooling features a blower fan to circulate cool air inside the box. The green indicator light illuminates when the unit is in operation. The Elite Xtreme accepts ten 6x12in (152x305mm) or forty-eight 4x8in (102x203mm) concrete cylinders with a 34gal (156L) volume capacity.
Note: Curing Tanks are oversized and must be shipped via motor freight.
Features:
- Reliable temperature maintenance and protected storage of concrete test specimens on the job site
- Compliant with ASTM C31 and AASHTO T 23 specifications
- Convenient, durable carrying handles for easy handling of the empty unit
- Inside-mounted max-min registering thermometer accurately monitors curing temperatures
Included Items:
- Perfa-Cure Concrete Curing Box
Accessories:
- Transport Racks to carry and protect 4x8in concrete specimens or 6x12in concrete cylinders
