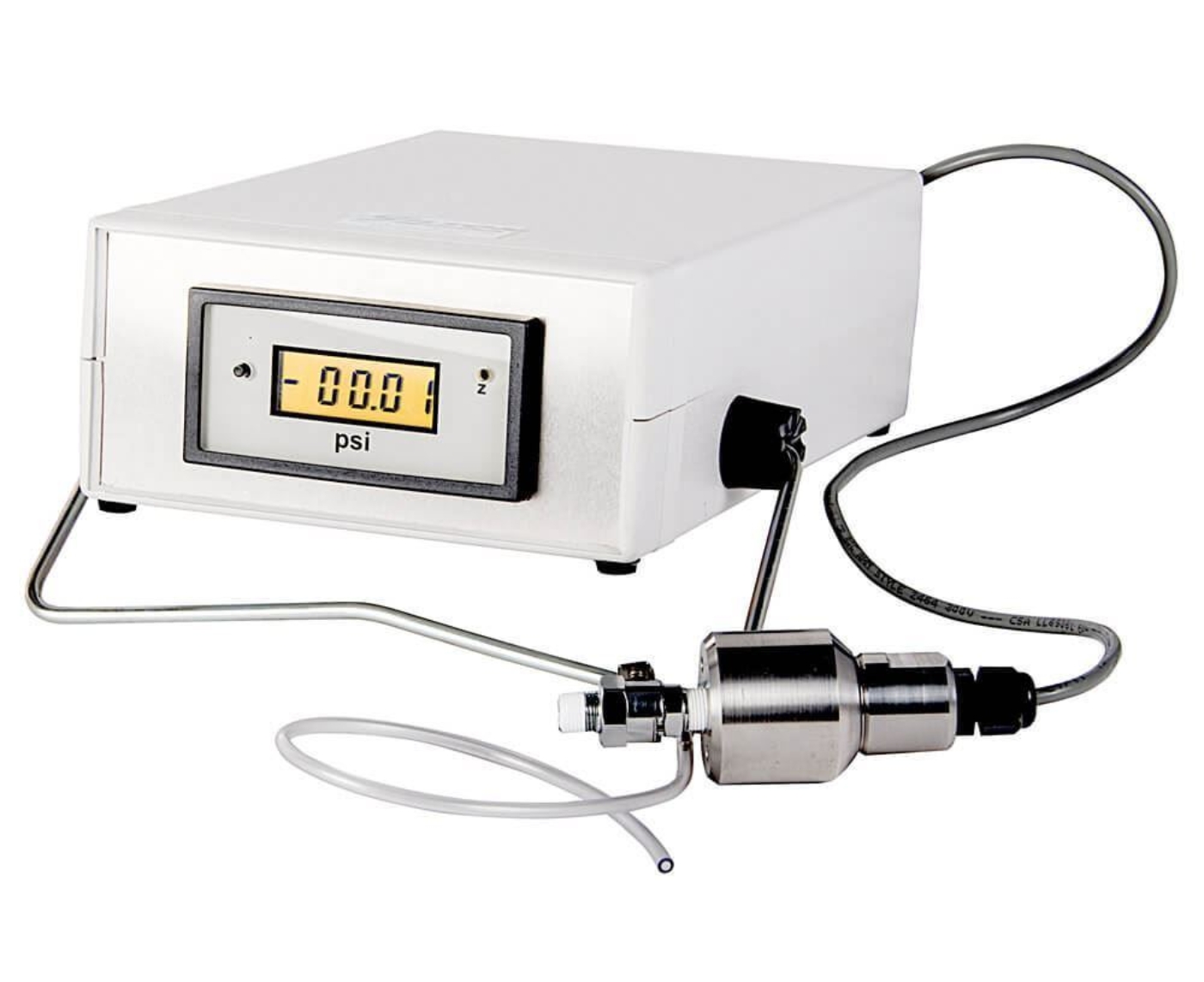

Pore Pressure Transducer with Digital Readout allows precision measurement of soil sample pore water pressure during triaxial and permeability testing. The pore measuring system allows measurements up to 150psi (1,034kPa) with 0.01psi (0.07kPa) resolution. The Transducer can also be used with triaxial cells or flexible wall permeability cells. The Pore Pressure Transducer contains a deairing valve with an easy-to-read 4.5in (114mm) LCD display mounted in a wire stand for placement on a table or other flat surface. For use with Triaxial Cells or Flexible Wall Permeability Cells.
Features:
- Precise measuring of pore pressure
- Easy-to-read 4.5in (114mm) display
- Can be used with triaxial cells or flexible wall permeability cells
Included Items:
- Pore Pressure Transducer with (psi or kPa) Digital Readout
Accessories:

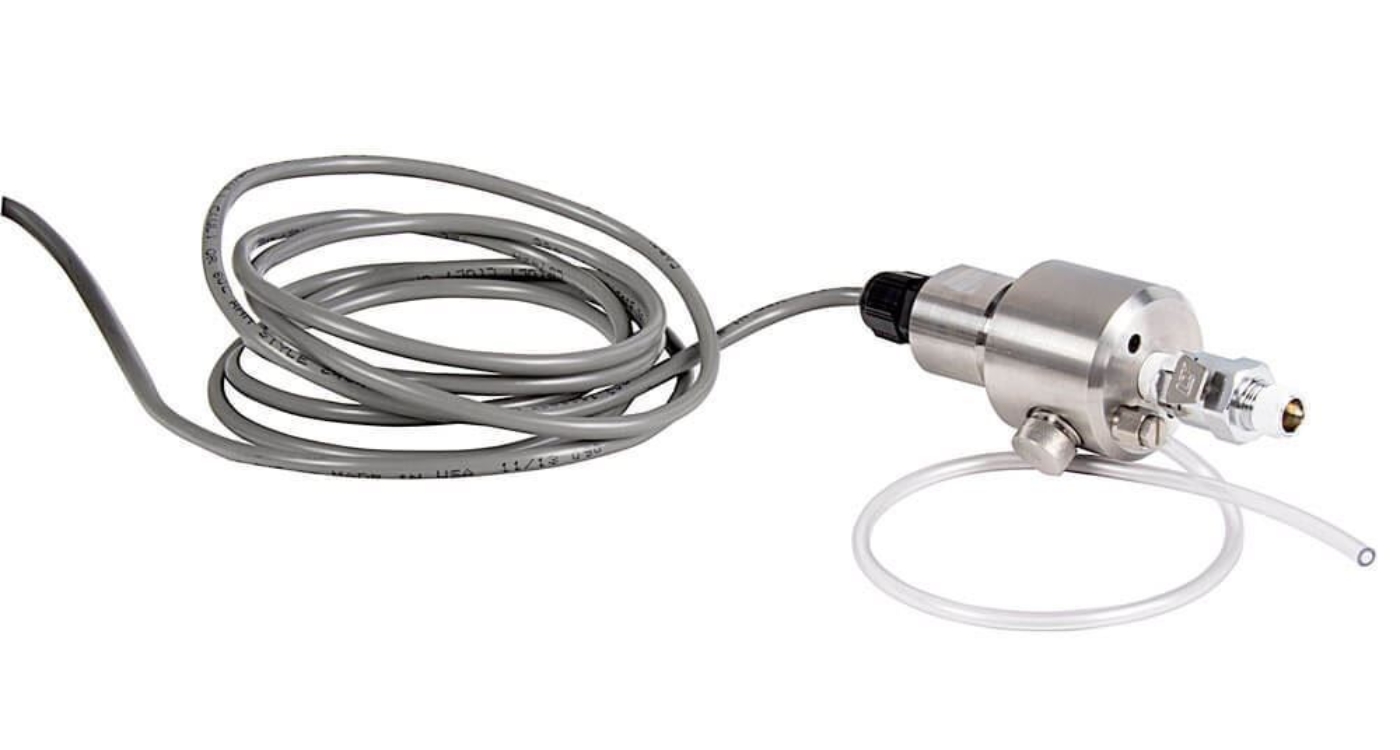

- HMA-525 Pore Pressure Transducer with Deairing Block can be connected to an HM-418 Two-Channel or HM-419 Four-Channel Data Readout to measure pore pressures to 150psi with 0.01psi resolution.
