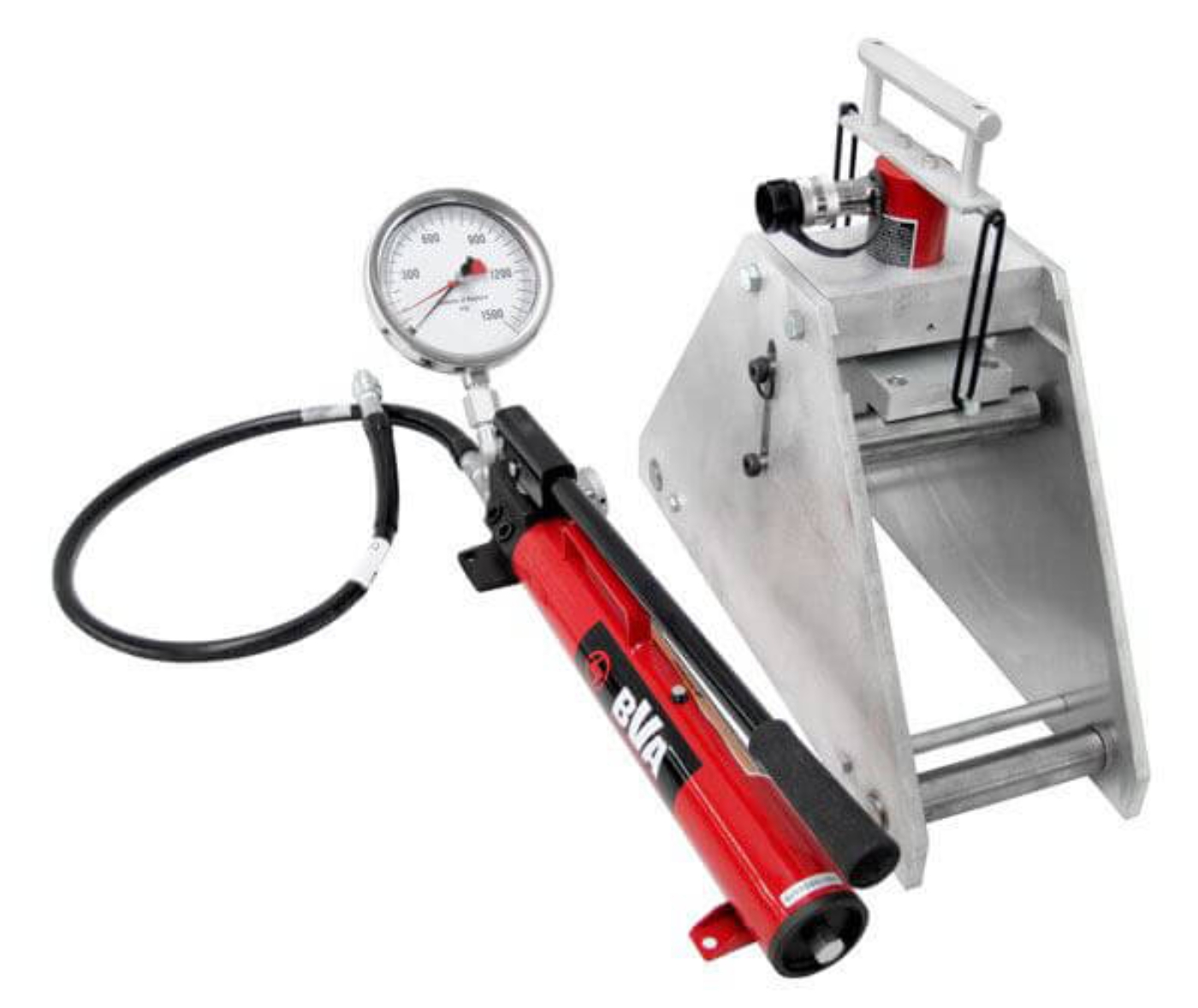

Portable Beam Tester transports and sets up easily for rapid field checks of 6x6in (152x152mm) concrete beam specimens with a minimum length of 20in (508mm). Conversion between third-point and center-point flexural loading configurations is quick and easy. The hydraulically loaded unit does not strictly comply with ASTM/AASHTO requirements, but results compare favorably with more expensive machines meeting the standards.
Upper bearing assemblies are provided for both center-point and third-point loading. Third-point assembly bearing points are 6in (152mm) center-to-center. Elastic bands hold the assemblies in a raised position for easier specimen placement. Lower bearing points on the load frame are 18in (457.2mm) on-center and pivot as the test beam deflects. The manually-operated pump assembly with a 6in (152mm) diameter gauge is attached by a 4ft (1.2m) quick-disconnect hose to the hydraulic cylinder and load frame. The high-quality, direct-reading gauge features ±0.25% accuracy and is graduated from 0-1500 psi.
Features:
- Easy, portable setup for rapid field checks of 6x6in concrete beam specimens
- Results comparable to those of more expensive equipment
- Manual hydraulic loading
Included Items:
- Portable Beam Tester
