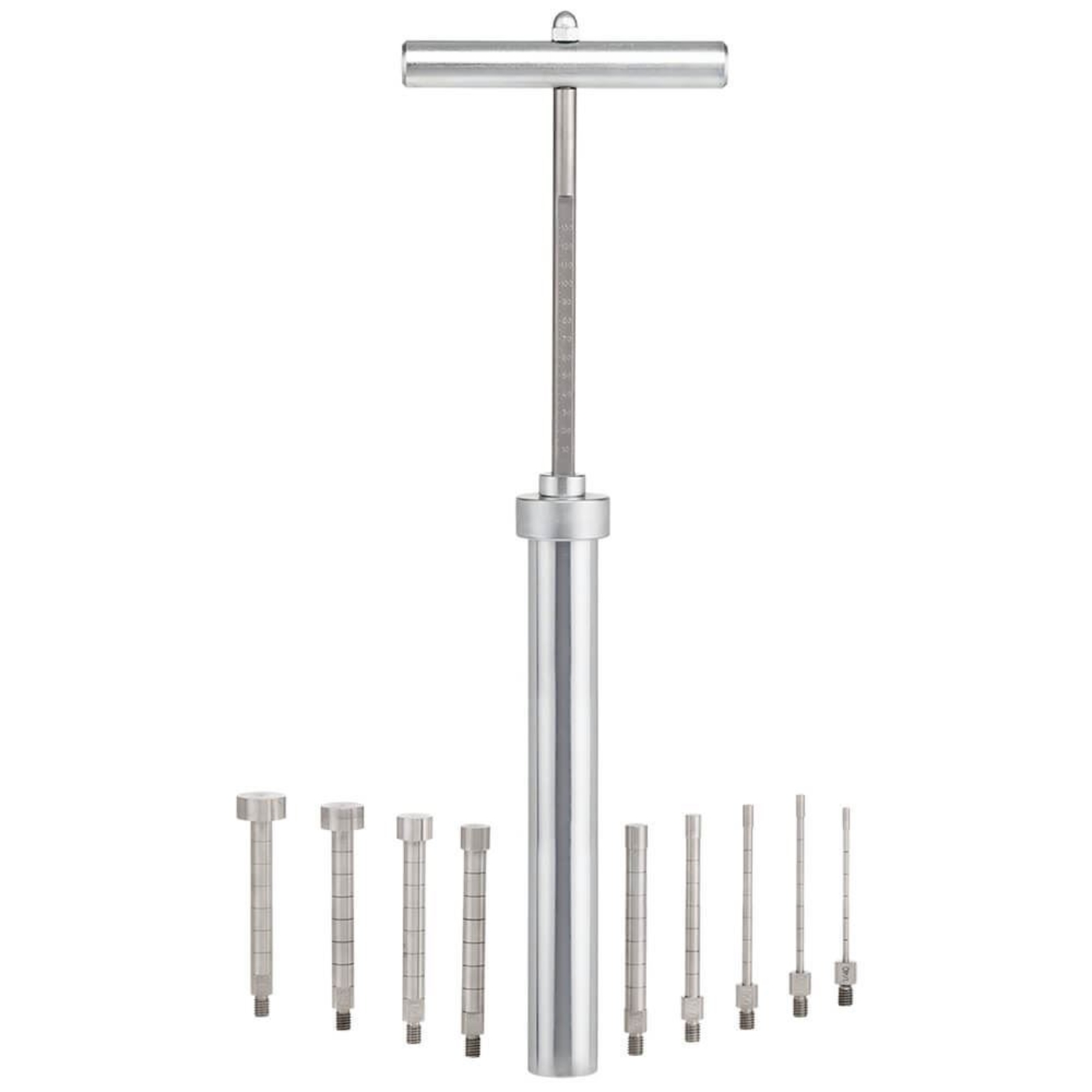

Proctor Penetrometer Set determines the penetration resistance of fine-grained soils. The penetrometer consists of a spring dynamometer, with a scale on the stem graduated from 10–130lbf (45–580N) in increments of 2lbf (9N). A sliding ring on the stem gives shear strength obtained in the test. This basic set includes interchangeable threaded needles with area in square inches (square centimeters); 1 (6.45), 3/4 (4.84), 1/2 (3.23), 1/3 (2.15), 1/5 (1.29), 1/10 (0.65), 1/20 (0.32), 1/30 (0.22) and 1/40 (0.16).

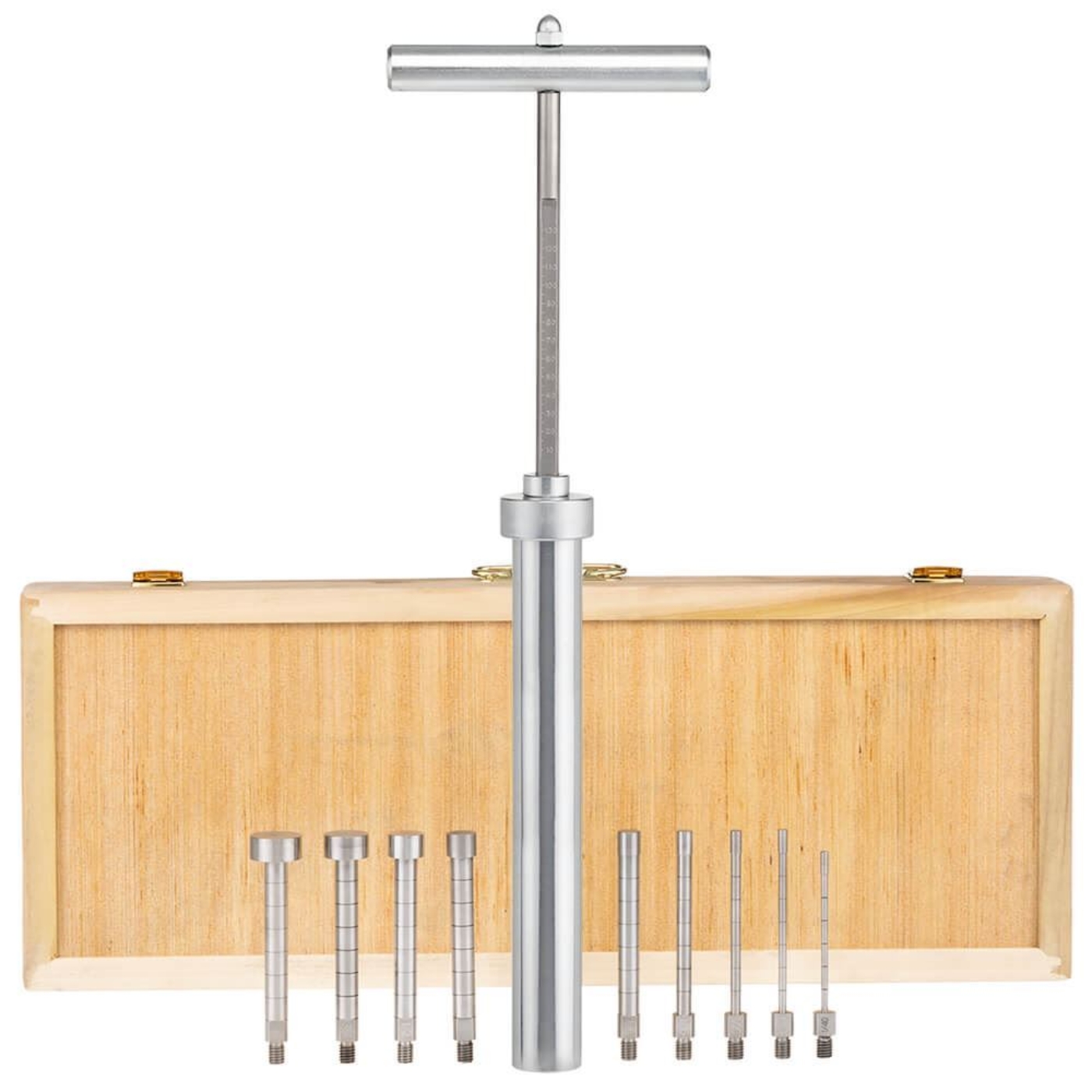

Replacement needles are available, please inquire. The set comes in an attractive foam-lined wooden box with carrying handle.
Features:
- Scale graduations from 10 to 130lbf
- Threaded needles are interchangeable
Included Items:
- Proctor Penetrometer Set
- (9) Interchangeable Needles
- Carrying Case
