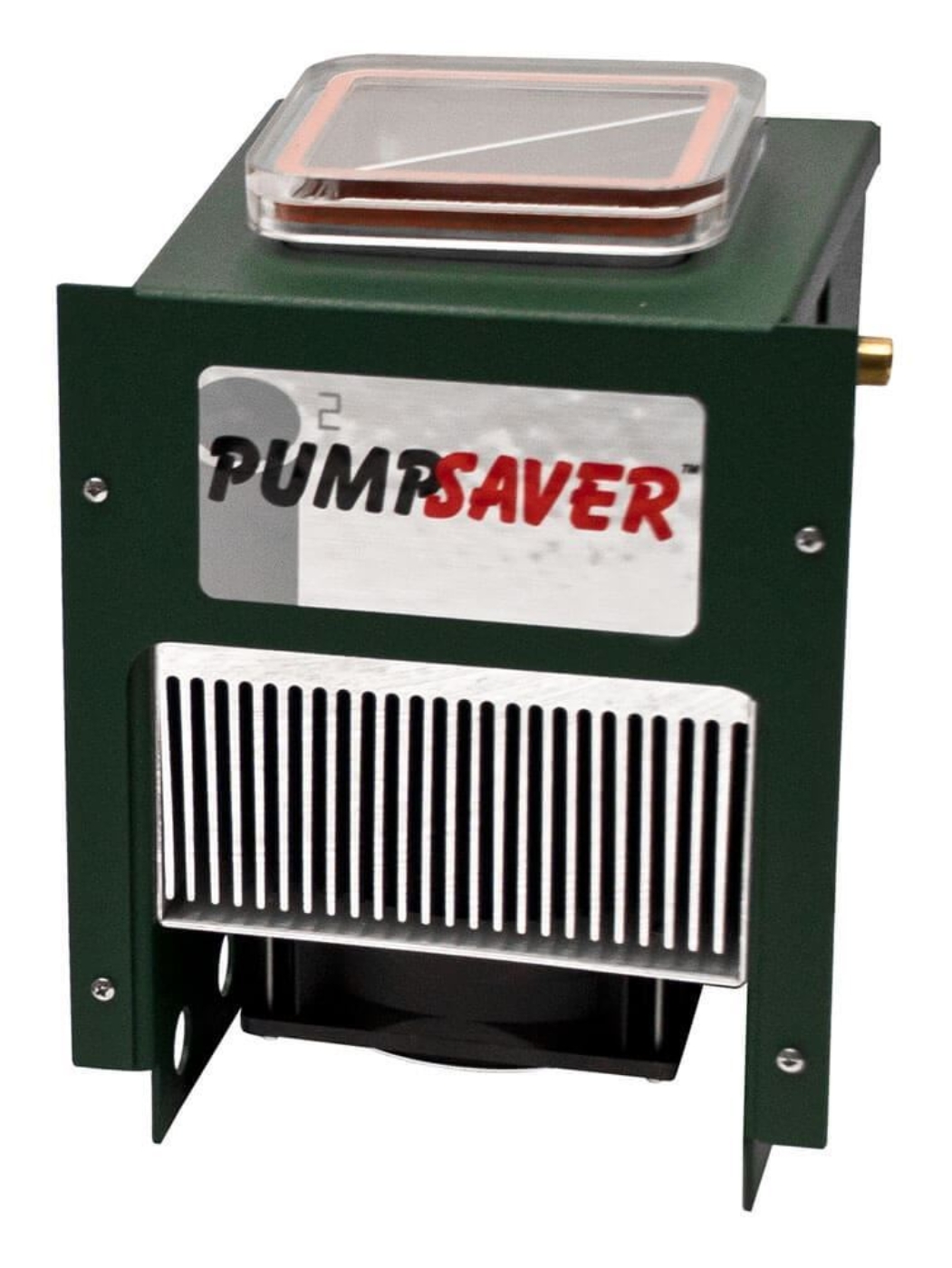

PumpSaver™ Air Dryer is an air dryer to protect vacuum pumps and optimizes efficiency. This dryer is a component used with the SG-35 AutoRice™ Digital Manometer & Controller or MA-170 Digital Residual Pressure Manometer.
The high-performance thermoelectric (Peltier) chamber chills incoming air, thereby condensing and removing moisture before it reaches the vacuum pump. This eliminates the need for elaborate moisture traps and desiccant cartridges. It also reduces resistance to airflow while maximizing pump efficiency and increasing service life.
The vacuum pump can reach the desired vacuum immediately, enhancing accuracy and repeatability. The unit has one inlet and one outlet port for connection between the vacuum pump and pycnometer, using 3/8, 7/16, or 1/2in (10, 11, or 12.7mm) ID tubing, purchased separately. The dryer unit operates at 120-240V, 50/60Hz. The SGA-128 PumpSaver™ is sold as a single unit and is also available together in a set with the AutoRice™ Controller as Gilson Product SG-36.
Features:
- High-efficiency dryer offers increased efficiency, performance, and service life of vacuum pump
- Protects vacuum pumps from damaging moisture
Included Items:
- PumpSaver™ Air Dryer
