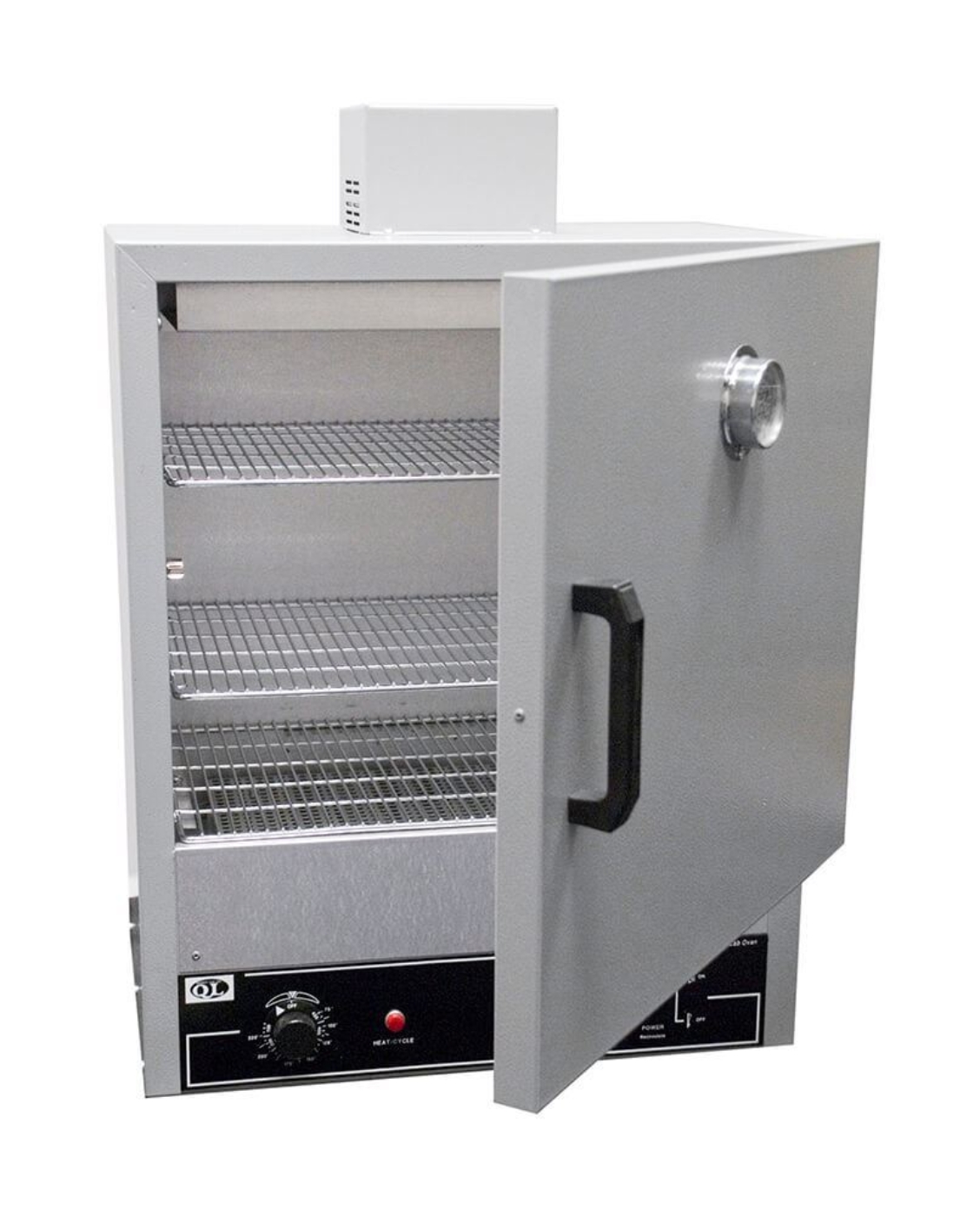

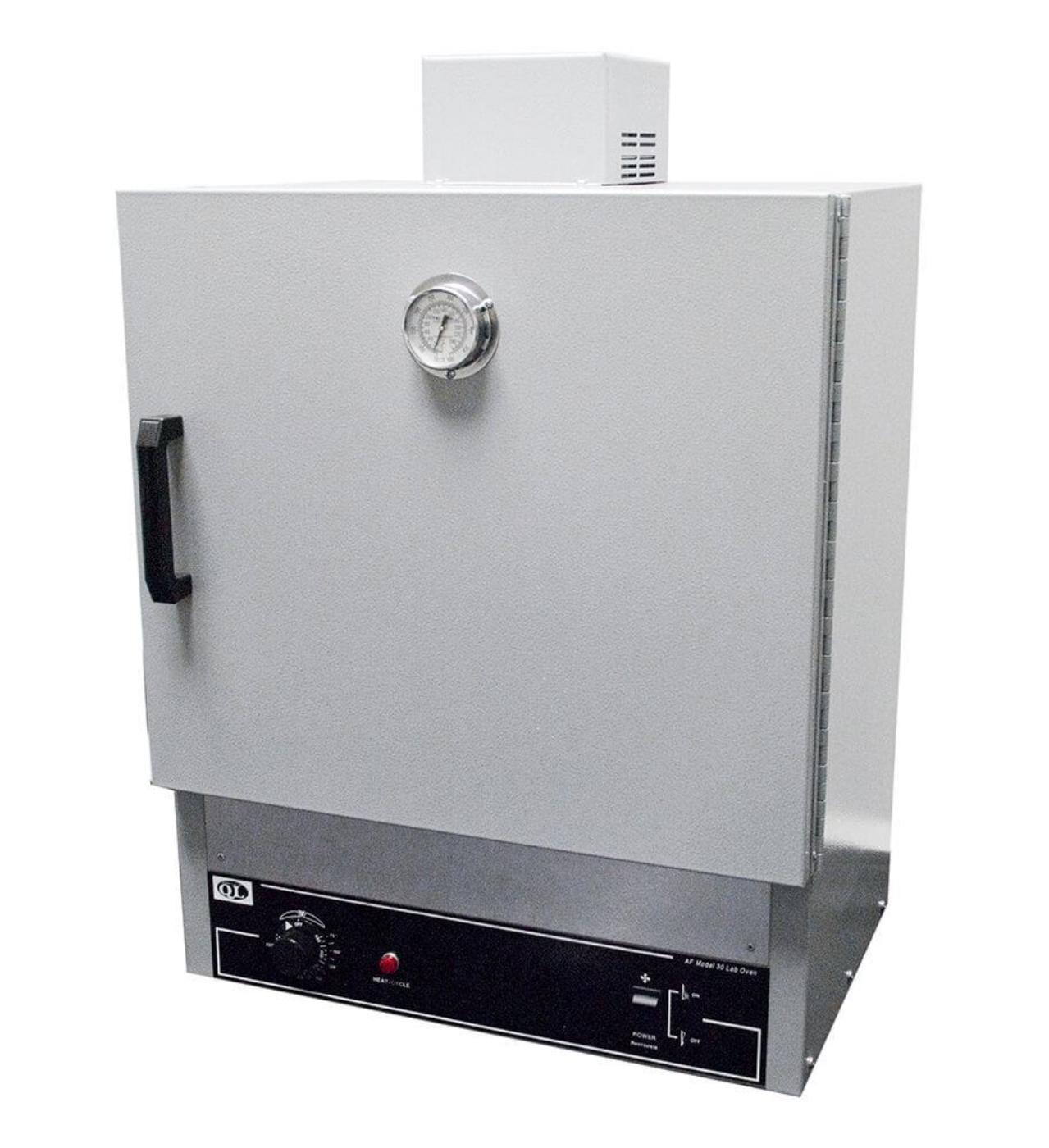

Quincy Lab Ovens have a 1.14ft³ (32.3L) capacity with forced-air convection, hydraulic thermostat, 450°F (232°C) maximum temperature, and ±3°C uniformity for drying and controlled heating applications. Single-door with a high-impact thermoplastic handle, these ovens have one fixed and two adjustable shelves; additional shelves are sold as optional accessories. Each model comes with a two-year warranty.
The control panel includes an illuminated On/Off rocker switch and Heat/Cycle pilot light. Cabinets are heavy steel double-wall construction; the painted exterior has a durable, scratch-resistant hammer-tone finish. The interior is corrosion-resistant aluminized steel, with 1in high-density mineral wool insulation between the interior and exterior walls. Inquire for an optional factory-installed 12-Hour Timer to shut off operation at a preset time of up to 12 hours. A Hold feature allows for continuous operation.
Forced-air convection models include a special fan and air transfer plenum that allows the oven to maintain a more uniform temperature and a door-mounted dual-range °F/°C dial thermometer. Unique engineering features include energy-efficient, low-watt density Incoloy-sheathed elements that allow for quick run-up and recovery times.
BO-120 Quincy Lab Oven operates on 120V, 50/60Hz and comes with a cord and NEMA 5-15P plug.
BO-120F Quincy Lab Oven operates on 230V, 50/60Hz and comes with a cord and NEMA 6-15P plug.
Features:
- 1.14ft³ (32.3L) capacity
- 450°F (232°C) maximum temperature with ±3°C uniformity for drying and controlled heating applications
- Hydraulic thermostat
- Forced-Air convection
- Special fan and air transfer plenum maintain a uniform temperature
- Door-mounted dial thermometer
- Three shelf capacity accommodates a variety of uses
Included Items:
- 1.14ft³ Lab Oven
- Three shelves
- Cord and plug
- Door-mounted dial thermometer
- Two-year warranty
Accessories:
- BOA-5 Factory-Installed 12hr Timer for Bench and Lab Ovens shuts off the oven at selected elapsed time and has a hold feature

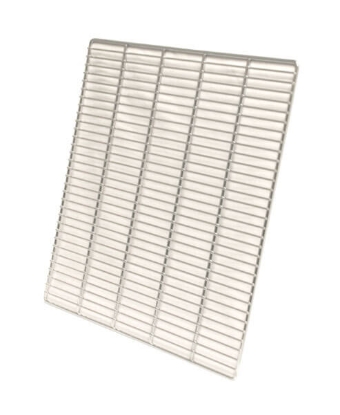

- BOA-31 Extra Shelf for Quincy Lab Oven increases drying and heating capacity
- BOA-6 Dual-Range In-Door Thermometer provides verification of chamber temperature during operation
