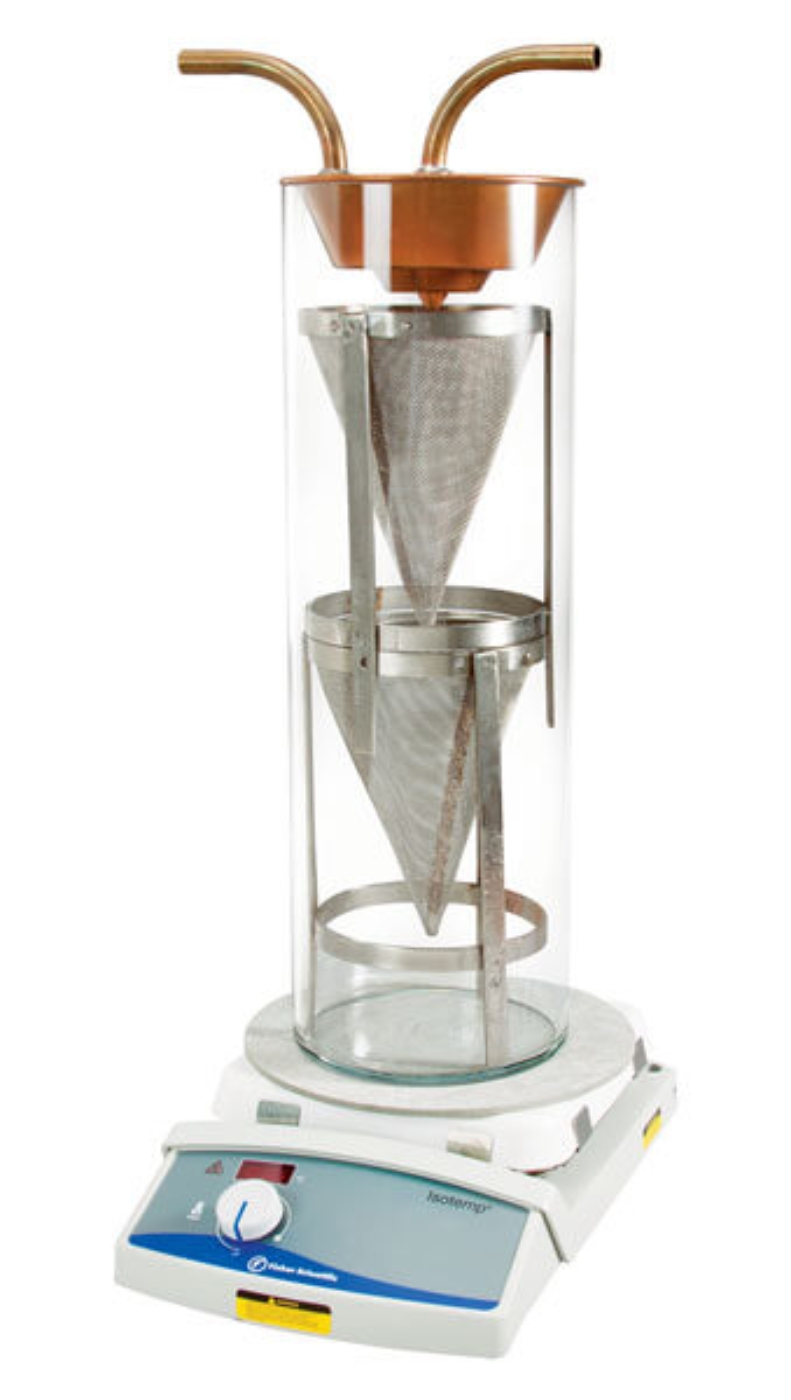

Reflux Extractors are used for reflux extraction to determine asphalt content in bituminous pavement mixtures, which is the least expensive method.
Hot plates generate solvent vapor that passes around and through the sample contained in two wire mesh cones lined with filter paper. Reflux solvent condensing on the water-cooled condenser percolates through the sample repeatedly until the bitumen is extracted.
Reflux Extractors are offered in nominal capacities and include a Hot Plate, Extraction Jar, two interlocking wire Mesh Cones with bail handles, copper Condenser with water inlet/outlet tubes, Filter Paper, and Insulating Pad. Models operate on 115V, 50/60Hz or 230V, 50/60Hz.
HM-5 models have a sample capacity of 1,000g and include a 6x18in (152.4x457.2mm), dia.xH jar and 6in (152.4mm) hot plate.

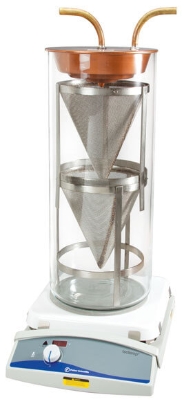

HM-6 models have a sample capacity of 2,000g and include an 8.75x18in (222.25x457.2mm), dia.xH jar and 9in (228.6mm) hot plate.
Features:
- A cost-effective option for asphalt content determinations in bituminous pavement mixtures
- The choice between 1,000g and 2,000g capacities
- All-in-one solution with necessary items for procedure included
Included Items:
- Reflux Extractor (1,000g or 2,000g)
- Hot plate
- Glass Extraction Jar with ground top
- Two interlocking wire Mesh Cones with bail handles
- Copper Condenser
- Filter Paper
- Insulating Pad
- Instructions
Accessories:
- HMA-53 Condenser for 1,000g Reflux Extractor water-cooled copper condenser drips reflux solvent through the sample for asphalt extraction

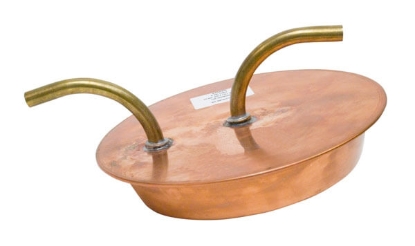

- HMA-63 Condenser for 2,000g Reflux Extractor, water-cooled copper condenser drips reflux solvent through the sample for asphalt extraction
- HMA-38 Insulating Pad for Reflux Extractor protects the area next to the hot plate surface
- HMA-52 Wire Mesh Cone Set for 1,000g Reflux Extractor holds samples during extraction
- HMA-62 Wire Mesh Cone Set for 2,000g Reflux Extractor holds samples during extraction

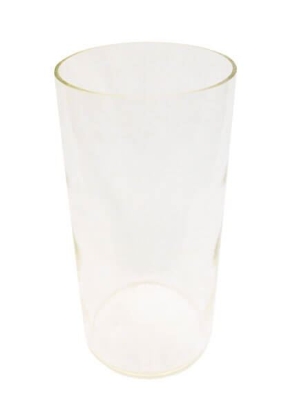

- HMA-51 Reflux Extractor Jar is a replacement for a glass jar of HMA-53 Condenser
- HMA-61 Reflux Extractor Jar for 2,000g Reflux Extractors is a replacement for a glass jar of HMA-63 Condenser

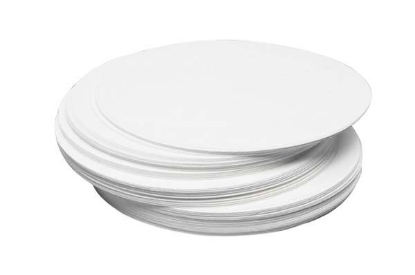

- HMA-54 13in Diameter Grade 613 Filter Paper fits HMA-52 Cone Set
- HMA-64 40cm Filter Paper for Reflux Extractor, Grade 617 fits HMA-62 Cone Set
